Siirry sivupalkkiinSiirry alaosaanMassey Ferguson 230-255

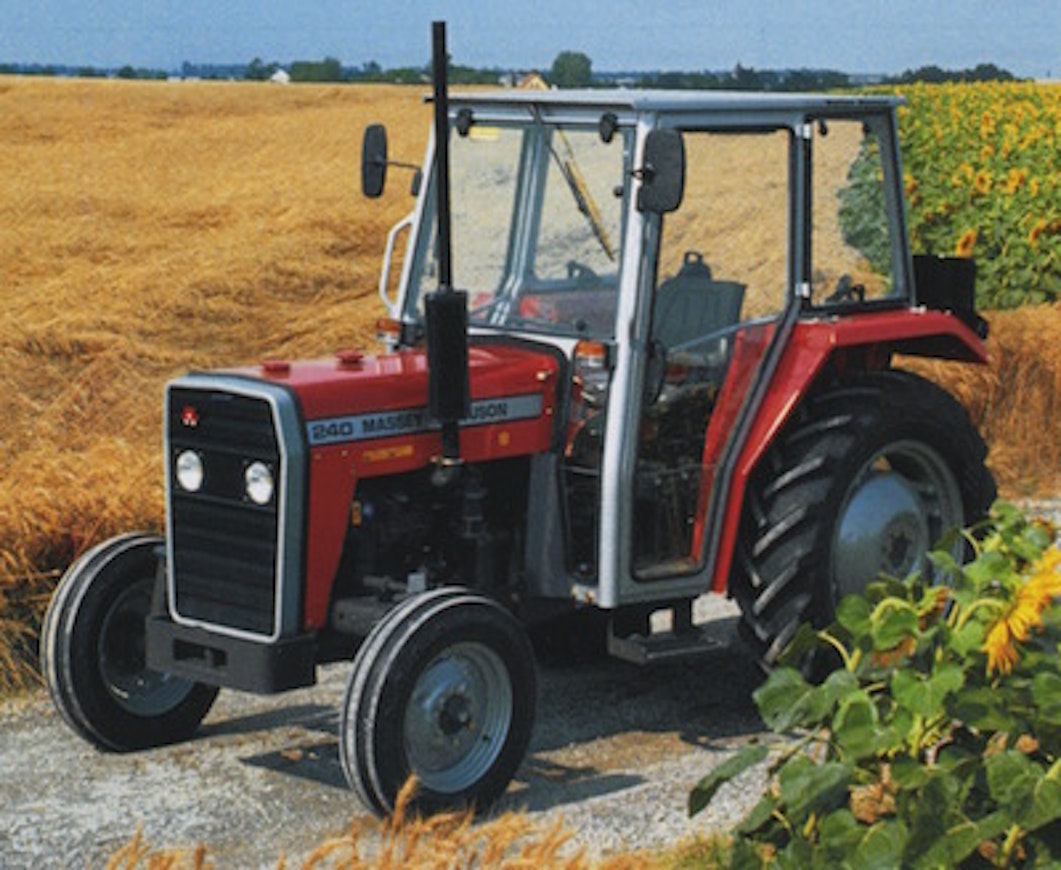

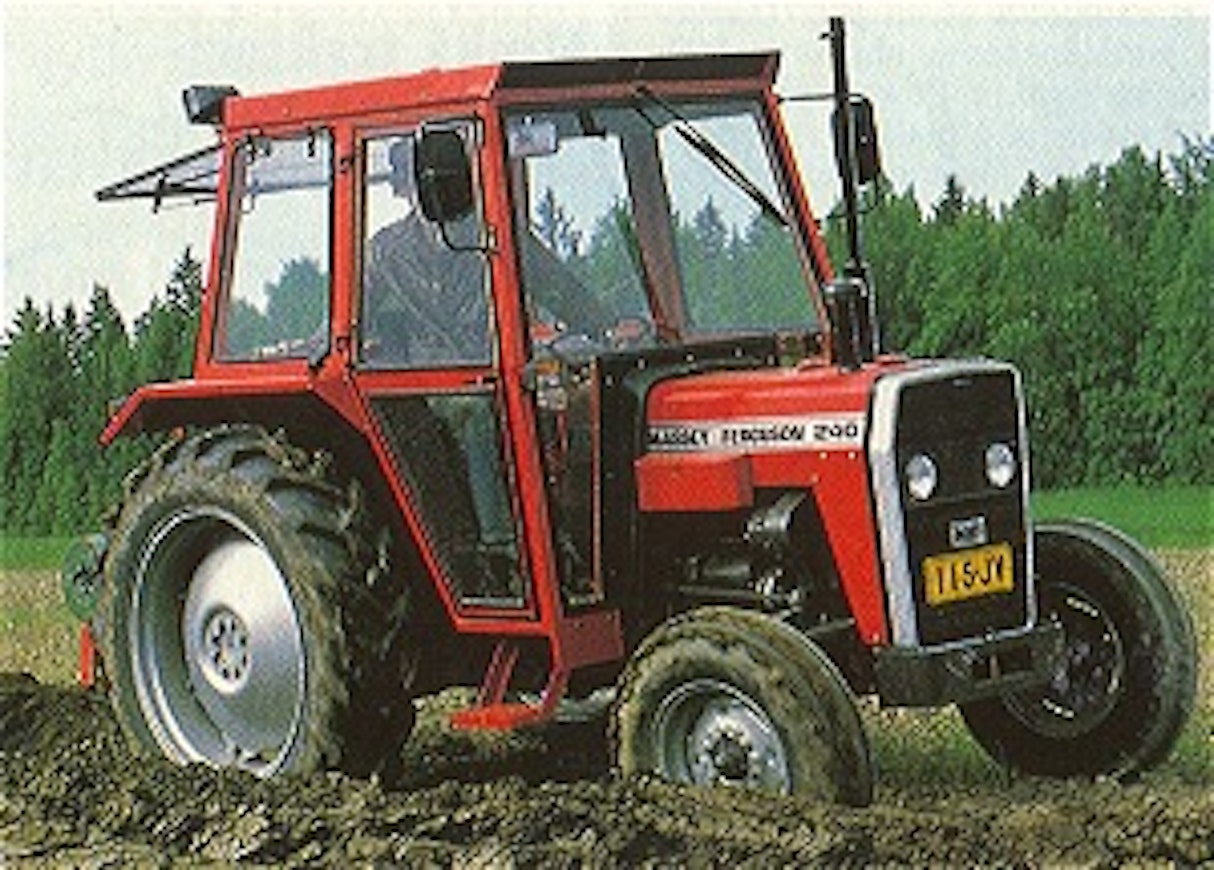

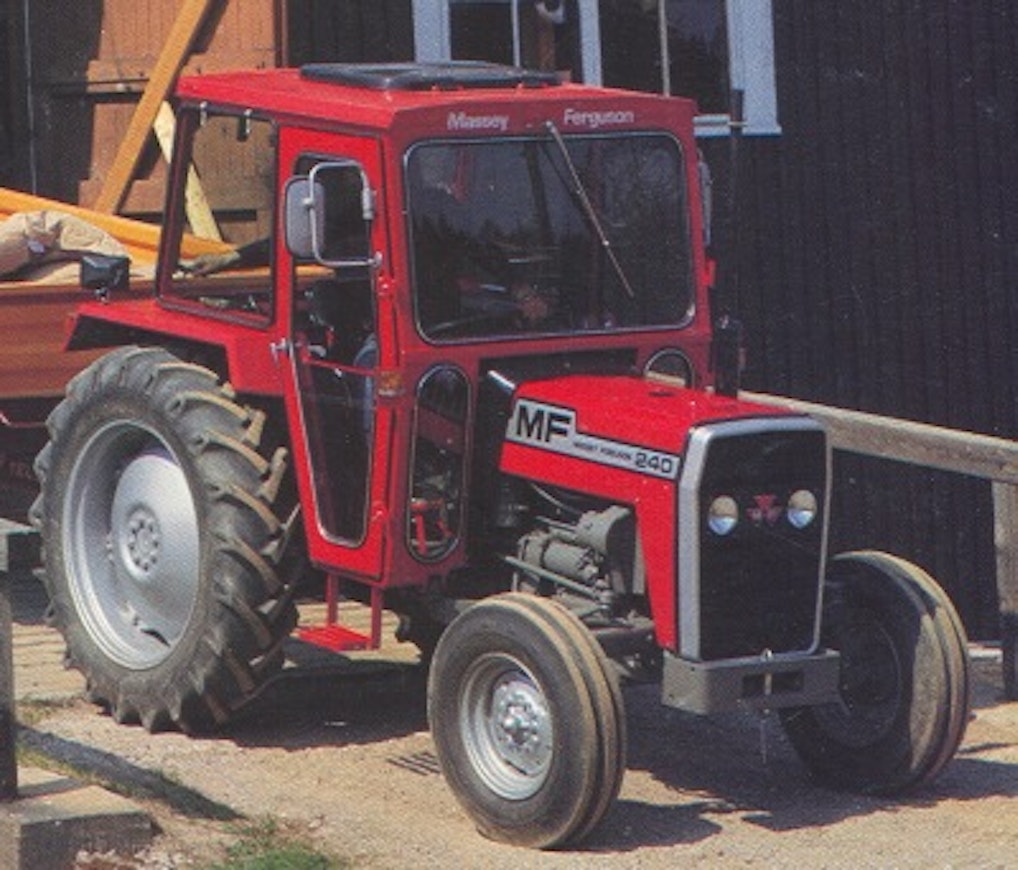

MF 135 and 148 remained in production until 1979, even though imports to Finland had ended earlier. Their successor was the 240/245 introduced in 1977, of which the former was the one brought into Finland. The 240 featured old technology in a new shell. It still had drum brakes, limited lifting capacity, power-assisted steering, and a non-synchronized 8+2 gearbox. The cab was manufactured by British company Lambourn. In 1983 the cab was replaced with a new one (see second picture).
Worldwide there is also a 250 model, which differs from the 240 by having planetary final drives at the rear and oil-immersed disc brakes. There was also a four-wheel-drive version of the 250. In some countries, models 245 and 255 were sold instead. The 245 differed from the 240 by having a shorter wheelbase and a lifting capacity of 1,650 kg. The 255 offered 1,800 kg of lifting capacity and featured oil-immersed brakes. The smallest models in the range were the 230 and 235, both with 38 horsepower.
Save
This is an automated translation. Please report any issues in the translation.
| Model | Massey Ferguson 230 | Massey Ferguson 240 | Massey Ferguson 240 | Massey Ferguson 240 | Massey Ferguson 250 |
|---|---|---|---|---|---|
| Manufacturer name | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson |
| Imported to Finland | No | No | No | No | No |
| Years | 1983-85 | 1979-83 | 1983-85 | 1985-07 | 1980-85 |
| Engine model | AD 3.152 | AD 3.152 | AD 3.152 | AD 3.152 | AD 3.152S |
| Cyl/Turbo/Intercooler | 3 | 3 | 3 | 3 | 3 |
| Displacement | 2500 cm³ | 2500 cm³ | 2500 cm³ | 2500 cm³ | 2500 cm³ |
| Bore x stroke | 91,44×127 mm | 91,44×127 mm | 91,44×127 mm | 91,44×127 mm | 91,44×127 mm |
| Rated power | 38/1800 hp DIN/rpm | 47/2250 hp DIN/rpm | 47/2250 hp DIN/rpm | 47/2250 hp DIN/rpm | 47/2250 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 8+2 | 8+2 | 8+2 | 8+2 | 8+2/12+4 |
| Powershift gears | ei FIN | ei FIN | ei FIN | ei FIN | opt. |
| Speeds in km/h | 2,0-21,4 | 2,1-29,0 | 2,1-29,0 | 2,2-27,1 | 2,6-28,3 |
| Hydr. flow l/min | 14 l/min | 21 l/min | 21 l/min | 17 l/min | 28 l/min |
| Hydraulic pressure | 179 bar | 179 bar | 179 bar | 179 bar | 179 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1415 kg | 1415 kg | 1415 kg | 1415 kg | 1475/2060 kg |
| PTO speeds | 540/ajo | 540/ajo | 540/ajo | 540/ajo | 540/ajo |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | wet disc |
| Steering | power | power | power | power | power |
| Turning circle m 2WD | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 |
| Front tyres 2WD | 6.00-16 | 7.50-16 | 7.50-16 | 6.00-16 | 6.00-19 |
| Rear tyres 2WD | 12.4-28 | 12.4-32 | 12.4-32 | 12.4-32 | 12.4-32 |
| Weight 2WD | (1700) kg | 2170 kg | 2170 kg | 1890 kg | 2260 kg |
| Length (2WD/4WD) | 321 cm | 335 cm | 335 cm | 335 cm | 336/354 cm |
| Wheelbase (2WD/4WD) | 189 cm | 205 cm | 205 cm | 208 cm | 204/210 cm |
| Fuel tank | 48 l | 48 l | 48 l | 48 l | 48/60 l |
| Solid cab | x | x | x | x | x |
| Height with cab | - | 230 cm | 232 cm | 213 cm | 234 cm |
| Cab noise level | - | 85 dB | - | - | 90 dB |
| Max. speed | - | - | - | - | MP 2,3-30,6 km/h |
| Turning circle m 4WD | - | - | - | - | 8.74 |
| Front tyres 4WD | - | - | - | - | 8.3-24 |
| Rear tyres 4WD | - | - | - | - | 12.4-32 |
| Weight 4WD | - | - | - | - | 2600 kg |
