Siirry sivupalkkiinSiirry alaosaanMassey Ferguson 3050-3065




In the summer of 1988, the 3000 series tractors were also equipped with the injection pump's so-called T-controller, which improved the engine's response time and increased the power output by 3 hp.

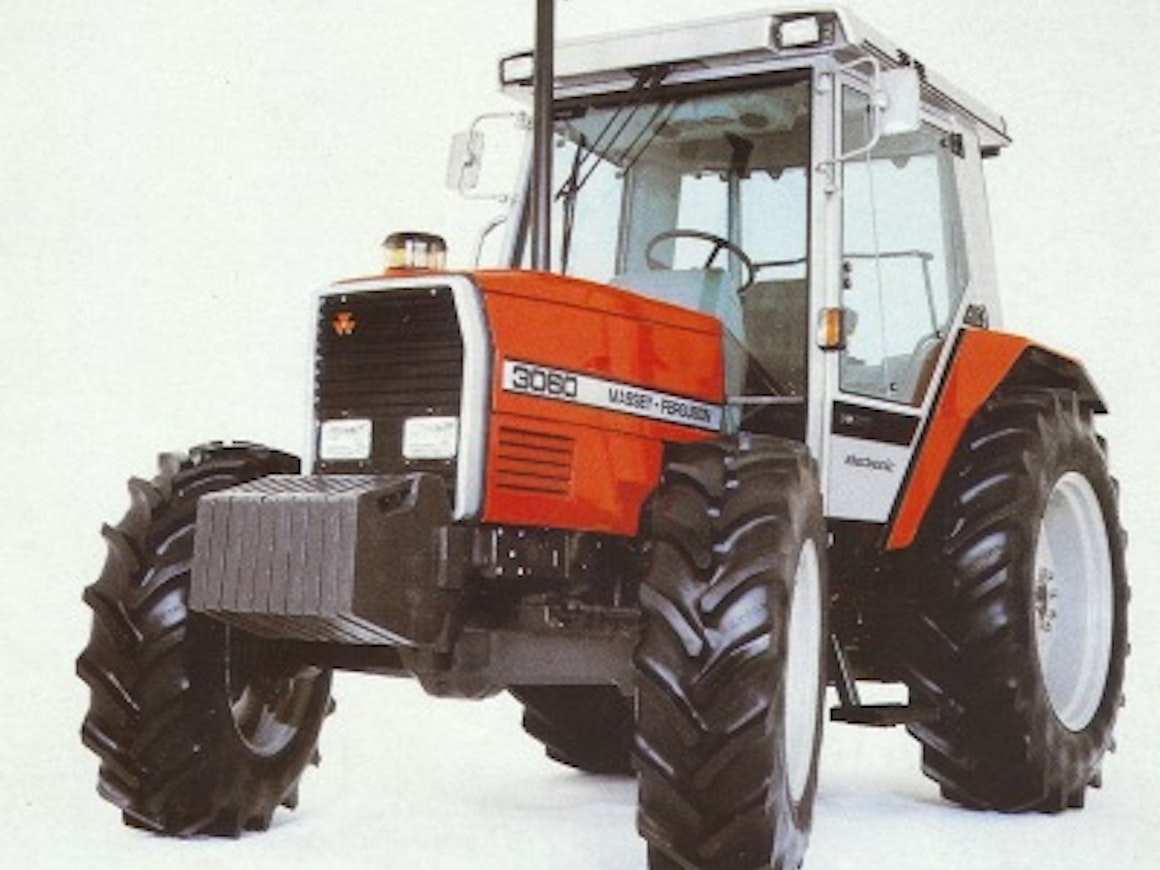

The more affordable 3060E became the favorite model in the lineup, featuring a 16+16 transmission with a quick shuttle, a power take-off running at only 540 rpm, the cruise control was removed from the equipment, and the tires were smaller. Marketing of the other models focused on customized factory-ordered equipment. In Sweden, the 16+16 transmission was standard even in the regular models. However, the lifting capacity in Sweden was 4200 kg, except for the E-models.

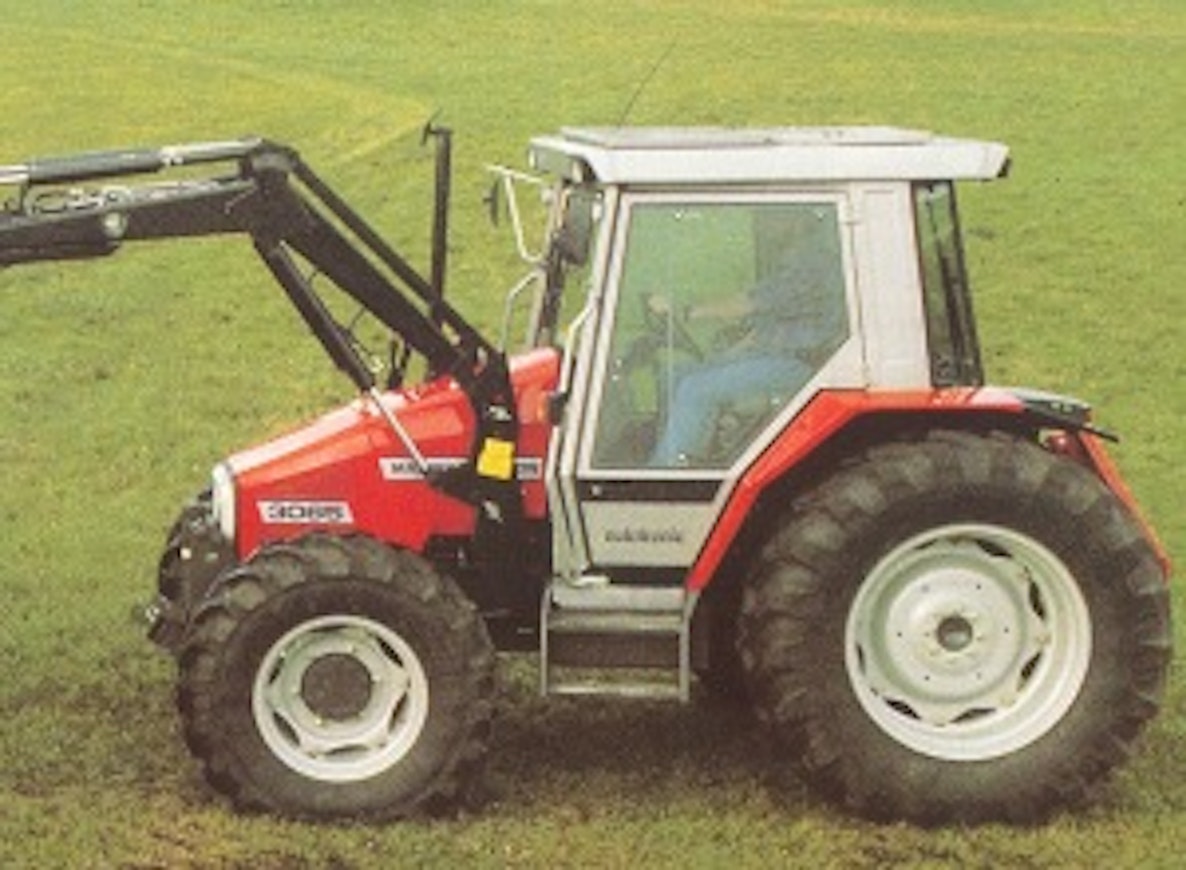

From the slanted-hood Panorama series, the 85-horsepower 3065 was imported to Finland.
This is an automated translation. Please report any issues in the translation.
| Model | Massey Ferguson 3050E | Massey Ferguson 3050 | Massey Ferguson 3050 Turbo | Massey Ferguson 3060E | Massey Ferguson 3060 | Massey Ferguson 3065 Panorama |
|---|---|---|---|---|---|---|
| Manufacturer name | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson |
| Imported to Finland | No | Yes | Yes | Yes | Yes | Yes |
| Years | 1988-95 | 1988-95 | 1988-95 | 1988-92 | 1988-92 | 1988-93 |
| Engine model | A4.236 | A4.236 | A4.236 | A4.248 | A4.248 | AC4.236 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4T | 4 | 4 | 4T |
| Displacement | 3860 cm³ | 3860 cm³ | 3860 cm³ | 4060 cm³ | 4060 cm³ | 3860 cm³ |
| Bore x stroke | 98,4×127 mm | 98,4×127 mm | 98,4×127 mm | 100,96×127 mm | 100,96×127 mm | 98,4×127 mm |
| Rated power | 71/2200 hp DIN/rpm | 71/2200 hp DIN/rpm | 80/2200 hp DIN/rpm | 80/2200 hp DIN/rpm | 80/2200 hp DIN/rpm | 85/2200 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 16+16 | 32+32 | 32+32 | 16+16 | 32+32 | 32+32 |
| Synchronized gears | 16+16 | 32+32 | 32+32 | 16+16 | 32+32 | 32+32 |
| Powershift gears | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reverser | mech. | mech. | mech. | mech. | mech. | mech. |
| Speeds in km/h | 1,9-29,0 | 2,2-37,6 | 2,2-37,6 | 2,4-37,6 | 2,2-37,6 | 2,5-37,6 |
| Max. speed | 30 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 3600 kg | 3600 kg | 3600 kg | 3600 kg | 3600 kg | 3600 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.4 | 7.4 | 7.4 | - | 7.4 | 7.4 |
| Turning circle m 4WD | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 |
| Front tyres 2WD | 10,00-16 | 10,00-16 | 10,00-16 | - | 10,00-16 | 10,00-16 |
| Front tyres 4WD | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 | 14.9R24 | 13.6R24 |
| Rear tyres 2WD | 16,9R34 | 16,9R34 | 16,9R34 | - | 16,9R34 | 13,6-38 |
| Rear tyres 4WD | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 18.4R34 | 16.9R34 |
| Weight 2WD | 3565 kg | 3565 kg | 3565 kg | - | 3565 kg | - |
| Weight 4WD | 3840 kg | 3840 kg | 3840 kg | 3840 kg | 3840 kg | 3840 kg |
| Height with cab | 263 cm | 263 cm | 263 cm | 263 cm | 263 cm | 263 cm |
| Length (2WD/4WD) | 399/407 cm | 399/407 cm | 399/407 cm | 421 cm | 408/421 cm | 408/421 cm |
| Wheelbase (2WD/4WD) | 237 cm | 237 cm | 237 cm | 237 cm | 237 cm | 237 cm |
| Fuel tank | 148 l | 148 l | 148 l | 148 l | 148 l | 148 l |
| Cab noise level | 75 dB | 75 dB | 75 dB | 76 dB | 76 dB | 76 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
| Autom. differential locks | - | x | x | - | x | x |
| Trip computer | - | opt. | opt. | - | opt. | opt. |
