Siirry sivupalkkiinSiirry alaosaanMassey Ferguson 7465-7495




In the summer of 2003, the first MF equipped with a continuously variable transmission, the 7400 series, was introduced. The transmission was sourced from within the group from Fendt and was named Dyna-VT by MF. The rear structure also included other Fendt features, such as a separate hydraulic oil system independent from the transmission. The model range was divided into two: the three smallest models had a Perkins engine and a transmission corresponding to Fendt’s 700 series. The larger models had a SisuDiesel engine and a Fendt 800 series transmission equipped with two variable displacement pumps.

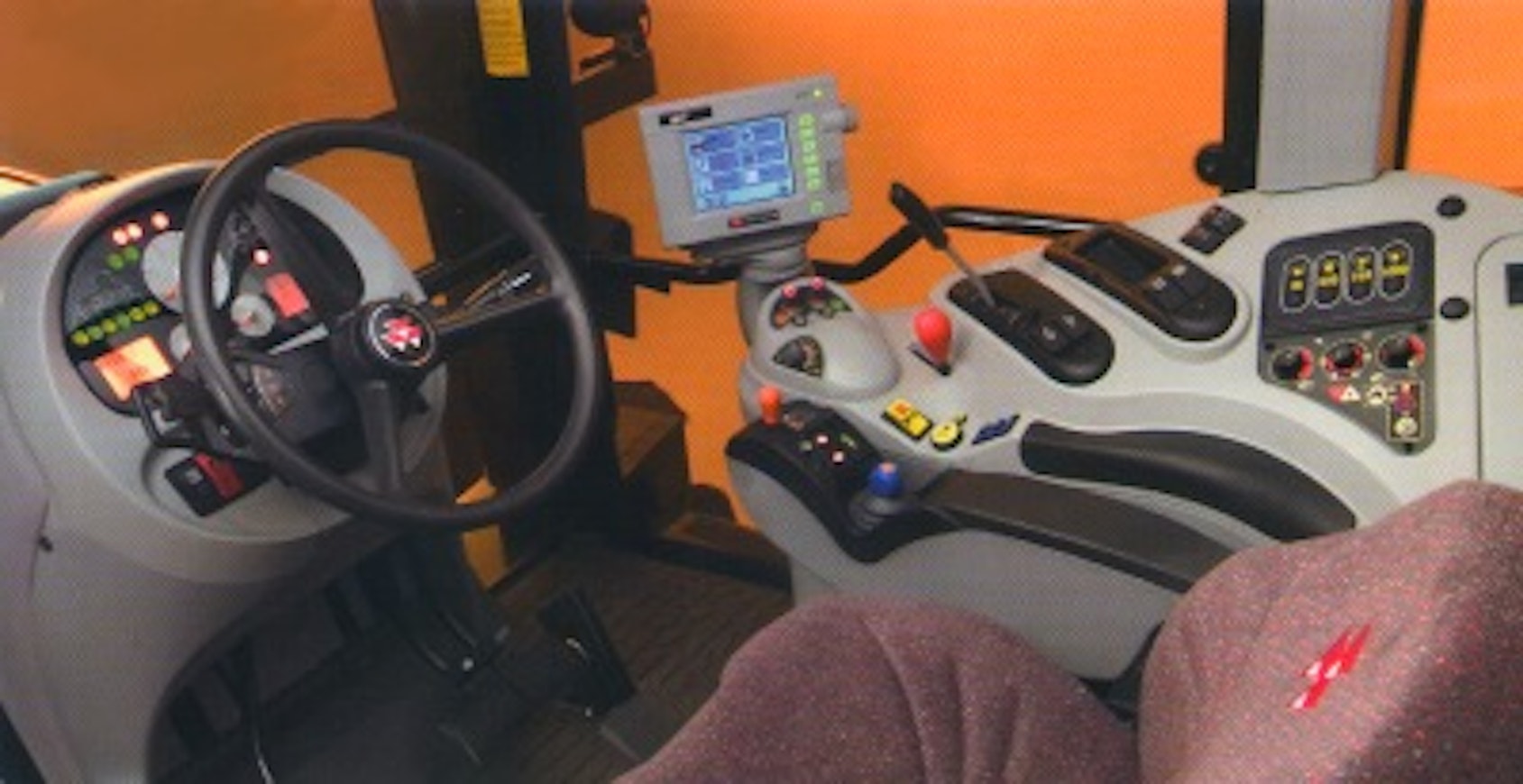

The software and control devices were MF’s own. Behind the steering wheel was a gear lever similar to that of the 6400 series, which, in addition to changing the driving direction, could increase or decrease speed or put the gear in neutral. Speed could also be adjusted with a joystick located on the armrest or by using the accelerator pedal as a speed pedal. There were two mechanical ranges in the transmission, with the slower one having a top speed of 28 km/h. The speed of 50 km/h was achieved at 1700 rpm.
Initially, the 7400 series had a high level of equipment. In the autumn of 2004, a cheaper version called DVX was also introduced, from which the front axle and cab suspension as well as the automatic air conditioning were omitted. What remained included, among other things, electrically controlled hydraulic valves. A new trip computer, Datatronic 3, equipped with a color display became available for the 2005 model year. At the same time, engines received even more additional power.
This is an automated translation. Please report any issues in the translation.
| Model | Massey Ferguson 7465 | Massey Ferguson 7465 | Massey Ferguson 7475 | Massey Ferguson 7475 | Massey Ferguson 7480 | Massey Ferguson 7480 | Massey Ferguson 7485 | Massey Ferguson 7485 | Massey Ferguson 7490 | Massey Ferguson 7490 | Massey Ferguson 7495 | Massey Ferguson 7495 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2003-05 | 2005-07 | 2003-05 | 2005-07 | 2003-05 | 2005-07 | 2003-05 | 2005-06 | 2003-05 | 2005-06 | 2003-05 | 2005-06 |
| Engine model | 1106C-E60TA | 1106C-E60TA | 1106C-E60TA | 1106C-E60TA | 1106C-E60TA | 1106C-E60TA | 66ETA | 66ETA | 66ETA | 66ETA | 66ETA | 66ETA |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 5987 cm³ | 5987 cm³ | 5987 cm³ | 5987 cm³ | 5987 cm³ | 5987 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ |
| Bore x stroke | 100×127 mm | 100×127 mm | 100×127 mm | 100×127 mm | 100×127 mm | 100×127 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm |
| Rated power | - | - | - | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0-40/50 | 0-40/50 | 0-40/50 | 0-40/50 | 0-40/50 | 0-40/50 | 0-40/50 | 0-40/50 | 0-40/50 | 0-40/50 | 0-40/50 | 0-40/50 |
| Max. speed | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h |
| Hydr. flow l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7600 kg | 7600 kg | 7600 kg | 7600 kg | 8600 kg | 8600 kg | 9300 kg | 9300 kg | 9300 kg | 9300 kg | 9300 kg | 9300 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.6 | 9.6 | 9.6 | 9.6 | 10 | 10 | 11.4 | 11.4 | 11.4 | 11.4 | 11.4 | 11.4 |
| Front tyres 4WD | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 16.9R28 | 16.9R28 | 480/70R28 | 480/70R28 | 480/70R28 | 480/70R28 | 420/85R30 | 420/85R30 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 20.8R38 | 20.8R38 | 580/70R38 | 580/70R38 | 580/70R38 | 580/70R38 | 520/85R42 | 520/85R42 |
| Weight 4WD | 5815 kg | 6030 kg | 6060 kg | 6280 kg | 6345 kg | 6570 kg | 6830 kg | 7140 kg | 6830 kg | 7140 kg | 6940 kg | 7250 kg |
| Height with cab | 282 cm | 282 cm | 282 cm | 282 cm | 285 cm | 285 cm | 306 cm | 306 cm | 306 cm | 306 cm | 310 cm | 310 cm |
| Length (2WD/4WD) | 482 cm | 482 cm | 482 cm | 482 cm | 482 cm | 482 cm | 523 cm | 523 cm | 523 cm | 523 cm | 523 cm | 523 cm |
| Wheelbase (2WD/4WD) | 278 cm | 278 cm | 278 cm | 278 cm | 278 cm | 278 cm | 300 cm | 300 cm | 300 cm | 300 cm | 300 cm | 300 cm |
| Fuel tank | 270 l | 270 l | 270 l | 270 l | 270 l | 270 l | 380 l | 380 l | 380 l | 380 l | 380 l | 380 l |
| Cab noise level | 71 dB | 71 dB | 71 dB | 71 dB | 71 dB | 71 dB | 71 dB | 71 dB | 71 dB | 71 dB | 71 dB | 71 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x | x | x | x |
| Creeper gear | x | x | x | x | x | x | x | x | x | x | x | x |
