Siirry sivupalkkiinSiirry alaosaanMcCormick T80-115 Max (T3)

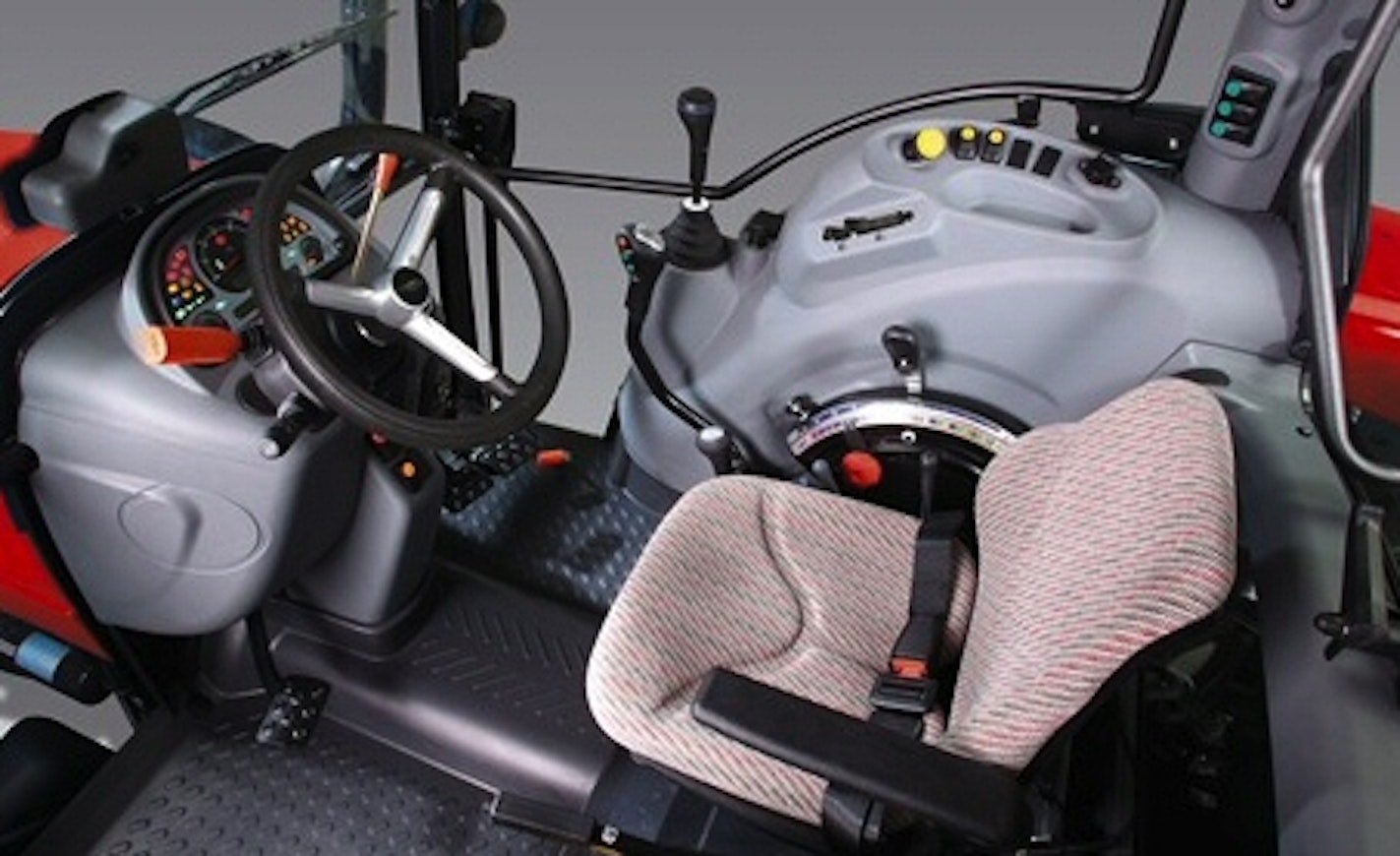

The McCormick T Max, introduced at the end of 2009, was a more advanced version of the C Max series. The clutch was 13 inches instead of 11/12 inches, and the rear axle was stronger. The Power Shuttle version featured a three-speed quick shift. Steering was done through the drawbars instead of the C Max’s push arm steering. A power lift device was available as an option. Other T Max features were available on the C Max either as standard or optional equipment. The engines were the same 4.4-liter Perkins units, and the dimensions were identical. The cab was the same, and the T Max also had a small central raised platform on the floor.
The Landini 5H series was the same tractor, painted blue.
This is an automated translation. Please report any issues in the translation.
| Model | McCormick T80 Max (T3) | McCormick T90 Max (T3) | McCormick T100 Max (T3) | McCormick T110 Max (T3) | McCormick T115 Max (T3) |
|---|---|---|---|---|---|
| Manufacturer name | McCormick | McCormick | McCormick | McCormick | McCormick |
| Imported to Finland | No | No | No | No | No |
| Years | 2009-13 | 2009-13 | 2009-13 | 2009-13 | 2011-12 |
| Engine model | 1104D-44 | 1104D-44T | 1104D-44TA | 1104D-44TA | 1104D-44TA |
| Cyl/Turbo/Intercooler | 4 | 4T | 4TI | 4TI | 4TI |
| Displacement | 4400 cm³ | 4400 cm³ | 4400 cm³ | 4400 cm³ | 4400 cm³ |
| Bore x stroke | 105×127 mm | 105×127 mm | 105×127 mm | 105×127 mm | 105×127 mm |
| Rated power | - | - | - | - | - |
| Torque | - | - | - | - | - |
| Gears | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 |
| Synchronized gears | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 |
| Powershift gears | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Reverser | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Speeds in km/h | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 |
| Hydr. flow l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 4350 kg | 4350 kg | 4350 kg | 4350 kg | 4350 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 |
| Front tyres 2WD | 10.0-16 | 10.0-16 | 10.0-16 | 10.0-16 | 10.0-16 |
| Front tyres 4WD | 340/85R24 | 340/85R24 | 340/85R24 | 340/85R24 | 340/85R24 |
| Rear tyres 2WD | 420/85R34 | 420/85R34 | 420/85R34 | 420/85R34 | 420/85R34 |
| Rear tyres 4WD | 420/85R34 | 420/85R34 | 420/85R34 | 420/85R34 | 420/85R34 |
| Weight 4WD | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg |
| Height with cab | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm |
| Length (2WD/4WD) | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm |
| Wheelbase (2WD/4WD) | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm |
| Fuel tank | 102 l | 102 l | 102 l | 102 l | 102 l |
| Solid cab | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air suspension seat | -/x | -/x | -/x | -/x | -/x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
