McCormick X5.35-X5.55 / X5.100-X5.120 / Landini 5-100 – 5-120

Manufacturer
Models
McCormick X5.35, Landini 5-100, McCormick X5.45, Landini 5-110, McCormick X5.55, Landini 5-120, McCormick X5.100, Landini 5-100, McCormick X5.110, Landini 5-110, McCormick X5.120, Landini 5-120
Years
2017-
Info

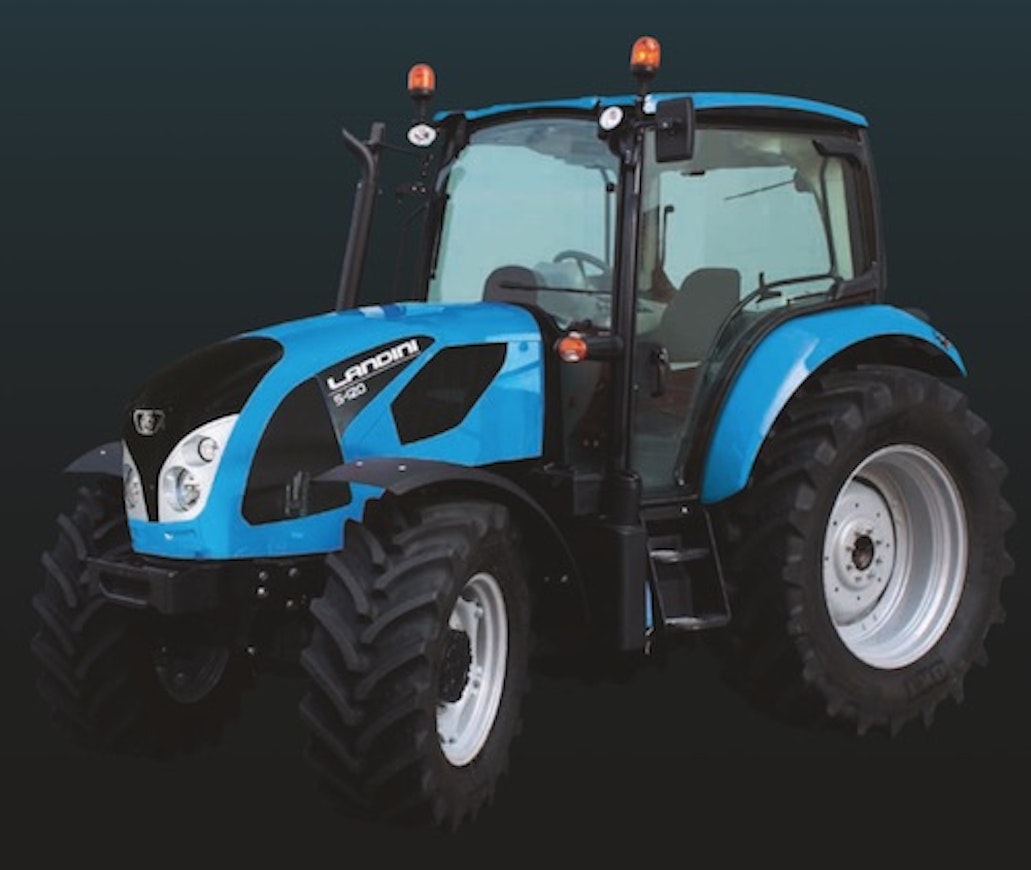

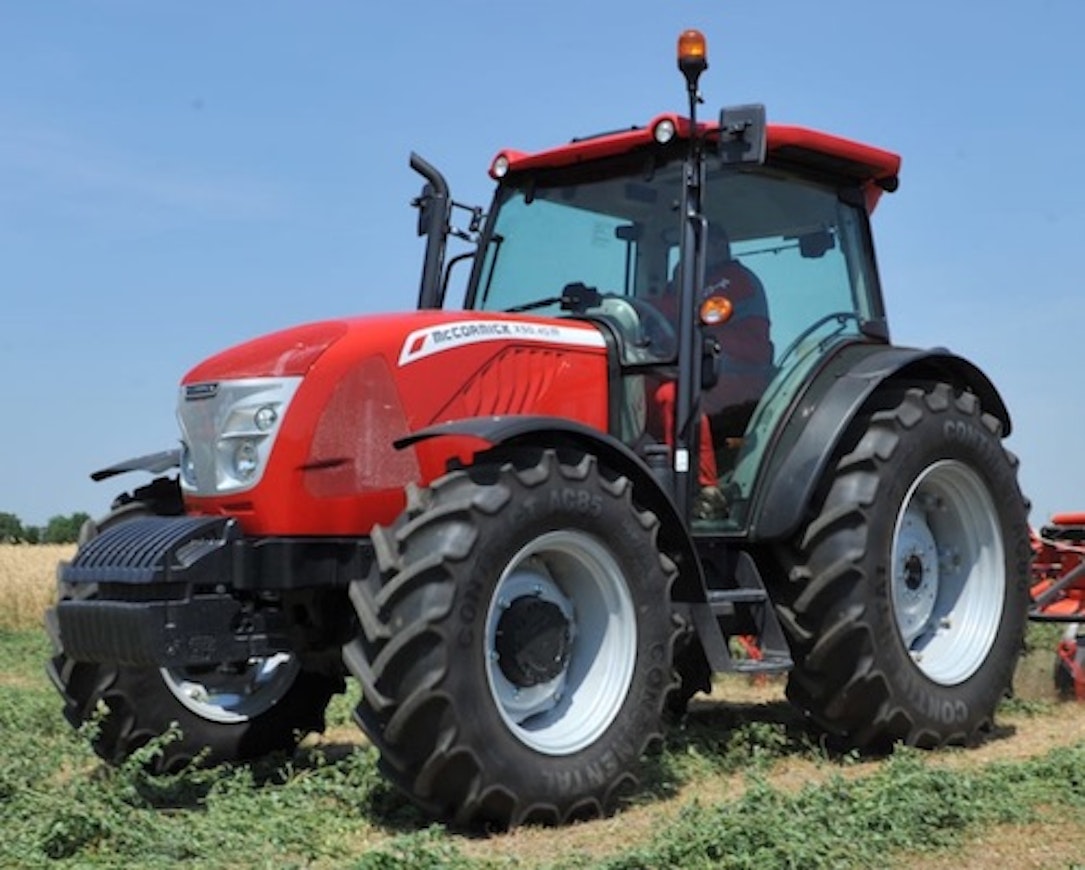

At the end of 2017, new versions of the McCormick X5 series and Landini 5 series were introduced. The engine was now a 3.6-liter Deutz. There was no urea injection, but an oxidation catalyst was standard. The basic gearbox was now a 12+12 mechanical shuttle gearbox, but in most countries, a 24+24 gearbox version with a powershift was offered. The best version featured an XtraShift 3-speed powershift. The lifting device was mechanically operated as standard and electronically operated as an additional option. The lifting capacity was 4,500 kg. Many other features, such as air conditioning, air-suspended seat, 4-speed PTO, and push-button clutch, were optional extras.

In the summer of 2021, Stage V versions were introduced, with the engine manufacturer changed to FPT. The lineup now had two equipment levels. McCormick’s Efficient and Landini’s Active were trimmed down compared to before, for example lacking the powershift. The Premium and Dynamic models included features such as an electro-hydraulic lift and, as a new optional feature, a suspended front axle. The shape of the hood was also redesigned.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMcCormick X5.35Landini 5-100McCormick X5.45Landini 5-110McCormick X5.55Landini 5-120McCormick X5.100Landini 5-100McCormick X5.110Landini 5-110McCormick X5.120Landini 5-120
Imported to FinlandNoNoNoNoNoNoNoNoNoNoNoNo
Years2017-212017-212017-212017-212017-212017-212021-2021-2021-2021-2021-2021-
Cyl/Turbo/Intercooler4TA4TA4TA4TA4TA4TA4TI4TI4TI4TI4TI4TI
Displacement3600 cm³3600 cm³3600 cm³3600 cm³3600 cm³3600 cm³3600 cm³3600 cm³3600 cm³3600 cm³3600 cm³3600 cm³
Bore x stroke98×120 mm98×120 mm98×120 mm98×120 mm98×120 mm98×120 mm102×110 mm102×110 mm102×110 mm102×110 mm102×110 mm102×110 mm
Rated power------------
Torque------------
Gears24+24/36+1224+24/36+1224+24/36+1224+24/36+1224+24/36+1224+24/36+1212+12/24+24/ 36+1212+12/24+24/ 36+1212+12/24+24/ 36+1212+12/24+24/ 36+1212+12/24+24/ 36+1212+12/24+24/ 36+12
Synchronized gears24+24/36+1224+24/36+1224+24/36+1224+24/36+1224+24/36+1224+24/36+1212+12/24+24/ 36+1212+12/24+24/ 36+1212+12/24+24/ 36+1212+12/24+24/ 36+1212+12/24+24/ 36+1212+12/24+24/ 36+12
Powershift gearsmech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.-/mech./hydr.-/mech./hydr.-/mech./hydr.-/mech./hydr.-/mech./hydr.-/mech./hydr.
Reversermech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr./hydr.mech./hydr./hydr.mech./hydr./hydr.mech./hydr./hydr.mech./hydr./hydr.mech./hydr./hydr.
Speeds in km/h2,0-402,0-402,0-402,0-402,0-402,0-401,5-401,5-401,5-401,5-401,5-401,5-40
Max. speed 40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h
Hydr. flow l/min62 l/min62 l/min62 l/min62 l/min62 l/min62 l/min62 (82) l/min62 (82) l/min62 (82) l/min62 (82) l/min62 (82) l/min62 (82) l/min
Hydraulic pressure180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech./elec.mech./elec.mech./elec.mech./elec.mech./elec.mech./elec.
Lift capacity4500 kg4500 kg4500 kg4500 kg4500 kg4500 kg4500 kg4500 kg4500 kg4500 kg4500 kg4500 kg
PTO speeds540/750540/750540/750540/750540/750540/750540/750540/750540/750540/750540/750540/750
Brakeswet discwet discwet discwet discwet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Front tyres 4WD380/70R24380/70R24380/70R24380/70R24380/70R24380/70R24380/70R24380/70R24380/70R24380/70R24380/70R24380/70R24
Rear tyres 4WD480/70R34480/70R34480/70R34480/70R34480/70R34480/70R34480/70R34480/70R34480/70R34480/70R34480/70R34480/70R34
Weight 4WD3800 kg3800 kg3800 kg3800 kg3800 kg3800 kg4000 kg4000 kg4000 kg4000 kg4000 kg4000 kg
Height with cab262 cm262 cm262 cm262 cm262 cm262 cm262 cm262 cm262 cm262 cm262 cm262 cm
Length (2WD/4WD)441 cm441 cm441 cm441 cm441 cm441 cm446 cm446 cm446 cm446 cm446 cm446 cm
Wheelbase (2WD/4WD)236 cm236 cm236 cm236 cm236 cm236 cm236 cm236 cm236 cm236 cm236 cm236 cm
Fuel tank120 l120 l120 l120 l120 l120 l135+AB13 l135+AB13 l135+AB13 l135+AB13 l135+AB13 l135+AB13 l
Solid cabxxxxxxxxxxxx
Diff. lockdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogs
Air suspension seat-/x-/x-/x-/x-/x-/x-/x-/x-/x-/x-/x-/x
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.opt.opt.opt.opt.
Engine model------F36F36F36F36F36F36
Max power------------
Cab noise level------78/Premium 76 dB78/Premium 76 dB78/Premium 76 dB78/Premium 76 dB78/Premium 76 dB78/Premium 76 dB
