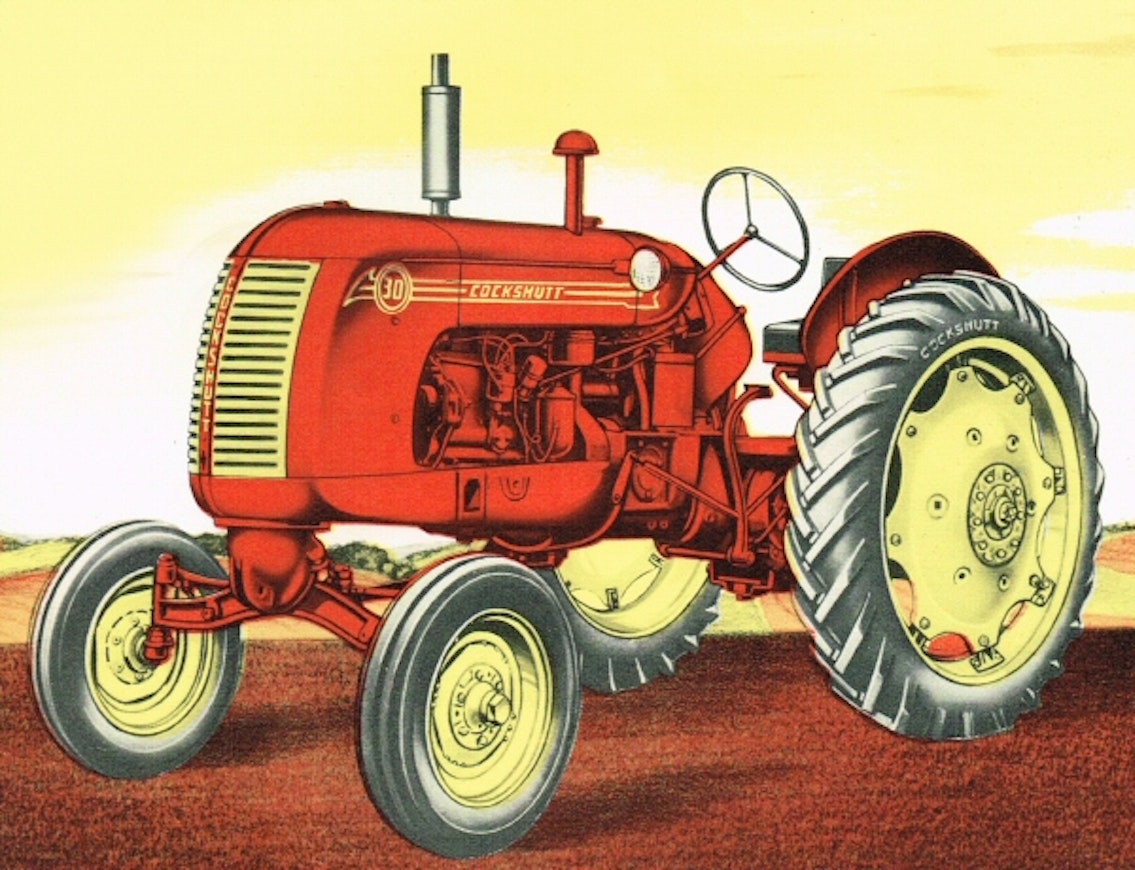

The Canadian agricultural machinery manufacturer Cockshutt had sold Oliver and Allis-Chalmers tractors, but in 1946 the first Canadian tractor, the Cockshutt 30, was introduced. Its appearance bore a similar style to the Oliver. The engine was a 4-cylinder 2.5-liter Buda gasoline or diesel engine. The transmission was 4+1, later also 8+2. A special requirement that was the starting point in the design was a power take-off independent of the driving clutch. Cockshutt was the first on the market to offer this. In American fashion, various front axle versions with narrow and wide tread widths were available.
The second model introduced in 1949 was the Cockshutt 40, which had a 6-cylinder engine. In 1953, the 50 came out with a larger engine; its most significant differences from the 40 were disc brakes and more powerful hydraulics. In 1956, the 35 was introduced, which was otherwise similar to the 40 but equipped with a 4-cylinder Hercules gasoline engine.
In 1952, the model 20 was introduced, which corresponded to the demand for utility-type small tractors competing with Ferguson and equipped with a three-point hitch. The 20 initially had a 2.0-liter Continental gasoline engine, but during the first model year, it switched to a 2.3-liter engine.
Above these models, Cockshutt further complemented its lineup with Oliver models 60-90. In the USA, Cockshutt was sold under the CO-OP cooperative brand.
This is an automated translation. Please report any issues in the translation.
| Model | Cockshutt 20 | Cockshutt 30 | Cockshutt D30 | Cockshutt 35 | Cockshutt 40 | Cockshutt D40 | Cockshutt 50 | Cockshutt D50 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Cockshutt | Cockshutt | Cockshutt | Cockshutt | Cockshutt | Cockshutt | Cockshutt | Cockshutt |
| Imported to Finland | No | No | No | No | No | No | No | No |
| Years | 1952-57 | 1946-57 | 1950-57 | 1956-58 | 1949-58 | 1950-58 | 1953-57 | 1953-57 |
| Engine model | 140 | - | - | GO198 | 6B230 | 6BD230 | - | - |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 |
| Displacement | 2288 cm³ | 2509 cm³ | 2509 cm³ | 3240 cm³ | 3764 cm³ | 3764 cm³ | 4480 cm³ | 4480 cm³ |
| Bore x stroke | 81,0×111,3 mm | 87,3×104,8 mm | 87,3×104,8 mm | 95,3×114,3 mm | 87,3×104,8 mm | 87,3×104,8 mm | 95,3×104,8 mm | 95,3×104,8 mm |
| Rated power | - | - | - | - | - | - | - | - |
| Gears | 4+1 | 4+1/8+2 | 4+1/8+2 | 6+2 | 6+2 | 6+2 | 6+2 | 6+2 |
| Speeds in km/h | 3,8-20,1 | 4,1-17,6/2,7-17,6 | 4,1-17,6/2,7-17,6 | - | 2,6-16,9 | 2,6-16,9 | 2,6-16,9 | 2,6-16,9 |
| Hydraulic pressure | 86 bar | 86 bar | 86 bar | - | - | - | - | - |
| Lift controls | mech. | mech. | mech. | - | - | - | - | - |
| PTO speeds | (540) | (540) | (540) | (540) | (540) | (540) | (540) | (540) |
| Brakes | band brakes | band brakes | band brakes | band brakes | band brakes | band brakes | dry disc | dry disc |
| Steering | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Front tyres 2WD | 5.00-15 | 5.50-16 | 5.50-16 | 6.00-16 | 6.00-16 | 6.00-16 | 7.50-16 | 7.50-16 |
| Rear tyres 2WD | 10-24 | 11-38 | 11-38 | 12-38 | 12-38 | 12-38 | 14-34 | 14-34 |
| Weight 2WD | (1280) kg | (1699) kg | (1699) kg | - | (2313) kg | (2313) kg | (2572) kg | (2572) kg |
| Height with cab | (165) cm | (150) cm | (150) cm | (159) cm | (159) cm | (159) cm | (159) cm | (159) cm |
| Length (2WD/4WD) | 302 cm | 323 cm | 323 cm | 335/338 cm | 335/338 cm | 335/338 cm | 335/338 cm | 335/338 cm |
| Wheelbase (2WD/4WD) | 183/201 cm | 215 cm | 215 cm | 220/227 cm | 220/227 cm | 220/227 cm | 220/227 cm | 220/227 cm |
| Fuel tank | 45.5 l | 57 l | 57 l | 79.5 l | 79.5 l | 79.5 l | 79.5 l | 79.5 l |
| Powershift gears | - | -/mech. | -/mech. | - | - | - | - | - |
| Max. speed | - | 19.3 km/h | 19.3 km/h | - | 21.6 km/h | 21.6 km/h | 19 km/h | 19 km/h |
