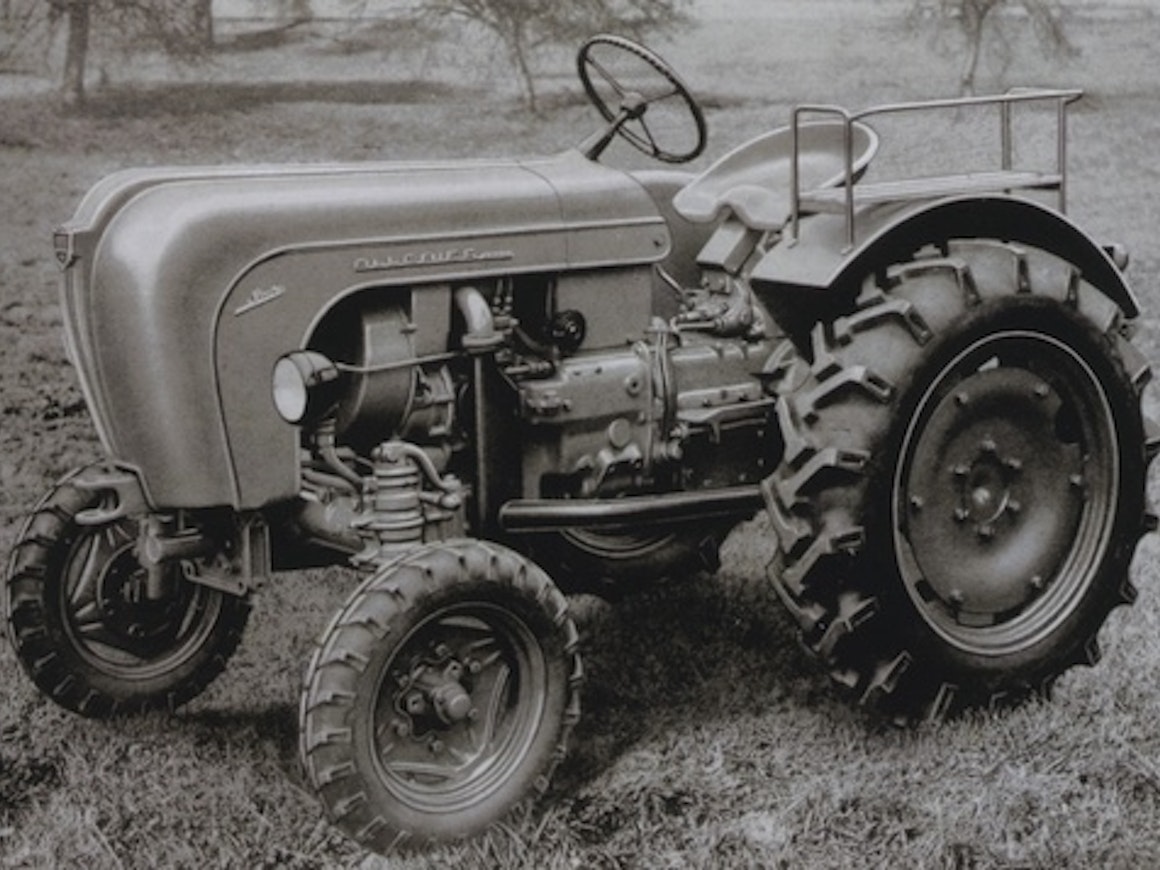

Allgaier A111-A144 (1952-55), Porsche-Diesel P111-P144

Manufacturer
Models
Allgaier A 111, Allgaier A 122, Allgaier A 133, Allgaier A 144
Years
1956-57
Info

The new model series introduced in the Allgaier years 1952-53 was developed by Porsche in Stuttgart. To increase cost efficiency, as many parts as possible were the same across different models. Much less light alloy was used than in the original AP 17 model. The engine came in 1-, 2-, 3-, and 4-cylinder versions. The engine was an air-cooled swirl chamber diesel. The A 111 had 4 forward and 4 reverse gears, while the others had 5 forward and 1 reverse. The gearboxes were manufactured by Getrag and ZF. The A 133 and A 144 featured a Voith torque converter. The basic model of the A 111 had a short hood covering only the engine and a long wheelbase that allowed attachments to be mounted under the tractor. The long A 111 L had a full-length hood. Later this became the standard version, alongside a short K version with a 150 cm wheelbase. Mainly the A 133 model was imported to Finland. The largest A 144 remained quite rare; only about 150 units were made under the Allgaier brand.

From the beginning of 1956, the brand changed to Porsche-Diesel, and in the summer of the same year, the model designation's letter A was changed to P.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelAllgaier A 111Allgaier A 122Allgaier A 133Allgaier A 144
Manufacturer nameAllgaierAllgaierAllgaierAllgaier
Imported to FinlandYesYesYesYes
Years1952-571953-571952-571953-57
Engine modelA 111A 122A 133A 144
Cyl/Turbo/Intercooler1234
Displacement822 cm³1644 cm³2475 cm³3288 cm³
Bore x stroke95×116 mm95×116 mm95×116 mm95×116 mm
Rated power12/2200 hp DIN/rpm22/2000 hp DIN/rpm33/1900 hp DIN/rpm44/2000 hp DIN/rpm
Gears4+45+15+15+1
Reverserx---
Speeds in km/h3,5-16,52,4-18,5 (2,9-22,4)2,5-19,8 (3,4-26,6)4,1-25,6
Hydraulic pressure125 bar125 bar125 bar125 bar
Lift controlsmech.mech.mech.mech.
PTO speeds540/ajo540/ajo540/ajo540/ajo
Brakesdrum brakesdrum brakesdrum brakesdrum brakes
Steeringmech.mech.mech.mech.
Turning circle m 2WD6.66.56.98.2
Front tyres 2WD4.00-155.50-165.50-166.00-20
Rear tyres 2WD8-2410-2810-2813-30
Weight 2WD(890) kg(1350) kg(1440) kg(1970) kg
Height with cab(157) cm(169) cm(168) cm(182) cm
Length (2WD/4WD)250 cm260 cm275 cm317 cm
Wheelbase (2WD/4WD)170 cm150 cm165 cm217 cm
Fuel tank30,5/18 l46 l46 l46 l
Creeper gear-opt.opt.opt.
Lift capacity--840 kg-
