Porsche Super, Master

63Porsche
Manufacturer
Models

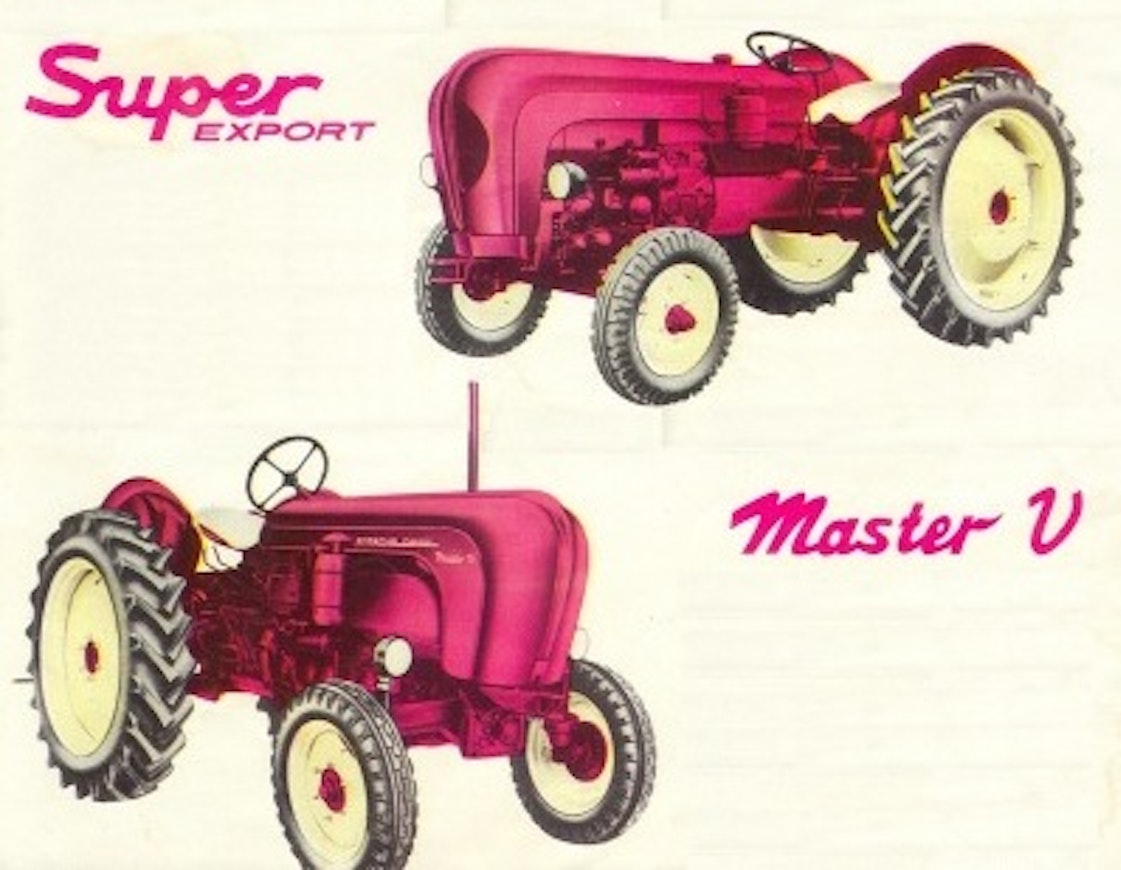

Porsche Super N, Porsche Super Export, Porsche Master, Porsche Master, Porsche Master V
Years
1957-63
Info

Porsche’s 3-cylinder tractors were known as Super, and the 4-cylinder ones as Master. The SAE horsepower of the models imported to Finland was 39 and 55 hp. The Super’s gearbox was initially 5+1. A highway speed exceeding 30 km/h was considered high at the time. The Super Export had a Deutz 8+2-speed gearbox. The production lineup also included versions equipped with a ZF 8+4-speed gearbox. The Masters were finally imported to Finland equipped with the old 5+1-speed gearbox. In 1961, Porsches were equipped with Bosch hydraulics featuring a weight transfer system.

The Porsche production lineup included a wide range of different versions. Most models had versions with, for example, long and short wheelbases. In Finland, the standard equipment also varied. For example, 1000 rpm PTO and a PTO independent of the driving clutch were standard on some versions. A turbine clutch was standard in Finland, though the Super Export was also imported without a turbine clutch. Porsche production ended in 1963, although the brand was Germany’s second best-selling after Deutz.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelPorsche Super NPorsche Super ExportPorsche MasterPorsche MasterPorsche Master V
Manufacturer namePorschePorschePorschePorschePorsche
Imported to FinlandYesYesYesYesYes
Years1957-621961-631959-601960-621962-63
Engine modelF 308F 329F 408F 418F 429
Cyl/Turbo/Intercooler33444
Displacement2467 cm³2625 cm³3289 cm³3500 cm³3500 cm³
Bore x stroke95×116 mm98×116 mm95×116 mm98×116 mm98×116 mm
Rated power38/2000 hp DIN/rpm35/2300 hp DIN/rpm50/2100 hp DIN/rpm50/2100 hp DIN/rpm50/2100 hp DIN/rpm
Torque-----
Gears5+18+28+48+45+1
Speeds in km/h3,9-30,22,0-27,11,5-27,01,5-27,03,6-28,0
Hydr. flow l/min25 l/min16 l/min25 l/min25 l/min16 l/min
Hydraulic pressure125 bar125 bar125 bar125 bar125 bar
Lift controlsmech.mech.mech.mech.mech.
Lift capacity1000 kg1000 kg1050 kg1050 kg1000/1200 kg
PTO speeds540/ajo540/ajo540/ajo540/ajo540/ajo
Brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakes
Steeringmech.mech.mech.mech.mech.
Turning circle m 2WD7.2--6.66.2
Front tyres 2WD5,50-166,00-166,00-196,00-206,00-19
Rear tyres 2WD12,4/11-2812,4/11-2814,9/13-3014,9/13-3012,4/11-36
Weight 2WD(1700) kg(1825) kg(2270) kg(2130) kg(1840) kg
Length (2WD/4WD)310 cm351 cm-338 cm314 cm
Wheelbase (2WD/4WD)182 cm197 cm217 cm217 cm196 cm
Fuel tank46 l44 l-40 l-
Height with cab-(145) cm--(164) cm
