Schlüter Profi-Trac 2200-5000

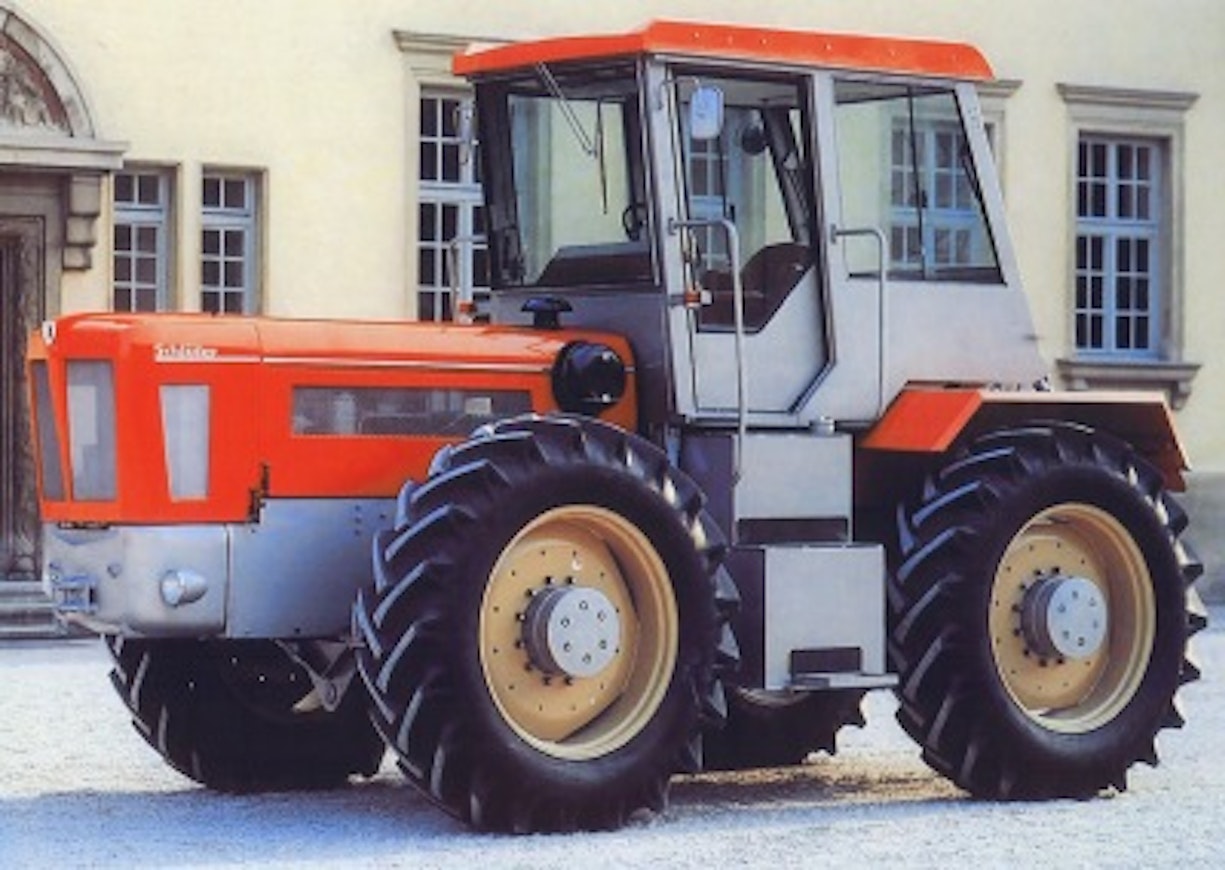

76SchluterProfiTrac
Manufacturer
Models
Schlüter Profi-Trac 2200 TVL, Schlüter Profi-Trac 2500 VL, Schlüter Profi-Trac 3000 TVL, Schlüter Profi-Trac 3500 TVL, Schlüter Profi-Trac 5000 TVL
Years
1975-89
Info

Between the years 1975 and 1989, a total of 43 Schlüter Profi-Traces were produced. The largest customer was the Yugoslav state, which purchased a total of 12 units. The smallest 1600 and 2000 models remained as single units, with the most produced being the 2500 and 3000 models. The Profi-Traces had equally sized wheels at the front and rear, and four-wheel steering, which made them quite agile. The cabin was located between the axles and could be tilted hydraulically. Most Profi-Traces were equipped with MAN six-cylinder engines. The gearboxes came from ZF and were originally designed for off-road trucks.

The majority of the production took place between 1976 and 1980. Between 1980 and 1989, a few Profi-Trac 2500 units were still manufactured. The later models featured a 280 hp turbocharged engine and a 16+16 shuttle transmission.

The Profi-Trac 5000 TVL, manufactured in 1978, is the largest tractor model ever produced in Europe. It was powered by a 21-liter MAN V12 engine. The machine weighed 18 tons.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSchlüter Profi-Trac 2200 TVLSchlüter Profi-Trac 2500 VLSchlüter Profi-Trac 3000 TVLSchlüter Profi-Trac 3500 TVLSchlüter Profi-Trac 5000 TVL
Manufacturer nameSchlüterSchlüterSchlüterSchlüterSchlüter
Imported to FinlandNoNoNoNoNo
Years19791976-801975-801978-811978
Engine modelSDMT 110 W 8MAN D 2566 MEMAN D 2556 MTEMAN D 2566 MTEMAN D 2542 MTE
Cyl/Turbo/Intercooler8T66T6TV12T
Displacement9503 cm³11413 cm³11045 cm³11413 cm³20911 cm³
Bore x stroke110×125 mm125×155 mm125×150 mm125×155 mm125×142 mm
Rated power210/2000 hp DIN/rpm240/2200 hp DIN/rpm280-300/2200 hp DIN/rpm320/2200 hp DIN/rpm500/2200 hp DIN/rpm
Torque-----
Gears16+1618+418+418+48+1
Synchronized gears16+1618+418+418+48+1
Reverserxopt.---
Speeds in km/h0,7-30,03,2-28,13,4-29,23,4-29,23,7-29,8
Lift controlsmech.mech.mech.mech.mech.
Lift capacity6950 kg5800/7300 kg5800 kg5800/8400 kg7300 kg
PTO speeds1000100010001000-
Brakesdry discdry discdry discdry discdry disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.69.29.21012
Front tyres 4WD18.4R3818.4-3820.8-3820.8R3820.8-38
Rear tyres 4WD18.4R3818.4-3820.8-3820.8R3820.8-38
Weight 4WD9800 kg11000 kg11500 kg12250 kg18000 kg
Height with cab346 cm346 cm346 cm346 cm346 cm
Length (2WD/4WD)590 cm615 cm615 cm615 cm645 cm
Wheelbase (2WD/4WD)295 cm285 cm289 cm289 cm289 cm
Fuel tank445 l445 l445 l445 l920 l
Solid cabxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lock
Creeper gearx----
Max. speed -28/33 km/h-29/34 km/h-
Hydr. flow l/min-40/45 l/min40 l/min53 l/min-
