Valmet 365-865

94Valmet565
92Valmet665ohjaamo
96Valmet865
94Valmet665tehot
96Valmet865tehot
94Valmet665nopeudet
94Valmet565
92Valmet665ohjaamo
96Valmet865
94Valmet665tehot
96Valmet865tehot
94Valmet665nopeudet
Manufacturer
Models
Valmet 365, Valmet 465, Valmet 565, Valmet 665, Valmet 865
Years
1992-97
Info

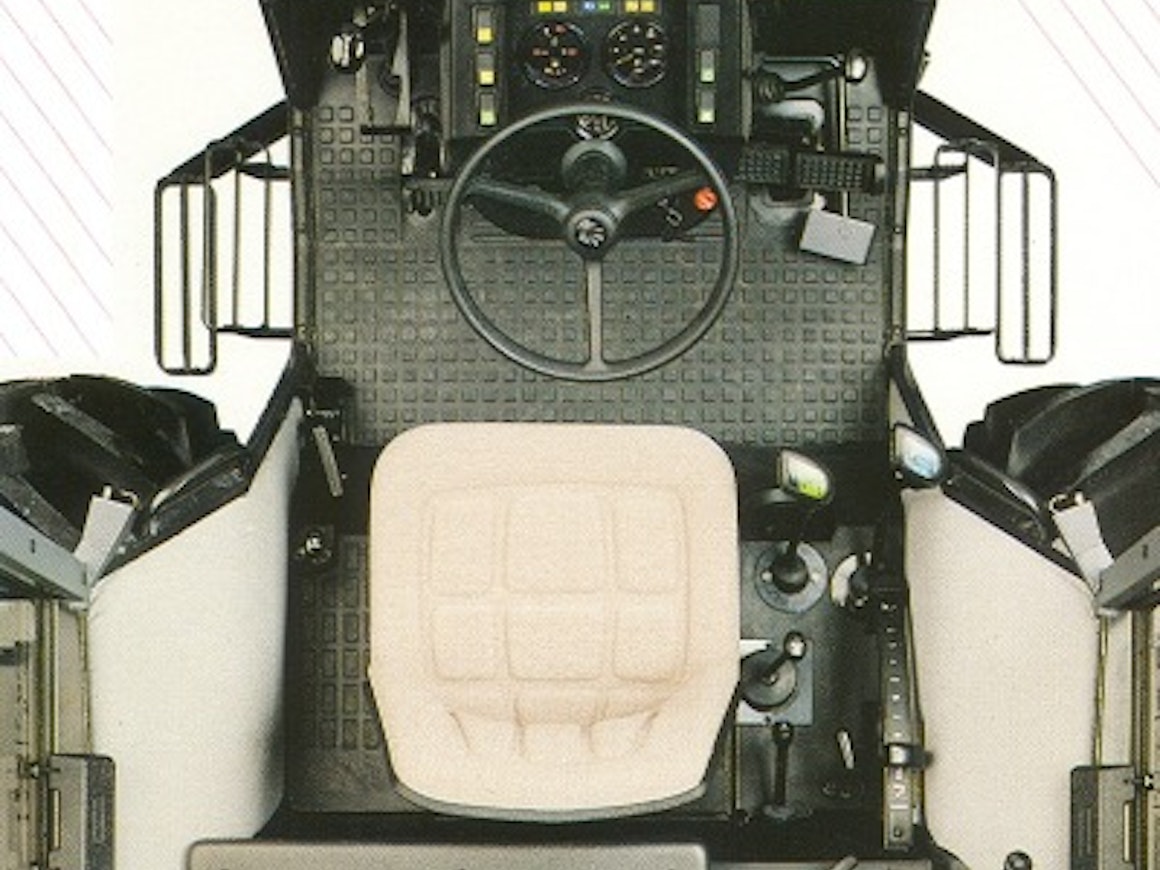

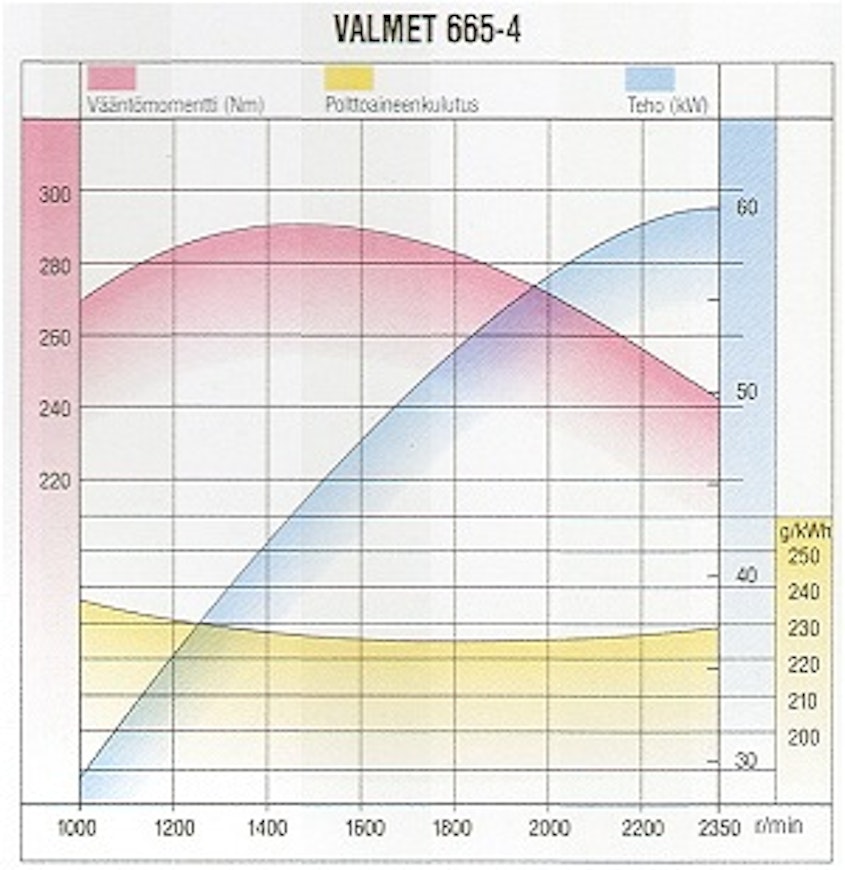

In the spring of 1992, alongside the 55 series, a 4-cylinder 665 was introduced. Its engine was a naturally aspirated 80-horsepower 420 D. The updated cab, which incorporated certain details from the Mezzo, qualified the model for a new series designation. The exterior appearance, with its long front and front wheels positioned far forward, remained unchanged. In that respect, it was surprising that the models manufactured in Finland did not adopt features from the Metta series, which was being developed at the same time for the Portugal factory. The technology was mostly unchanged. The gearbox had 8+4 gears, and the clutch diameter increased from 280 millimeters to 295. Braking was still solely on the rear wheels. A front hydraulic lift was available as an optional extra.

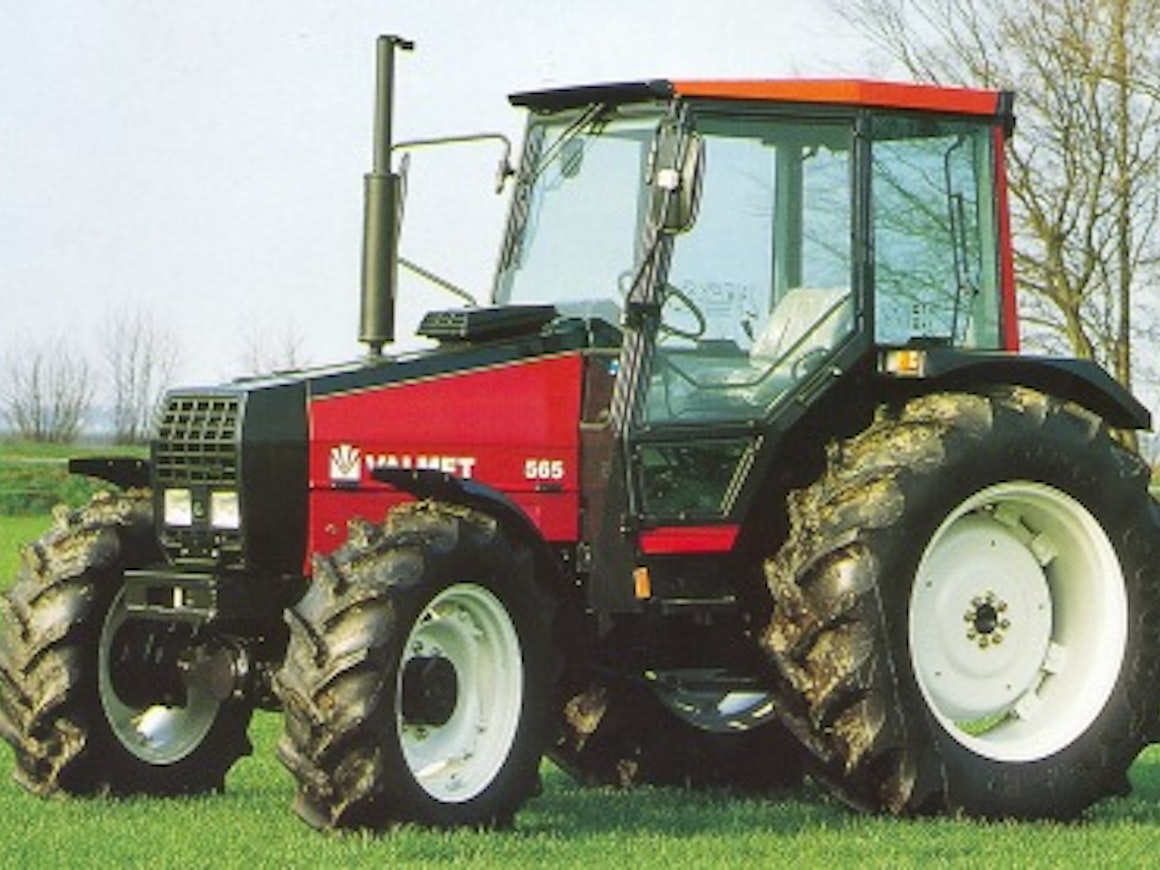

In the summer of 1992, the 565 (75 hp) was introduced, and at the beginning of 1993, the 465 (70 hp) was launched, both of which replaced the 555. A special metallic blue edition of the 565 was made to celebrate Finland's 75th anniversary. In 1993, a forest cab was also introduced, which was slightly wider than the standard to facilitate seat rotation. At the beginning of 1994, the 355 was replaced by the 365 model (61 hp), from which the turbocharger had been removed. Thus, the 65 series gradually replaced the 55 series.

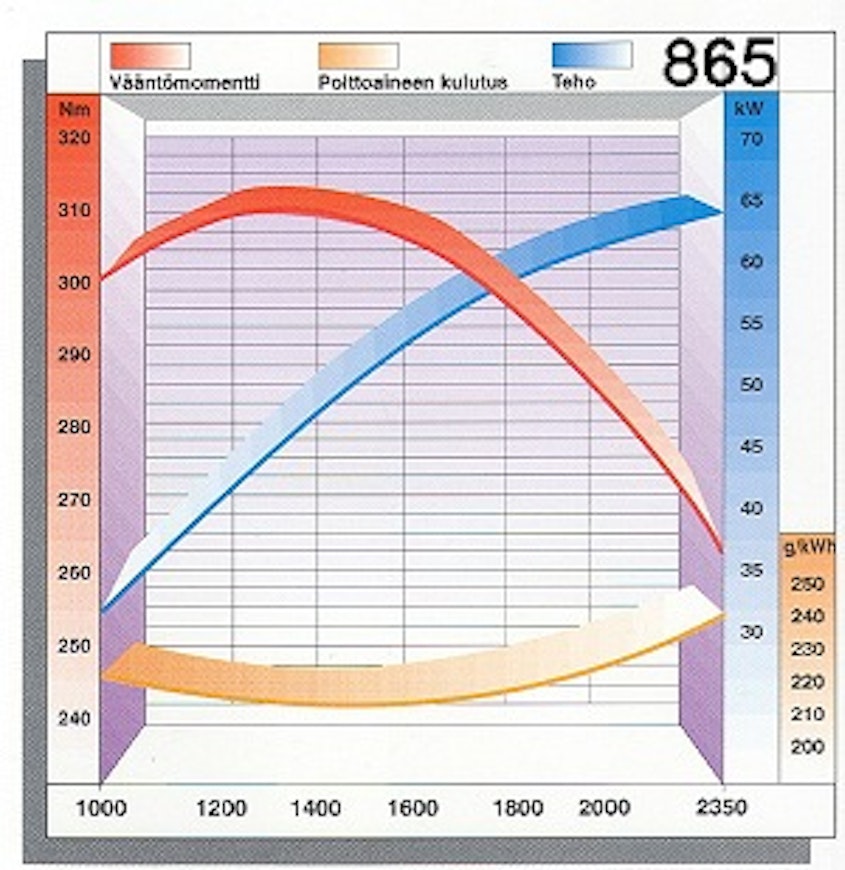

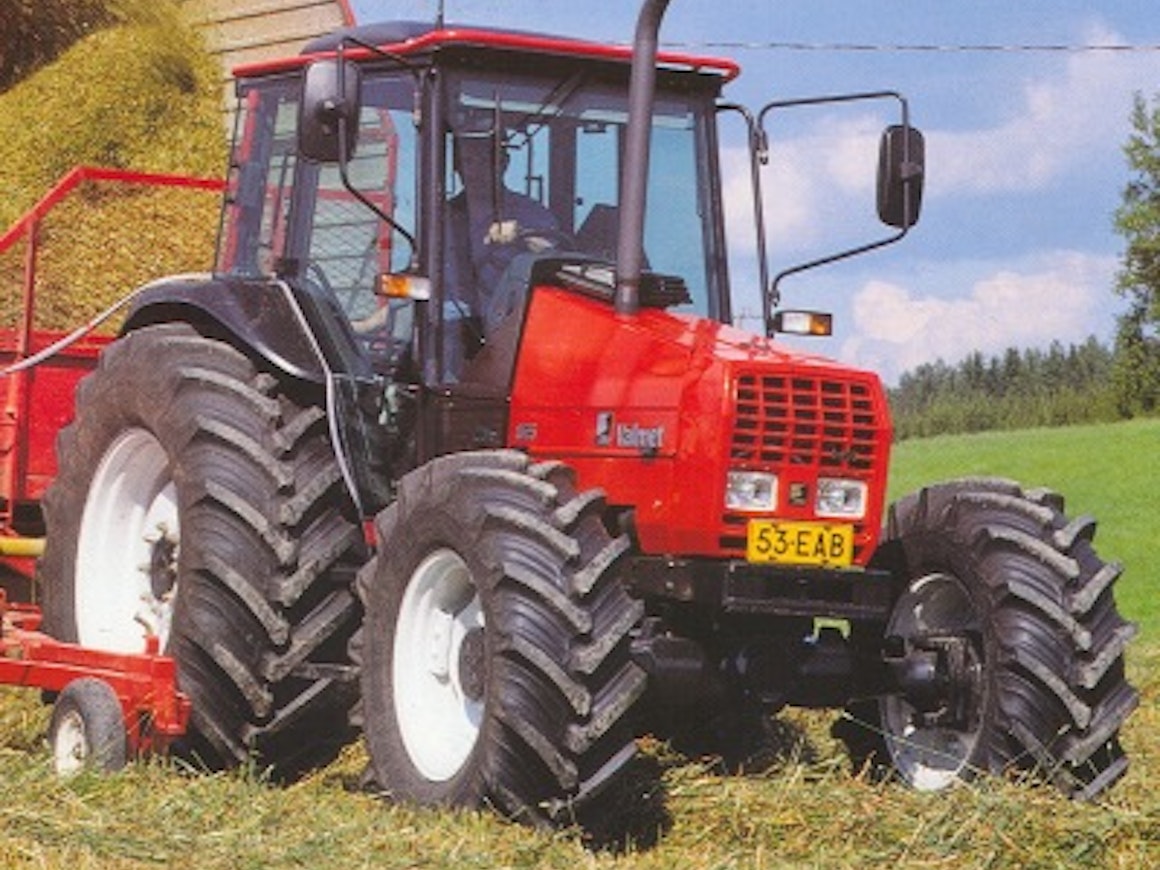

In the spring of 1996, the turbocharged 86.5-horsepower Valmet 865 was introduced. It featured a new, more robust rear axle and a lifting capacity of 3300 kilograms. The hydraulic output was 55 liters per minute. The cab had been thoroughly renewed, for example, the dashboard was completely new. However, the cab remained basic; the noise level was still the same 83 dB, and the ventilation was insufficient. A low model (250 cm) was also available. Other accessories for the 865 included air conditioning, Agrodata instrumentation, and a front hitch. The 865 became Finland’s most popular tractor model.

S models (365, 665, and 865 S) were also exported, where the speed was limited to 30 km/h by reducing the engine’s nominal RPM to 2100.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelValmet 365Valmet 465Valmet 565Valmet 665Valmet 865
Manufacturer nameValmetValmetValmetValmetValmet
Imported to FinlandYesYesYesYesYes
Years1994-971993-971993-971992-971996-97
Engine model320 D320 DS320 DS420 D420 DS
Cyl/Turbo/Intercooler33T3T44T
Displacement3300 cm³3300 cm³3300 cm³4400 cm³4400 cm³
Bore x stroke108×120 mm108×120 mm108×120 mm108×120 mm108×120 mm
Rated power61/2350 hp DIN/rpm70/2350 hp DIN/rpm75/2350 hp DIN/rpm80/2350 hp DIN/rpm86,5/2350 hp DIN/rpm
Torque-----
Gears8+48+48+48+48+4
Synchronized gears8+48+48+48+48+4

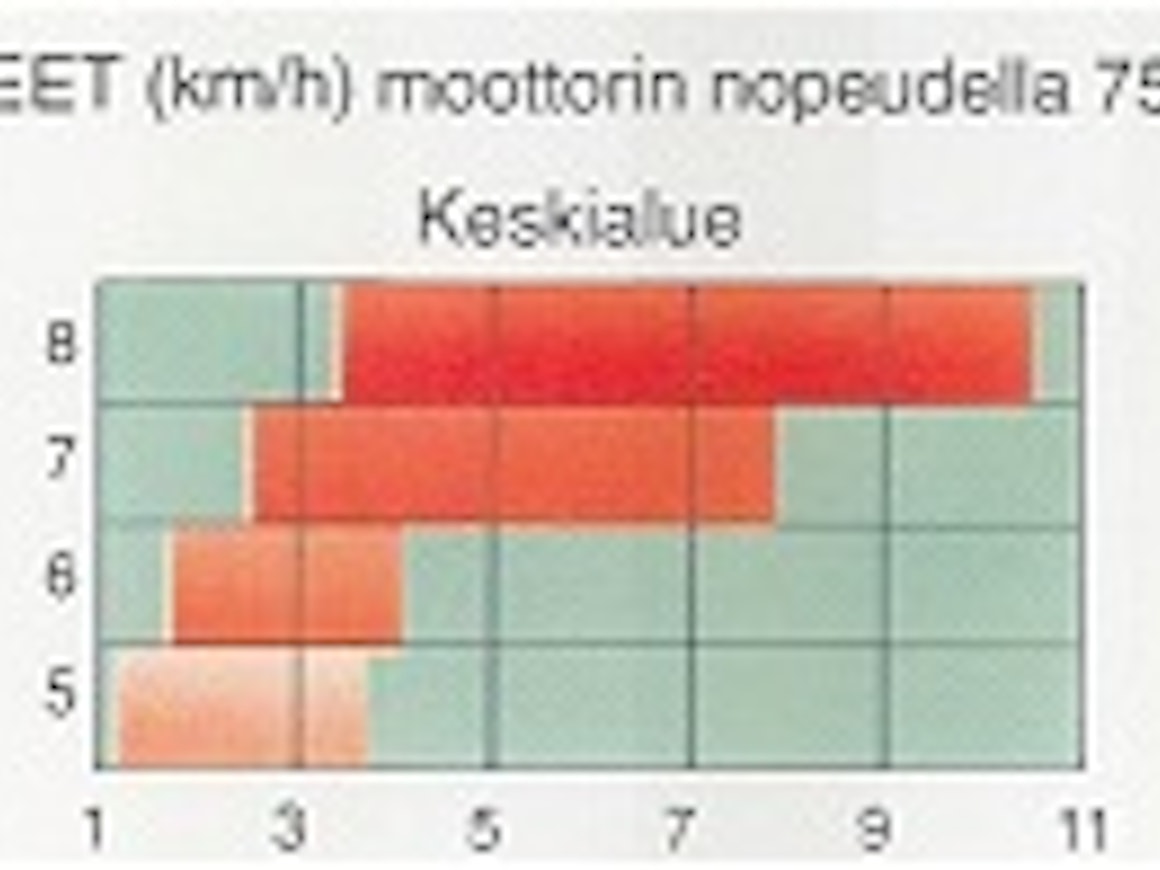

Speeds in km/h3,4-33,73,4-33,73,7-36,13,7-36,13,7-36,1
Max. speed 38 km/h38 km/h40 km/h40 km/h40 km/h
Hydr. flow l/min39 l/min39 l/min39 l/min39 l/min55 l/min
Hydraulic pressure180 bar180 bar180 bar180 bar190 bar
Lift controlsmech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)
Lift capacity2500 kg2500 kg2500 kg2500 kg3400 kg
PTO speeds540540540540540
Brakeswet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD7777.27.2
Turning circle m 4WD8.48.48.49.49.4
Front tyres 2WD10.00-1610.00-1610.00-1610.00-1610.00-16
Front tyres 4WD12.4R2412.4R2412.4R2412.4R2414.9R24
Rear tyres 2WD16.9-3016.9-3016.9R3016.9R3016.9R34
Rear tyres 4WD16.9R3416.9R3416.9R3416.9R3418.4R34
Weight 2WD2820 kg2820 kg2820 kg3130 kg3190 kg
Weight 4WD3040 kg3040 kg3100 kg3280 kg3630 kg
Height with cab249/255 cm249/255 cm255 cm255 cm261/265 cm
Length (2WD/4WD)371/385 cm371/385 cm371/387 cm380/400 cm384/404 cm
Wheelbase (2WD/4WD)211/226 cm211/226 cm211/226 cm224/239 cm224/239 cm
Fuel tank73 l73 l73 l73 l73 l
Cab noise level79.5 dB79.5 dB83 dB83 dB83 dB
Solid cabxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lock
Creeper gearopt.opt.opt.opt.opt.
