Siirry sivupalkkiinSiirry alaosaanValmet/Valtra HiTech 8050-8950




Here is the English translation of the provided text:
The 6-cylinder models of the Valtra Valmet HiTech range introduced in the fall of 1998 mainly corresponded to the Mega 8050 series. As a SigmaPower model, the 8750 was replaced by the 8950 with 200 horsepower, which featured a Bosch inline pump instead of the Stanadyne distributor pump used in the smaller models.
The automation of the Delta Powershift transmission allowed programming of two automatic quick-shift programs, one for fieldwork and one for road use. The reverser was based on two wet multi-disc clutches. The reverse acceleration could be set to be faster or slower than the forward driving speed. The engagement of the quick shift was smoother than in the standard model thanks to sensors and automation. Also, the power take-off (PTO) engagement was controlled by the computer.

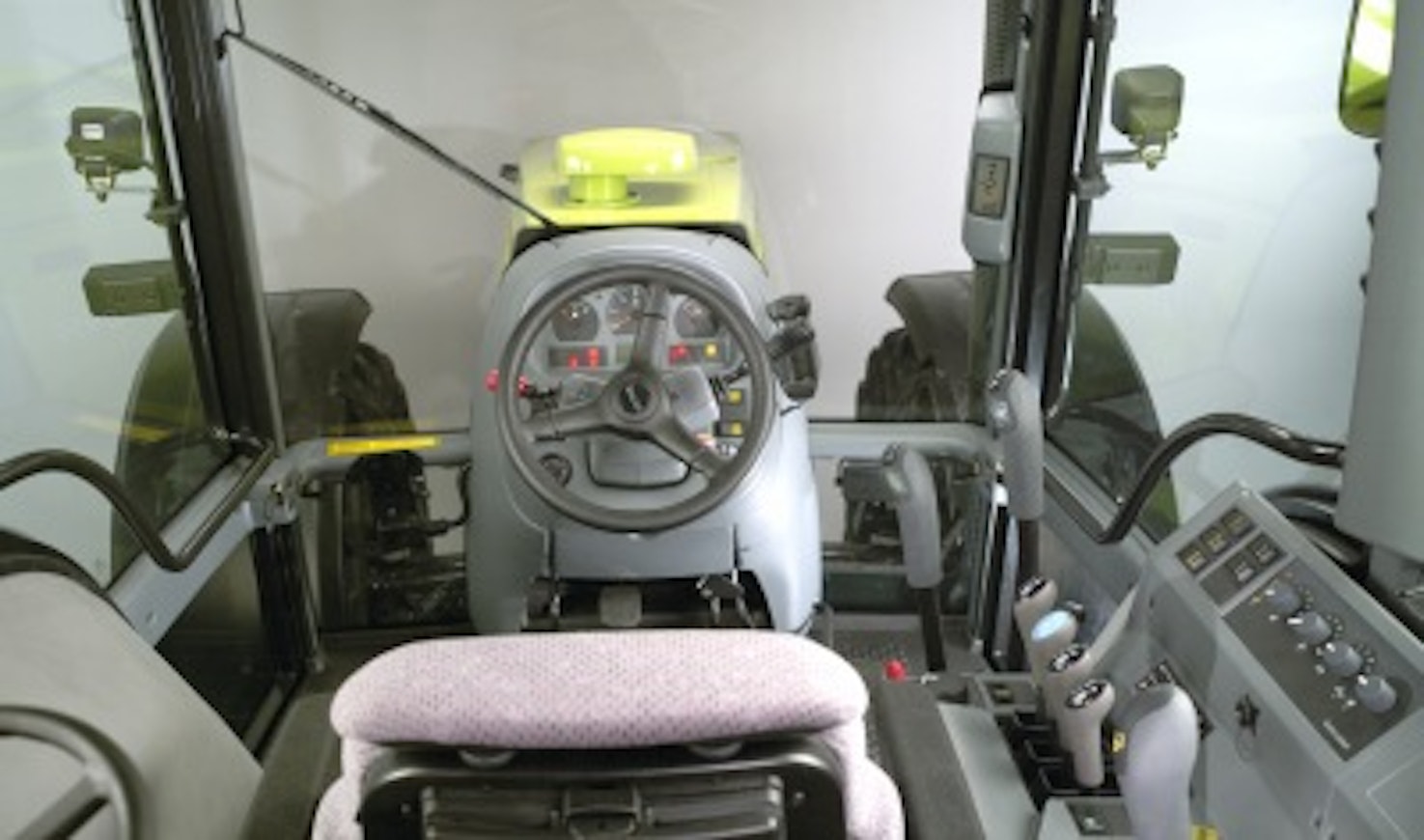

The reverser was mounted on the left side of the stalk. The clutch pedal was electrically operated, and a push-button clutch on the shift levers' knobs was standard. From the display on the right front pillar, the driver could see the quick shift stage, the selected direction, driving speed, and outside temperature. The lift device on all models was an Autocontrol D equipped with oscillation damping.
A new pneumatic Aires front suspension was available for the 6-cylinder HiTech models. This system, which differed from competitors', was justified by its functionality in extreme climatic conditions. The spring elements were two truck air springs and a shock absorber. The air was produced by a compressor, which could also be used for trailer brakes. The front axle was Dana, and for industrial models, Carraro.
In the fall of 2000, the HiTech 2.0 models were introduced. The automatic programs were updated. The most significant improvement was the user's ability to adjust the engine speeds used as transmission automation thresholds to suit each task. The four-wheel drive now engaged for a few seconds every time the tractor started moving or changed direction. When desired, starting out required only pressing the throttle after activating the Auto Traction function, and stopping was done by releasing the throttle or braking.
A new 135-horsepower low-rev model 8350 was introduced, with a nominal engine speed of 1800 rpm. The gear ratios corresponded to the 50 km/h version, but the top speed was limited to 40 km/h due to the lower engine speed. The noise level was specified as 73 dB. The 8350 featured an industrial front axle, as did the larger models.
In the 2003 model lineup, the 8050 and 8150 remained, now equipped with Bosch's electronic injection pump.
If you need any further assistance with this text or related topics, feel free to ask!
This is an automated translation. Please report any issues in the translation.
| Model | Valmet 8050 (110) | Valmet 8050 | Valmet 8150 (125) | Valmet 8150 | Valmet 8350 (135i) | Valmet 8450 (140) | Valmet 8550 (160) | Valmet 8950 (160/200) |
|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1998-2003 | 2003-04 | 1998-2003 | 2003-04 | 1998-2003 | 1998-2003 | 1998-2003 | 1998-2002 |
| Engine model | 620DSRE | 66EWA | 620DSRE | 66EWA | 620DSRIE | 620DWRE | 634DSRE | 634DSBIE Sigma |
| Cyl/Turbo/Intercooler | 6T | 6T | 6T | 6T | 6T | 6T | 6T | 6TI |
| Displacement | 6598 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ | 7368 cm³ | 7368 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×134 mm | 108×134 mm |
| Rated power | 110/2200 hp DIN/rpm | 110/2200 hp DIN/rpm | 125/2200 hp DIN/rpm | 125/2200 hp DIN/rpm | 135/1800 hp DIN/rpm | 140/2200 hp DIN/rpm | 160/2200 hp DIN/rpm | 160-200/2200 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - | - |
| Gears | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 |
| Synchronized gears | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 |
| Powershift gears | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,6-39,2/47,8 | 0,6-39,2/47,8 | 0,6-39,2/47,8 | 0,6-39,2/47,8 | 0,6-40,7 | 0,6-40,9/49,8 | 0,6-40,9/49,8 | 0,6-40,9/49,8 |
| Max. speed | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h |
| Hydr. flow l/min | 73 l/min | 73 l/min | 73 l/min | 73 l/min | 76 l/min | 73 l/min | 73 l/min | 73 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 6800 kg | 6800 kg | 6800 kg | 6800 kg | 6800 kg | 6800 kg | 6800 kg | 6800 kg |
| PTO speeds | 540/1000/ | 540/1000 | 540/1000 | 540/1000 | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.2 | 11 | 10.2 | 11 | 11,0 (13,6) | 11,0 (13,6) | 11,0 (13,6) | 11,0 (13,6) |
| Front tyres 4WD | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 16.9R28 | 16.9R28 | 16.9R28 | 16.9R28 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 20.8R38 | 20.8R38 | 20.8R38 | 20.8R38 |
| Weight 4WD | 5010 kg | 5010 kg | 5090 kg | 5090 kg | 5210 kg | 5210 kg | 5210 kg | 5220 kg |
| Height with cab | 280 cm | 284 cm | 280 cm | 284 cm | 283 cm | 283 cm | 283 cm | 283 cm |
| Length (2WD/4WD) | 486 cm | 486 cm | 486 cm | 486 cm | 495 cm | 495 cm | 495 cm | 495 cm |
| Wheelbase (2WD/4WD) | 256 cm | 256 cm | 256 (275) cm | 256 cm | 256 (275) cm | 256 (275) cm | 256 (275) cm | 256 (275) cm |
| Fuel tank | 165 l | 165 l | 165 l | 165 l | 250 l | 165 l | 250 l | 250 l |
| Cab noise level | 77 dB | 77.5 dB | 77 dB | 77 dB | 73 dB | 77 dB | 77 dB | 77 dB |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x | x | x |
| Air conditioning | - | - | - | - | - | - | x | x |
