Valtra S230-S280

04ValtraS
04ValtraSohjaamo
04ValtraS
04ValtraSohjaamo
Manufacturer
Models
Valtra S230, Valtra S240, Valtra S260, Valtra S280
Years
2001-08
Info

In the autumn of 1999, the Valtra S-series was announced, which was designed to support Valtra's marketing in the major agricultural countries of Europe. It only went into serial production in the autumn of 2001. The engine was Valtra's electronically controlled 8.4-liter. The transmission (T7336), rear axle, and front axle were purchased from ZF. The same components were used, for example, by Deutz-Fahr in their largest models. Valtra's own innovations included a turbine clutch, HiTech, which is an electronic powertrain control, and a CAN-bus integrated information system that was said to contain 400,000 lines of code. There were four powershift gears. The powertrain was also available in a 50 km/h version. The tractor's functions were controlled from a Linux-based display screen. Especially the control of the hydraulic electronic valves was versatile. The hydraulics featured an adjustable displacement pump with a flow rate of 147 l/min. There were up to seven valve blocks.

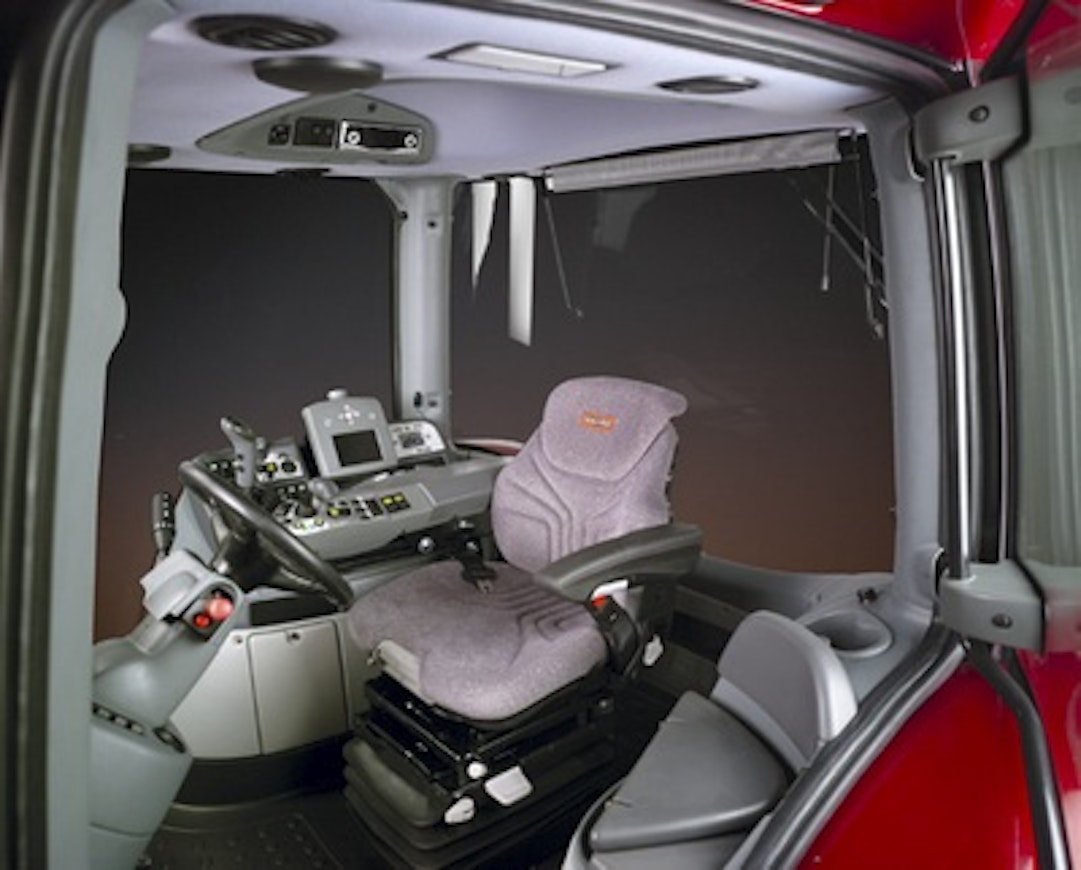

The S-series introduced Valtra's new soft and rounded design line. The cabin noise level was 78 dB, which is relatively high in this class. The cabin had no opening windows at all and only one door. The cabin suspension was pneumatic. The S-series was designed to be driven in both directions, since in the optional TwinTrac system, the most important controls, except for the gear lever, rotated together with the seat. Production of the S-series was on a small scale and the price was uncompetitive. Alongside the S260, the S230 was introduced, which remained more of a brochure embellishment than a real competitor to the 260.

In the autumn of 2003, the model designations were updated to S240 and S280 when power outputs began to be stated according to the ISO standard. At the same time, an optional quick-adjust rear axle track width was introduced to accommodate row cropping.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelValtra S230Valtra S240Valtra S260Valtra S280
Manufacturer nameValtraValtraValtraValtra
Imported to FinlandYesYesYesYes
Years2001-032003-062001-032003-08
Engine model645 ESBAE84ETA645 ESBAE84ETA
Cyl/Turbo/Intercooler6TI6TI6TI6TI
Displacement8400 cm³8400 cm³8400 cm³8400 cm³
Bore x stroke111×145 mm111×145 mm111×145 mm111×145 mm
Rated power230/2200 hp DIN/rpm-260/2200 hp DIN/rpm-
Torque----
Gears40+4040+4040+4040+40
Synchronized gears40+4040+4040+4040+40
Powershift gears4-step4-step4-step4-step
Reverserhydr.hydr.hydr.hydr.
Speeds in km/h0,4-46,90,4-46,90,4-46,90,4-46,9
Max. speed 40 (50) km/h40 (50) km/h40 (50) km/h40 (50) km/h
Hydr. flow l/min147 l/min147 l/min147 l/min147 l/min
Hydraulic pressure200 bar200 bar200 bar200 bar
Lift controlselec.elec.elec.elec.
Lift capacity10000 kg10000 kg10000 kg10000 kg
PTO speeds1000100010001000
Brakeswet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD13.513.913.513.9
Front tyres 4WD480/85R30460/85R30480/85R30460/85R30
Rear tyres 4WD520/85R42520/85R42520/85R42520/85R42
Weight 4WD8800 kg8800 kg8800 kg8800 kg
Height with cab340 cm340 cm340 cm340 cm
Length (2WD/4WD)510 cm510 cm510 cm510 cm
Wheelbase (2WD/4WD)308 cm308 cm308 cm308 cm
Fuel tank600 l600 l600 l600 l
Cab noise level78 dB78 dB78 dB78 dB
Solid cabxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lock
Autom. differential locksxxxx
Air suspension seatxxxx
Air conditioningxxxx
Trip computerxxxx
