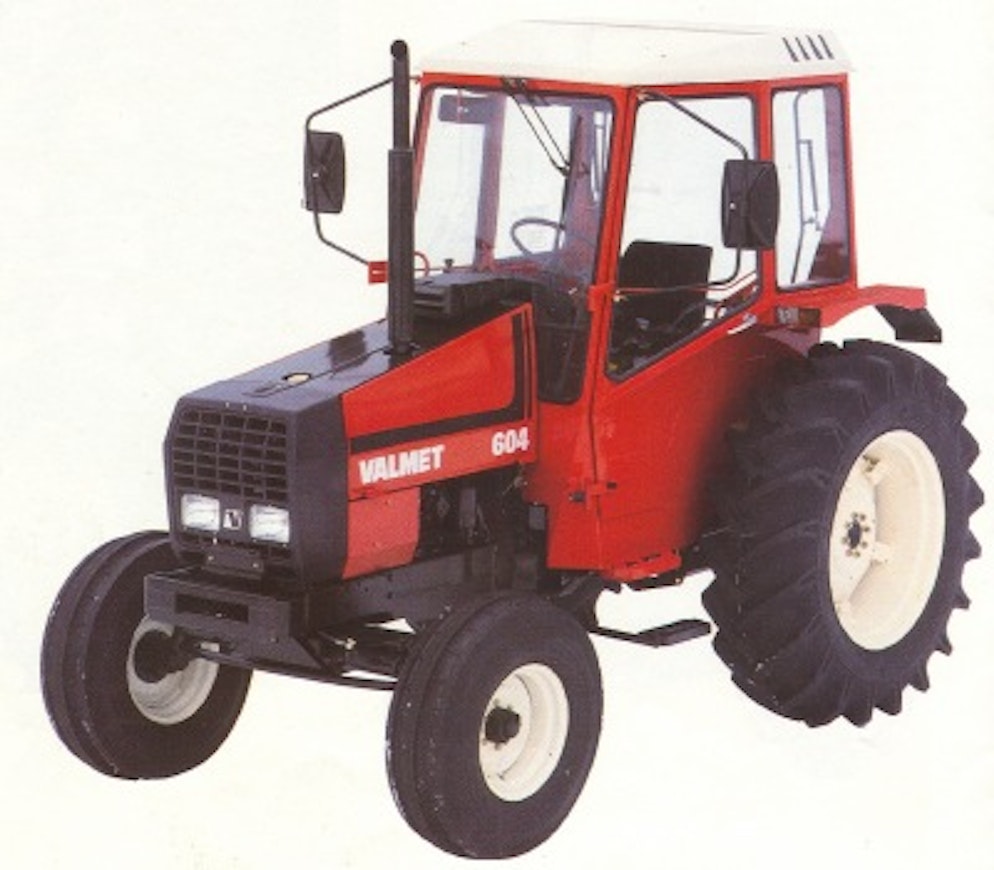

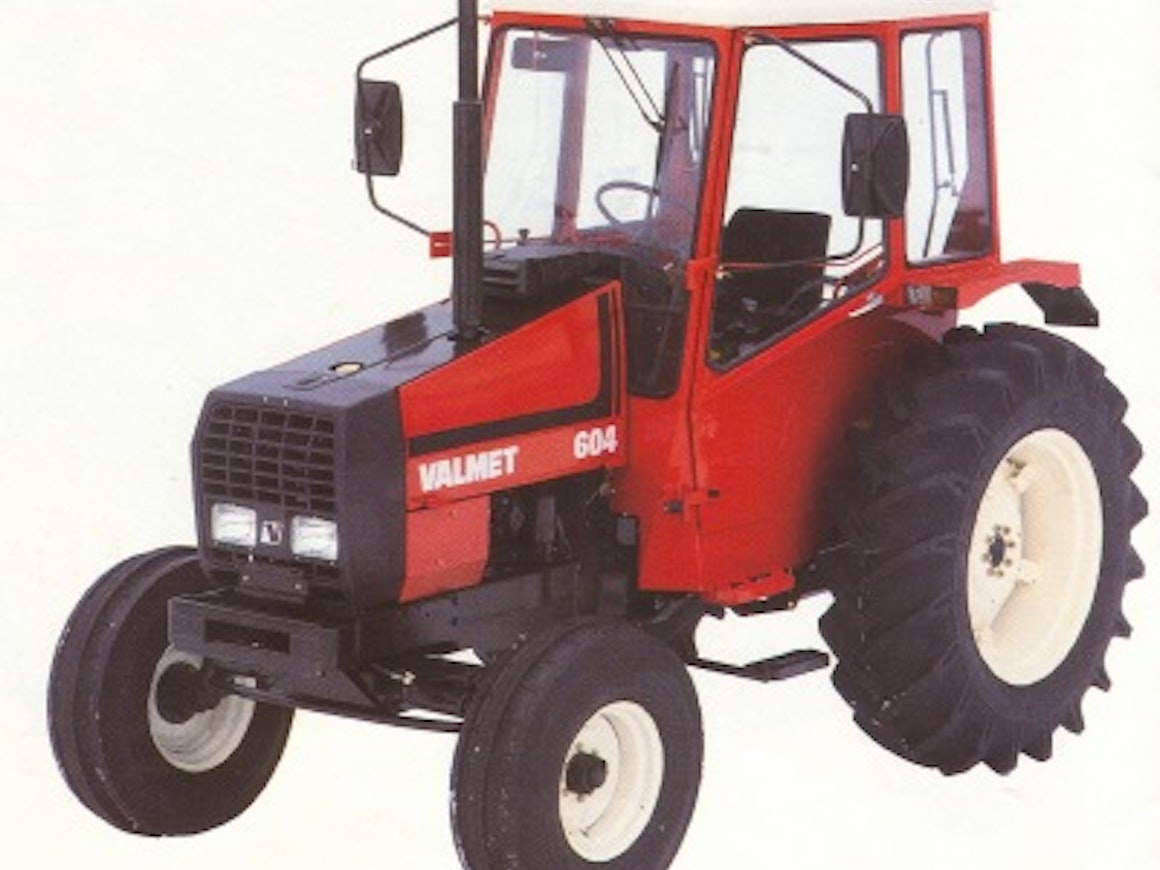

The 504 and 604 were introduced in the summer of 1982. They were updated versions of the 502 and 602. The appearance and coloring were adapted to the Nordic tractor lineup, although the brand of these models was still simply Valmet. The cabin was slightly more spacious than before, and the interior color was changed to red. The front axle of the four-wheel-drive models had a friction brake as a lock. The 604 had a power output of 61 hp instead of the previous 58. Many small improvements were made to the engines.

This is an automated translation. Please report any issues in the translation.

Valmet 504

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Valmet 604

Valmet 604 Turbo

Valmet 504-604T

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Valmet 504	Valmet 604	Valmet 604 Turbo
Manufacturer name	Valmet	Valmet	Valmet
Imported to Finland	Yes	Yes	Yes
Years	1982-85	1982-85	1982-85
Engine model	D27B	D33C	TD33C
Cyl/Turbo/Intercooler	3	3	3T
Displacement	2685 cm³	3300 cm³	3300 cm³
Bore x stroke	100×114 mm	108×120 mm	108×120 mm
Rated power	49/2300 hp DIN/rpm	61/2300 hp DIN/rpm	66/2300 hp DIN/rpm
Torque	-	-	-
Gears	6+2	6+2	6+2
Synchronized gears	4	4	4
Speeds in km/h	3,5-28,2	3,6-28,5	3,6-28,5
Hydr. flow l/min	27 l/min	27/38,6 l/min	27/38,6 l/min
Hydraulic pressure	210 bar	210 bar	210 bar
Lift controls	mech.	mech.	mech.
Lift capacity	1900 kg	1900 kg	1900 kg
PTO speeds	540	540	540
Brakes	dry disc	dry disc	dry disc
Steering	hydrost.	hydrost.	hydrost.
Turning circle m 2WD	7	7	7
Front tyres 2WD	7,50-16	10,00-16	10,00-16
Rear tyres 2WD	14,9-30	16,9-30	16,9-30
Weight 2WD	2690 kg	2800 kg	2820 kg
Height with cab	250 cm	255 cm	253 cm
Length (2WD/4WD)	362 cm	362/371 cm	362/371 cm
Wheelbase (2WD/4WD)	211 cm	211/218 cm	211/218 cm
Fuel tank	65 l	65/60 l	65/60 l
Cab noise level	84 dB	84.5 dB	84.5 dB
Solid cab	x	x	x
Turning circle m 4WD	-	8.8	8.8
Front tyres 4WD	-	11.2-24	11.2-24
Rear tyres 4WD	-	16.9-30	16.9-30
Weight 4WD	-	2890 kg	2910 kg
Diff. lock	-	friction lock	friction lock
