Valtra C90-C150

04ValtraC
04ValtraCohjaamo
04ValtraCcolors
04ValtraC
04ValtraCohjaamo
04ValtraCcolors
Manufacturer
Models
Valtra C90, Valtra C100, Valtra C110, Valtra C120, Valtra C120e, Valtra C130, Valtra C150
Years
2004-06
Info

Here is the translation of the text to English:

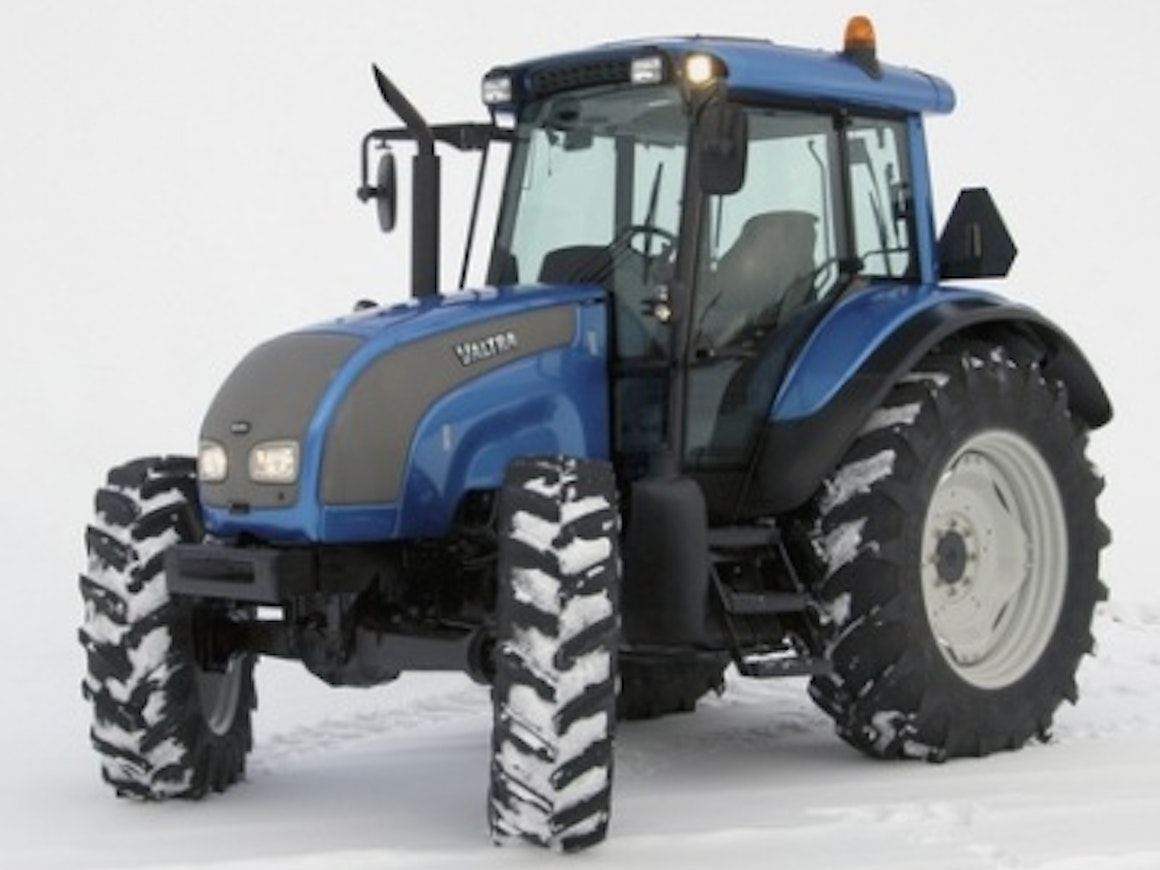

The Valtra C-series tractors were introduced in the autumn of 2003 to meet the needs of cattle farms and front loader use. The series went on sale in the spring of 2004. The external dimensions were roughly in the class of the Mezzo, meaning significantly more compact than the M-series. The weight distribution of 39/61 was better suited for front loader use. However, the C-series still weighed 1000 kg more than the Mezzo. Due to the shortened wheelbase, the fuel tank, which was previously located in the intermediate frame, was moved to a plastic tank located under the cab.

The engines of models C120-C150 corresponded to those of the M-series. Sales in Finland focused on these models. In addition, the C-series included three smaller models, whose technology was somewhat simpler. The engines in these models did not have electronic control or a viscous fan. The hydraulic pump in the smaller models produced 73 l/min, the same as the Mezzo, and the lifting capacity was also the same as in the Mezzo, with only two hydraulic blocks. The partially load-sensing hydraulics with electric valves in the larger models corresponded to those of the M- and T-series. The standard transmission in the smaller models was 24+24 gears, from the C110 onwards 36+36. Both transmissions featured standard HiTech functions such as quick-shift automation. The turbine clutch was available in models C90, C100, C110, C120, and C130.

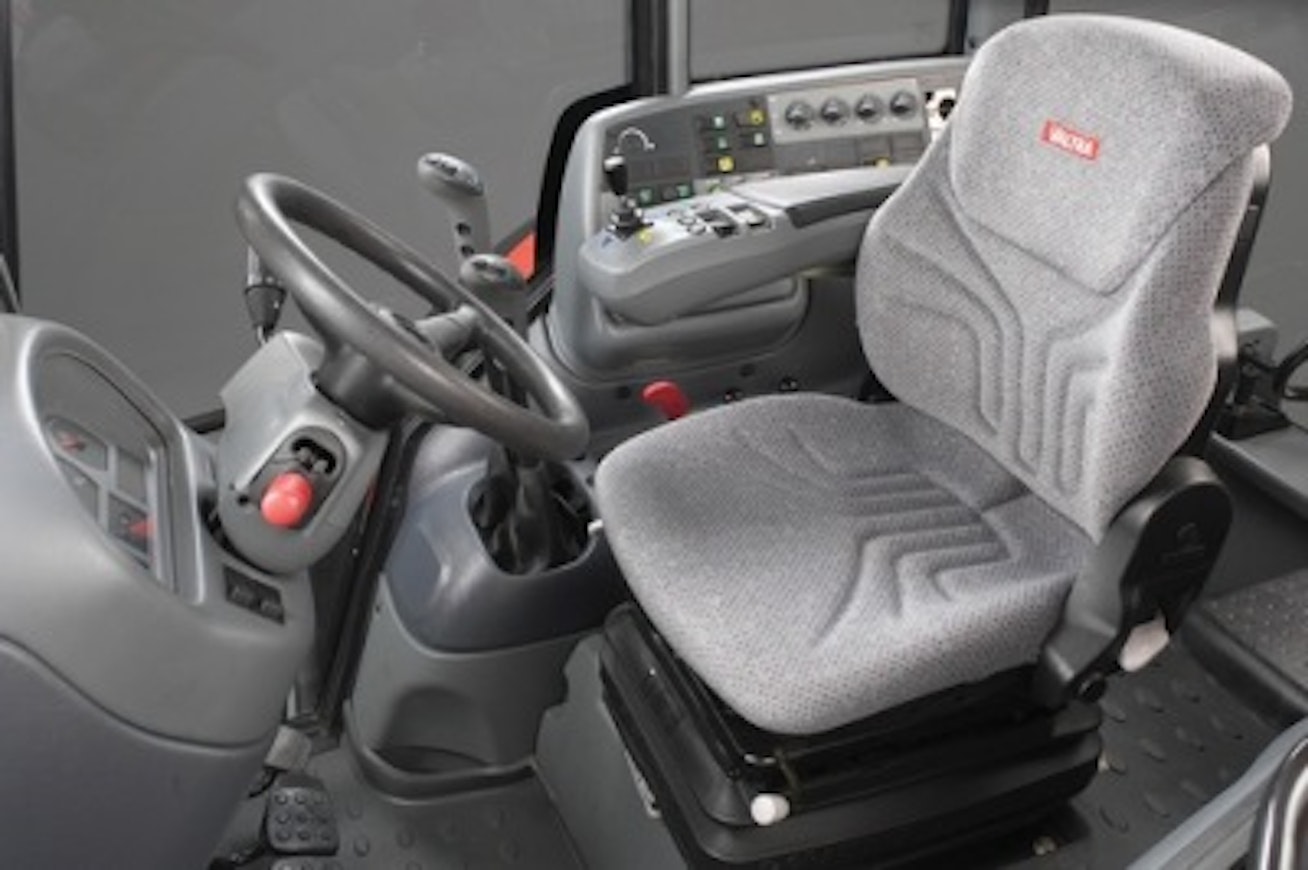

The narrow cab of the C-series was fairly small in space and was somewhat more basic in its interior. The noise level was 76.5-78 dB, similar to Mezzo’s figures. Compared to the M-series, the standard equipment did not include an air conditioning unit except for the C150. Also, there was no fan installed on the dashboard; all air came from the ceiling. From the C120 onwards, the standard was the agroline instrument panel, which showed, among other things, the position of the lift arms, driving speed, PTO rotation speed, and transmission temperature.

There are differences in power, dimensions, and weights in the technical data of the C-series between different brochures. Sales of the C-series ended in Finland in 2006.


This is an automated translation. Please report any issues in the translation.

Technical data
ModelValtra C90Valtra C100Valtra C110Valtra C120Valtra C120eValtra C130Valtra C150
Manufacturer nameValtraValtraValtraValtraValtraValtraValtra
Imported to FinlandNoYesNoYesYesYesYes
Years2004-062004-062004-062004-062004-062004-062004-06
Engine model44DT44DT44DTA44EWA44EWA44EWA44EWA
Cyl/Turbo/Intercooler4T4T4TI4TI4TI4TI4TI
Displacement4399 cm³4399 cm³4399 cm³4399 cm³4399 cm³4399 cm³4399 cm³
Bore x stroke108×120 mm108×120 mm108×120 mm108×120 mm108×120 mm108×120 mm108×120 mm
Rated power-------
Torque-------
Gears24+2424+2436+3636+3636+3636+3636+36
Synchronized gears24+2424+2436+3636+3636+3636+3636+36
Powershift gears3-step3-step3-step3-step3-step3-step3-step
Reverserhydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h2,7-362,7-360,6-40,10,6-40,10,6-40,10,6-40,10,6-40,1
Max. speed 40 km/h40 km/h41 km/h41 km/h40 km/h41 (50) km/h41 (50) km/h
Hydr. flow l/min73 l/min73 l/min73 l/min91 l/min82 l/min91 l/min91 l/min
Hydraulic pressure196 bar196 bar196 bar196 bar196 bar196 bar196 bar
Lift controlselec.elec.elec.elec.elec.elec.elec.
Lift capacity5600 kg5600 kg5600 kg7200 kg7200 kg7200 kg7200 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.88.88.88.88.88.88.8
Front tyres 4WD14.9R2814.9R2814.9R2814.9R2814.9R2814.9R2814.9R28
Rear tyres 4WD18.4R3818.4R3818.4R3818.4R3818.4R3818.4R3818.4R38
Weight 4WD5120 kg5120 kg5270 kg5270 kg5270 kg5270 kg5270 kg
Height with cab285 cm285 cm285 cm285 cm285 cm285 cm285 cm
Length (2WD/4WD)443 cm443 cm443 cm443 cm443 cm443 cm443 cm
Wheelbase (2WD/4WD)242 cm242 cm242 cm242 cm242 cm242 cm242 cm
Fuel tank180 l180 l180 l180 l180 l180 l180 l
Solid cabxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Autom. differential locksxxxxxxx
Air suspension seatxxxxxxx
Cab noise level-76.5 dB-76.5 dB73.5 dB77.5 dB78 dB
Air conditioning------x
