Valtra N91-N141

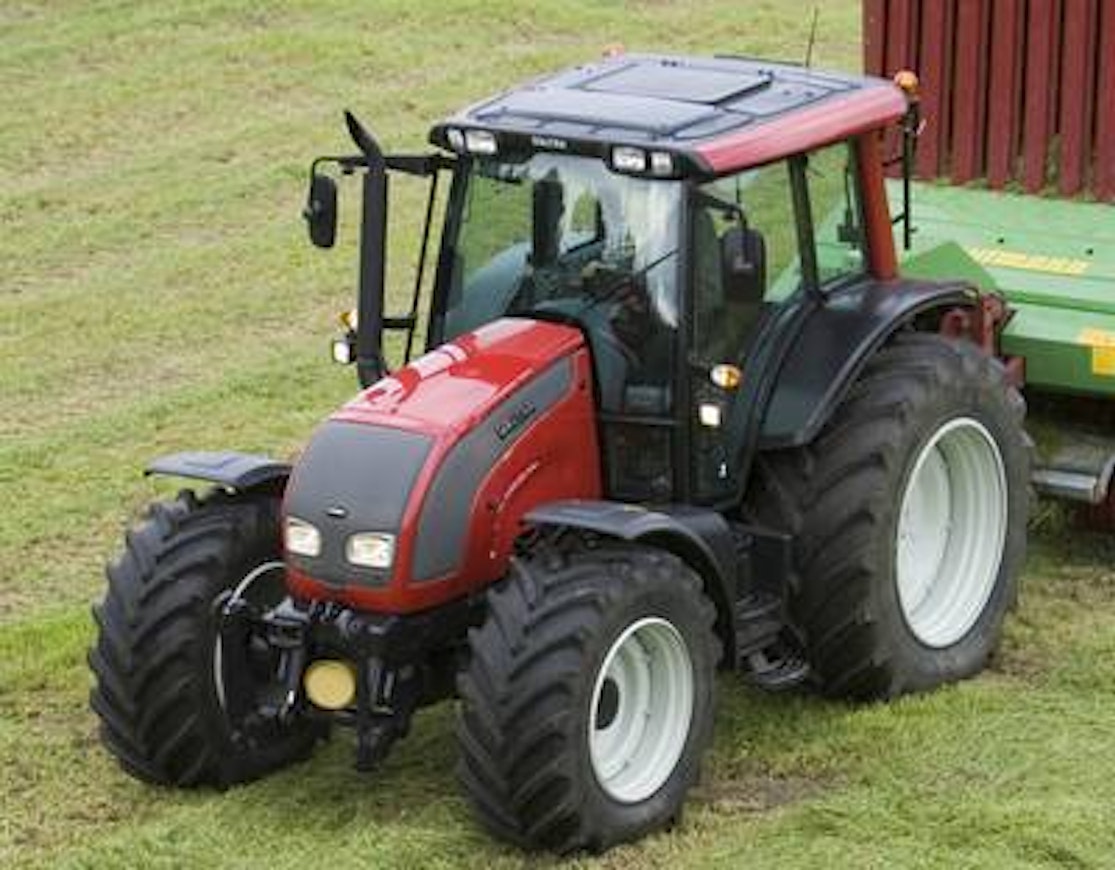

06ValtraN

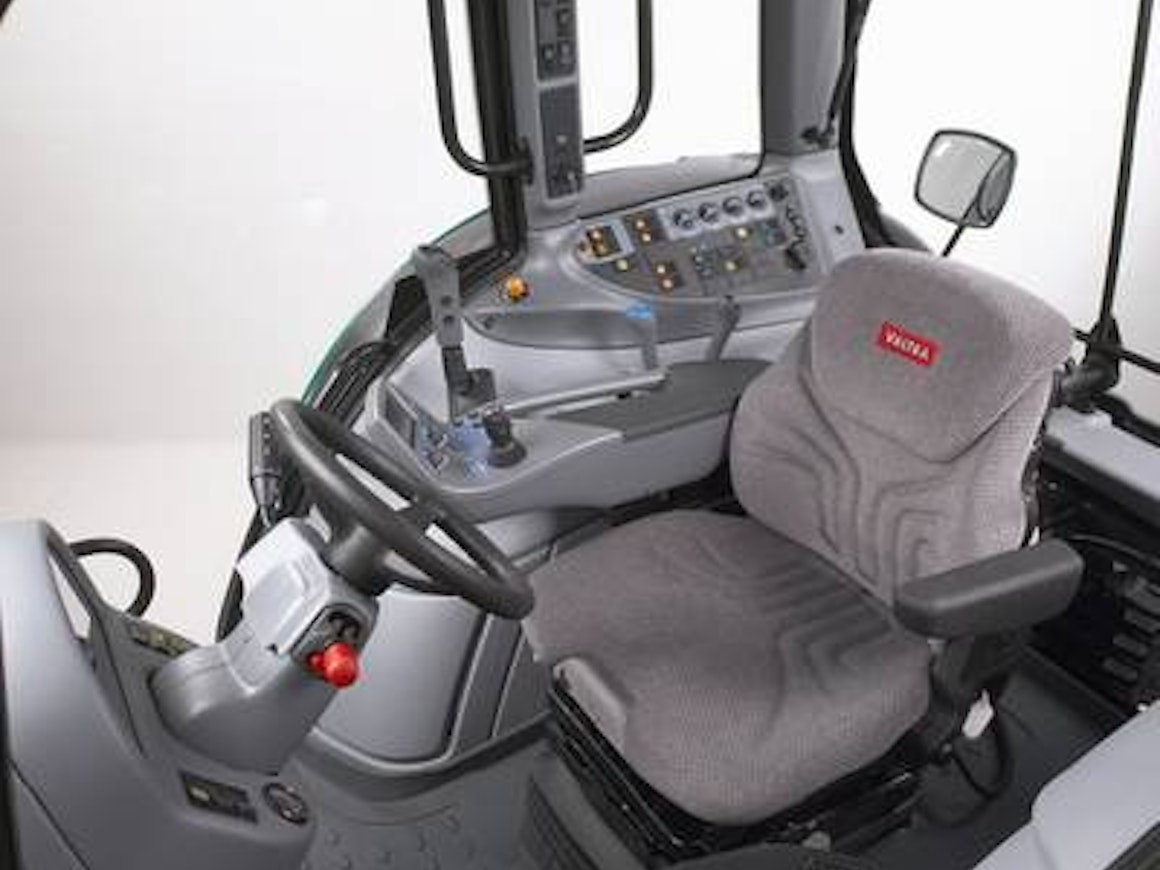

06ValtraNohjaamo
06ValtraN
06ValtraNohjaamo
Manufacturer
Models
Valtra N91, Valtra N101, Valtra N101, Valtra N111, Valtra N111e, Valtra N111e, Valtra N121, Valtra N141
Years
2005-07
Info

After some practice, Valtra managed to put the pieces of the four-cylinder tractor together when the N-series was introduced at the end of 2005. The lineup was extensive right from the start: there were six different engine options and three equipment levels: Classic, HiTech, and Advance. The HiTech had an electrically controlled transmission as before. The Advance featured hydraulics based on a 115 l/min variable displacement pump with electrically controlled valves, a control armrest, an air suspension seat, and cruise control. Compared to competitors, the main drawback was the three-speed powershift.

The engines in the first versions were mechanically controlled in the three smallest models. The Eco model N111e had an electronic injection pump, and the two largest models already had common rail engines. Among these, the N141 had an entirely new 4.9-liter engine, which raised the power output of the four-cylinder tractor to new levels. A year later, the N101 and N111e also received common rail engines, with the N111e featuring two settings in the same engine: Power and Eco. The additional power provided by the common rail was available in the three highest gears, meaning only during transport driving.

The cab’s basic structure was the same as in the T-series. Noise level was reported as 72.5 dB for most models. The fuel tank was no longer in the intermediate frame; instead, a plastic tank (with a smaller steel tank available as an option) was located under the cab on the left side. Cab suspension was available as an optional extra on the Advance model. Because of this feature and the variable displacement pump, the Advance models were 14 cm taller than the other models. Front axle suspension was available for all models. A turbine clutch was also available except on the N141.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelValtra N91Valtra N101Valtra N101Valtra N111Valtra N111eValtra N111eValtra N121Valtra N141
Manufacturer nameValtraValtraValtraValtraValtraValtraValtraValtra
Imported to FinlandYesYesYesYesYesYesYesYes
Years2005-072005-062006-072005-062005-062006-072005-072005-07
Engine model44DT44DTA44CWA44DTA44EWA44CWA44CWA49CWA
Cyl/Turbo/Intercooler4T4TI4TI4TI4TI4TI4TI4TI
Displacement4399 cm³4399 cm³4399 cm³4399 cm³4399 cm³4399 cm³4399 cm³4912 cm³
Bore x stroke108×120 mm108×120 mm108×120 mm108×120 mm108×120 mm108×120 mm108×120 mm108×134 mm
Rated power96/2200 hp DIN/rpm104/2200 hp DIN/rpm104/2200 hp DIN/rpm115/2200 hp DIN/rpm110/1800 hp DIN/rpm115/2200 hp DIN/rpm130/2200 hp DIN/rpm144/2200 hp DIN/rpm
Torque--------
Gears36+3636+3636+3636+3636+3636+3636+3636+36
Synchronized gears36+3636+3636+3636+3636+3636+3636+3636+36
Powershift gears3-step3-step3-step3-step3-step3-step3-step3-step
Reverserhydr. (Cl: mech.)hydr. (Cl: mech.)hydr. (Cl: mech.)hydr. (Cl: mech.)hydr.hydr.hydr.hydr.
Speeds in km/h0,5-36,10,5-36,10,5-36,10,5-36,10,6-37,00,6-39,40,6-38,4/48,10,6-38,4/48,1
Max. speed 38 km/h38 km/h38 km/h38 km/h39 km/h40 km/h40 (50) km/h40 (50) km/h
Hydr. flow l/min73 l/min73 l/min73 l/min73 l/min76 l/min76 l/min73, Adv. 115 l/min73, Adv. 115 l/min
Hydraulic pressure200 bar200 bar200 bar200 bar200 bar200 bar200, Adv. 205 bar200, Adv. 205 bar
Lift controlselec.elec.elec.elec.elec.elec.elec.elec.
Lift capacity7700 kg7700 kg7700 kg7700 kg7700 kg7700 kg7700 kg7700 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.98.98.98.98.98.98.98.9
Front tyres 4WD14.9R2414.9R2414.9R2414.9R2414.9R2414.9R2814.9R2814.9R28
Rear tyres 4WD18.4R3418.4R3418.4R3418.4R3418.4R3418.4R3818.4R3818.4R38
Weight 4WD4850 kg4850 kg4850 kg4850 kg4850 kg4950 kg4950 kg4950 kg
Height with cab275 cm275 cm275 cm275 cm275 cm280 cm280 Adv. 294 cm280 Adv. 294 cm
Length (2WD/4WD)441 cm441 cm441 cm441 cm441 cm453 cm453 cm453 cm
Wheelbase (2WD/4WD)257 cm257 cm257 cm257 cm257 cm257 cm257 cm257 cm
Fuel tank220 l220 l220 l220 l220 l220 l220 l220 l
Cab noise level72.5 dB72.5 dB72.5 dB72.5 dB72.5 dB72.5 dB72.5 dB70.7 dB
Solid cabxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockdisc lock
Autom. differential locksxxxxxxxx
Max power--------
Air suspension seat------Adv.x
Air conditioning-------x
