Valtra N93-N143 HiTech/HiTech 5

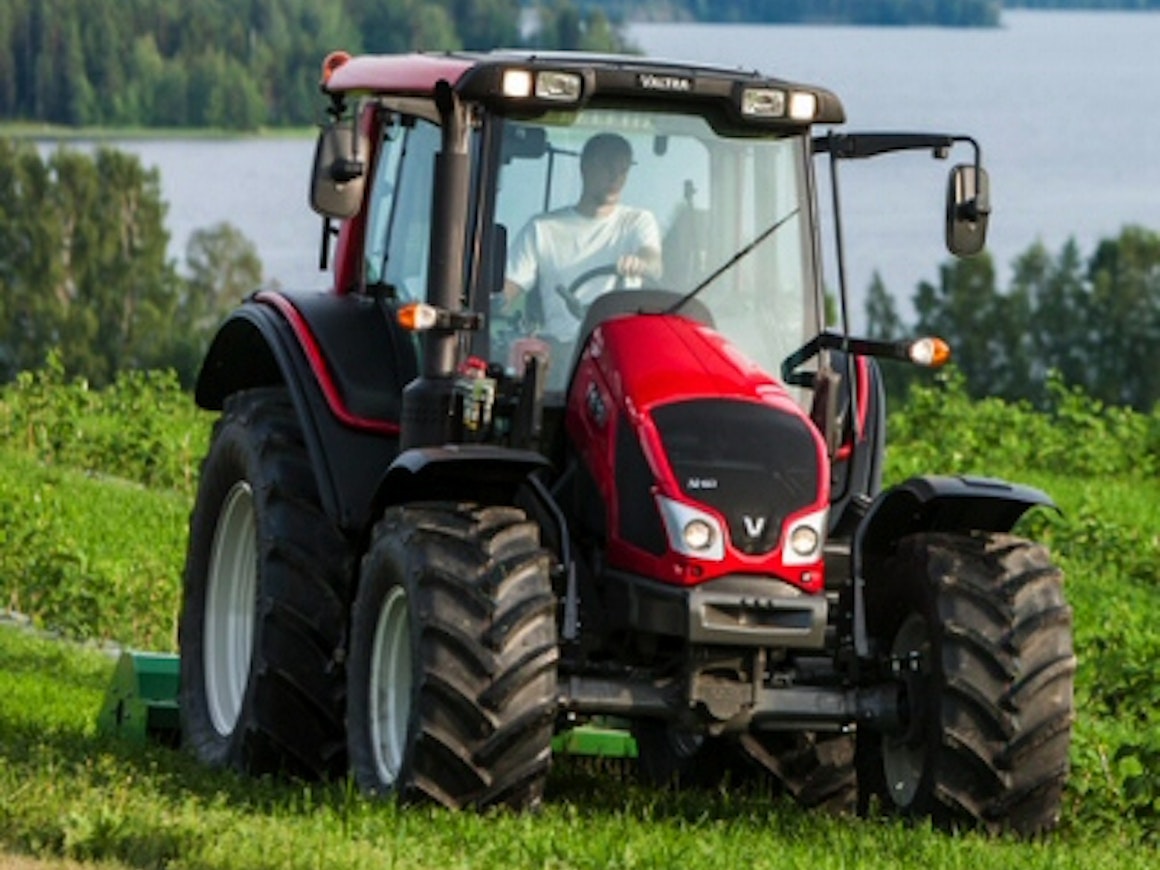

12ValtraN103

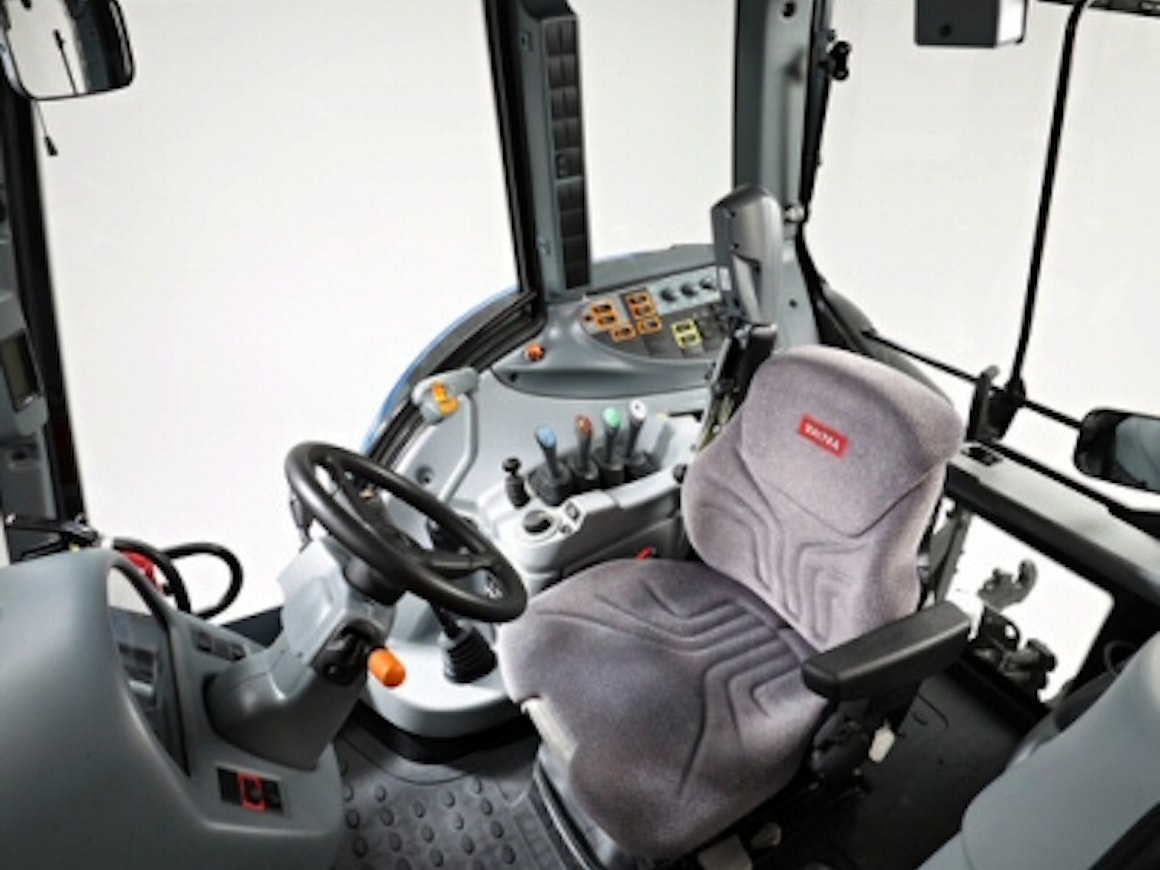

12ValtraN103H5ohjaamo

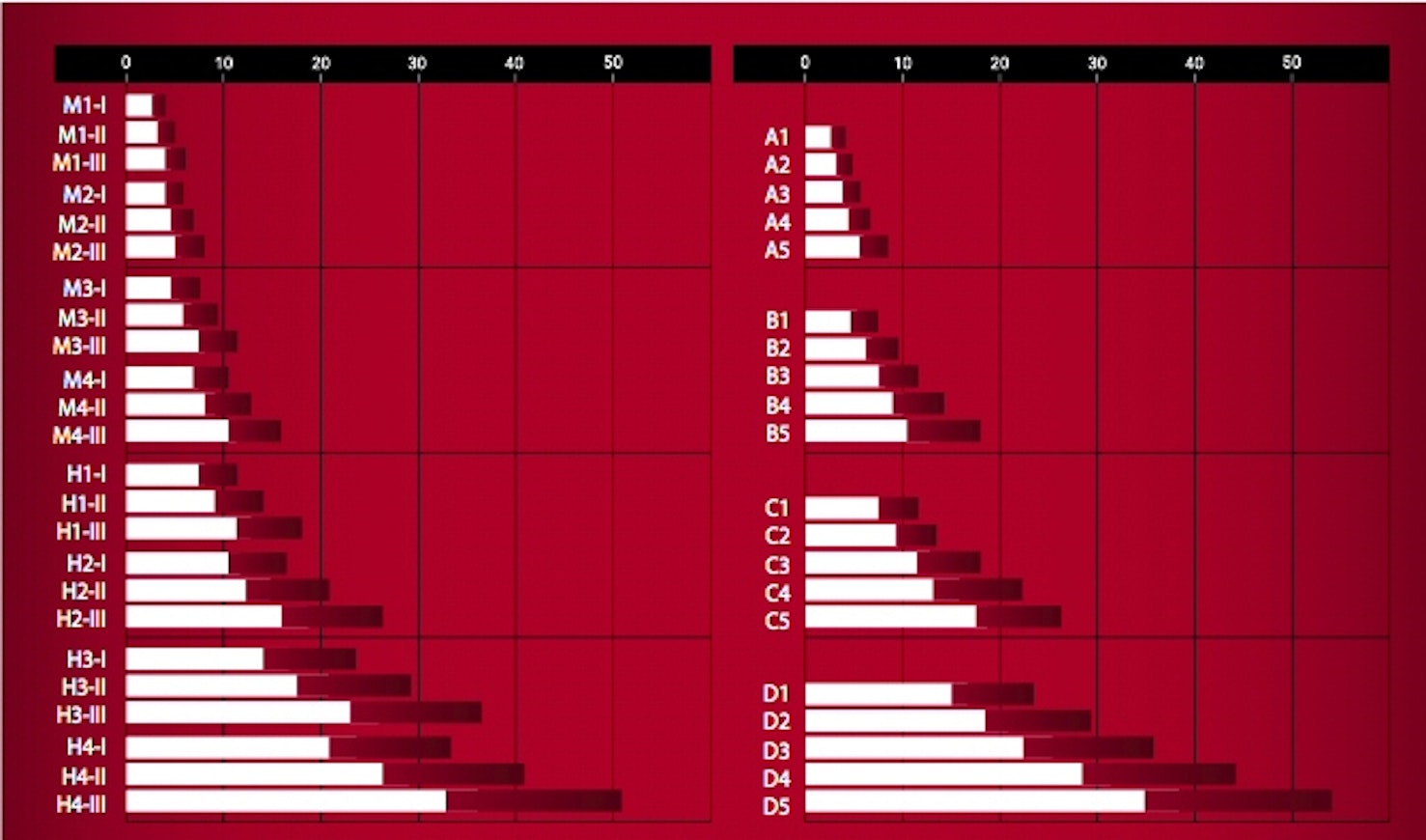

12ValtraNHitechNopeudet
12ValtraN103
12ValtraN103H5ohjaamo
12ValtraNHitechNopeudet
Manufacturer
Models
Valtra N93 HiTech/H5, Valtra N103 HiTech/H5, Valtra N103.4 HiTech/H5, Valtra N113 HiTech/H5, Valtra N123 HiTech/H5, Valtra N143 HiTech
Years
2011-16
Info

At the end of 2011, Valtra N-series tractors equipped with urea injection were introduced, featuring a new front design and front frame structure that allowed the front wheels to turn more sharply. The front linkage and front loader did not limit the turning radius as they were integrated into the tractor's front. The wheelbase was 10 cm longer than before. A speed of 40 km/h was achieved at an engine speed of 1930 rpm. The new HiTech 5 model had a five-speed powershift and mechanical hydraulics. The Versu model featured a simplified transmission controlled by push buttons, with 20+20 gears. In the HiTech model equipped with a 3-speed powershift, the slowest speed ranges were removed as standard, and the total number of gears was now 24+24. The 4.9-liter engine was, unlike in the Versu models, only available in the N143, which did not come with the HiTech 5 transmission.

In the autumn of 2012, the smallest N-series tractors were replaced with 3-cylinder N93 and N193 models. They did not have urea injection. Unlike the larger models, the front had only two headlights, and the front edge of the engine hood was lower and more curved. In the autumn of 2013, the lineup was expanded with the four-cylinder N103.4, which primarily differed from the N113 in terms of engine power. A turbine clutch was available as an option on models N93-N123, both with HiTech and HiTech 5 transmissions.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelValtra N93 HiTech/H5Valtra N103 HiTech/H5Valtra N103.4 HiTech/H5Valtra N113 HiTech/H5Valtra N123 HiTech/H5Valtra N143 HiTech
Manufacturer nameValtraValtraValtraValtraValtraValtra
Imported to FinlandYesYesYesYesYesYes
Years2012-162012-162013-142011-162011-162011-16
Engine model33AWI33AWI44AWI44AWI44AWI49AWI
Cyl/Turbo/Intercooler3TI3TI4TI4TI4TI4TI
Displacement3300 cm³3300 cm³4399 cm³4399 cm³4399 cm³4912 cm³
Bore x stroke108×120 mm108×120 mm108×120 mm108×120 mm108×120 mm108×134 mm
Max power------
Torque------
Gears24+24/20+2024+24/20+2024+24/20+2024+24/20+2024+24/20+2024+24
Synchronized gears24+24/20+2024+24/20+2024+24/20+2024+24/20+2024+24/20+2024+24
Powershift gears3-step/5-step3-step/5-step3-step/5-step3-step/5-step3-step/5-step3-step
Reverserhydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h3,5-403,5-403,5-403,5-403,5-40/503,5-40/50
Max. speed 40 km/h40 km/h40 km/h40 km/h40 (50) km/h40 (50) km/h
Hydr. flow l/min73 l/min73 (90) l/min73 (90) l/min73 (90) l/min73 (90) l/min73 (90) l/min
Hydraulic pressure196 bar196 bar196 bar196 bar196 bar196 bar
Lift controlselec.elec.elec.elec.elec.elec.
Lift capacity5300 (7700) kg5300 (7700) kg5800 (7700) kg5800 (7700) kg7700 kg7700 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD999999
Front tyres 4WD14.9R2414.9R2414.9R2414.9R2814.9R2814.9R28
Rear tyres 4WD18.4R3418.4R3418.4R3418.4R3818.4R3818.4R38
Weight 4WD4700 kg4700 kg5020 kg5020 kg5050 kg5050 kg
Height with cab288 cm288 cm288 cm288 cm288 cm288 cm
Length (2WD/4WD)433 cm433 cm444 cm466 cm466 cm466 cm
Wheelbase (2WD/4WD)253 cm253 cm267 cm267 cm267 cm267 cm
Fuel tank220 l220 l230(+AB27) l230(+AB27) l230(+AB27) l230(+AB27) l
Solid cabxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockdisc lock
Autom. differential locksxxxxxx
Creeper gearopt.opt.opt.opt.opt.opt.
