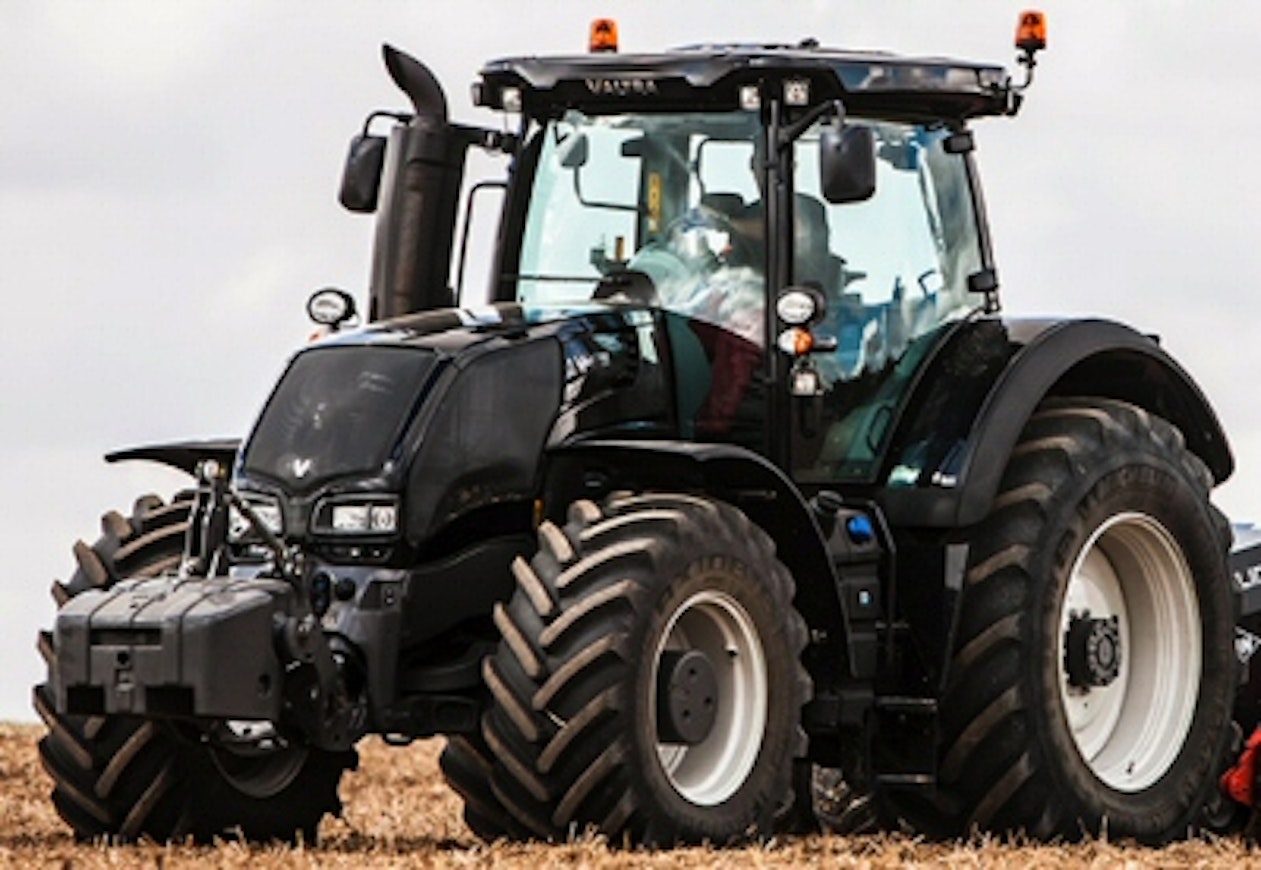

The French S-series Valtras switched to 3-ending model numbers in the autumn of 2011. The engines used more AdBlue and had even more torque. The intake air cooling was enhanced. The noise level dropped from 71 to 70 decibels. The exhaust pipe was shaped oval. The S323 and S353 had even sturdier front axles.

This is an automated translation. Please report any issues in the translation.

Valtra S233

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Valtra S263

Valtra S293

Valtra S323

Valtra S353

Valtra S233-S353

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Valtra S233	Valtra S263	Valtra S293	Valtra S323	Valtra S353
Manufacturer name	Valtra	Valtra	Valtra	Valtra	Valtra
Imported to Finland	Yes	Yes	Yes	Yes	Yes
Years	2011-13	2011-13	2011-13	2011-13	2011-13
Engine model	84AWI-4V	84AWI-4V	84AWI-4V	84AWI-4V	84AWI-4V
Cyl/Turbo/Intercooler	6TI	6TI	6TI	6TI	6TI
Displacement	8400 cm³	8400 cm³	8400 cm³	8400 cm³	8400 cm³
Bore x stroke	111×145 mm	111×145 mm	111×145 mm	111×145 mm	111×145 mm
Rated power	-	-	-	-	-
Max power	-	-	-	-	-
Torque	-	-	-	-	-
Gears	stepless	stepless	stepless	stepless	stepless
Synchronized gears	stepless	stepless	stepless	stepless	stepless
Powershift gears	stepless	stepless	stepless	stepless	stepless
Reverser	hydr.	hydr.	hydr.	hydr.	hydr.
Speeds in km/h	0,03-40/50	0,03-40/50	0,03-40/50	0,03-40/50	0,03-40/50
Max. speed	40/50 km/h	40/50 km/h	40/50 km/h	40/50 km/h	40/50 km/h
Hydr. flow l/min	175 l/min	175 l/min	175 l/min	175 l/min	175 l/min
Hydraulic pressure	200 bar	200 bar	200 bar	200 bar	200 bar
Lift controls	elec.	elec.	elec.	elec.	elec.
Lift capacity	12000 kg	12000 kg	12000 kg	12000 kg	12000 kg
PTO speeds	540/1000	540/1000	540/1000	540/1000	540/1000
Brakes	wet disc	wet disc	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.	hydrost.	hydrost.
Turning circle m 4WD	11.5	11.5	11.5	11.5	11.5
Front tyres 4WD	600/70R30	600/65R34	600/65R34	600/65R34	600/65R34
Rear tyres 4WD	650/85R38	710/75R42	710/75R42	710/75R42	710/75R42
Weight 4WD	10500 kg	10500 kg	10500 kg	10500 kg	10500 kg
Height with cab	338 cm	338 cm	338 cm	338 cm	338 cm
Length (2WD/4WD)	567 cm	567 cm	567 cm	567 cm	567 cm
Wheelbase (2WD/4WD)	311 cm	311 cm	311 cm	311 cm	311 cm
Fuel tank	610(+AB60) l	610(+AB60) l	610(+AB60) l	610(+AB60) l	610(+AB60) l
Cab noise level	70 dB	70 dB	70 dB	70 dB	70 dB
Solid cab	x	x	x	x	x
Diff. lock	disc lock	disc lock	disc lock	disc lock	disc lock
Autom. differential locks	x	x	x	x	x
Air suspension seat	x	x	x	x	x
Air conditioning	x	x	x	x	x
Creeper gear	x	x	x	x	x
