Siirry sivupalkkiinSiirry alaosaanBM Volvo Buster 320-400

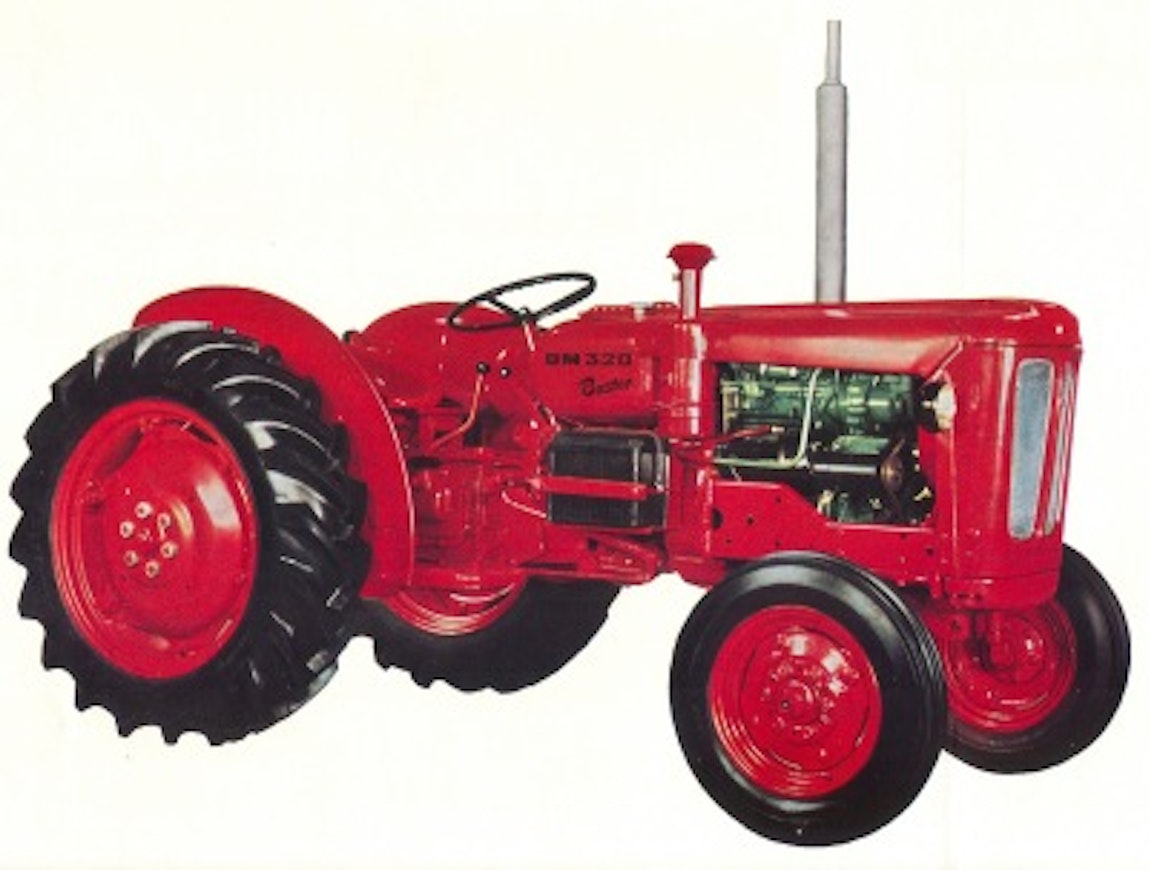

The BM Volvo Buster 320 equipped with a 3-cylinder Perkins swirl chamber diesel was introduced in 1960 as the smallest model in the lineup, positioned below the Boxer 350 and Bison 470. It replaced the 425 Terrier, which had a gasoline engine. The Buster’s diesel engine was a 2.5-liter with an output of 37 hp. The production program still included a 1.8-liter, 37-horsepower gasoline version. There were 5+1 gears. A dual clutch was available as an optional extra. A limited-slip differential was standard equipment.
In 1964, the updated Buster 400 was introduced, with a power output of 47 hp SAE. The number of gears increased to 8+2, and the transmission was called the Volvo Viking K 13. The brakes were changed to disc brakes. The wheelbase was noticeably longer than before, and the tires grew larger. The Terra-Trol hydraulics remained mostly unchanged. The lifting capacity was initially stated as 1050 kg and later 1250 kg. A few hundred Busters were assembled in Porvoo at the Fiskars factory for the Finnish market.
This is an automated translation. Please report any issues in the translation.
| Model | BM Volvo 320 Buster | BM Volvo 400 |
|---|---|---|
| Manufacturer name | BM Volvo | BM Volvo |
| Imported to Finland | Yes | Yes |
| Years | 1960-64 | 1964-69 |
| Engine model | D 913 | D 913 |
| Cyl/Turbo/Intercooler | 3 | 3 |
| Displacement | 2500 cm³ | 2500 cm³ |
| Bore x stroke | 91,44×127 mm | 91,44×127 mm |
| Rated power | 37/2000 (40 SAE) hp DIN/rpm | 47SAE/2250 hp DIN/rpm |
| Torque | - | - |
| Gears | 5+1 | 8+2 |
| Speeds in km/h | 3,9-24,8 | 2,2-28,0 |
| Hydr. flow l/min | 28 l/min | 35 l/min |
| Hydraulic pressure | 120 bar | 135 bar |
| Lift controls | mech. | mech. |
| Lift capacity | 1050 kg | 1050/1250 kg |
| PTO speeds | 540 | 540/ajo |
| Brakes | drum brakes | dry disc |
| Steering | mech. | mech. |
| Turning circle m 2WD | 7 | 7.2 |
| Front tyres 2WD | 5,50-16 | 6,00-16 |
| Rear tyres 2WD | 12,4/11-28 | 12,4/11-32 |
| Weight 2WD | (1570) kg | 1890 kg |
| Height with cab | (140) cm | 220 cm |
| Length (2WD/4WD) | 295 cm | 314 cm |
| Wheelbase (2WD/4WD) | 195 cm | 210 cm |
| Fuel tank | 35 l | 45 l |
