Zetor Crystal 8111-16145

85Zetor10145
86Zetor12145halkileikkaus
86Zetor12145ohjaamo
85Zetor10145
86Zetor12145halkileikkaus
86Zetor12145ohjaamo
Manufacturer
Models
Zetor Crystal 8111/8145 R, Zetor Crystal 8111/8145, Zetor Crystal 9145, Zetor Crystal 10111/10145, Zetor Crystal 12145 R, Zetor Crystal 12145, Zetor Crystal 16145
Years
1984-87
Info

At the beginning of 1985, the updated Crystals arrived in Finland. The new features in appearance included a beveled hood and a new color scheme. In the cab, new additions were five work lights, a tilt adjuster brought into the cab, and improved visibility of the tow hook. The clutch diameter was increased to 350 mm in the 4-cylinder models and to 380 mm in the 6-cylinder models. The four-wheel-drive clutch was a hydraulic multi-plate clutch. The engines had an updated injection pump, and the pedal effort for the clutch was reduced.

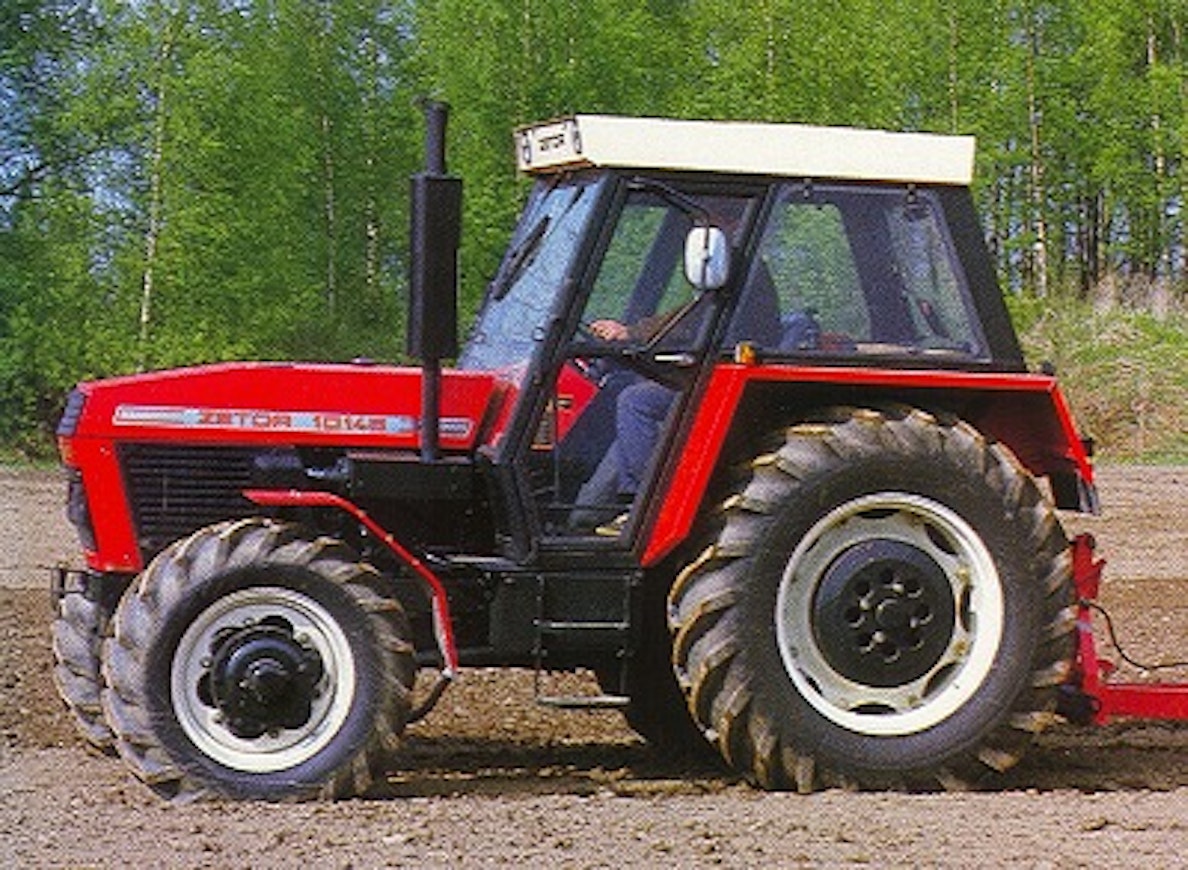

New in Finland was the turbo model 10145, whose power was reported as 98 or 100 hp. The torque increase percentage of the 10145 was a record low 3%. The durability of the 8145 was also criticized as being even weaker than older models. Another new model, the largest 16145, was not brought to Finland, nor were the power-restricted R-models of the 8145 and 12145. The 16145 had a heavier gearbox with only 12+6 gears. In 1985, the mild-turbocharged 9111/9145 and 14145 were introduced, which arrived in Finland in 1987.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelZetor Crystal 8111/8145 RZetor Crystal 8111/8145Zetor Crystal 9145Zetor Crystal 10111/10145Zetor Crystal 12145 RZetor Crystal 12145Zetor Crystal 16145
Manufacturer nameZetor CrystalZetor CrystalZetor CrystalZetor CrystalZetor CrystalZetor CrystalZetor Crystal
Imported to FinlandNoYesYesYesNoYesNo
Years1984-871984-871985-871984-871984-871984-871984-87
Engine modelZ8001Z8401-134Z8002Z8002-134Z8701-1Z8701-1Z8602-1
Cyl/Turbo/Intercooler444T4T666T
Displacement4562 cm³4562 cm³4562 cm³4562 cm³6842 cm³6842 cm³6842 cm³
Bore x stroke110×120 mm110×120 mm110×120 mm110×120 mm110×120 mm110×120 mm110×120 mm
Rated power75/2200 hp DIN/rpm82/2200 hp DIN/rpm88/2200 hp DIN/rpm100/2200 hp DIN/rpm105/2200 hp DIN/rpm115/2200 hp DIN/rpm160/2200 hp DIN/rpm
Torque-------
Gears16+816+816+816+816+816+812+6
Synchronized gearspartialpartialpartialpartialpartialpartialpartial
Powershift gearshydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h1,8-25,51,8-25,51,8-25,51,8-25,51,8-25,51,8-25,51,8-25,5
Max. speed 28 km/h28 km/h28 km/h28 km/h28 km/h28 km/h28 km/h
Hydr. flow l/min41 l/min41 l/min41 l/min41 l/min41 l/min41 l/min41 l/min
Hydraulic pressure160 bar160 bar160 bar160 bar160 bar160 bar160 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech.
Lift capacity3400 kg3400 kg3400 kg4000 kg4000 kg4000 kg4000 kg
PTO speeds540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo
Brakesdry discdry discdry discdry discdry discdry discdry disc
Steeringpowerpowerpowerpowerpowerpowerpower
Turning circle m 2WD88-8---
Turning circle m 4WD11.511.511.511.512.812.813
Front tyres 2WD7,50-207,50-20-7,50-20---
Front tyres 4WD12.4-2412.4-2412.4-2412.4-2414.9-2414.9-2414.9-24
Rear tyres 2WD16,9-3416,9-34-18,4-34---
Rear tyres 4WD18.4-3418.4-3418.4-3418.4-3418.4-3418.4-3418.4-34
Weight 2WD3890 kg3890 kg-----
Weight 4WD4300 kg4300 kg4390 kg4420 kg4670 kg4670 kg4750 kg
Height with cab262 cm262 cm262 cm262 cm264 cm264 cm264 cm
Length (2WD/4WD)417 cm417 cm417 cm417 cm467 cm467 cm467 cm
Wheelbase (2WD/4WD)236/239 cm236/239 cm239 cm236/239 cm270 cm270 cm270 cm
Fuel tank90 l90 l90 l90/125 l130 l130 l130 l
Solid cabxxxxxxx
Creeper gearopt.opt.opt.opt.opt.opt.-
Cab noise level-85 dB84 dB85 dB-82 dB-
