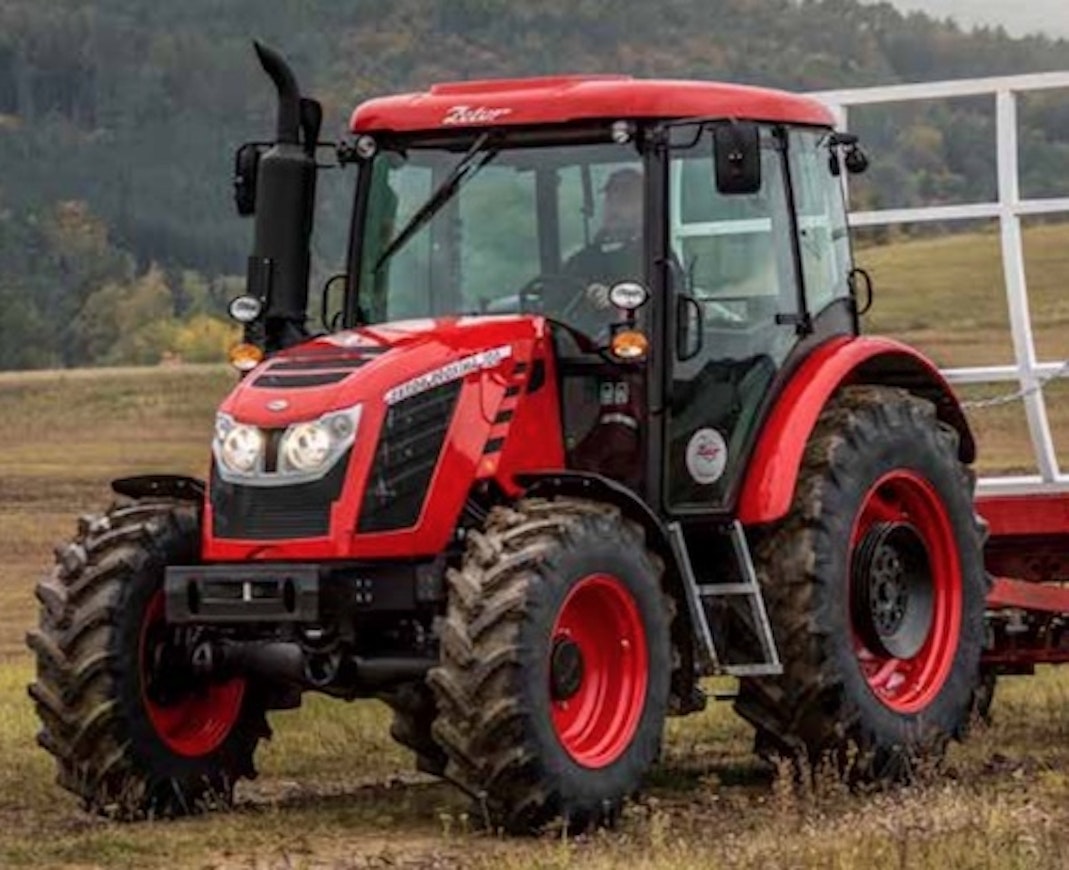

Zetor Proxima CL/GP 80-110

Manufacturer
Models
Zetor Proxima CL 80, Zetor Proxima CL 90, Zetor Proxima CL 100, Zetor Proxima CL 110, Zetor Proxima GP 80, Zetor Proxima GP 90, Zetor Proxima GP 100, Zetor Proxima GP 110
Years
2017-
Info

The Zetor Proxima series was redesigned at the beginning of 2017. The base model was designated CL, and the Plus model became GP. The engines retained basic technology wherever possible. By classifying the Proxima as a narrow special tractor, it was possible to sell 3B emission standard tractors also in the EU. The injection pump was mechanical. A particulate filter and exhaust gas recirculation were sufficient for the 3B level. The level 4 models also featured urea injection.

In some markets, the basic transmission with 10+2 speeds was still offered. In most Western countries, the base level CL model had a 12+12 mechanical shuttle transmission. The GP model had 16+16 speeds with a hydraulic quick-shift and mechanical shuttle. The wheelbase of the CL model was extended by about 10 centimeters compared to before. The CL model had a mechanical lifting device, while the GP models offered an optional Bosch electric lifting device. Sensing was done in the traditional way through the pushrod. The noise level was stated as 78 dB, but test results showed noise levels of just over 80 dB.

For 2020, the design was modernized and the heating system was enhanced.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelZetor Proxima CL 80Zetor Proxima CL 90Zetor Proxima CL 100Zetor Proxima CL 110Zetor Proxima GP 80Zetor Proxima GP 90Zetor Proxima GP 100Zetor Proxima GP 110
Manufacturer nameZetor ProximaZetor ProximaZetor ProximaZetor ProximaZetor ProximaZetor ProximaZetor ProximaZetor Proxima
Imported to FinlandNoNoYesNoNoNoNoNo
Years2017-2017-2017-2017-2017-2017-2017-2017-
Engine model110612061006/10171317110612061006/10171317
Cyl/Turbo/Intercooler4TI4TI4TI4TI4TI4TI4TI4TI
Displacement4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³
Bore x stroke105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm
Rated power--------
Torque--------
Gears12+1212+1212+1212+1216+1616+1616+1616+16
Synchronized gears12+1212+1212+1212+1216+1616+1616+1616+16
Reversermech.mech.mech.mech.mech.mech.mech.mech.
Speeds in km/h1,6-36,01,6-36,01,6-36,01,6-36,02,1-36,02,1-36,02,1-36,02,1-36,0
Max. speed 40 (30) km/h40 (30) km/h40 (30) km/h40 (30) km/h40 km/h40 km/h40 km/h40 km/h
Hydr. flow l/min50 (60) l/min50 (60) l/min50 (60) l/min50 (60) l/min50 (60) l/min50 (60) l/min50 (60) l/min50 (60) l/min
Hydraulic pressure180 bar180 bar180 bar180 bar190 bar190 bar190 bar190 bar
Lift controlsmech.mech.mech.mech.mech./elec.mech./elec.mech./elec.mech./elec.
Lift capacity3970 kg3970 kg3970 kg3970 kg3970 kg3970 kg3970 kg3970 kg
PTO speeds540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo
Brakeswet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD10.510.510.510.511.411.411.411.4
Front tyres 2WD9.00-169.00-169.00-169.00-16----
Front tyres 4WD13.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R24
Rear tyres 2WD16.9R3416.9R3416.9R3416.9R34----
Rear tyres 4WD16.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R34
Weight 4WD3950 kg3950 kg3950 kg3950 kg4260 kg4260 kg4260 kg4260 kg
Height with cab268 cm268 cm268 cm268 cm274 cm274 cm274 cm274 cm
Length (2WD/4WD)387 cm387 cm387 cm387 cm389 cm389 cm389 cm389 cm
Wheelbase (2WD/4WD)231 cm231 cm231 cm231 cm233 cm233 cm233 cm233 cm
Fuel tank124/150 l150 l150 l150 l150 l150 l150 l150 l
Cab noise level78 dB78 dB78 dB78 dB78 dB78 dB78 dB78 dB
Solid cabxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Creeper gearopt.opt.opt.opt.----
Powershift gears----hydr.hydr.hydr.hydr.
