Zetor Proxima Plus 85-110

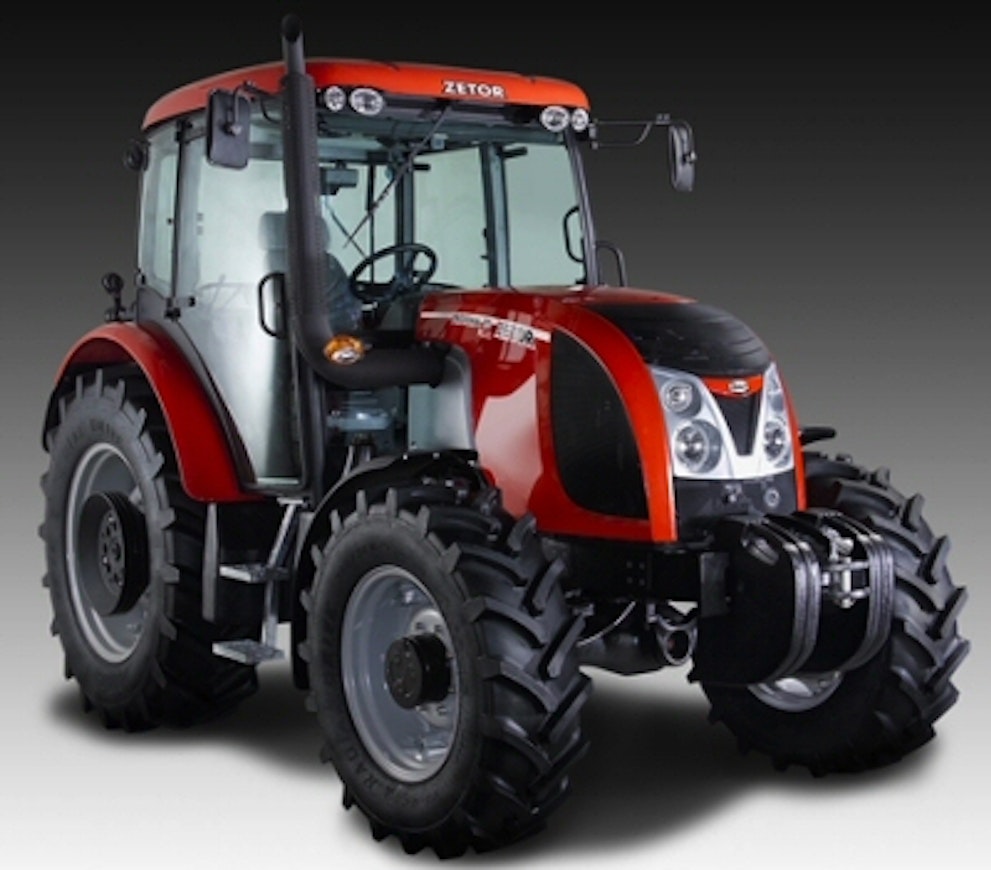

09ZetorProximaPlus

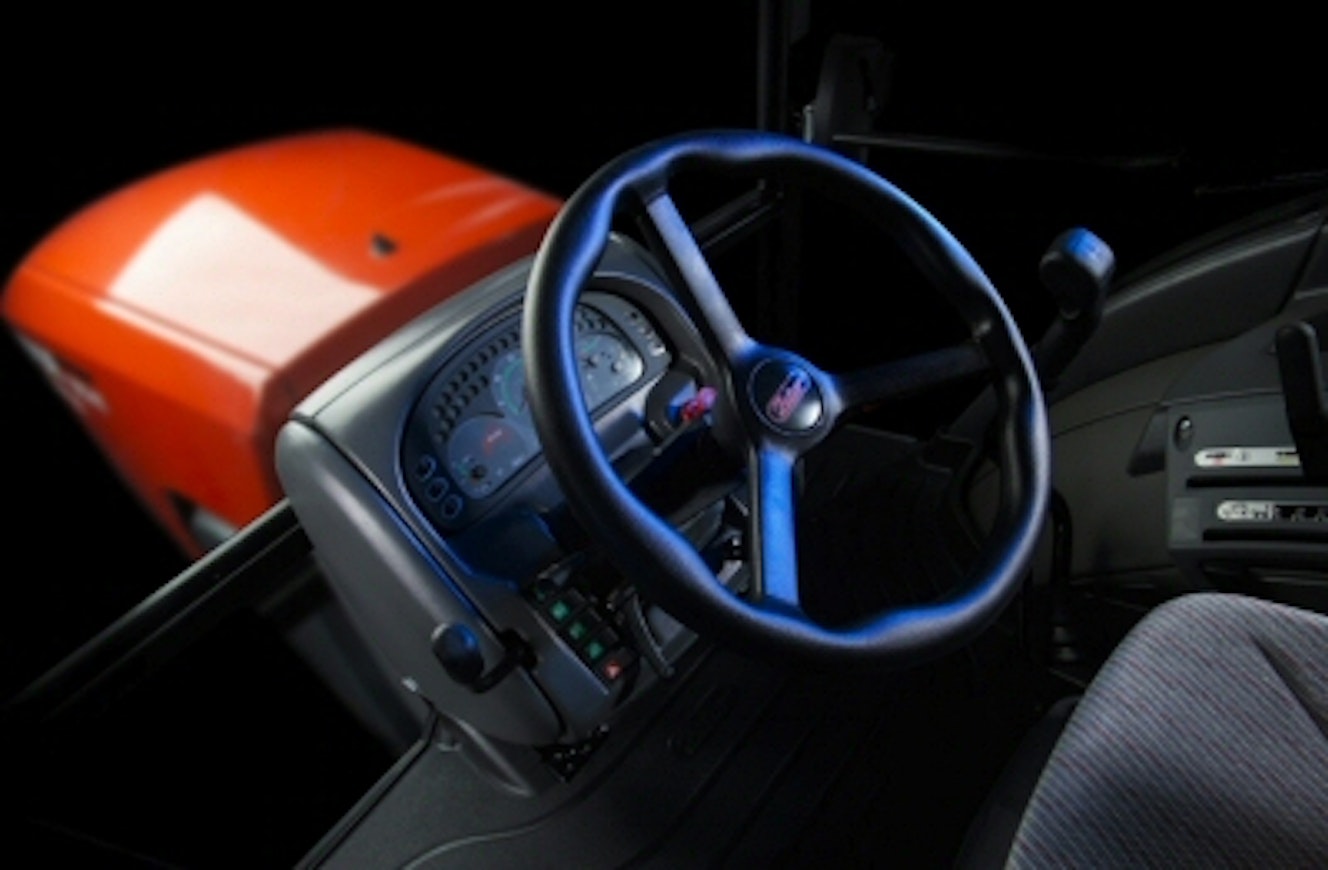

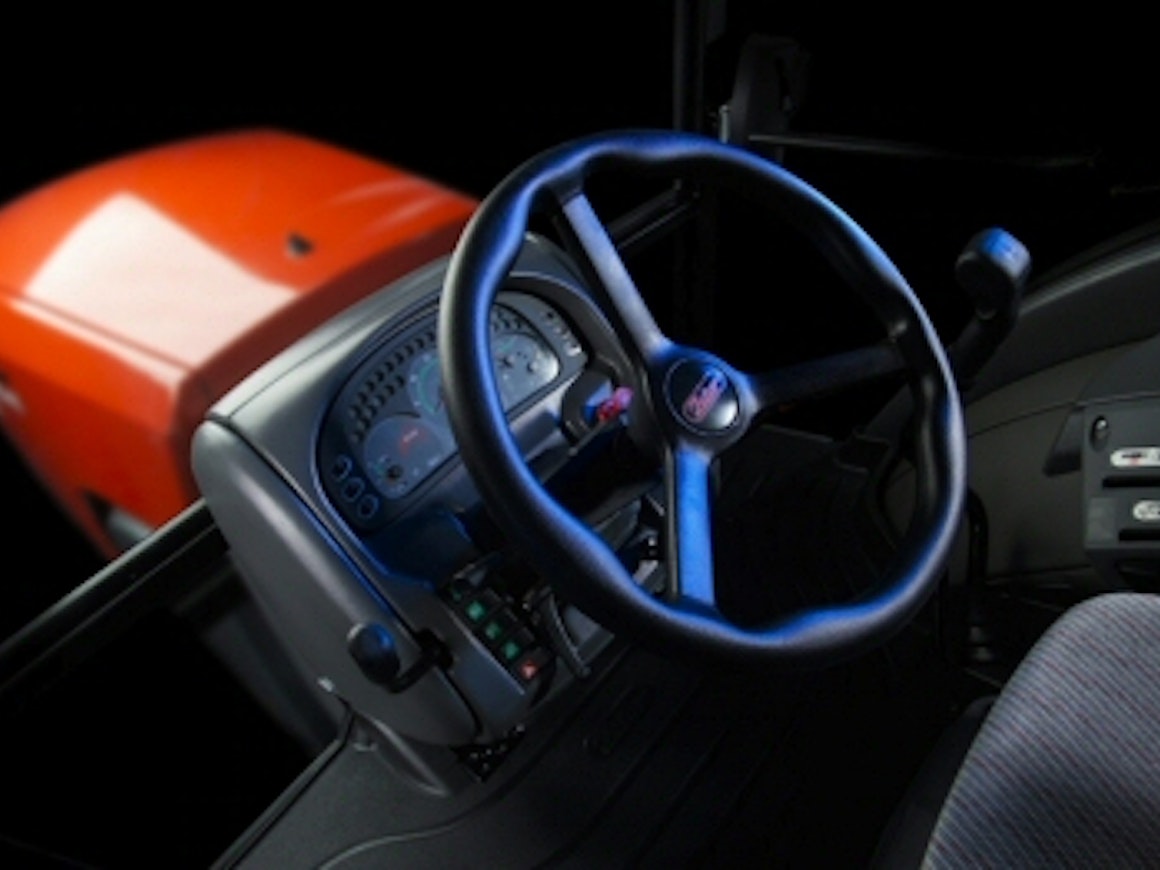

09ZetorProximaPlusOhjaamo

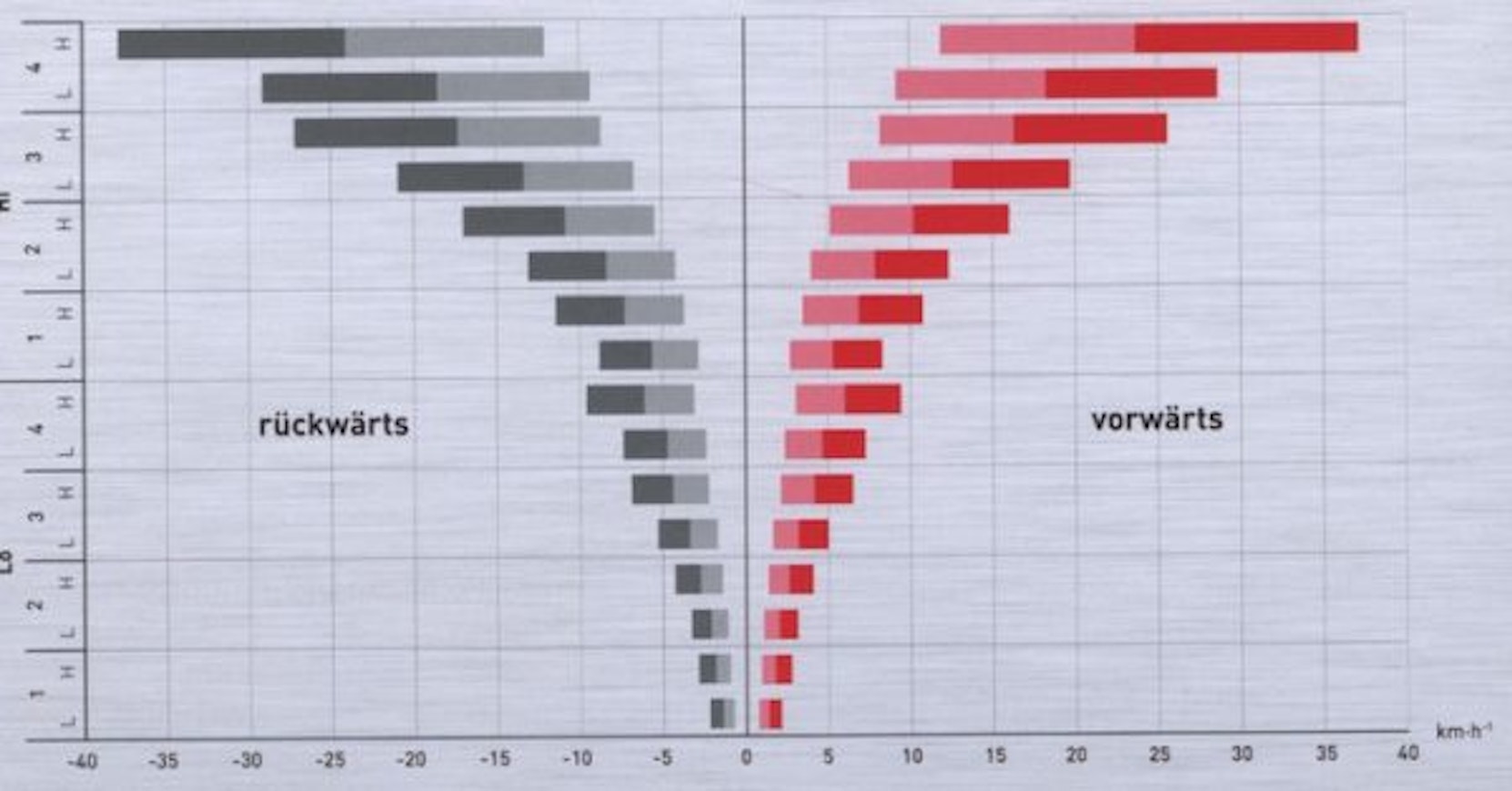

14ZetorProximaPlusNopeudet
09ZetorProximaPlus
09ZetorProximaPlusOhjaamo
14ZetorProximaPlusNopeudet
Manufacturer
Zetor
Models
Zetor Proxima Plus 85, Zetor Proxima Plus 95, Zetor Proxima Plus 105, Zetor Proxima Plus 90, Zetor Proxima Plus 100, Zetor Proxima Plus 110, Zetor Proxima Plus 90, Zetor Proxima Plus 100, Zetor Proxima Plus 110
Years
2009-17
Info

The Zetor Proxima Plus models also received updated model designations and minor changes to engine specifications in spring 2009. In 2014, models compliant with Stage IIIB emission standards were introduced.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelZetor Proxima Plus 85Zetor Proxima Plus 95Zetor Proxima Plus 105Zetor Proxima Plus 90Zetor Proxima Plus 100Zetor Proxima Plus 110Zetor Proxima Plus 90Zetor Proxima Plus 100Zetor Proxima Plus 110
Manufacturer nameZetor Proxima PlusZetor Proxima PlusZetor Proxima PlusZetor Proxima PlusZetor Proxima PlusZetor Proxima PlusZetor Proxima PlusZetor Proxima PlusZetor Proxima Plus
Imported to FinlandYesYesYesYesYesYesNoNoNo
Years2009-102009-102009-102010-142010-142010-142014-172014-172014-17
Engine model120510051305120510051305120610061306
Cyl/Turbo/Intercooler4TI4TI4TI4TI4TI4TI4TI4TI4TI
Displacement4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³
Bore x stroke105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm
Rated power82/2200 hp DIN/rpm90/2200 hp DIN/rpm100/2200 hp DIN/rpm82/2200 hp DIN/rpm90/2200 hp DIN/rpm100/2200 hp DIN/rpm82/2200 hp DIN/rpm90/2200 hp DIN/rpm101/2200 hp DIN/rpm
Torque---------
Gears16+1616+1616+1616+1616+1616+1616+1616+1616+16
Synchronized gears16+1616+1616+1616+1616+1616+1616+1616+1616+16
Powershift gearshydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.
Reversermech.mech.mech.mech.mech.mech.mech.mech.mech.
Speeds in km/h1,9-371,9-371,9-371,9-371,9-371,9-371,9-371,9-371,9-37
Max. speed 40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h
Hydr. flow l/min50 l/min50 l/min50 l/min50 l/min50 l/min50 l/min50 (60) l/min50 (60) l/min50 (60) l/min
Hydraulic pressure180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech.mech.
Lift capacity4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4200 kg4200 kg4200 kg
PTO speeds540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo
Brakeswet discwet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.98.98.98.98.98.98.98.98.9
Front tyres 4WD13.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R24
Rear tyres 4WD16.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R34
Weight 4WD4010 kg4010 kg4010 kg4010 kg4010 kg4010 kg4054 kg4054 kg4054 kg
Height with cab272 cm272 cm272 cm272 cm272 cm272 cm274 cm274 cm274 cm
Length (2WD/4WD)423 cm423 cm423 cm423 cm423 cm423 cm423 cm423 cm423 cm
Wheelbase (2WD/4WD)233 cm233 cm233 cm233 cm233 cm233 cm233 cm233 cm233 cm
Fuel tank125 l125 l125 l125 l125 l125 l125 l125 l125 l
Cab noise level81 dB81 dB81 dB78 dB78 dB78 dB78 dB78 dB78 dB
Solid cabxxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
