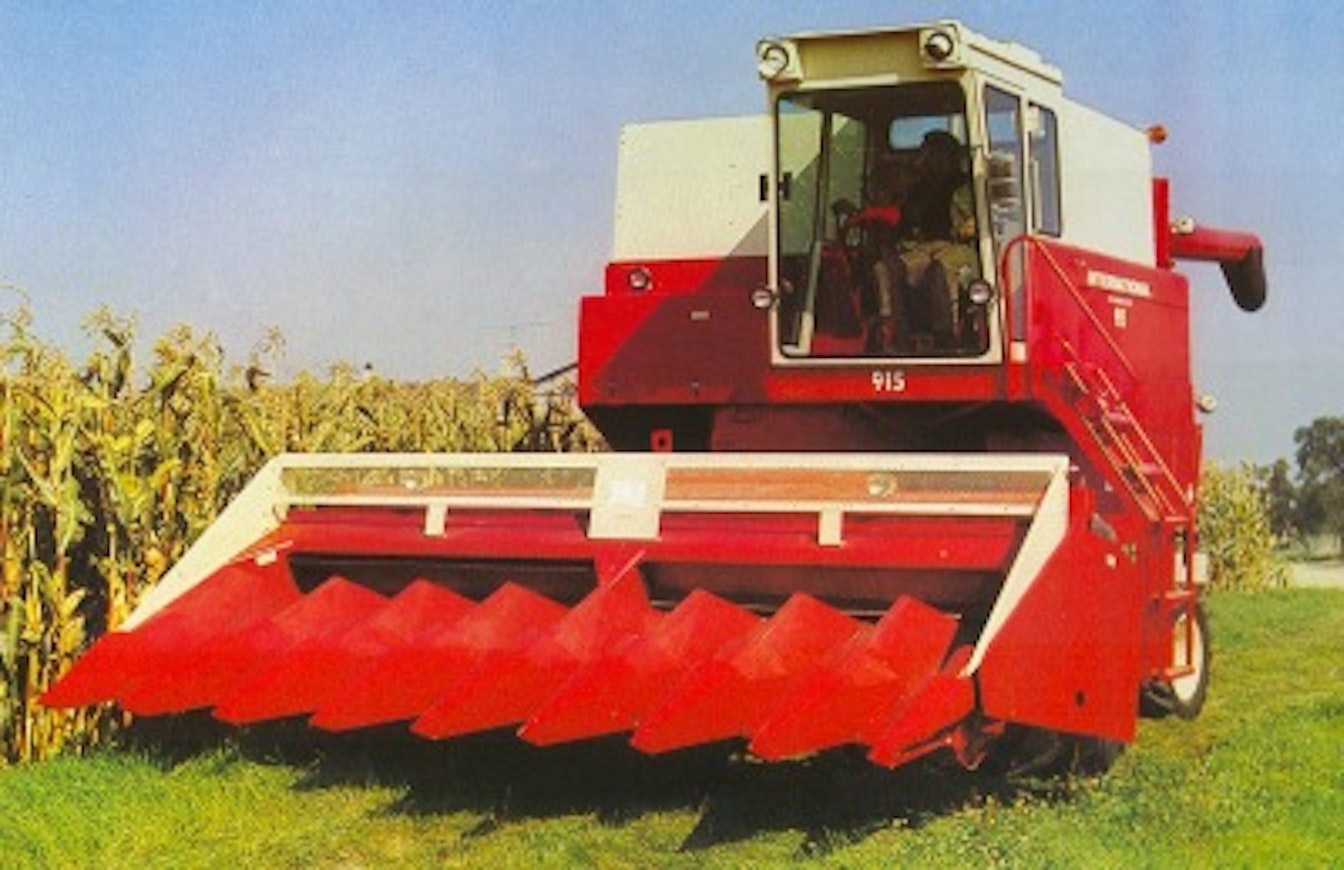

In the 1970s, model 915 was imported to Europe from the production of the International combine harvester factory located in East Molinessa. It was equipped with a 6-cylinder turbo engine (137 hp until 1973 and 141 hp thereafter). The drive transmission was hydrostatic. A special feature of the 915 was the Even-Flow pre-cleaning system, which blew air onto the cutting platform. The unloading pipe could be hydraulically rotated during unloading, and the 53 hl tank emptied in 80 seconds. An air-conditioned cabin and an electronic monitoring system were standard equipment. The 915 was marketed in Europe especially for corn harvesting. An 8-row corn table was available for it.
Smaller models of the American combine series were the 315 (72 hp SAE), 615 (80 hp SAE), 715 (95 hp SAE), and 815, which was also available with a V8 gasoline engine. All models had hydrostatic drive transmission.
This is an automated translation. Please report any issues in the translation.

In the 1970s, model 915 was imported to Europe from the production of the International combine harvester factory located in East Molinessa. It was equipped with a 6-cylinder turbo engine (137 hp until 1973 and 141 hp thereafter). The drive transmission was hydrostatic. A special feature of the 915 was the Even-Flow pre-cleaning system, which blew air onto the cutting platform. The unloading pipe could be hydraulically rotated during unloading, and the 53 hl tank emptied in 80 seconds. An air-conditioned cabin and an electronic monitoring system were standard equipment. The 915 was marketed in Europe especially for corn harvesting. An 8-row corn table was available for it.

Smaller models of the American combine series were the 315 (72 hp SAE), 615 (80 hp SAE), 715 (95 hp SAE), and 815, which was also available with a V8 gasoline engine. All models had hydrostatic drive transmission.

This is an automated translation. Please report any issues in the translation.

International 915

Malli

Hinta (sis. alv)

Imported to Finland

Years

First year sold

Last year sold

Power

Power speed

Engine

Engine type

Moottorin merkki ja malli

Turbo

Teho

Iskutilavuus

Sylinterien lukumäärä

Moottorin sijainti

Polttoainesäiliön tilavuus

Ajovoimansiirron tyyppi

Nopeusalueiden lukumäärä

Neliveto

Työleveys

Leikkuuleveys

Leikkuupöydän korkeuden säätö

Syöttöruuvin harjan etäisyys terän sormien kärjestä

Terän korkeus, minimi

Terän korkeus, maksimi

Leikkuupöydän korkeuden osoitin

Säätö korkeussuunnassa

Säätö pituussuunnassa

Nopeuden säätö

Puintikelojen lukumäärä

Varstojen lukumäärä

Kelojen leveys

Kelojen nopeus, maksimi

Kelojen nopeuden säätötapa

Varstasiltojen lukumäärä

Siltojen pituudet (varstojen ulkoreunasta mitaten)

Puintivälin säätö

Puintivälin toteaminen ja mittaus

Kohlimien lukumäärä

Kohlimien leveys

Kohlimien pituus

Kohlimien pinta-ala

Ruumenpinta-ala

Siemenpinta-ala

Eturaideväli

Akseliväli

Pituus kuljetusasennossa ilman pöytää

Korkeus (ylimp. kiint. pisteeseen)

Leveys, työasennossa

Leveys, kuljetusasennossa

Maavara koneen alla (minimi)

Viljasäiliön tilavuus

Viljasäiliön tilavuus lisälaidoin

Paino työkunnossa (polttoainesäiliöt täynnä)

Jarrut

Laonnostimien lukumäärä

Ruumenseulan tyyppi

Työvalojen lukumäärä

Työvalojen tyyppi

Teho, kW/Suurimman tehon kierrosluku, r/min

Suurimman tehon kierrosluku

Iskutilavuus, cm3/Sylinterien lukumäärä, kpl

Nopeus, km/h

Työleveys (jakol. kärjestä mitattuna), cm/Leikkuuleveys, cm

Terän alin...ylin taso (korkeus maasta), cm

Laonnostokelan säätöalue, r/min

Puintikela 1 halkaisija

Puintikela 2 halkaisija

Puintikela 3 halkaisija

Puintikelojen halkaisijat, cm

Puintikelojen nopeuden säätö

Varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

Varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

Varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

Varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

Kohlintilan leveys x kohlinten pituus, cm

Renkaat edessä

Renkaat takana

Displacement

Esipuhdistaja

Cyl/turbo

Läpimitta (piikk.kärk.)

Power hp DIN

Power hp ISO

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

Myynti

Takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	International 915
Imported to Finland	No
Years	1968-77
First year sold	1968
Last year sold	1977
Power	137
Power speed	141
Engine	IH
Engine type	DT-414
Displacement	6784 cm³
Cyl/turbo	6T
Power hp DIN	137/141
Transmission	hydr.
Cutting width	564 cm
Cutting width, alternative	503 cm
Threshing cyl. diameter	56 cm
Threshing cyl. width	123 cm
Number of straw walkers	5
Area of walkers	482 dm²
Total screening area	305
Weight without cabin	6600 kg
Grain tank	52.8 hl
Unl. height	279 cm
Tyres front (Finland)	23.1-26
Tyres rear (Finland)	7.50-20
Air conditioning	x
