Fahr M 44 – M 88

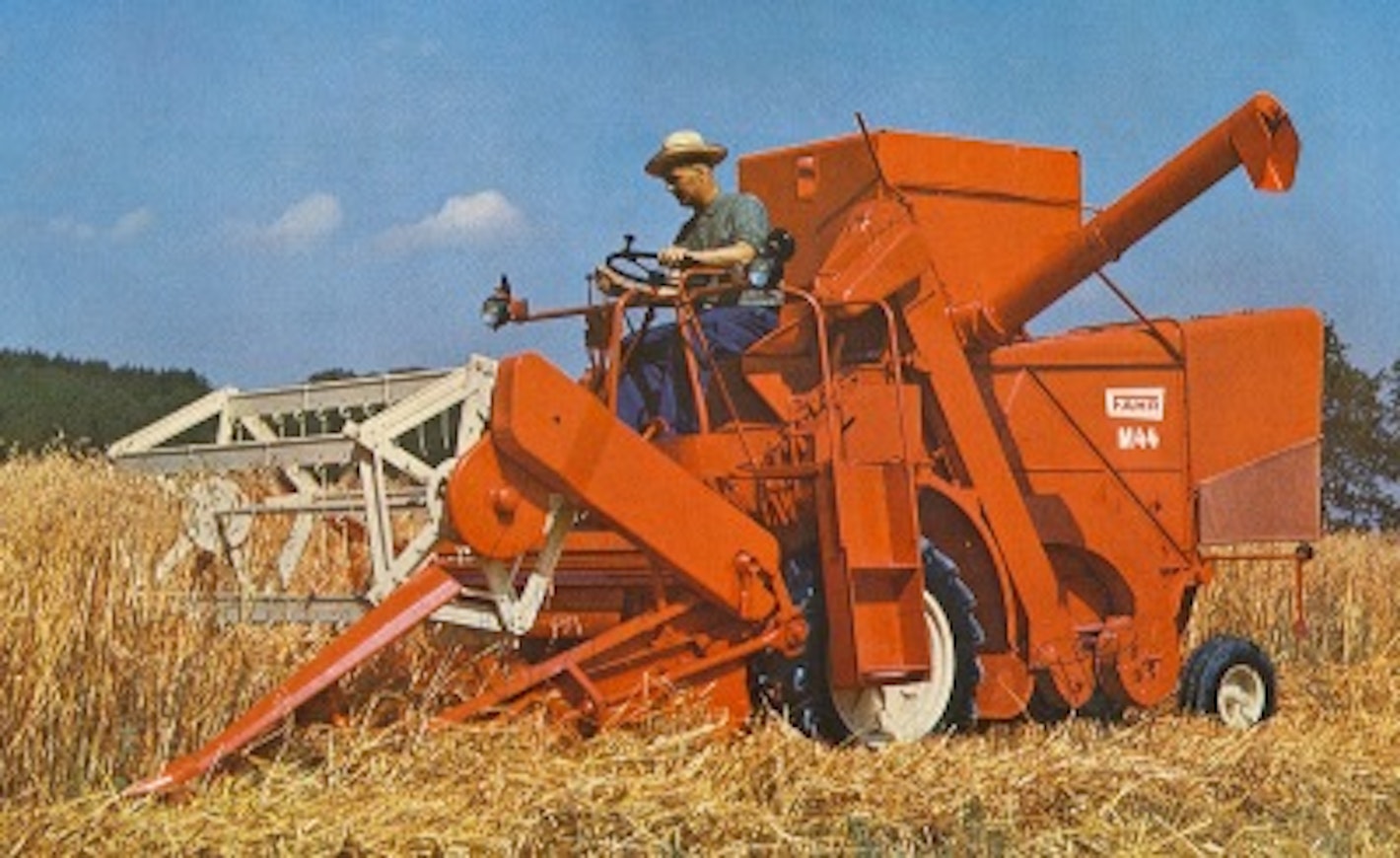

66FahrM44

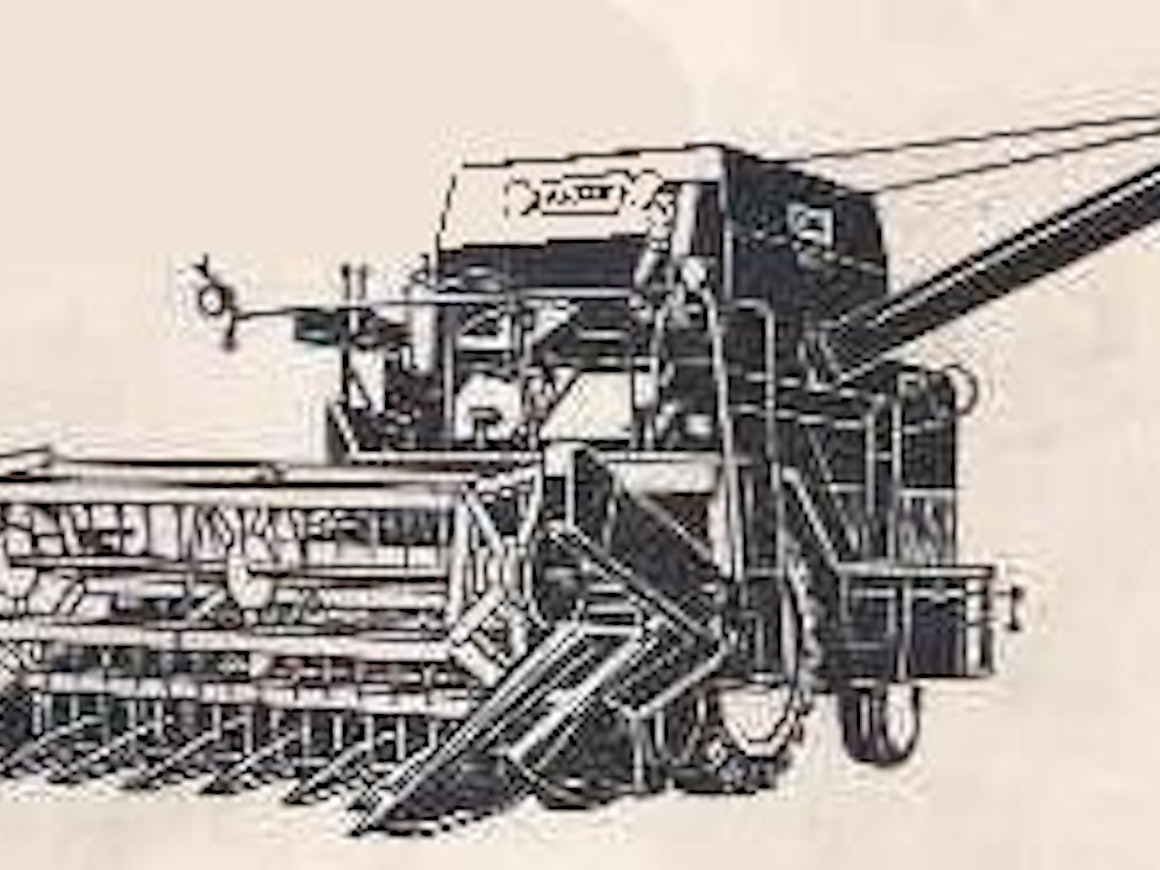

68FahrM88

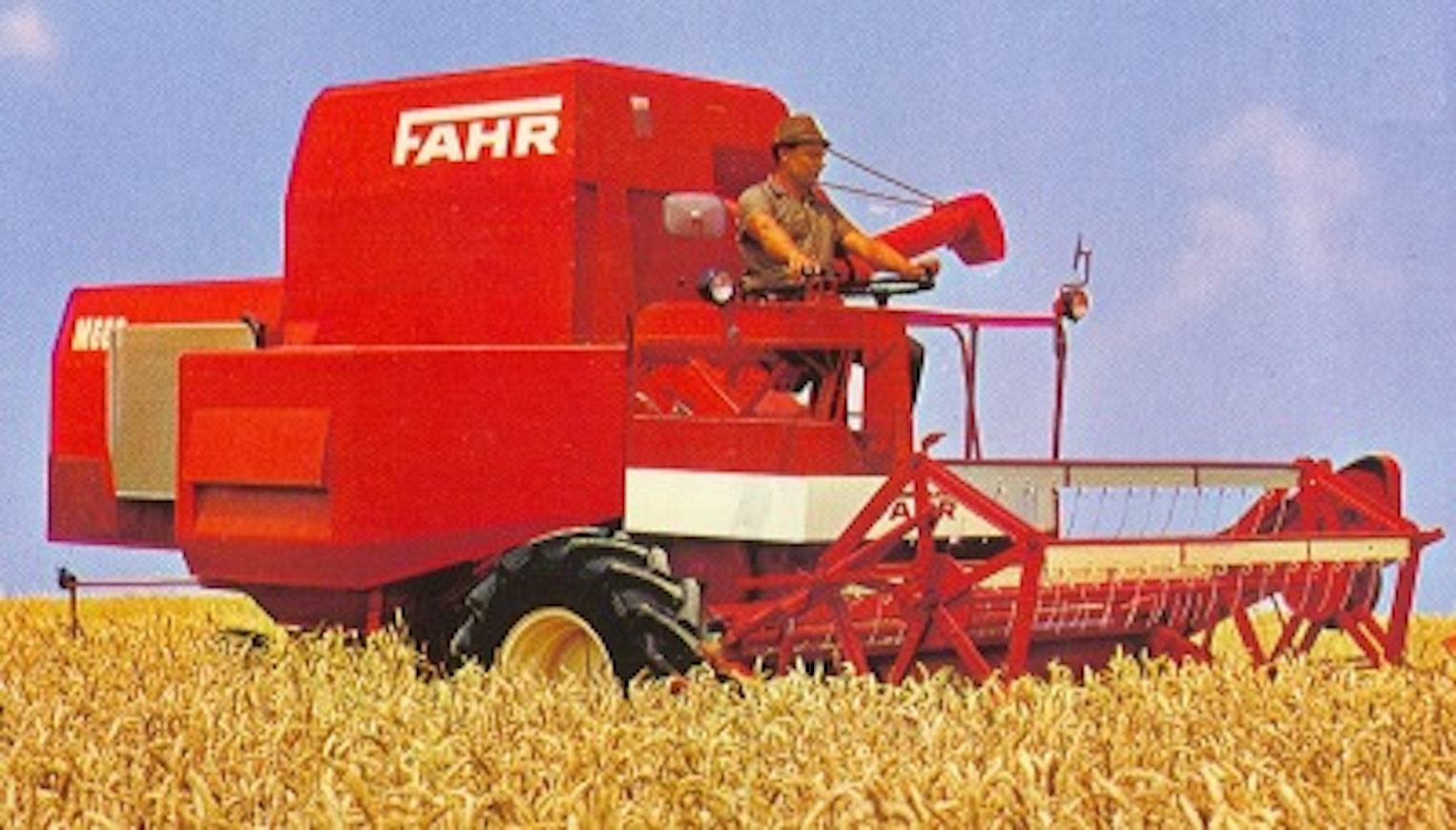

72Fahr66S

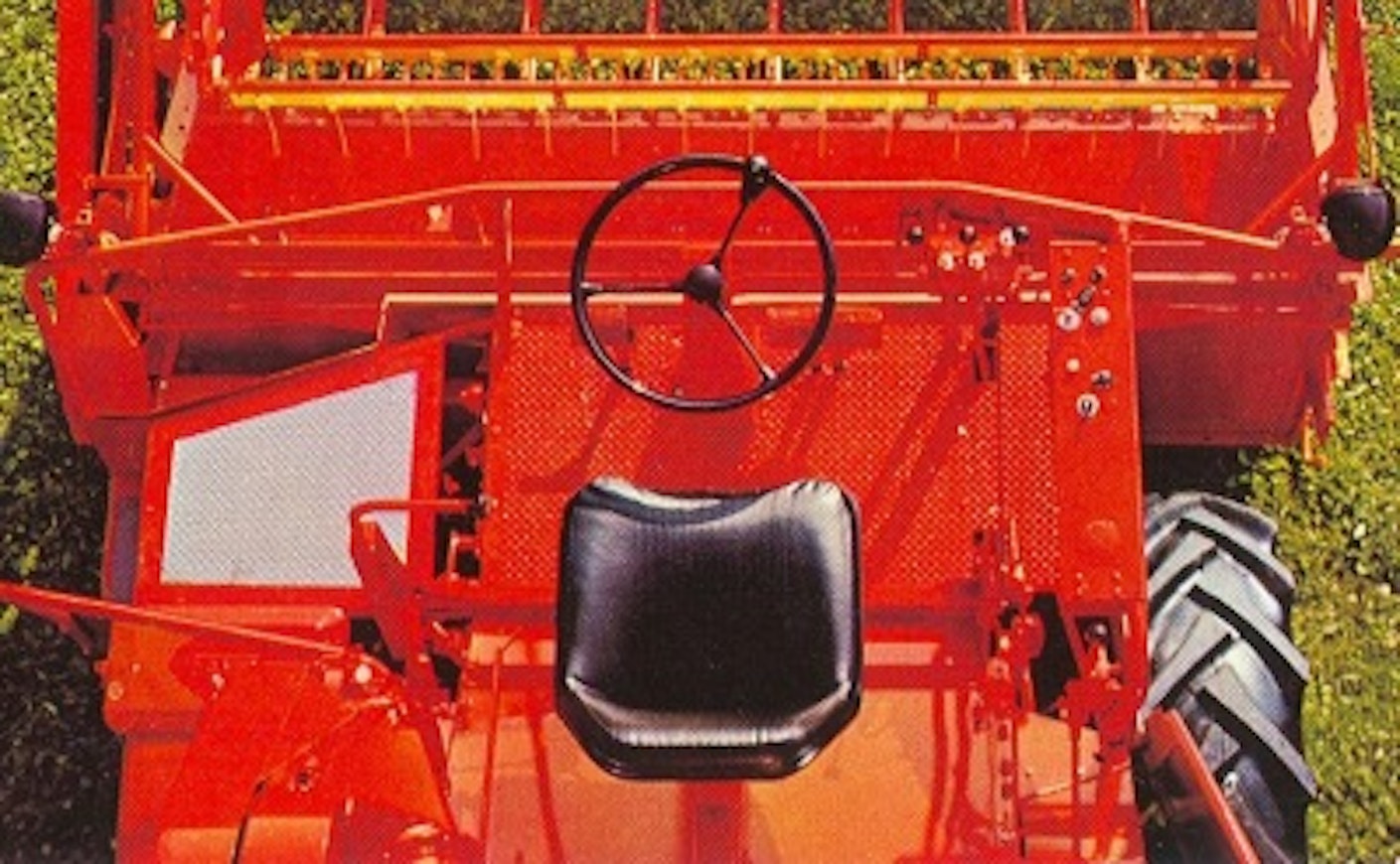

72Fahr66Sohjaamo
66FahrM44
68FahrM88
72Fahr66S
72Fahr66Sohjaamo
Manufacturer
Models
Fahr M 44, Fahr M 66, Fahr M 66, Fahr M 66 S, Fahr M 66 S, Fahr M 88, Fahr M 88 S
Years
1965-73
Info

Fahr's late 1960s lineup consisted of three models, which were only slightly updated versions of their predecessors. The improved edition of the old M 40, the M 44, was on the market for only a couple of years, but the M 66 and M 88 continued into the 1970s. The engines placed on the side of the combine harvester were air-cooled Deutz engines, except for the M 44. The speed of the threshing drum was adjusted in the smaller models by changing the sprocket.

For the year 1968, the appearance of the rear end was redesigned with a modern angular style. The former M 44 was replaced by a downsized version of the M 66’s engine to a 3-cylinder and a cutting width of 225 centimeters, but later it was increased back to 255 centimeters. A parallel model, the M 66 S, was introduced, featuring a 3.8-liter four-cylinder engine, a grain tank that was 2 hectoliters larger, threshing shoes that were 55 cm longer, and bigger tires.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFahr M 44Fahr M 66Fahr M 66Fahr M 66 SFahr M 66 SFahr M 88Fahr M 88 S
Imported to FinlandYesYesYesYesYesYesYes
Years1965-671965-671968-731968-691969-731965-671967-71
EngineMBDeutzDeutzDeutzDeutzDeutzDeutz
Engine typeOM 636F4L 812F3L 912F4L 912F4L 912F4L 812F4L 912
Displacement1767 cm³3400 cm³2826 cm³3768 cm³3768 cm³3400 cm³3768 cm³
Cyl/turbo4434444
Power34 hp DIN52 (57 SAE) hp DIN52 (60 SAE) hp DIN64 SAE hp DIN64 SAE hp DIN60 (68 SAE) hp DIN80 SAE hp DIN
Alternative hp29 VW bens. hp------
Transmissionmech.mech.mech.mech.mech.mech.mech.
Gears3333333
Speed min-max.1,2-18,4 km/h1,4-19 km/h1,4-19 km/h1,4-19 km/h1,4-19 km/h1,4-19 km/h1,4-19 km/h
Cutting width183 cm255 cm255 cm255 cm255 cm300 cm300 cm
Cutting width, alternative210 cm225 cm225 cm----
Header length46.5 cm46.5 cm46.5 cm46.5 cm46.5 cm46.5 cm46.5 cm
Threshing cyl. diameter46 cm46 cm46 cm46 cm46 cm46 cm46 cm
Threshing cyl. width70 cm80 cm85 cm85 cm85 cm101 cm101 cm
Number of straw walkers3444444
Area of walkers157 dm²234 dm²248 dm²280 dm²248 dm²283 dm²283 dm²
Lenght of walkers225 cm275 cm275 cm330 cm275 cm275 cm275 cm
Straw shieve47 dm²72 dm²72 dm²72 dm²72 dm²92 dm²92 dm²
Bottom shieve59 dm²93 dm²93 dm²93 dm²93 dm²104 dm²104 dm²
Total screening area105165165165165198198
Overall lenght667 cm734 cm734 cm787 cm787 cm797 cm797 cm
Overall width238 cm295 cm291 cm317 cm291 cm340 cm350 cm
Height without cabin246 cm300 cm310 cm310 cm310 cm295 cm310 cm
Weight without cabin2150 kg3200 kg3400 kg3500 kg3700 kg4000 kg4400 kg
Grain tank7 (lisäv.) hl15 hl15 hl15 hl15 hl18 hl18 hl
Tyres front (Finland)11.2-2814.9-2414.9-2414.9-2614.9-2616.9-2616.9-26
Tyres front, alternative10.0-24-12.4-28----
Tyres rear (Finland)7.00-127.00-127.00-127.00-127.00-128.50-128.50-12
Tyres rear, alternative7.00-10-8.50-1210.00-158.50-12-10.00-15
Reel forward/backw. adjustmentmech.mech.mech.mech.mech.mech.mech.
Reel speed adjustmentbelt wheelsadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabin
Threshing cyl. speed adjustmentchain wheelschain wheelschain wheelschain wheelschain wheelsadj, in cabinadj, in cabin
Bottom sieveconvertibleconvertibleconvertibleconvertibleconvertibleconvertibleconvertible
Brakesmech. discmech. discmech. discmech. discmech. discmech. discmech. disc
Type of cutting platform floatinggas dampergas dampergas dampergas dampergas dampergas dampergas damper
Fuel tank-100 l100 l100 l100 l100 l100 l
Reel diameter-90 cm90 cm90 cm90 cm90 cm90 cm
