John Deere 9540 WTS – 9680 WTS
Manufacturer
Models
John Deere 9540 WTS, John Deere 9560 WTS, John Deere 9580 WTS, John Deere 9640 WTS, John Deere 9660 WTS, John Deere 9680 WTS
Years
2001-04
Info

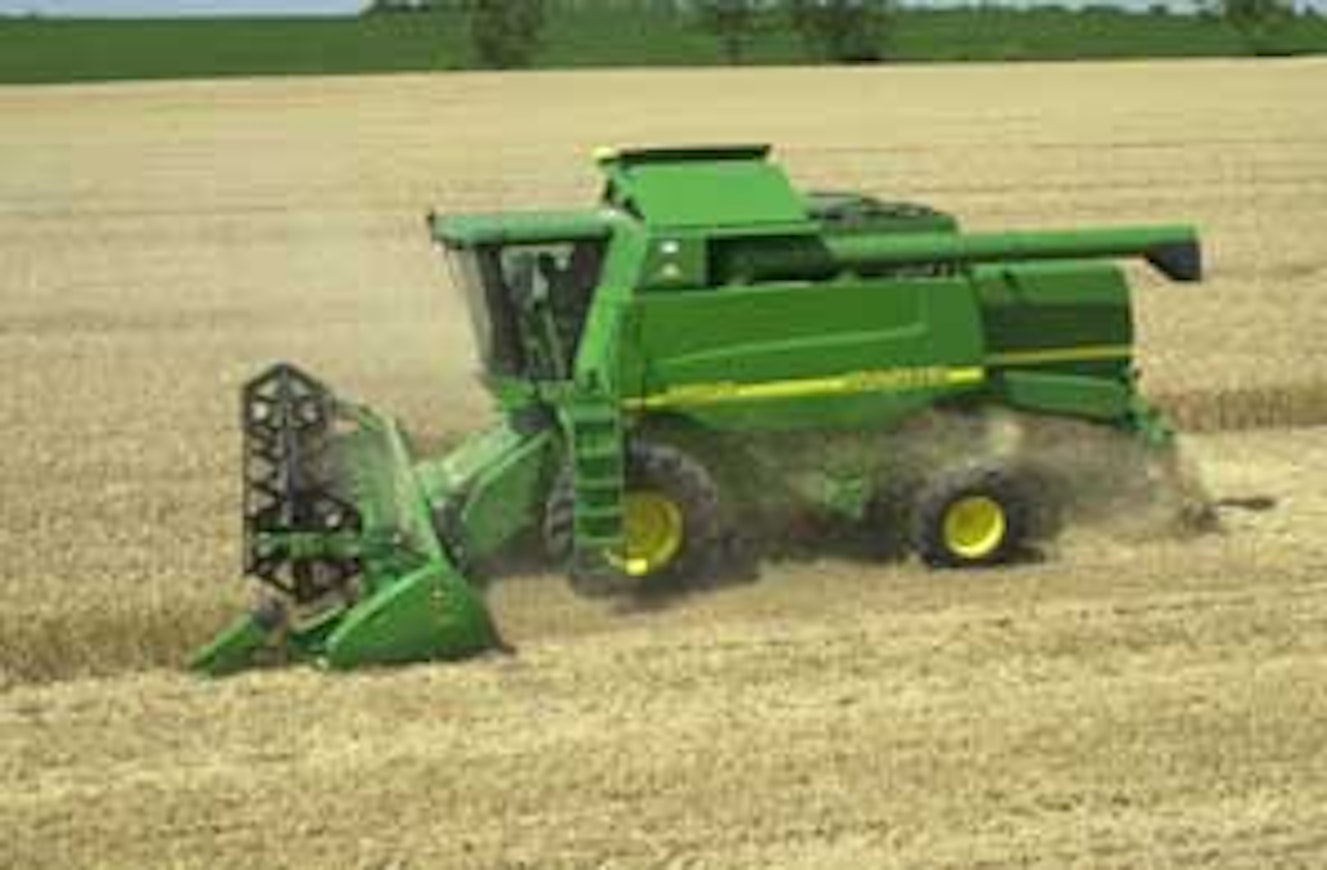

The WTS combines were successors to both the Z-series and the American Maximizer 9000 series, and they were thoroughly renewed compared to their predecessors. The cabin was taken from the CTS. The headers were from the new 600 series. Like other high-powered combines of the 2000s, the grain tanks were much larger than previous models, and electronics and equipment had been added. The exterior shape became more rounded as the material was changed to composite.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | John Deere 9540 WTS | John Deere 9560 WTS | John Deere 9580 WTS | John Deere 9640 WTS | John Deere 9660 WTS | John Deere 9680 WTS |
|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2001-04 | 2001-04 | 2001-04 | 2001-04 | 2001-04 | 2001-04 |
| Engine | JD | JD | JD | JD | JD | JD |
| Engine type | 6068HZ006 | 6081HZ008 | 6081HZ009 | 6081HZ009 | 6081HZ010 | 6081HZ011 |
| Displacement | 6788 cm³ | 8134 cm³ | 8134 cm³ | 8134 cm³ | 8134 cm³ | 8134 cm³ |
| Cyl/turbo | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T |
| Power | 200 hp DIN | 226 hp DIN | 250 hp DIN | 250 hp DIN | 279 hp DIN | 310 hp DIN |
| Fuel tank | 700 l | 700 l | 700 l | 700 l | 700 l | 700 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 550 cm | 550 cm | 550 cm | 610 cm | 610 cm | 610 cm |
| Cutting width, alternative | 425-610 cm | 425-610 cm | 425-610 cm | 670-760 cm | 670-760 cm | 670-915 cm |
| Reel diameter | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 55-72 cm | 55-72 cm | 55-72 cm | 55-72 cm | 55-72 cm | 55-72 cm |
| Threshing cyl. diameter | 66 cm | 66 cm | 66 cm | 66 cm | 66 cm | 66 cm |
| 2. cyl. diameter | 40 cm | 40 cm | 40 cm | 40 cm | 40 cm | 40 cm |
| Threshing cyl. width | 140 cm | 140 cm | 140 cm | 167 cm | 167 cm | 167 cm |
| Number of straw walkers | 5 | 5 | 5 | 6 | 6 | 6 |
| Area of walkers | 640 dm² | 640 dm² | 640 dm² | 767 dm² | 767 dm² | 767 dm² |
| Lenght of walkers | 460 cm | 460 cm | 460 cm | 460 cm | 460 cm | 460 cm |
| Straw shieve | 276 dm² | 276 dm² | 276 dm² | 332 dm² | 332 dm² | 332 dm² |
| Bottom shieve | 208 dm² | 208 dm² | 208 dm² | 251 dm² | 251 dm² | 251 dm² |
| Total screening area | 484 | 484 | 484 | 583 | 583 | 583 |
| Overall width | 589 cm | 589 cm | 589 cm | 649 cm | 649 cm | 649 cm |
| Width without header | 350 cm | 350 cm | 350 cm | 380 cm | 380 cm | 380 cm |
| Height with cabin | 394 cm | 394 cm | 394 cm | 394 cm | 394 cm | 394 cm |
| Weight with cabin | 13400 kg | 13500 kg | 13500 kg | - | - | - |
| Grain tank | 75 hl | 75 hl | 80 hl | 80 hl | 90 hl | 110 hl |
| Tyres front (Finland) | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 |
| Tyres front, alternative | 650/70R32 | 650/70R32 | 650/70R32 | 650/70R32 | 650/70R32 | 650/70R32 |
| Tyres rear (Finland) | 16.5/85-24 | 16.5/85-24 | 16.5/85-24 | 540/65R30 | 540/65R30 | 540/65R30 |
| Tyres rear, alternative | 18.4-26 | 18.4-26 | 18.4-26 | 18.4-26 | 18.4-26 | 18.4-26 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x |
| Autom. control of cutting height | x | x | x | x | x | x |
| Cutting platform lateral tilt | x | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. | autom. |
