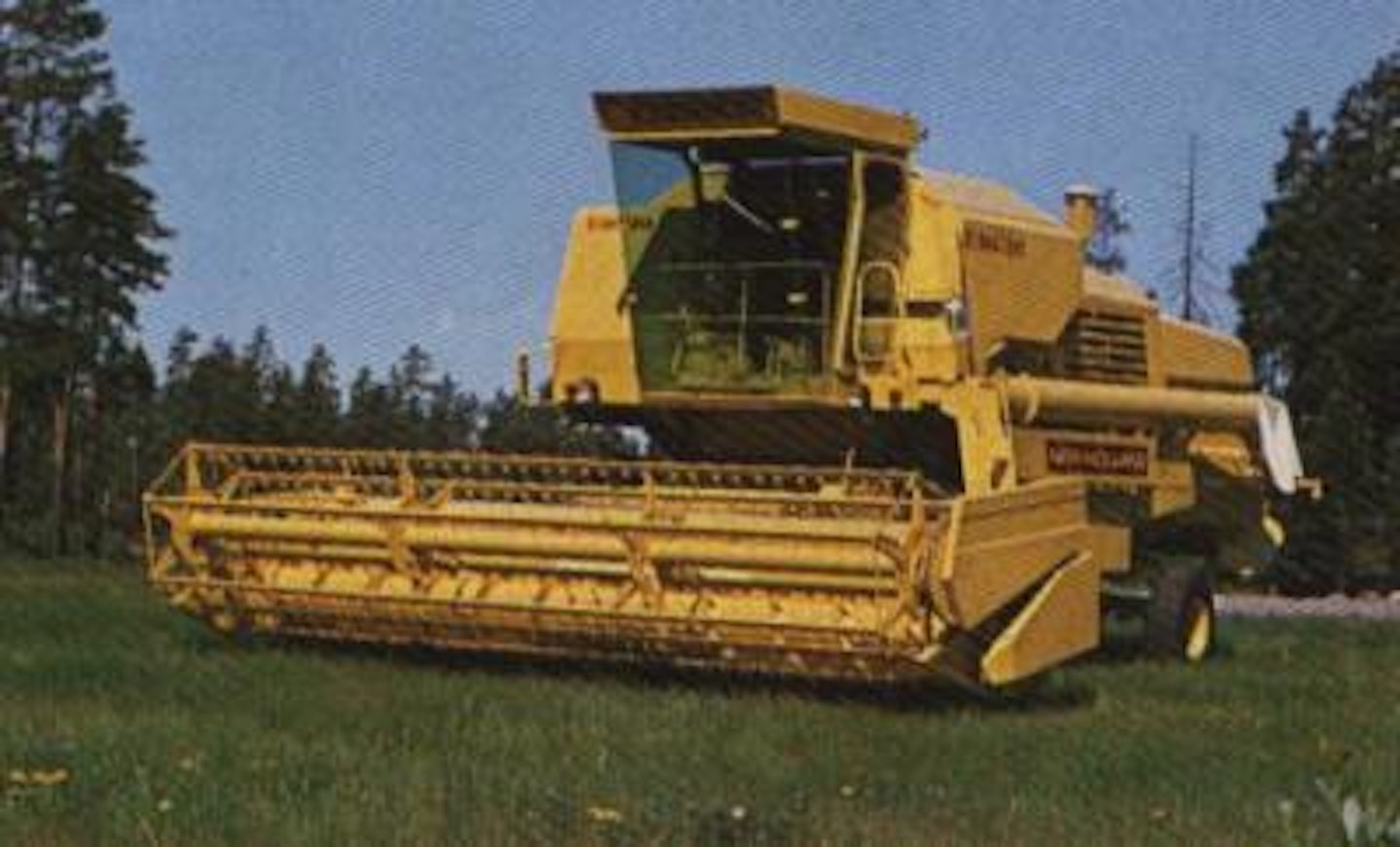

New Holland Clayson 8055-8080

80Clayson8070
80Clayson8080
80Clayson8070
80Clayson8080
Manufacturer
Models
8055, 8060, 8060, 8070, 8080, 8080 mek., 8080
Years
1978-91
Info

At the end of 1977, the successor to the S 1550, the 8080, started a new generation of combine harvesters. New Holland invested even more heavily in large combine harvesters. The 8080 and the subsequently introduced 8070 both featured, as standard in Finland, hydrostatic drive transmission, a straw walker, and a chaffer threshing system. The cab was said to be the first in which the joints were made glass against glass. The model range expanded downward annually. The last introduced model, the 8055, is a combination of the technologies from the 8030-8050 and 8060-8080 models. It lacks the straw walker, but the grain tank fills with an elevator, as in the larger models, not with an auger, and the chaff is returned to the straw walker.

This is an automated translation. Please report any issues in the translation.

Technical data
Model805580608060807080808080 mek.8080
Imported to FinlandYesYesYesYesYesNoYes
Years1983-911979-821982-871978-861978-841984-861984-87
EngineFordFordFiatFordMBFiatMB
Engine type2715E2715E8061S2714ETOM 4018361 SIOM 421
Displacement6220 cm³6220 cm³5499 cm³5945 cm³9570 cm³8102 cm³10964 cm³
Cyl/turbo666 T6 TV6 T6 TV6 T
Power116 hp DIN116 hp DIN131 hp DIN140 hp DIN175 hp DIN170 hp DIN205 hp DIN
Alternative hpFord 2725E 123 hp-Ford 2725E 123 hpMB 140, MB 155, Fiat 155 hpMB 205 hp--
Fuel tank250 l300 l300 l300 l350 l350 l350 l
Transmissionmech.mech.mech.hydr.hydr.mech.hydr.
Gears3333 (mek. 4)444
Speed min-max.1,7-24,6 km/h1,5-22,8 km/h1,5-22,8 km/h1,2-25 km/h0-25 km/h-0-25 km/h
Cutting width457 cm457 cm457 cm457 cm579 cm518 cm579 cm
Cutting width, alternative305-518 cm335-610 cm335-610 cm365-670 cm457-670 cm457-670 cm457-670 cm
Reel diameter107 cm107 cm107 cm107 cm107 cm107 cm107 cm
Header length41 cm41 cm41 cm41 cm41 cm41 cm41 cm
Threshing cyl. diameter60 cm60 cm60 cm60 cm60 cm60 cm60 cm
Threshing cyl. width130 cm130 cm130 cm130 cm156 cm156 cm156 cm
Number of straw walkers5555666
Area of walkers436 dm²436 dm²436 dm²436 dm²579 dm²579 dm²579 dm²
Lenght of walkers330 cm330 cm330 cm330 cm330 cm330 cm330 cm
Straw shieve190 dm²223 dm²223 dm²223 dm²245 dm²245 dm²245 dm²
Bottom shieve142 dm²171 dm²171 dm²171 dm²206 dm²206 dm²206 dm²
Total screening area353413413413497497497
Overall lenght882 cm882 cm882 cm882 cm882 cm882 cm882 cm
Overall width490 cm490 cm490 cm490 cm630 cm630 cm630 cm
Width without header322 cm322 cm322 cm322 cm---
Height without cabin364 cm366 cm366 cm366 cm---
Height with cabin391 cm--392 cm392 cm392 cm392 cm
Weight with cabin7250 kg-7800 kg8240 kg9300 kg8750 kg9300 kg
Grain tank40.5 hl45.7 hl45.7 hl56.4 hl63.4 hl56.4 hl63.4 hl
Unl. height347 cm------
Tyres front (Finland)23.1-2623.1-2623.1-2623.1-2623.1-3023.1-3023.1-30
Tyres front, alternative18.4-3018.4-3018.4-3018.4-3018.4-3018.4-3018.4-30
Tyres rear (Finland)13/65-1813/65-1813/65-1813/65-1813/65-1813/65-1813/65-18
Tyres rear, alternative10.5-1810.5-1810.5-1810.5-18---
Reel forward/backw. adjustmentmech./hydr.mech./hydr.mech./hydr.hydr.hydr.hydr.hydr.
Reel speed adjustmentelec.elec.elec.elec.elec.elec.elec.
Threshing cyl. speed adjustmentadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabinadj, in cabin
Bottom sieveadj.adj.adj.adj.adj.adj.adj.
Brakeswet discwet discwet discwet discwet discwet discwet disc
Reverserxxxxxxx
Type of cutting platform floatinggas dampergas dampergas dampergas dampergas dampergas dampergas damper
2. cyl. diameter-61 cm61 cm61 cm61 cm61 cm61 cm
Weight without cabin-7550 kg7550 kg7750 kg8800 kg--
