New Holland CR8070 – CR9090

12NHCR9000
12NHCR9000b
12NHCR9000ohjaamo
12NHCR9000
12NHCR9000b
12NHCR9000ohjaamo
Manufacturer
Models
New Holland CR8070, New Holland CR8080, New Holland CR9070, New Holland CR9080, New Holland CR9090
Years
2012-15
Info

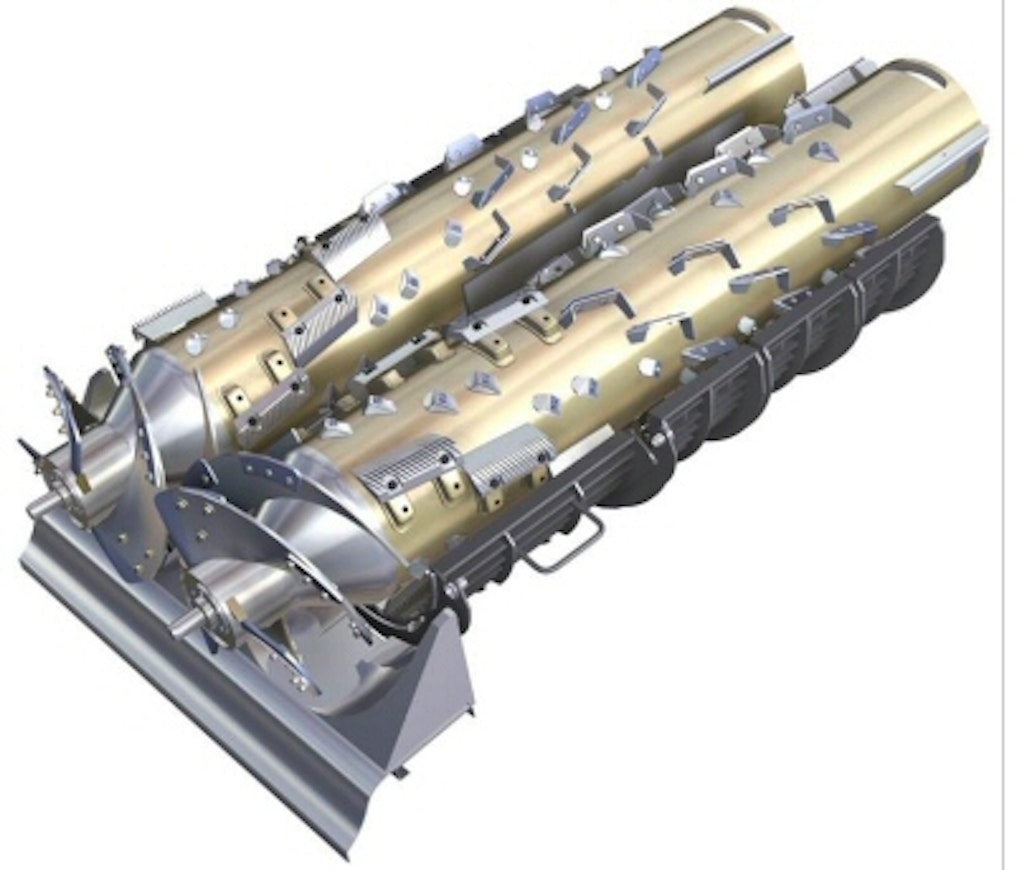

The CR series combines were updated in the fall of 2011 as emission regulations tightened. The previous smallest model, the 9070, was now mainly replaced by the 8070. In models with type numbers beginning with 9, the rotor diameter had increased from the previous 432 millimeters to 559 millimeters. The grain tanks were also significantly larger than before, and the unloading rate was increased to 126 liters per second. The engines used were FPT Cursor series pump-injector diesels equipped with an SCR system. The largest models had slightly less power than before.

An alternative track drive was the updated SmartTrax, whose ground pressure was claimed to be 57% lower than before. The 24-inch wide tracks enabled the sought-after 3.5-meter transport width in many countries, even in the 9000 series models equipped with wider machines. The updated cab was named the Harvest Suite, and the control system was the new IntelliView IV. The cab noise level was 74 dB. CR combines were now manufactured in Belgium as well as the USA.

For 2014, optional equipment included a 12.5-meter cutting platform, spring-mounted track suspension, and a stone protection system installed tangentially between the two rotors.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelNew Holland CR8070New Holland CR8080New Holland CR9070New Holland CR9080New Holland CR9090
Imported to FinlandYesYesYesYesYes
Years2012-152012-152012-152012-152012-15
EngineFPTFPTFPTFPTFPT
Engine typeCursor 9Cursor 10Cursor 10Cursor 13Cursor 13
Displacement8709 cm³10308 cm³10308 cm³12880 cm³12880 cm³
Cyl/turbo6 TI6 TI6 TI6 TI6 TI
Power-----
Fuel tank750+AB120 l1000+AB120 l1000+AB120 l1000+AB120 l1000+AB120 l
Transmissionhydr.hydr.hydr.hydr.hydr.
Gears44444
Speed min-max.0-30 km/h0-30 km/h0-30 km/h0-30 km/h0-30 km/h
Cutting width610 cm610 cm731 cm731 cm731 cm
Cutting width, alternative610-915 cm610-1067 cm731-1250 cm731-1250 cm731-1250 cm
Reel diameter107 cm107 cm107 cm107 cm107 cm
Header length41 cm41 cm41 cm41 cm41 cm
Threshing cyl. diameter43 cm43 cm56 cm56 cm56 cm
Threshing cyl. widthpituus 264 cmpituus 264 cmpituus 264 cmpituus 264 cmpituus 264 cm
Number of straw walkers2 drums2 drums2 drums2 drums2 drums
Straw shieve330 dm²330 dm²395 dm²395 dm²395 dm²
Bottom shieve191 dm²191 dm²228 dm²228 dm²228 dm²
Total screening area540540650650650
Overall lenght997+pöytä cm997+pöytä cm997+pöytä cm997+pöytä cm997+pöytä cm
Overall width654 cm654 cm654 cm777 cm777 cm
Width without header325 cm325 cm349 cm370 cm370 cm
Height with cabin396 cm396 cm396 cm396 cm396 cm
Weight without header16566 kg17426 kg18118 kg18414 kg18514 kg
Grain tank95 hl115 hl115 hl115 hl125 hl
Tyres front (Finland)900/60R32900/60R32900/60R32900/60R32900/60R32
Tyres front, alternative1050/50R321050/50R321050/50R321050/50R321050/50R32
Tyres rear (Finland)540/65R30540/65R30540/65R30540/65R30540/65R30
Tyres rear, alternative600/65R28600/65R28600/65R28600/65R28600/65R28
Reel forward/backw. adjustmenthydr.hydr.hydr.hydr.hydr.
Reel speed adjustmentelec.elec.elec.elec.elec.
Threshing cyl. speed adjustmentelec.elec.elec.elec.elec.
Bottom sieveadj.adj.adj.adj.adj.
Brakeswet discwet discwet discwet discwet disc
Reverserxxxxx
Air conditioningxxxxx
Heatingxxxxx
Grain loss indicatorxxxxx
Floating cutting platformxxxxx
Autom. control of cutting heightxxxxx
Slope levellingxxxxx
Cutting platform lateral tiltxxxxx
Type of cutting platform floatingautom.autom.autom.autom.autom.
