Allis-Chalmers 5040-5050

Manufacturer
Models
Allis-Chalmers 5040, Allis-Chalmers 5040, Allis-Chalmers 5045, Allis-Chalmers 5050
Years
1975-83
Info

To acquire small tractors for its lineup, Allis-Chalmers turned its attention to Eastern Europe after its previous cooperation with Renault ended due to the price being too high. In the fall of 1975, the 5040, also known as the Universal 445, manufactured by Universal in Romania, was introduced. Like the Universals, it was based on Fiat technology. Mainly only the grille, the shade of orange, and the color of the rims were changed to match Allis-Chalmers. The color of the frame was Universal’s original reddish-brown. The engine was a 2.3-liter 3-cylinder producing 44 hp. Initially, there were 6+2 gears, and later 8+2. Crawling gears were available as an optional extra. Standard equipment included, among other things, power steering, a differential lock, and glow plugs.

After production of the model 170 ended, a tractor with over 50 horsepower was also needed. In the summer of 1976, the 5050 began to be marketed, manufactured by Fiat in Italy. The design and color scheme corresponded to the model produced by Universal. The original equivalent of this model was the Fiat 540, but the engine was a 2.75-liter instead of the original 2.6-liter used in Europe in the 580 model. There was also a four-wheel-drive variant, the 5050 FWA, as well as a more compact 5050 Low-Profile model designed for orchard use.

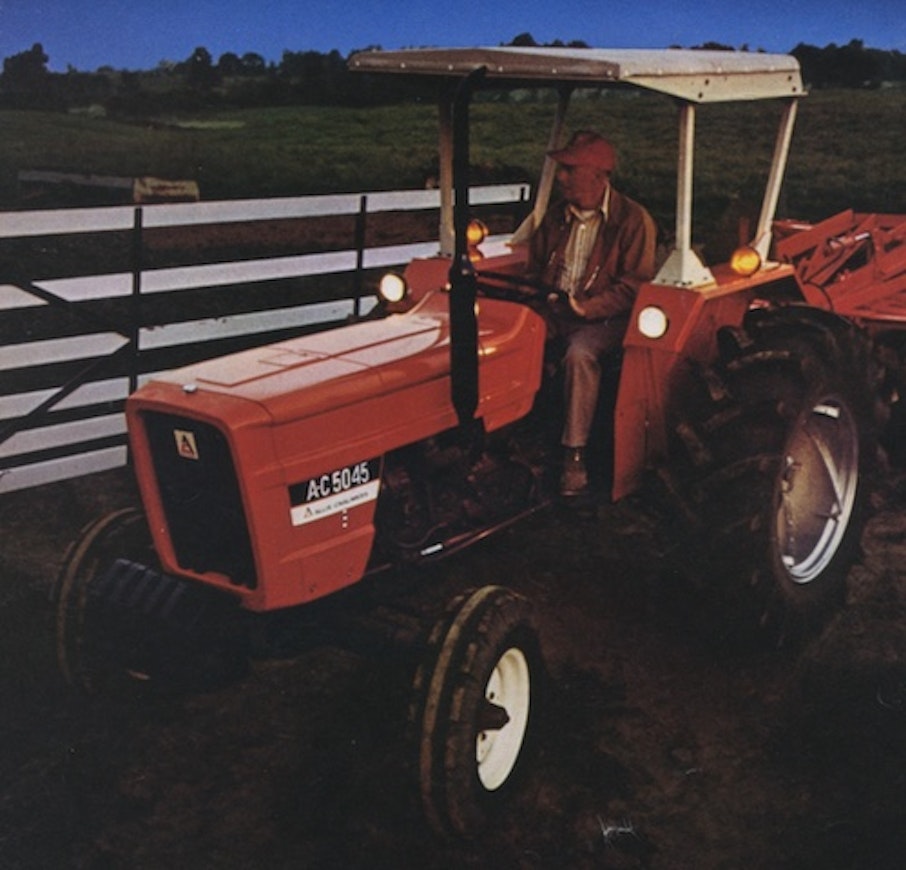

In 1981, the 5040 was also replaced by the 5045, manufactured in Italy, which corresponded to the 480 model. In total, around 13,000 tractors of this series were imported, half from Romania and half from Italy.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelAllis-Chalmers 5040Allis-Chalmers 5040Allis-Chalmers 5045Allis-Chalmers 5050
Manufacturer nameAllis-ChalmersAllis-ChalmersAllis-ChalmersAllis-Chalmers
Imported to FinlandNoNoNoNo
Years1975-781978-801981-811976-83
Engine modelD-115D-1158035.028035
Cyl/Turbo/Intercooler3333
Displacement2340 cm³2340 cm³2592 cm³2750 cm³
Bore x stroke95×110 mm95×110 mm100×110 mm103×110 mm
Rated power----
Gears6+28+28+28+2
Synchronized gears4444
Speeds in km/h2,4-24,52,4-24,22,4-24,22,6-27,2
Hydr. flow l/min21.8 l/min23.6 l/min23.6 l/min24.5 l/min
Hydraulic pressure147 bar147 bar147 bar150 bar
Lift controlsmech.mech.mech.mech.
Lift capacity1200 kg1200 kg1550 kg1450 kg
PTO speeds540540540540
Brakesdrum brakesdrum brakesdrum brakesdrum brakes
Steeringpowerpowerpowerpower
Turning circle m 2WD6.396.396.866.8
Front tyres 2WD6.00-166.00-166.00-167.50-16
Rear tyres 2WD13.6-2813.6-2813.6-2814.9-28
Weight 2WD(1746) kg(1746) kg(1746) kg(1880) kg
Height with cab(149) cm(149) cm(149) cm(151/153) cm
Length (2WD/4WD)294 cm294 cm298 cm303/317 cm
Wheelbase (2WD/4WD)192 cm192 cm192 cm192/195 cm
Fuel tank54 l54 l54 l54 l
Creeper gearopt.opt.opt.opt.
Front tyres 4WD---8.3-24
Rear tyres 4WD---14.9-30
Weight 4WD---(2150) kg
