Case IH 745-856 XL Plus
Manufacturer
Models
Case IH 745 XL Plus, Case IH 845 XL Plus, Case IH 845 XL Plus, Case IH 845 XL Super Plus, Case IH 856 XL Plus, Case IH 856 XL Plus
Years
1987-96
Info

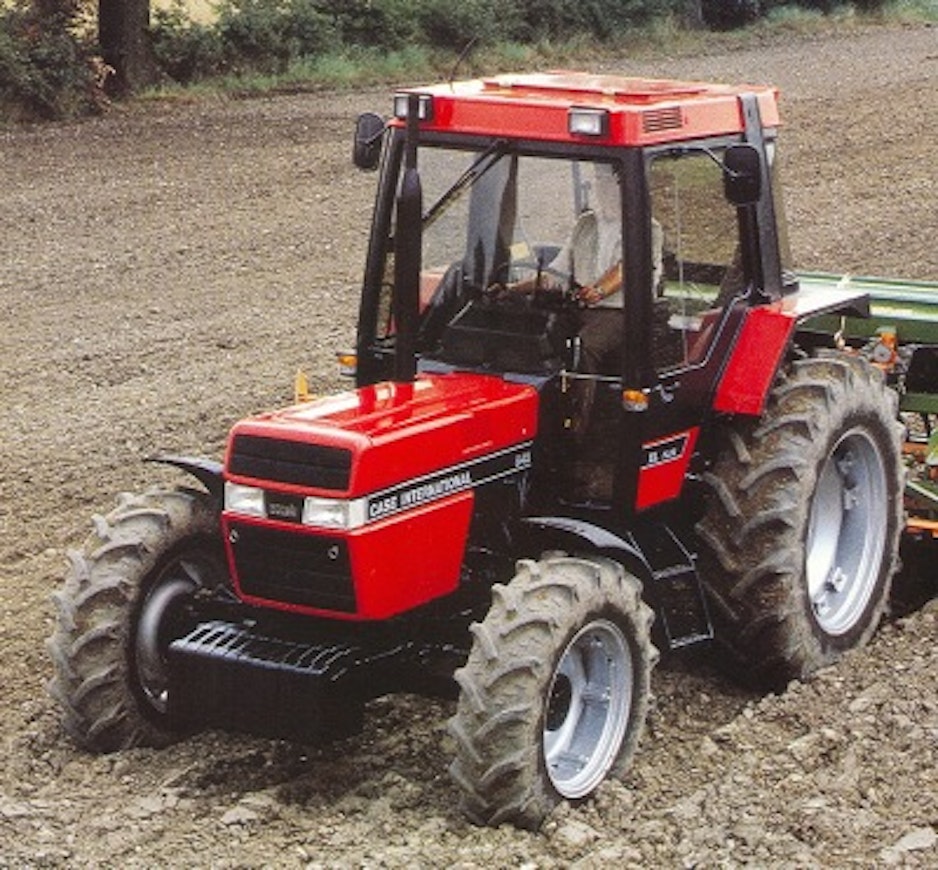

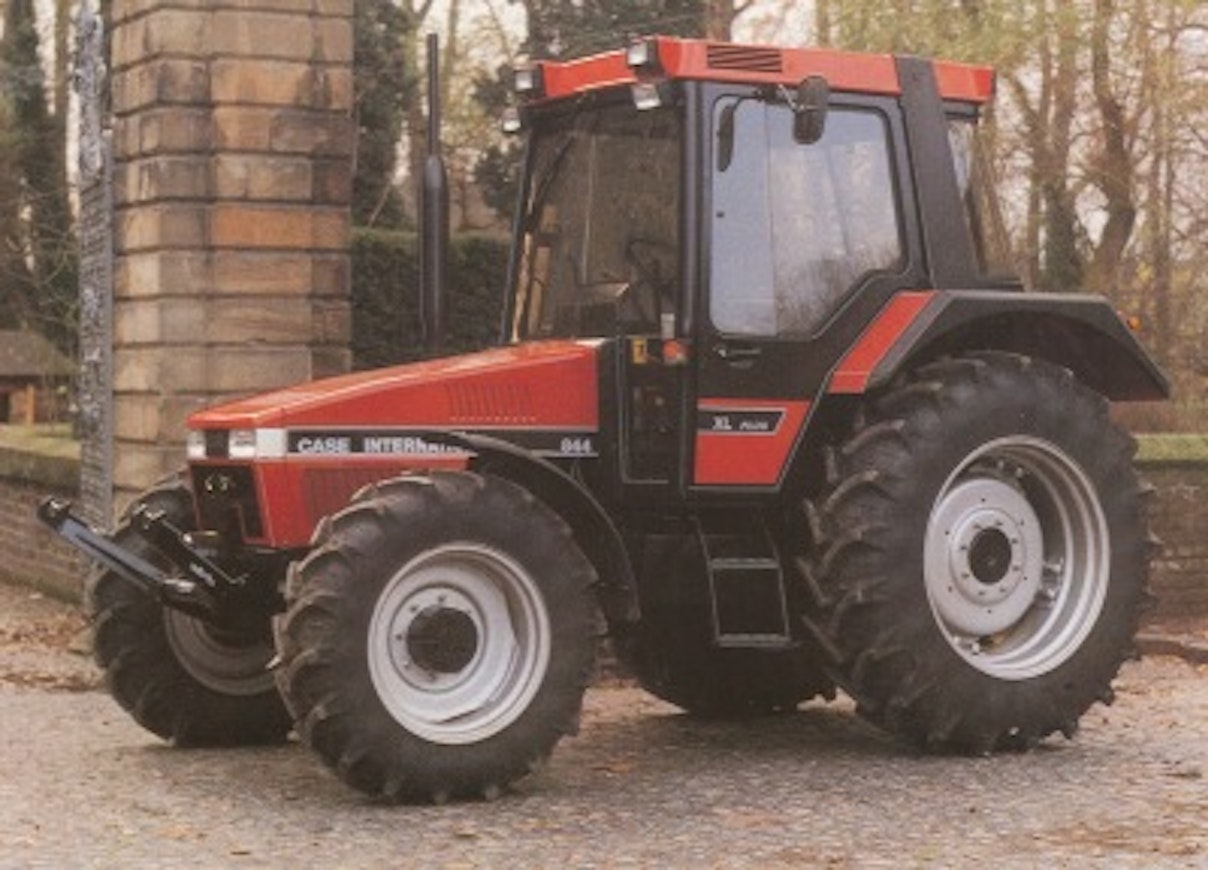

In the Plus series, the 845 and 856 received more power, and the diameter of the 856's clutch changed from 295 millimeters to 310 millimeters. In 1987, a slant-nose 845 was also introduced, which was sold very little in Finland. In 1989, production moved to England. In 1992, a 94-horsepower Super Plus version of the 845 was introduced. The last 845s and 856s were completed in the summer of 1996. The 844/845 was produced for a total of 22 years.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Case IH 745 XL Plus | Case IH 845 XL Plus | Case IH 845 XL Plus | Case IH 845 XL Super Plus | Case IH 856 XL Plus | Case IH 856 XL Plus |
|---|---|---|---|---|---|---|
| Manufacturer name | Case IH | Case IH | Case IH | Case IH | Case IH | Case IH |
| Imported to Finland | No | No | Yes | Yes | No | Yes |
| Years | 1987-94 | 1987-96 | 1987-96 | 1992-96 | 1987-96 | 1987-96 |
| First year sold | 1987 | 1987 | 1987 | 1992 | 1987 | 1987 |
| Last year sold | 1994 | 1996 | 1996 | 1996 | 1996 | 1996 |
| Engine model | D-239 | D-268 | D-268 | D-268 | DT-239 | DT-239 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4 | 4T | 4T |
| Displacement | 3911 cm³ | 4389 cm³ | 4389 cm³ | 4389 cm³ | 3911 cm³ | 3911 cm³ |
| Bore x stroke | 98,4×128,5 mm | 100×139,7 mm | 100×139,7 mm | 100×139,7 mm | 98,4×128,5 mm | 98,4×128,5 mm |
| Rated power hp/rpm DIN | 72/2300 | 80/2300 | 87/2300 | 94/2300 | 85/2300 | 90/2300 |
| Rated power | 72 | 80 | 87 | 94 | 85 | 90 |
| Rated speed | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Torque Nm/rpm DIN | 251/1600 | 296/1300 | 310/1600 | 345/1400 | 310/1600 | 322/1600 |
| Gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 |
| Synchronized gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 |
| Powershift gears | mech. | mech. | mech. | mech. | mech. | hydr. |
| Speeds in km/h | 1,7-36,0 | 1,7-36,0 | 1,7-36,0 | 1,7-36,0 | 2,2-35,5 | 2,2-35,5 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 39 km/h | 39 km/h |
| Hydr. flow l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min |
| Hydraulic pressure | 167 bar | 167 bar | 167 bar | 167 bar | 167 bar | 167 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 3150 kg | 3150 kg | 3600 kg | 3600 kg | 3600 kg | 3600 kg |
| PTO speeds | 540/1000 | 540/1000/ajo | 540/1000 | 540/1000 | 540/1000/ajo | 540/1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | - | 8.5 | 8.5 | 8.5 | - | - |
| Turning circle m 4WD | 9,5/9,0 | 9,5/9,0 | 9,5/9,0 | 9 | 9,5/9,0 | 9,5/9,0 |
| Front tyres 2WD | - | 10,00-16 | 10,00-16 | 10,00-16 | - | - |
| Front tyres 4WD | 12.4R24 | 13.6R24 | 12.4R24 | 13.6R24 | 13.6R24 | 13.6R24 |
| Rear tyres 2WD | - | 18,4R34 | 16,9R34 | 18,4R34 | - | - |
| Rear tyres 4WD | 16.9R34 | 18.4R34 | 16.9R34 | 18.4R34 | 16.9R34 | 16.9R38 |
| Weight 2WD | - | 3560 kg | 3560 kg | 3560 kg | - | - |
| Weight 4WD | 3890 kg | 4170 kg | 4100 kg | 4100 kg | 4240 kg | 4240 kg |
| Height with cab | 270 cm | 270 cm | 267 cm | 267 cm | 269 cm | 269 cm |
| Length (2WD/4WD) | 389/397 cm | 393/397 cm | 393/397 cm | 393/397 cm | 389/401 cm | 389/401 cm |
| Wheelbase (2WD/4WD) | 239/237 cm | 239/237 cm | 239/237 cm | 239/237 cm | 238 cm | 238 cm |
| Fuel tank | 106 l | 106 l | 106 l | 106 l | 106 l | 106 l |
| Cab noise level | - | 81 dB | 81 dB | 81 dB | 81 dB | 81 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | - | - |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
