Siirry sivupalkkiinSiirry alaosaanCase IH Puma 150 CVXDrive – 175 CVXDrive / Steyr Impuls CVT






The stripped-down Puma X introduced in 2017 was transformed in 2020 into the smaller-end Puma standard model range. At the same time, CVXDrive models were introduced, which were lighter and had shorter wheelbases (273 cm and 279 cm with a suspended axle) compared to earlier CVX models of the same power. The standard equipment was also slightly reduced, for example, the hydraulic valves were mechanical as standard. As an optional extra, up to 8 electric sections could be added. However, the cab roof on the CVXDrive versions was of a taller model.
The engines were 6.7-liter FPT engines meeting emission stage V. The oil change interval was now 750 hours. The maximum speed of 53 km/h was achieved at 1750 RPM. The cab could be equipped with an AFS Pro 700 display.

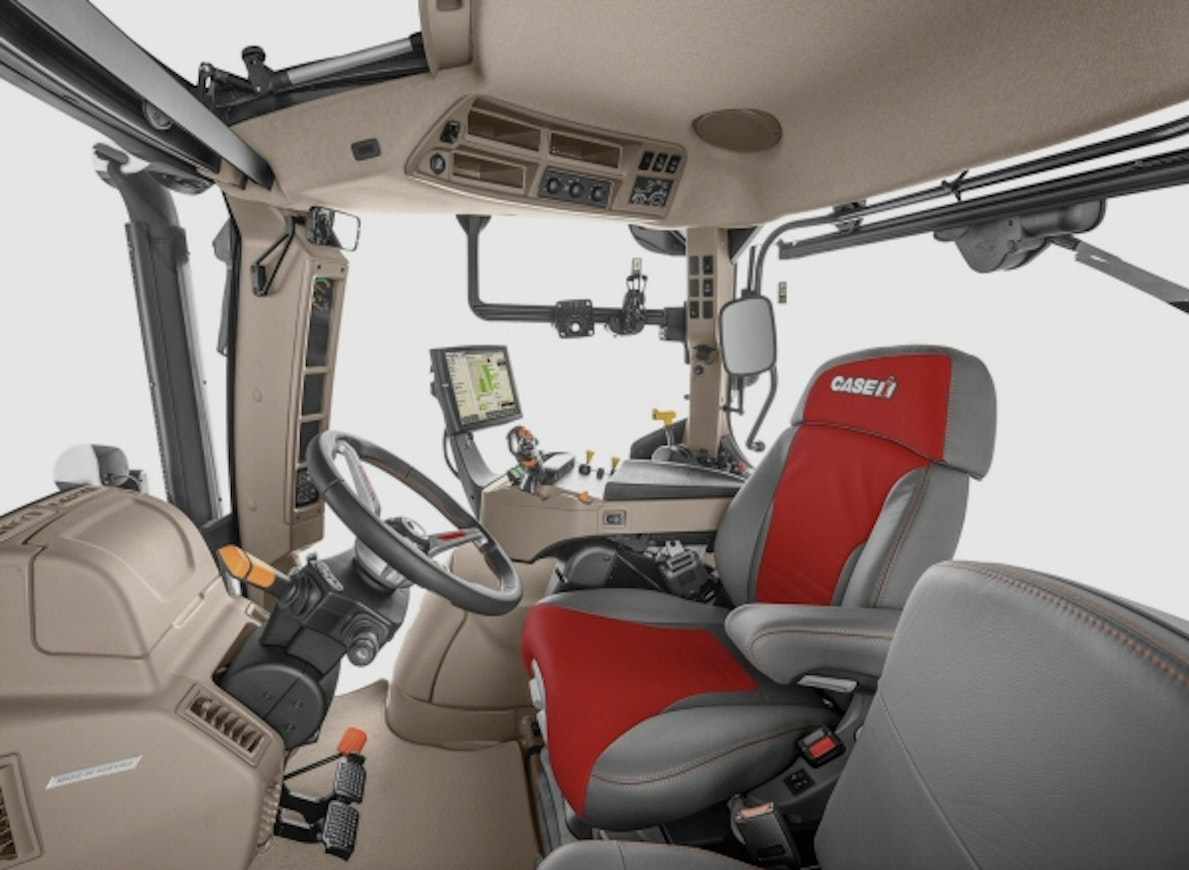

In spring 2022, improvements were made to the cab, including new steps and windshield wiper, as well as enhanced upholstery materials.
This is an automated translation. Please report any issues in the translation.
| Model | Case IH Puma 150 CVXDrive | Steyr 6150 Impuls CVT | Case IH Puma 165 CVXDrive | Steyr 6165 Impuls CVT | Case IH Puma 175 CVXDrive | Steyr 6175 Impuls CVT |
|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2020- | 2020- | 2020- | 2020- | 2022- | 2022- |
| Engine model | NEF | NEF | NEF | NEF | NEF | NEF |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - |
| Gears | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) |
| Synchronized gears | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) |
| Powershift gears | 6-step/powershift | 6-step/powershift | 6-step/powershift | 6-step/powershift | 6-step/powershift | 6-step/powershift |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 1,9-40 | 1,9-40 | 1,8-40 | 1,8-40 | 1,8-40 | 1,8-40 |
| Max. speed | 40 (53) km/h | 40 (53) km/h | 40 (53) km/h | 40 (53) km/h | 40 (53) km/h | 40 (53) km/h |
| Hydr. flow l/min | 110 (160) l/min | 110 (160) l/min | 110 (160) l/min | 110 (160) l/min | 110 (160) l/min | 110 (160) l/min |
| Hydraulic pressure | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 8257 kg | 8257 kg | 8257 kg | 8257 kg | 8257 kg | 8257 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
| Front tyres 4WD | 16.9R28 | 16.9R28 | 16.9R28 | 16.9R28 | 16.9R28 | 16.9R28 |
| Rear tyres 4WD | 20.8R38 | 20.8R38 | 20.8R38 | 20.8R38 | 20.8R38 | 20.8R38 |
| Weight 4WD | 7100 kg | 7100 kg | 7100 kg | 7100 kg | 7100 kg | 7100 kg |
| Height with cab | 303 cm | 303 cm | 303 cm | 303 cm | 303 cm | 303 cm |
| Length (2WD/4WD) | 472 cm | 472 cm | 472 cm | 472 cm | 472 cm | 472 cm |
| Wheelbase (2WD/4WD) | 273 cm | 273 cm | 273 cm | 273 cm | 273 cm | 273 cm |
| Fuel tank | 330+AB48 l | 330+AB48 l | 330+AB48 l | 330+AB48 l | 330+AB48 l | 330+AB48 l |
| Cab noise level | 69 dB | 69 dB | 69 dB | 69 dB | 69 dB | 69 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
