Siirry sivupalkkiinSiirry alaosaanFendt 1038-1050 Vario (2015-) / Challenger 1038-1050








Fendt introduced the world's largest conventional tractor, the 1000 Vario, at Agritechnica in the autumn of 2015. By many measures, it was clearly a larger tractor than the 900 series: for example, it weighed 14 tons instead of 11. However, the price of the smallest model in the series was not significantly higher than that of the similarly powered 939. The engine in the 1000 series was a 12.4-liter MAN. The emission technology used was simply SCR. The highest power was reached at 1500-1700 rpm and the highest torque at 1000-1500 rpm. A speed of 60 km/h was achieved at 1450 rpm. The front axle had brakes and independent suspension. Traction could be automatically distributed between the front and rear axles based on grip. An optional tire pressure control system was available.

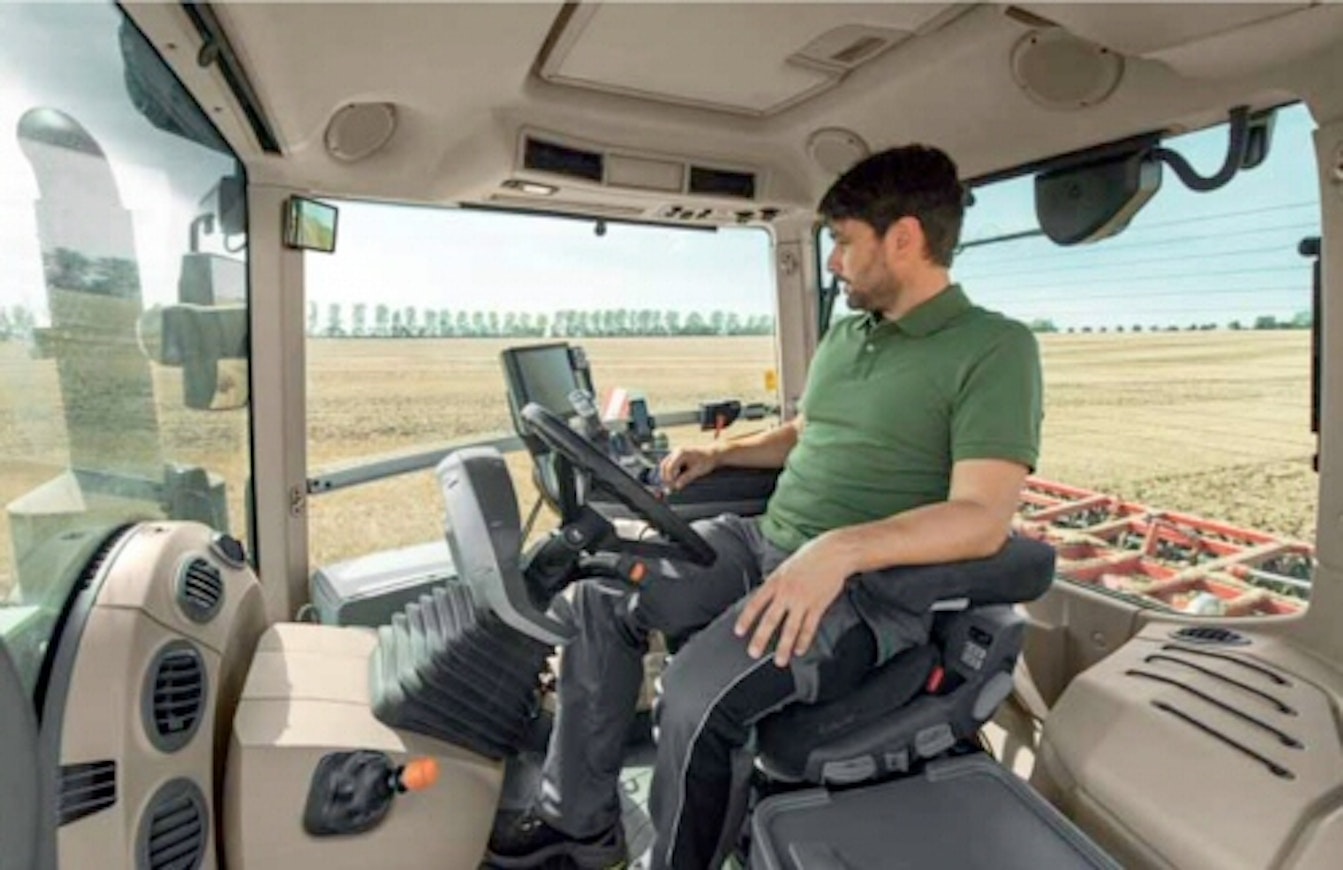

The cab was new and larger, called the Life Cab. The equipment levels were very similar to those of the 900 series. The base model was PowerPlus, which included, among other things, a 7” Vario terminal, headland automation, TMS, mechanical cab suspension, and automatic air conditioning. The Profi model differed only in having a multi-function joystick. The ProfiPlus had a 10.4” Vario terminal, VarioDoc field data recording, and continuously variable steering.
The 1050 Vario was, among other things, selected Tractor of the Year in 2016. During the first four years, 2000 tractors of the 1000 series were manufactured.
Between 2017 and 2020, the 1000 series Vario was sold in the USA under the Challenger brand.
For 2021 models FendtOne user interface was introduced. This is an automated translation. Please report any issues in the translation.
| Model | Fendt 1038 Vario | Fendt 1042 Vario | Fendt 1046 Vario | Fendt 1050 Vario |
|---|---|---|---|---|
| Manufacturer name | Fendt | Fendt | Fendt | Fendt |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 2015- | 2015- | 2015- | 2015- |
| Engine model | MAN D2676LE521 | MAN D2676LE521 | MAN D2676LE521 | MAN D2676LE521 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI |
| Displacement | 12419 cm³ | 12419 cm³ | 12419 cm³ | 12419 cm³ |
| Bore x stroke | 126×166 mm | 126×166 mm | 126×166 mm | 126×166 mm |
| Rated power | 381/1500-1700 hp DIN/rpm | 420/1500-1700 hp DIN/rpm | 460/1500-1700 hp DIN/rpm | 500/1500-1700 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,02-60 | 0,02-60 | 0,02-60 | 0,02-60 |
| Max. speed | 50/60 km/h | 50/60 km/h | 50/60 km/h | 50/60 km/h |
| Hydr. flow l/min | 165 (220/430) l/min | 165 (220/430) l/min | 165 (220/430) l/min | 165 (220/430) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. |
| Lift capacity | 12920 kg | 12920 kg | 12920 kg | 12920 kg |
| PTO speeds | 1000/1000E/1300 | 1000/1000E/1300 | 1000/1000E/1300 | 1000/1000E/1300 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 13.94 | 14.66 | 14.66 | 14.66 |
| Front tyres 4WD | 650/65R34 | 650/65R38 | 650/65R38 | 650/65R38 |
| Rear tyres 4WD | 710/75R42 | 750/75R46 | 750/75R46 | 750/75R46 |
| Weight 4WD | 14000 kg | 14000 kg | 14000 kg | 14000 kg |
| Height with cab | 357 cm | 357 cm | 357 cm | 357 cm |
| Length (2WD/4WD) | 597 cm | 597 cm | 597 cm | 597 cm |
| Wheelbase (2WD/4WD) | 330 cm | 330 cm | 330 cm | 330 cm |
| Fuel tank | 800+AB85 l | 800+AB85 l | 800+AB85 l | 800+AB85 l |
| Cab noise level | 69 dB | 69 dB | 69 dB | 69 dB |
| Solid cab | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x |
| Air suspension seat | x | x | x | x |
| Air conditioning | x | x | x | x |
| Trip computer | x | x | x | x |
| Creeper gear | x | x | x | x |
