Siirry sivupalkkiinSiirry alaosaanFendt 512-516 Vario




In the fall of 2021, the Fendt 500 series was updated and the model designation was extended with Gen3. The cab and controls were now FendtONE, similar to the larger models. The wheelbase was increased by 11 cm. The engines were 4.04-liter Deutz models, which, in addition to other emissions technologies, featured cooled exhaust gas recirculation and a pneumatically controlled wastegate turbo. The ML90 transmission reached a speed of 50 km/h at 1700 rpm. The lifting capacity was 7.9 tons. The closed hydraulic system offered a standard output of 75 l/min.

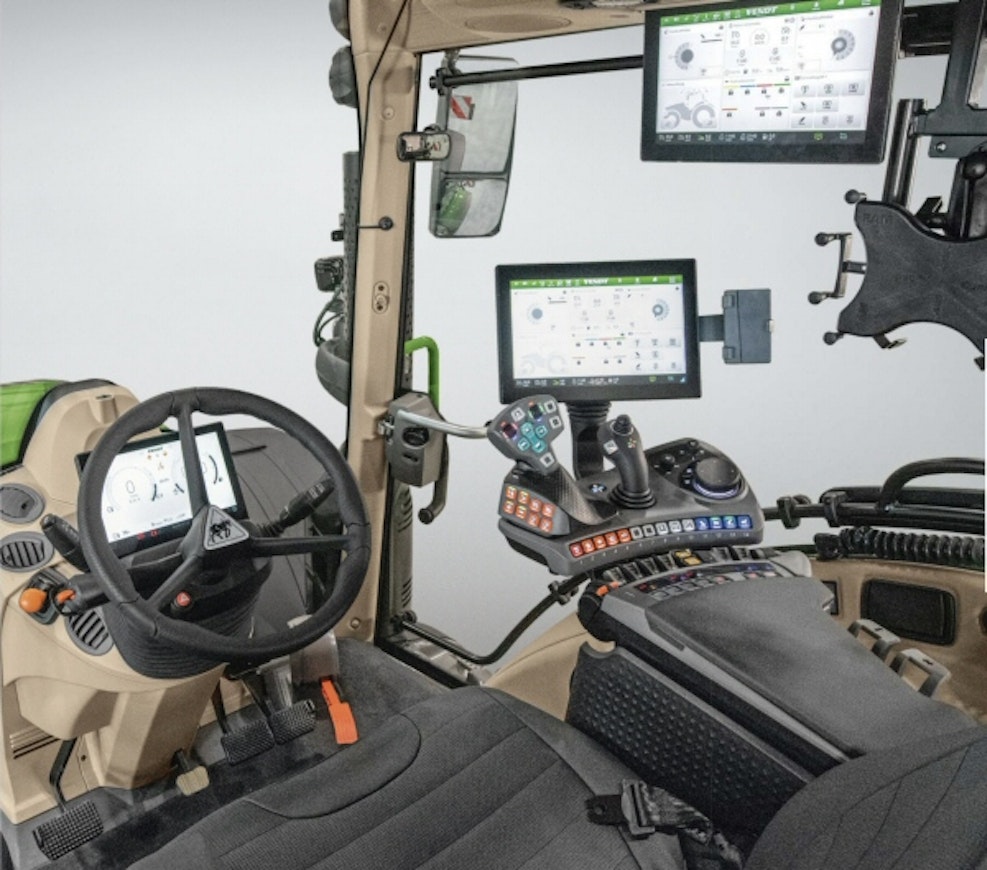

Standard equipment included a 10" dashboard display, headland automation, 2 electrically controlled hydraulic valves, and mechanical cab suspension. Starting from the Power+ model, the armrest featured a 12" terminal and joystick. The Profi model came standard with a 110-liter pump and ISOBUS control.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt 512 Vario | Fendt 513 Vario | Fendt 514 Vario | Fendt 516 Vario |
|---|---|---|---|---|
| Manufacturer name | Fendt | Fendt | Fendt | Fendt |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 2021- | 2021- | 2021- | 2021- |
| Engine model | Deutz TCD 4.1 L4 | Deutz TCD 4.1 L4 | Deutz TCD 4.1 L4 | Deutz TCD 4.1 L4 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI |
| Displacement | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power | - | - | - | - |
| Max power | - | - | - | - |
| Torque | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,02-50 | 0,02-50 | 0,02-50 | 0,02-50 |
| Max. speed | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h |
| Hydr. flow l/min | 75/110/158 l/min | 75/110/158 l/min | 75/110/158 l/min | 75/110/158 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. |
| Lift capacity | 7890 kg | 7890 kg | 7890 kg | 7890 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.58 | 10.58 | 11.04 | 11.04 |
| Front tyres 4WD | 480/65R28 | 480/65R28 | 480/70R28 | 540/65R28 |
| Rear tyres 4WD | 600/65R38 | 600/65R38 | 580/70R38 | 650/65R38 |
| Weight 4WD | 6380 kg | 6380 kg | 6400 kg | 6400 kg |
| Height with cab | 293 cm | 293 cm | 297 cm | 297 cm |
| Length (2WD/4WD) | 445 cm | 445 cm | 445 cm | 445 cm |
| Wheelbase (2WD/4WD) | 256 cm | 256 cm | 256 cm | 256 cm |
| Fuel tank | 298+AB31 l | 298+AB31 l | 298+AB31 l | 298+AB31 l |
| Cab noise level | 63 dB | 64 dB | 64 dB | 66 dB |
| Solid cab | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x |
| Air suspension seat | x | x | x | x |
| Air conditioning | x | x | x | x |
| Trip computer | x | x | x | x |
| Creeper gear | x | x | x | x |
