Fiat 1180-1880

80Fiat1880
80FiatGrandi
81FiatGrandi
80Fiat1880
80FiatGrandi
81FiatGrandi
Manufacturer
Models
Fiat 1180, Fiat 1280, Fiat 1380, Fiat 1580, Fiat 1580, Fiat 1880
Years
1979-84
Info

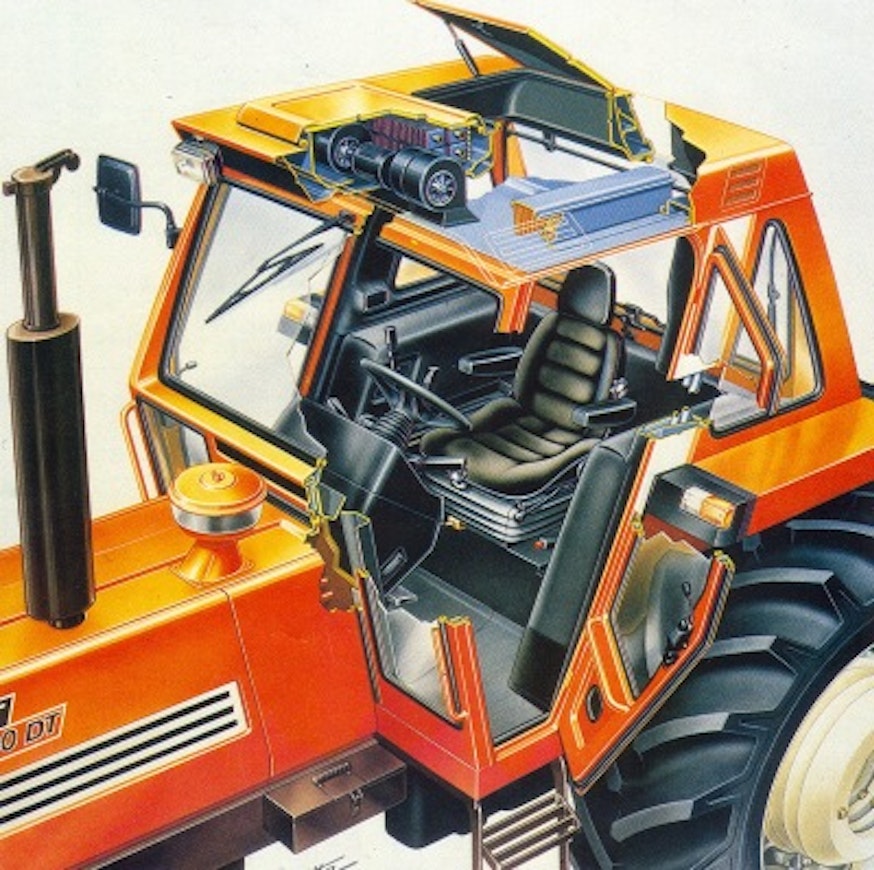

Fiat 1000 and 1300 were replaced at the end of 1979 by new Grandi models. The design was consistent with the smaller models. In terms of external dimensions, the Grandi were quite compact compared to modern-day tractors. The Pininfarina Cabina Larga cabin was larger than in the smaller models. The 1180 had a naturally aspirated 5.5-liter engine. The 1380 (135 hp) had the same engine but turbocharged; in between them was the turbocharged 1280, which was not brought to Finland. Of the 8.1-liter engines, the 1580 (155 hp) was naturally aspirated and the 1880 (180 hp) turbocharged. In 1982, the 1580 also received a turbocharger and 5 more horsepower.

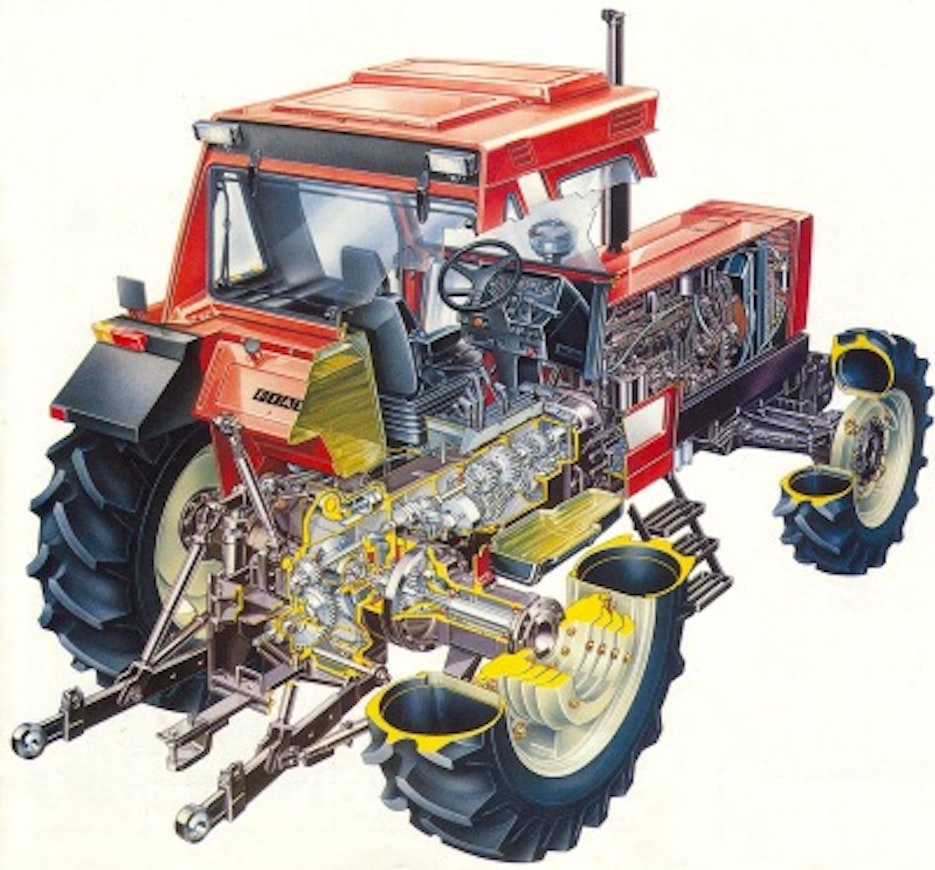

The transmission in the Grandi was 12+4. In Finland, nearly exclusively the 24+8 version equipped with a creeper gear was sold. The gear levers were located on the dashboard. The power take-off clutch was hydraulic, differing from the smaller Fiats. The front-wheel drive power was delivered directly from the transmission via a central shaft. The turning circle diameter was as much as 13.2 meters even in the smaller models, and 14.6 meters in the 1580 and 1880. At the end of 1980, the front axle lock became standard; it was a hydraulically engaged dog lock, while the largest models had a disc lock. At the same time, the orange color was changed to a darker terracotta.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFiat 1180Fiat 1280Fiat 1380Fiat 1580Fiat 1580Fiat 1880
Manufacturer nameFiatFiatFiatFiatFiatFiat
Imported to FinlandYesNoYesYesYesYes
Years1979-841979-841979-841979-821982-841979-84
Engine model8065.048065.248065.248365.058365.058365.25
Cyl/Turbo/Intercooler66T6T66T6T
Displacement5499 cm³5499 cm³5499 cm³8102 cm³8102 cm³8102 cm³
Bore x stroke103×110 mm103×110 mm103×110 mm115×130 mm115×130 mm115×130 mm
Rated power115/2500 hp DIN/rpm125/2500 hp DIN/rpm135/2400 hp DIN/rpm155/2100 hp DIN/rpm160/2200 hp DIN/rpm180/2100 hp DIN/rpm
Torque------
Gears12+4/24+812+4/24+824+824+824+824+8
Synchronized gears12+4/24+812+4/24+824+824+824+824+8
Powershift gears-/mech.-/mech.mech.mech.mech.mech.
Speeds in km/h0,6-29,02,9-29,70,6-27,80,5-24,30,6-25,80,6-25,4
Hydr. flow l/min50.5 l/min54.6 l/min54.5 l/min55.7 l/min55.7 l/min55.7 l/min
Hydraulic pressure170 bar170 bar170 bar170 bar170 bar170 bar
Lift controlsmech.mech.mech.mech.mech.mech.
Lift capacity4400 kg4400 kg4400 kg5900 kg5900 kg5900 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD9.29.29.2---
Turning circle m 4WD13.213.213.214.614.614.6
Front tyres 2WD11.00-1611.00-1611.00-16---
Front tyres 4WD13.6-2814.9-2814.9-2814.9-2814.9-2816.9-28
Rear tyres 2WD16.9-3818.4-3818.4-38---
Rear tyres 4WD18.4-3818.4-3818.4-3818.4-3818.4-3820.8-38
Weight 2WD4900 kg5450 kg5730 kg---
Weight 4WD5200 kg5930 kg6300 kg6570 kg6570 kg6700 kg
Height with cab281 cm281 cm284 cm299 cm299 cm299 cm
Length (2WD/4WD)410/413 cm410/419 cm418 cm444 cm444 cm451 cm
Wheelbase (2WD/4WD)275/267 cm275/267 cm267 cm289 cm289 cm289 cm
Fuel tank180 l180 l180 l280 l280 l280 l
Cab noise level84.5 dB-83.5 dB83 dB83.5 dB84 dB
Solid cabxxxxxx
Diff. lock81-81-81-81-disc lock81-
Creeper gearx/opt.xxxxx
