Siirry sivupalkkiinSiirry alaosaanFiat/Fiatagri 466-766

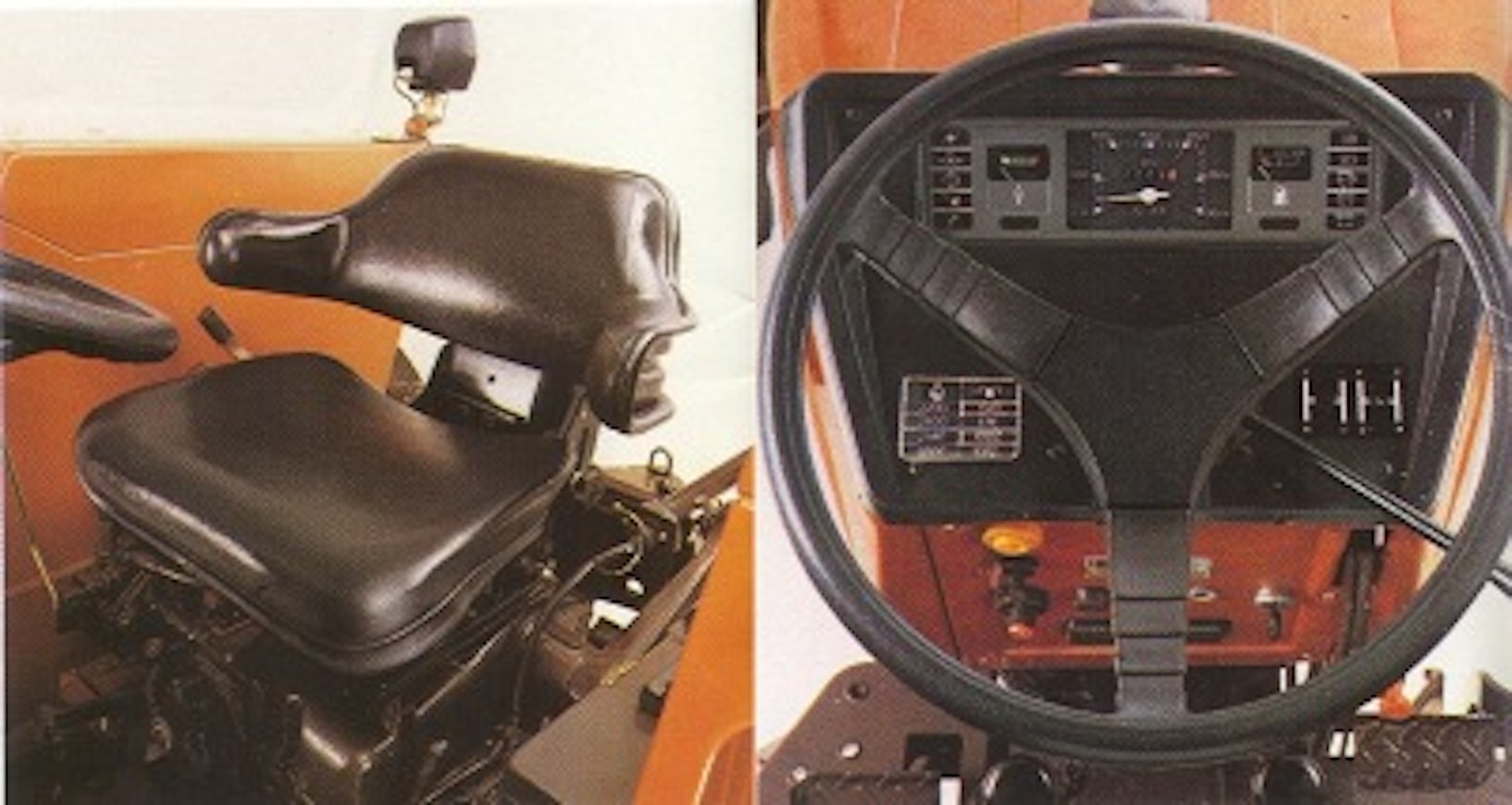

The Fiat 66 series was a smaller and more affordable alternative to the 80 series. The external dimensions were significantly more compact, but there was hardly any compromise on the technology. The lifting capacity and hydraulic output were on par with the more expensive series, the brakes were oil-immersed, and the four-wheel drive model featured hydrostatic steering. The transmission was fully synchronized, even before the smallest models of the 80 series, and a 1000 rpm speed was also available on the power take-off. The cab was simple, but according to the factory, the noise level did not exceed 82 decibels. An optional sun canopy was available for the cab.
Initially, the transmission was 12+4 or, with crawling gears, 20+8. From 1984 onwards, a 12+12 shuttle shift transmission was also available. The 466 model was also available with a partially synchronized 12+3 transmission. The four-wheel drive option included a central axle, but a differential lock on the front axle was standard only on the 666. The technical relatives of the 66 series were similarly powered models from Agrifull, acquired by Fiat.
In 1984, the 766 was introduced with the engine from the 780, featuring a lifting capacity of 3580 kg.
This is an automated translation. Please report any issues in the translation.
| Model | Fiat 466 | Fiat 566 | Fiat 666 | Fiat 766 |
|---|---|---|---|---|
| Manufacturer name | Fiat | Fiat | Fiat | Fiat |
| Imported to Finland | No | No | No | No |
| Years | 1982-86 | 1982-86 | 1982-86 | 1984-86 |
| Engine model | 8035.02 | 8035.04 | 8045.02 | 8045.04 |
| Cyl/Turbo/Intercooler | 3 | 3 | 4 | 4 |
| Displacement | 2590 cm³ | 2750 cm³ | 3456 cm³ | 3666 cm³ |
| Bore x stroke | 100×110 mm | 103×110 mm | 100×110 mm | 103×110 mm |
| Rated power | 50/2600 hp DIN/rpm | 58/2500 hp DIN/rpm | 68/2500 hp DIN/rpm | 78/2500 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 12+4 | 12+4 | 12+4 | 12+4 |
| Synchronized gears | 12+4 | 12+4 | 12+4 | 12+4 |
| Reverser | opt. | opt. | opt. | opt. |
| Speeds in km/h | 1,8-30,0 | 1,8-30,0 | 1,7-28,4 | 1,8-29,3 |
| Hydr. flow l/min | 34 l/min | 34 l/min | 34 l/min | 34 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 2600 kg | 2600 kg | 3140 kg | 2620/3580 kg |
| PTO speeds | 540/ajo (1000) | 540/ajo (1000) | 540/ajo (1000) | 540/ajo (1000) |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | power, 4WD hydrost. | power, 4WD hydrost. | power, 4WD hydrost. | power, 4WD hydrost. |
| Front tyres 2WD | 7.50-16 | 7.50-16 | 7.50-18 | 7.50-20 |
| Front tyres 4WD | 8.3-24 | 11.2-24 | 11.2-24 | 12.4-24 |
| Rear tyres 2WD | 12.4-32 | 12.4-36 | 16.9-30 | 16.9-34 |
| Rear tyres 4WD | 12.4-32 | 12.4-36 | 16.9-30 | 16.9-34 |
| Weight 2WD | 2690 kg | 2810 kg | 3040 kg | 3140 kg |
| Weight 4WD | 2920 kg | 3030 kg | 3300 kg | 3400 kg |
| Height with cab | 237 cm | 237 cm | 240 cm | 240 cm |
| Length (2WD/4WD) | 364 cm | 364/368 cm | 387/393 cm | 387/393 cm |
| Wheelbase (2WD/4WD) | 218/212 cm | 218/212 cm | 230/225 cm | 231/225 cm |
| Fuel tank | 73 l | 73 l | 73 l | 73 l |
| Solid cab | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. |
| Cab noise level | - | 82 dB | - | - |
| Max. speed | - | - | 31.3 km/h | 32.2 km/h |
| Diff. lock | - | - | differential lock with cogs | differential lock with cogs |
