Siirry sivupalkkiinSiirry alaosaanFiatagri 35-66 – 70-66

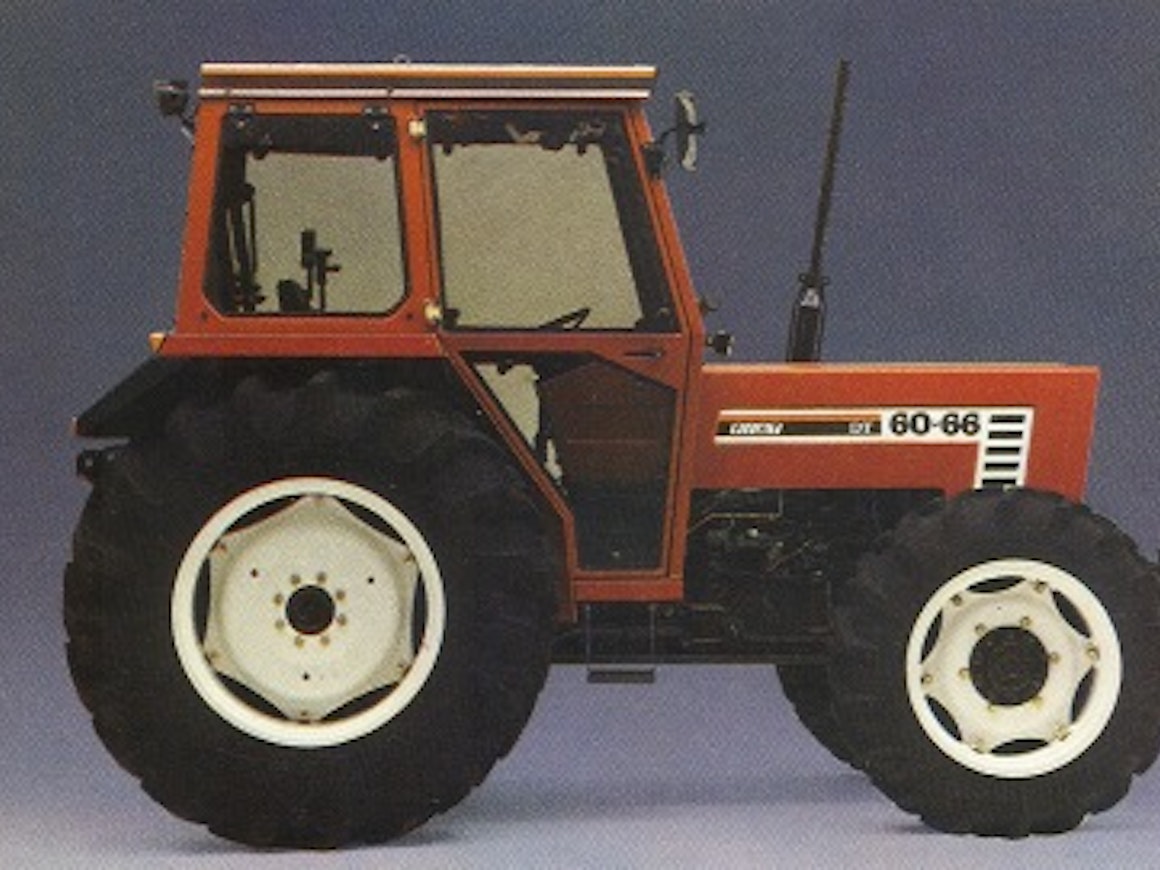

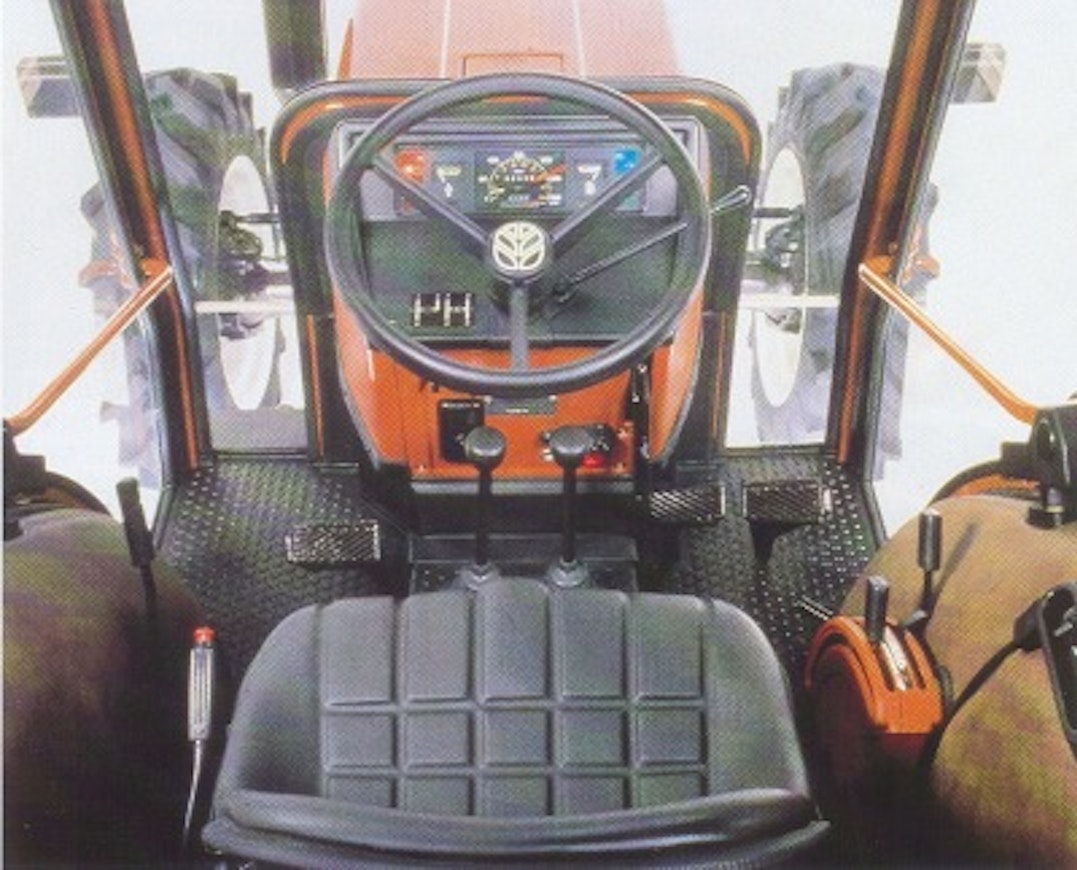

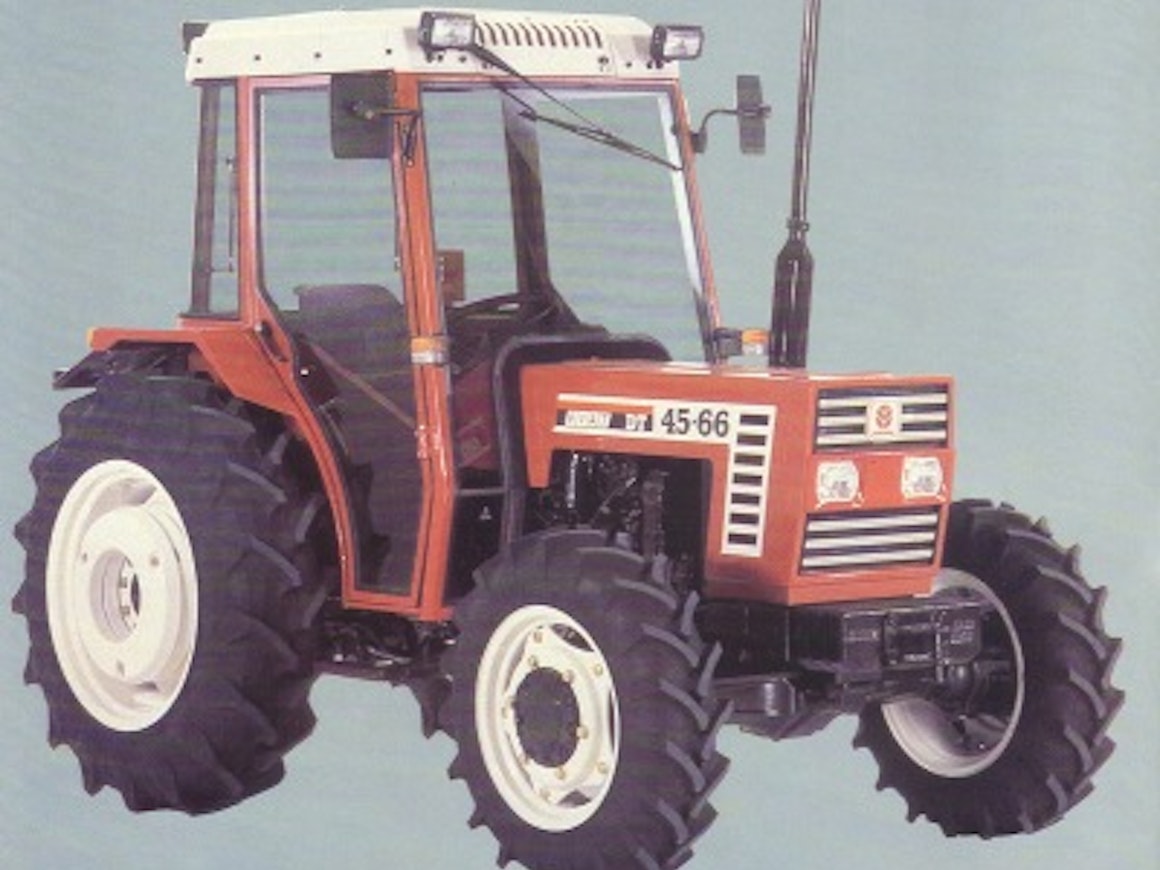

The first models of the Fiatagri 66 series were the 3-cylinder 60-66 and the 4-cylinder 70-66. Slightly later, the 45-66, 55-66, and 65-66 were introduced. The technology was similar to the preceding 466, 566, and 666 models, but the engines were updated to the same ones used in the Fiatagri 90 series. The transmission was fully synchronized, with 12+4 gears. As an optional accessory, there were crawling gears and a 12+12 shuttle gearbox. The gear levers were in the center, and the cab was otherwise very simple. The noise level was now 86-87 dB. The cab in the first picture is Fiatagri's own with tinted windows, and the 45-66 image shows a cheaper Mauser cab. The lifting device on the larger models featured the introduced "click-clack" quick control. The lifting capacity was 2,125-2,900 kg, and sensing was done through the draft arms. The PTO speed of 1000 rpm later became an option.
In 1990, a small tractor adapted to the same exterior design, the 35-66, was introduced, which had a 1.6-liter Lombardini diesel engine and a 16+16 transmission with crawling gears. The 35-66 was available either with a roll bar or a Mauser cab. It remained in production until 1998 and was branded as New Holland in its final years.
The 66 series was exported to nearly all countries except Finland.
This is an automated translation. Please report any issues in the translation.
| Model | Fiatagri 35-66 | Fiatagri 45-66 | Fiatagri 50-66 | Fiatagri 55-66 | Fiatagri 60-66 | Fiatagri 65-66 | Fiatagri 70-66 |
|---|---|---|---|---|---|---|---|
| Manufacturer name | Fiatagri | Fiatagri | Fiatagri | Fiatagri | Fiatagri | Fiatagri | Fiatagri |
| Imported to Finland | No | No | No | No | No | No | No |
| Years | 1990-98 | 1985-92 | 1989-92 | 1985-92 | 1984-88 | 1985-91 | 1984-91 |
| Engine model | LWD1503 | 8035.06 | 8035.06 | 8035.06 | 8035.06 | 8045.06 | 8045.06 |
| Cyl/Turbo/Intercooler | 3 | 3 | 3 | 3 | 3 | 4 | 4 |
| Displacement | 1551 cm³ | 2710 cm³ | 2710 cm³ | 2710 cm³ | 2931 cm³ | 3613 cm³ | 3613 cm³ |
| Bore x stroke | 88×85 mm | 100×115 mm | 100×115 mm | 100×115 mm | 104×115 mm | 100×115 mm | 100×115 mm |
| Rated power | 35/2800 hp DIN/rpm | 45/2500 hp DIN/rpm | 50/2500 hp DIN/rpm | 55/2500 hp DIN/rpm | 60/2500 hp DIN/rpm | 65/2500 hp DIN/rpm | 69/2500 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - |
| Gears | 16+16 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Synchronized gears | 16+16 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Reverser | mech. | opt. | opt. | opt. | opt. | opt. | opt. |
| Speeds in km/h | 0,7-30,0 | 1,3-28,7 | 1,3-28,7 | 1,8-30,0 | 1,8-29,5 | 1,8-29,5 | 1,8-29,5 |
| Hydr. flow l/min | 23 l/min | 34.5 l/min | 34.5 l/min | 34.5 l/min | 34.5 l/min | 34.5 l/min | 33.6 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1375 kg | 2125 kg | 2125 kg | 2900 kg | 2900 kg | 2900 kg | 2900 kg |
| PTO speeds | 540 | 540/1000/ajo | 540/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.02 | 6.68 | 6.68 | 7.34 | 7.34 | 7.6 | 7.74 |
| Turning circle m 4WD | 6.42 | 7.34 | 7.34 | 8.9 | 8.9 | 9.5 | 9.5 |
| Front tyres 2WD | 5,50-16 | 6,00-16 | 6,00-16 | 7,50-16 | 7,50-16 | 7,50-16 | 7,50-18 |
| Front tyres 4WD | 250/80-18 | 9.5R20 | 9.5R20 | 11.2R24 | 11.2-24 | 11.2R24 | 12.4-24 |
| Rear tyres 2WD | 11,2R28 | 13,6R28 | 13,6R28 | 14,9R28 | 12,4-36 | 14,9R30 | 13,6-36 |
| Rear tyres 4WD | 320/70R28 | 13.6R28 | 13.6R28 | 14.9R28 | 12.4-36 | 16.9R30 | 13.6-36 |
| Weight 2WD | 1300 kg | 1930 kg | 1930 kg | 2635 kg | 2610 kg | 2755 kg | 2800 kg |
| Weight 4WD | 1400 kg | 2150 kg | 2150 kg | 2925 kg | 2860 kg | 3035 kg | 3150 kg |
| Height with cab | 199 cm | 225 cm | 225 cm | 239 cm | 243 cm | 252 cm | 254 cm |
| Length (2WD/4WD) | 297 cm | 324 cm | 324 cm | 364 cm | 364 cm | 392/401 cm | 392/401 cm |
| Wheelbase (2WD/4WD) | 170 cm | 200/190 cm | 200/190 cm | 218/213 cm | 218/212 cm | 230/225 cm | 230/225 cm |
| Fuel tank | 32.5 l | 42/45 l | 45 l | 73 l | 73 l | 73 l | 73 l |
| Cab noise level | 84 dB | 86 dB | - | 87 dB | 87 dB | 86 dB | 87 dB |
| Solid cab | opt. | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | opt. | opt. | opt. | opt. | opt. | opt. |
| Creeper gear | x | opt. | opt. | opt. | opt. | opt. | opt. |
| Max. speed | - | 30 km/h | 30 km/h | - | 32.5 km/h | - | - |
