Siirry sivupalkkiinSiirry alaosaanFord 5610-8210










Here is the English translation:

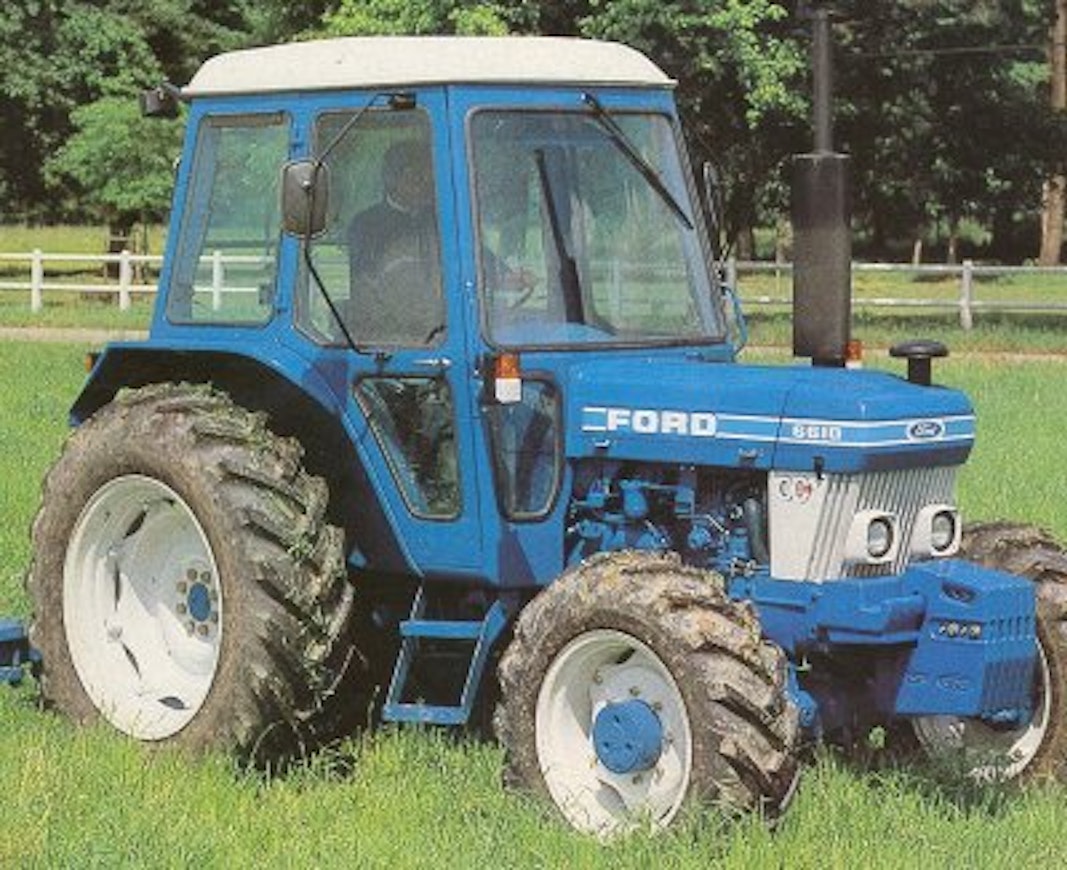

In the autumn of 1981, the larger models of the newly introduced 10 series were equipped with a slightly updated Ford cab, whose pedals were still operated through the floor up to the 7610 model. The 5610 and 6610 could also be fitted with a cheaper, 18 cm lower LP cab made by Sekura. In a few countries, a higher-roofed AP version by Sekura was also sold.
With the 10 series, Ford was, for the first time, a serious contender in four-wheel drive tractors. ZF’s new front axles were agile and four-wheel drive had otherwise also been taken into account in the model range’s design. The front-wheel drive shaft was positioned along the tractor’s centerline, and the maximum steering angle of the front wheels was 51°.

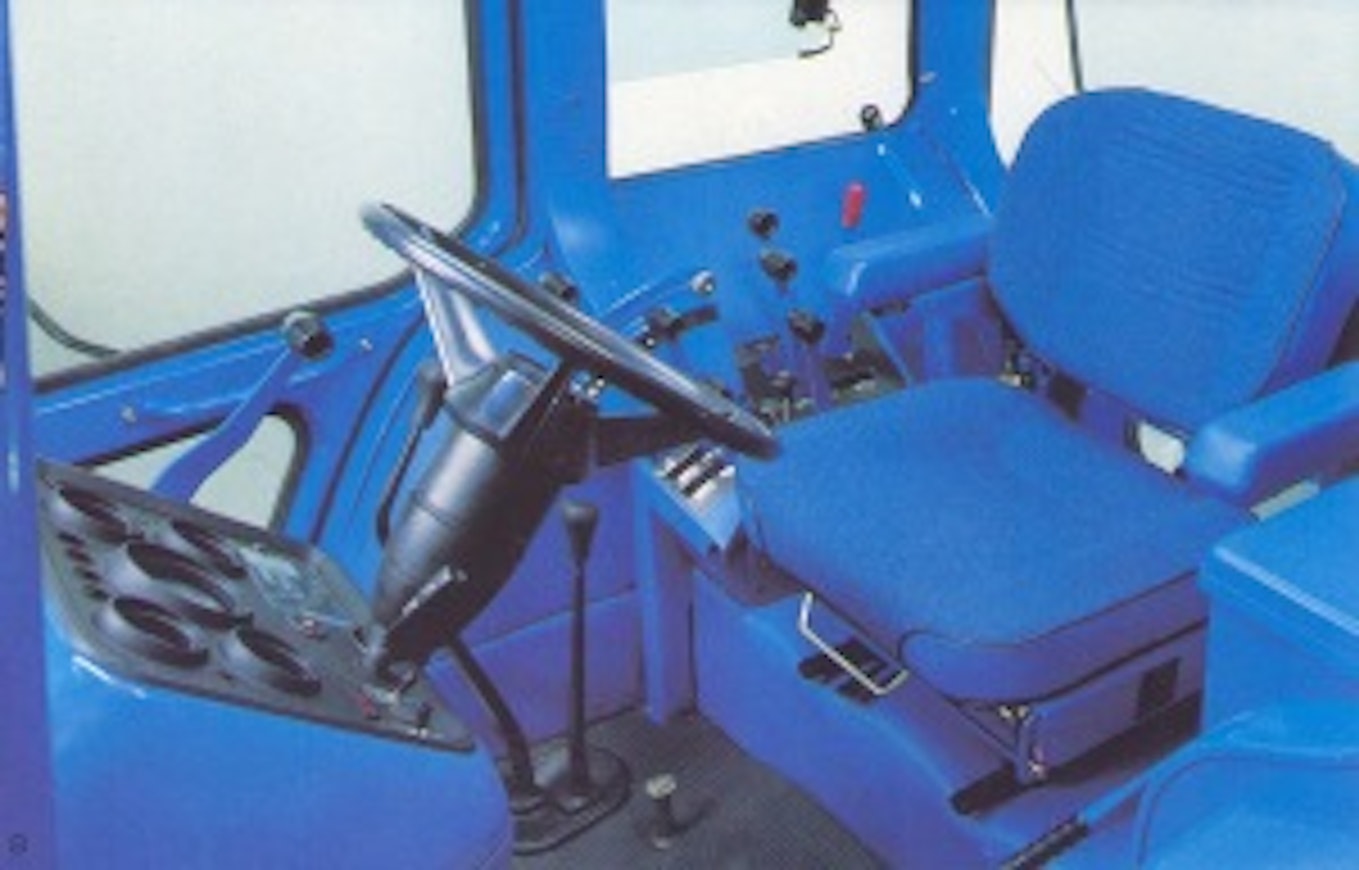

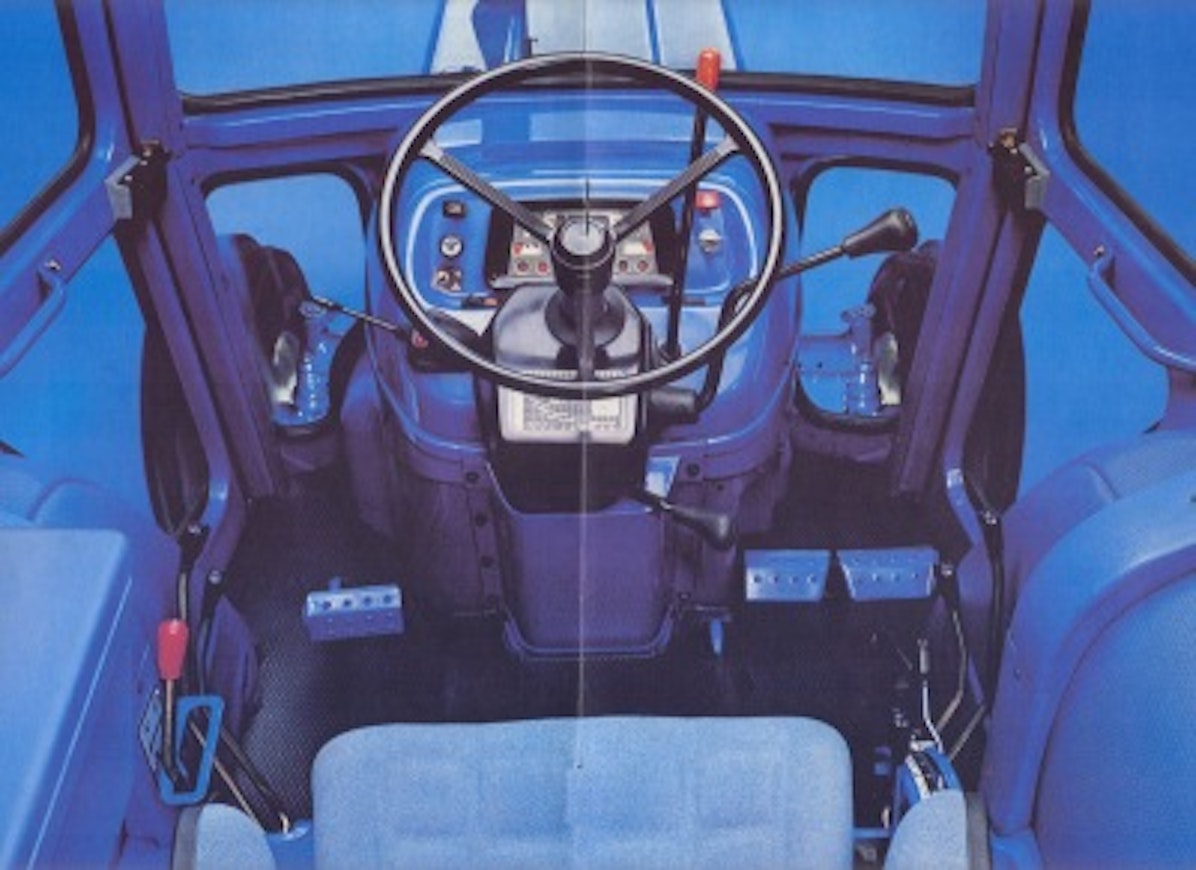

The 10 series featured a new synchronized 8+4/16+8 transmission, with the control lever located under the steering wheel up until the 7610 model. A creeper transmission was available as an option. Now, Ford also offered a quick harrowing gear. All 10-series models still had draft sensing. The 8210 featured the familiar 6.6-liter engine from the TW series, a clutch with a ceramic plate, and a heavier-duty rear axle compared to other 10-series models. In both the 7710 and 8210, the Dual Power control was now electrically operated on the dashboard, as was four-wheel drive engagement.
In 1983, the much-criticized shift pattern of the steering column shifter was changed, and the LP cab doors’ hinges were moved to the rear edge. The front axle was replaced with a stronger version in 1984. At the same time, the 7910 was introduced, which only arrived in Finland as part of the Mark II range. In 1985, hydrostatic steering was introduced. The hydraulic valves featured flow control, adjustable pressure relief, and it was possible to disconnect hoses even under pressure.
This is an automated translation. Please report any issues in the translation.
| Model | Ford 5610 (LP) | Ford 6610 (LP) | Ford 6710 | Ford 7610 | Ford 7710 | Ford 8210 |
|---|---|---|---|---|---|---|
| Manufacturer name | Ford | Ford | Ford | Ford | Ford | Ford |
| Imported to Finland | Yes | Yes | No | Yes | Yes | Yes |
| Years | 1981-85 | 1981-85 | 1981-85 | 1981-85 | 1981-85 | 1982-85 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4T | 4T | 6 |
| Displacement | 4195 cm³ | 4393 cm³ | 4393 cm³ | 4393 cm³ | 4393 cm³ | 6572 cm³ |
| Bore x stroke | 112×107 mm | 112×112 mm | 112×112 mm | 112×112 mm | 112×112 mm | 112×112 mm |
| Rated power | 72/2100 hp DIN/rpm | 82/2100 hp DIN/rpm | 82/2100 hp DIN/rpm | 98/2100 hp DIN/rpm | 98/2100 hp DIN/rpm | 110/2300 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 8+4 | 8+4 | 8+4 | 16+8 | 16+8 | 16+8 |
| Synchronized gears | 8+4 | 8+4 | 8+4 | 16+8 | 16+8 | 16+8 |
| Powershift gears | opt. | opt. | opt. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,7-29,6 | 2,7-29,6 | 2,2-31,6 | 2,1-29,6 | 2,2-31,6 | 2,2-31,6 |
| Hydr. flow l/min | 36 l/min | 36/67 l/min | 66 l/min | 36/67 l/min | 69 l/min | 75 l/min |
| Hydraulic pressure | 176 bar | 176/172 bar | 172 bar | 176/172 bar | 172 bar | 172 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 2660 kg | 2660 kg | 4250 kg | 4250 kg | 4250 kg | 4250 kg |
| PTO speeds | 540 | 540 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | power | power | hydrost. | power | hydrost. | hydrost. |
| Turning circle m 2WD | 7.5 | 7.5 | 8.6 | 7.5 | 8.6 | 9.5 |
| Turning circle m 4WD | 8.3 | 8.3 | 8.9 | 8.3 | 8.9 | 10.4 |
| Front tyres 2WD | 10.00-16 | 10.00-16 | 11.00-16 | 10.00-16 | 11.00-16 | 11.00-16 |
| Front tyres 4WD | 13.6-24 | 13.6-24 | 13.6-28 | 13.6-24 | 13.6-28 | 13.6-28 |
| Rear tyres 2WD | 13.6-38 | 16.9-34 | 16.9-38 | 16.9-34 | 16.9-38 | 16.9-38 |
| Rear tyres 4WD | 16.9-34 | 16.9-34 | 16.9-38 | 16.9-34 | 16.9-38 | 16.9-38 |
| Weight 2WD | 3325 kg | 3555 kg | 3660 kg | 3620 kg | 3740 kg | 3960 kg |
| Weight 4WD | 3615 kg | 3845 kg | 4035 kg | 3950 kg | 4030 kg | 4250 kg |
| Height with cab | 277 (263) cm | 277 (263) cm | 292 cm | 277 cm | 292 cm | 292 cm |
| Length (2WD/4WD) | 369/389 cm | 369/389 cm | 405/413 cm | 369/389 cm | 405/413 cm | 451/444 cm |
| Wheelbase (2WD/4WD) | 222/226 cm | 222/226 cm | 258/248 cm | 222/226 cm | 258/248 cm | 289/278 cm |
| Fuel tank | 81 l | 81 l | 185 l | 132 l | 185 l | 185 l |
| Cab noise level | 85 (85) dB | 84 (85) dB | - | 84 dB | 83 dB | 85 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
