John Deere 7610-7810

97JD7610ohjaamo
97JD7810
97JD7610vaihteistot
97JD7610ohjaamo
97JD7810
97JD7610vaihteistot
Manufacturer
Models
John Deere 7610, John Deere 7710, John Deere 7710, John Deere 7810, John Deere 7810
Years
1997-03
Info

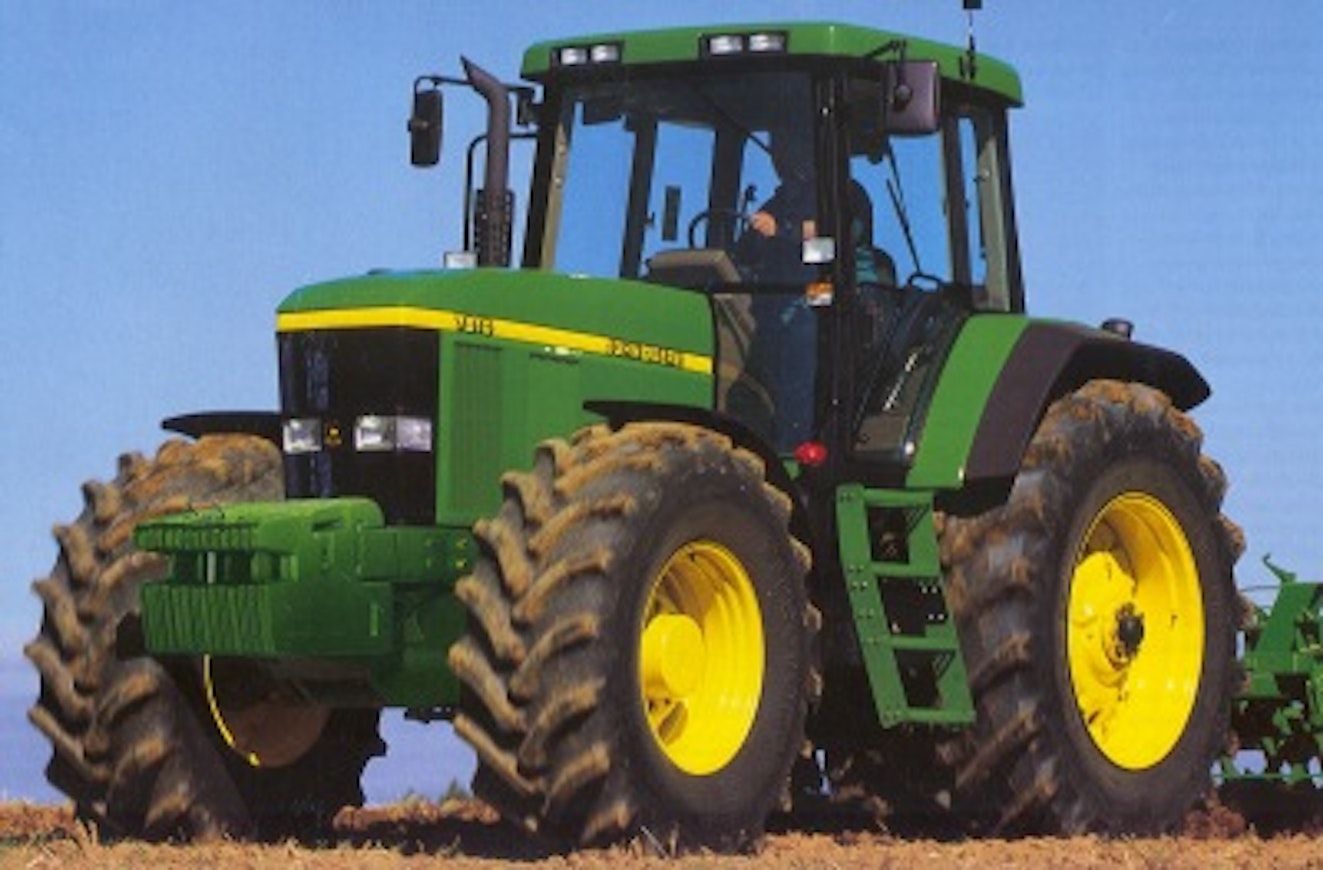

The first JD model range to be renewed as a 10-series was the American 7010, which was introduced in 1996. The range included 5 power classes: 7210, 7410, 7610, 7710, and 7810. The three largest models arrived in Europe the following year, since the smaller size category overlapped with the largest 6000-series models.

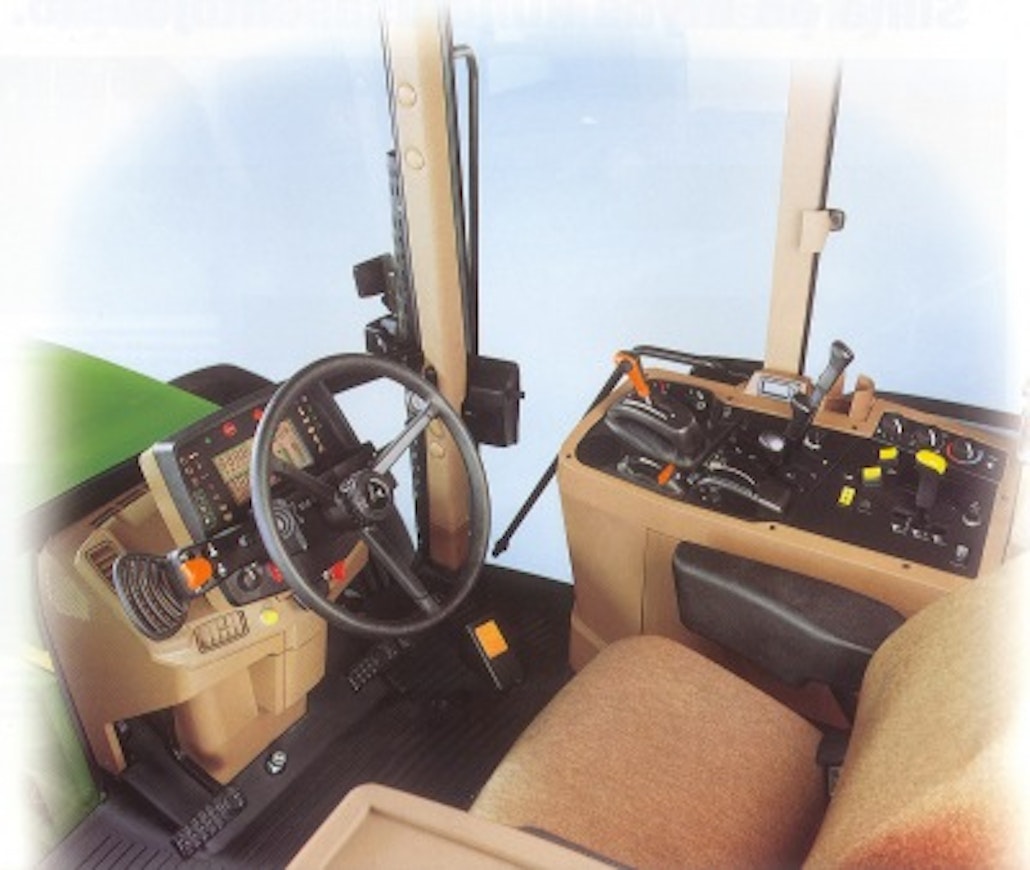

The 7710 and 7810 had moved to the 8.1-liter engine first introduced in the 8000-series. However, unlike the 8000-series, the injection pump was mechanical. Torque had increased by as much as 45%. The 7610's engine was also updated, as were the 6.8-liter engines in the 6010 series, with power rising to 140 horsepower. Transmission options remained the same as before: PowerQuad 20+20 and 19+7 Powershift. Also, in the 7010 series, an electric reverser version under the steering wheel was available, which eliminated a basic flaw in the standard version. By default, when changing direction, the transmission would downshift the high gear all the way to the lowest step in one go. The Powershift transmission’s shifting smoothness and speed had been improved. The cab featured improved ventilation and work lights. A suspended front axle became an optional extra now also on the 7010 series. Headland automation was, on the other hand, now taken as standard equipment.

The 7610 was dropped from the European lineup when the 6020 series (6920 S) was introduced. At the same time, the 7710 and 7810 received an extra power feature, were also available with a 50 km/h transmission, and an AutoQuad function similar to the 6010 series was added as an option. The extra power was available only at speeds above 30 km/h. At this stage, the 7010 series also received the stepless AutoPowr transmission, which was similar to that of the 6020 series and manufactured by JD. Powershift was soon removed from the selection after this. The lifespan of the 7010 model series was longer than other ranges, as it switched to the 20-series later than the others.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere 7610John Deere 7710John Deere 7710John Deere 7810John Deere 7810
Manufacturer nameJohn DeereJohn DeereJohn DeereJohn DeereJohn Deere
Imported to FinlandYesYesYesYesYes
Years1997-011997-012001-031997-012001-03
Engine model6068T6081T6081T6081T6081T
Cyl/Turbo/Intercooler6T6T6T6T6T
Displacement6786 cm³8134 cm³8134 cm³8134 cm³8134 cm³
Bore x stroke106,5×127 mm115,9×128,5 mm115,9×128,5 mm115,9×128,5 mm115,9×128,5 mm
Rated power140/2300 hp DIN/rpm155/2100 hp DIN/rpm160/2100 hp DIN/rpm170/2100 hp DIN/rpm175/2100 hp DIN/rpm
Max power-----
Torque-----
Gears20+20/19+720+20/19+720+20/19+7/stepless20+20/19+720+20/19+7/stepless
Synchronized gears20+20/powershift20+20/powershift20+20/powershift/stepless20+20/powershift20+20/powershift/stepless
Powershift gears4-speed/powershift4-speed/powershift4-speed/powershift/stepless4-speed/powershift4-speed/powershift/stepless
Reverserhydr.hydr.hydr.hydr.hydr.
Speeds in km/h2,4-40/1,6-402,4-40/1,6-402,4-40/1,6-402,4-40/1,6-402,4-40/1,6-40
Max. speed 42 km/h42 km/h42 (50) km/h42 km/h42 (50) km/h
Hydr. flow l/min102 l/min102 l/min102 l/min102 l/min102 l/min
Hydraulic pressure200 bar200 bar200 bar200 bar200 bar
Lift controlselec.elec.elec.elec.elec.
Lift capacity7219 kg7219 kg8150 kg7219 kg8150 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD10.2610.2610.2610.2610.26
Front tyres 4WD16.9R2816.9R2816.9R2816.9R2816.9R28
Rear tyres 4WD20.8R3820.8R3820.8R3820.8R3820.8R38
Weight 4WD6510 kg6800 kg6800 kg6900 kg6900 kg
Height with cab301 cm301 cm305 cm301 cm305 cm
Length (2WD/4WD)475 cm475 cm476 cm475 cm476 cm
Wheelbase (2WD/4WD)280 cm280 cm280 cm280 cm280 cm
Fuel tank344 l344 l344 l344 l344 l
Cab noise level72 dB72 dB72 dB72 dB72 dB
Solid cabxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lock
Autom. differential locksxxxxx
Air suspension seatxxxxx
Air conditioningxxxxx
Trip computerno radarno radarno radarno radarno radar
Creeper gearopt.opt.opt.opt.opt.
