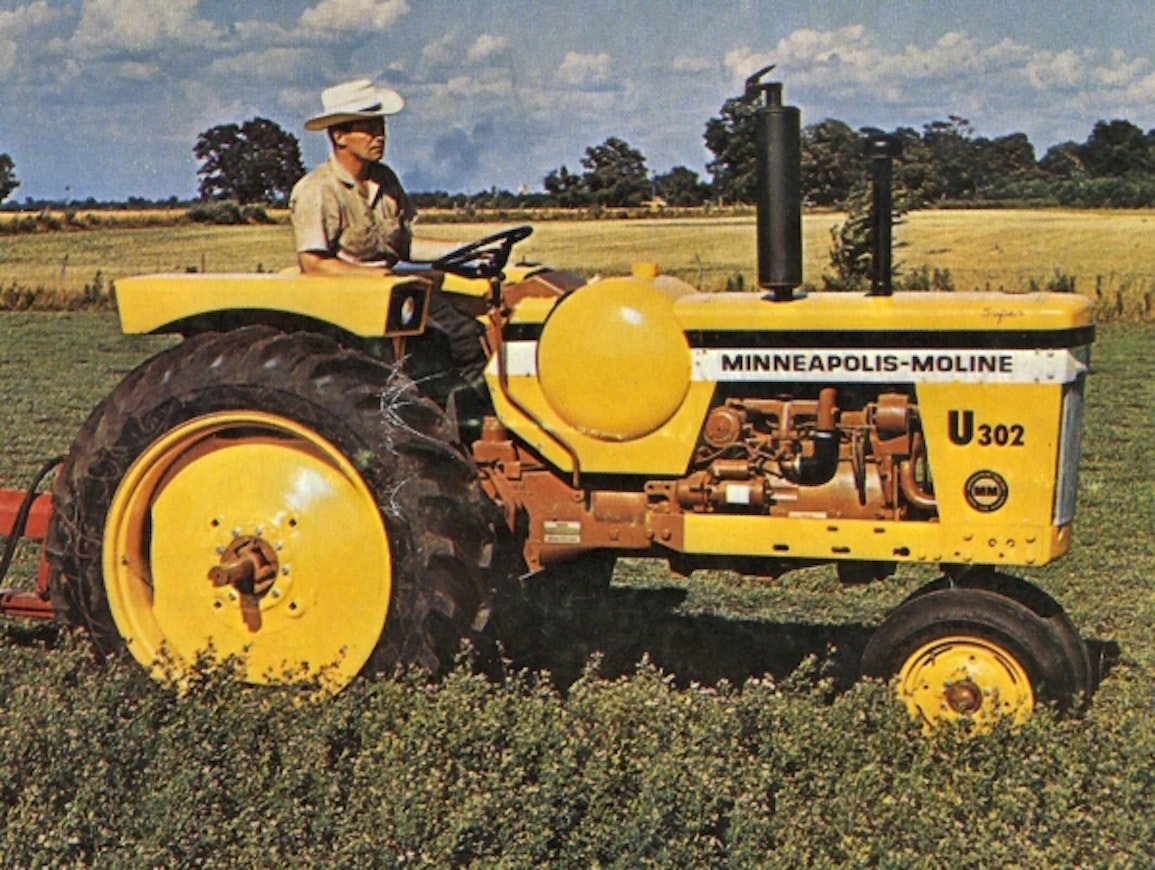

The larger Minneapolis-Moline engines gained more power in 1964, and a place was found above the Jet Star for a new intermediate model. In the U-302, the engine displacement was increased from the Jet Star's 3.4 liters to 3.6 liters. The power was about 62 hp, and both gasoline and LPG versions were available. The transmission always featured a hydraulic Ampli-Torc quick shift as standard. The clutch was 11 inches in diameter. The steering was hydrostatic, and two external hydraulic valves were standard. The brakes were dry, two-disc types. There were three model options: the N had one front wheel, the U had two side by side, and the E had a wide, adjustable front axle.

This is an automated translation. Please report any issues in the translation.

Minneapolis-Moline U-302U

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Minneapolis-Moline U-302E

Minneapolis-Moline U-302

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Minneapolis-Moline U-302U	Minneapolis-Moline U-302E
Manufacturer name	Minneapolis-Moline	Minneapolis-Moline
Imported to Finland	No	No
Years	1964-70	1964-70
Engine model	220A-4	220A-4
Cyl/Turbo/Intercooler	4	4
Displacement	3620 cm³	3620 cm³
Bore x stroke	95,3×127 mm	95,3×127 mm
Rated power	-	-
Gears	10+2	10+2
Powershift gears	hydr.	hydr.
Speeds in km/h	2,8-29,7	2,8-29,7
Lift controls	mech.	mech.
PTO speeds	540 (1000)	540 (1000)
Brakes	disc brakes	disc brakes
Steering	hydrost.	hydrost.
Front tyres 2WD	5.50-16	5.50-16
Rear tyres 2WD	13.6-28	13.6-28
Weight 2WD	(2422) kg	(2483) kg
Height with cab	(185) cm	(185) cm
Length (2WD/4WD)	338 cm	356 cm
Wheelbase (2WD/4WD)	220 cm	239 cm
Fuel tank	85 l	85 l
