Siirry sivupalkkiinSiirry alaosaanWhite American 60-80

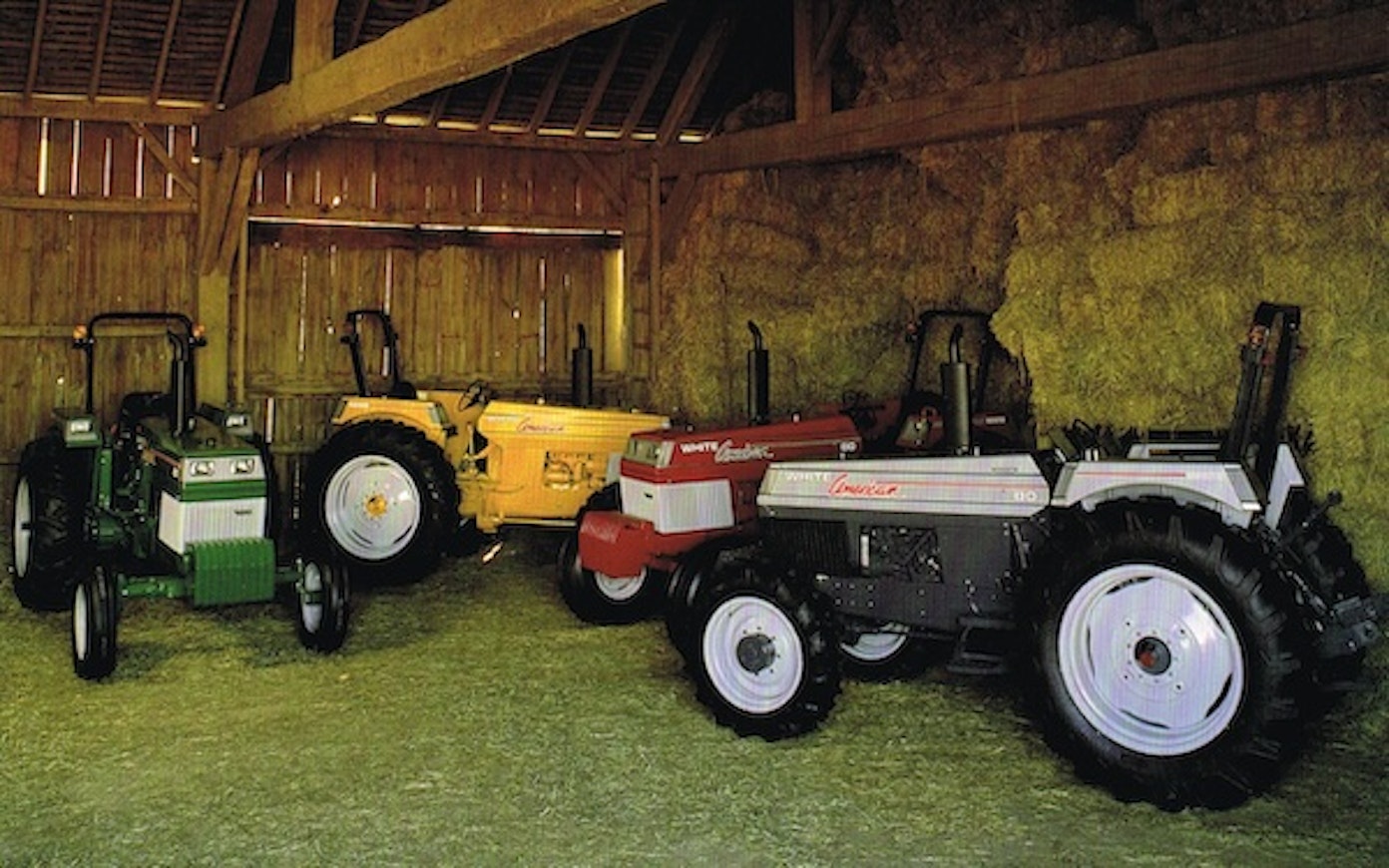

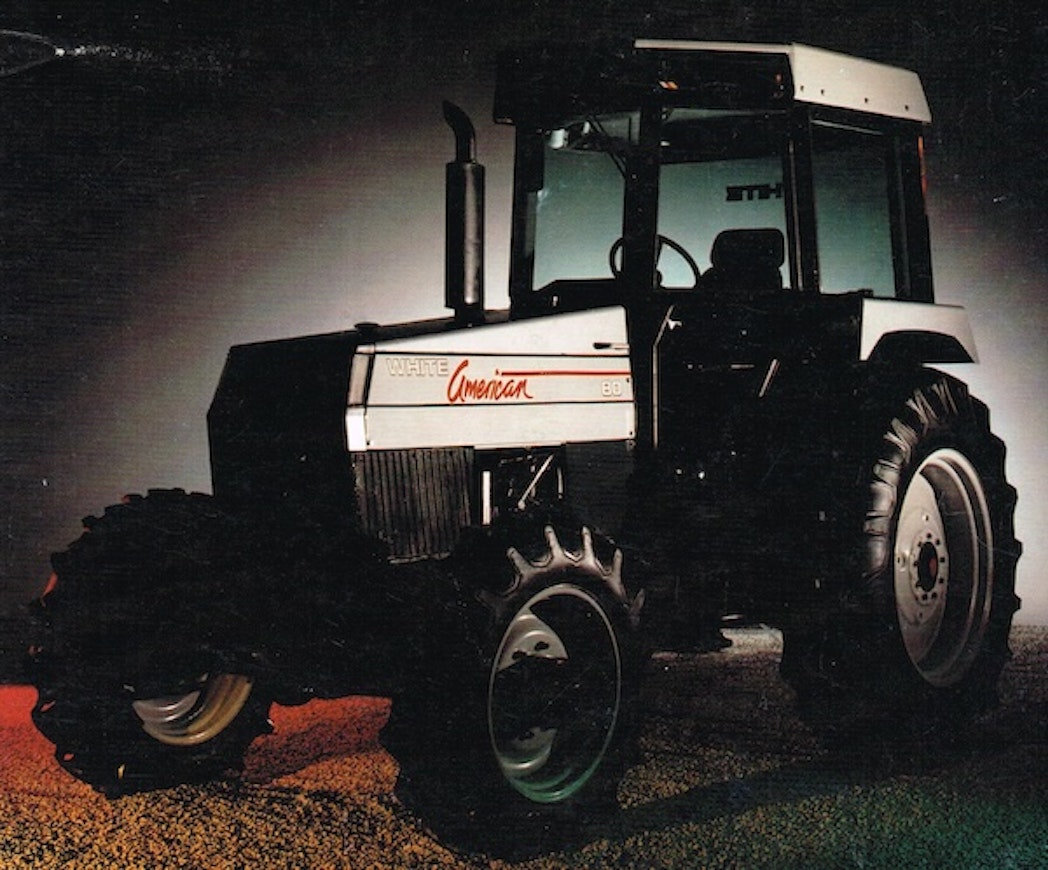

White continued purchasing tractors under 50 horsepower from Iseki, but for the 60–80 horsepower range it introduced its own American lineup, which was the only tractor in this class manufactured in the United States. The series was available in four colors: White’s silver, Oliver’s green, Minneapolis-Moline’s yellow, and Cockshutt’s red. The engine was Cummins’s 3.9-liter unit, which was also used, for example, in the Case IH Maxxum. The Model 80 was turbocharged. The transmission was Oliver’s age-old 6+2 gearbox, to which a three-speed power shift could be added. The differential lock engagement was electro-hydraulic. The open-center hydraulic flow was the same 75 liters per minute found on White’s larger tractors. Likewise, the dry disc brakes were familiar technology. An optional cab was available that resembled the cabs on White’s larger models in appearance but was simpler in design.
This is an automated translation. Please report any issues in the translation.
| Model | White American 60 | White American 80 |
|---|---|---|
| Manufacturer name | White | White |
| Imported to Finland | No | No |
| Years | 1989-91 | 1989-91 |
| Engine model | B4-390 | B4-390 |
| Cyl/Turbo/Intercooler | 4 | 4T |
| Displacement | 3922 cm³ | 3922 cm³ |
| Bore x stroke | 102×120 mm | 102×120 mm |
| Rated power | - | - |
| Gears | 6+2/18+6 | 6+2/18+6 |
| Powershift gears | -/3-step | -/3-step |
| Speeds in km/h | 3,4-39,0 | 3,4-26,9 |
| Hydr. flow l/min | 76 l/min | 76 l/min |
| Hydraulic pressure | 152 bar | 152 bar |
| Lift controls | mech. | mech. |
| Lift capacity | 1869 kg | 2277 kg |
| PTO speeds | 540 | 540/1000 |
| Brakes | dry disc | dry disc |
| Steering | hydrost. | hydrost. |
| Turning circle m 2WD | 6,7 jarruilla | 6,7 jarruilla |
| Front tyres 2WD | 7.50-16 | 7.50-18 |
| Front tyres 4WD | 11.2-24 | 12.4-24 |
| Rear tyres 2WD | 16.9-30 | 16.9-34 |
| Rear tyres 4WD | 16.9-30 | 16.9-34 |
| Weight 2WD | (3148) kg | (3243) kg |
| Height with cab | 246 cm | 246 cm |
| Length (2WD/4WD) | 385 cm | 385 cm |
| Wheelbase (2WD/4WD) | 243 cm | 243 cm |
| Fuel tank | 60 l | 80 l |
| Cab noise level | (97) dB | (94) dB |
| Creeper gear | x | x |
