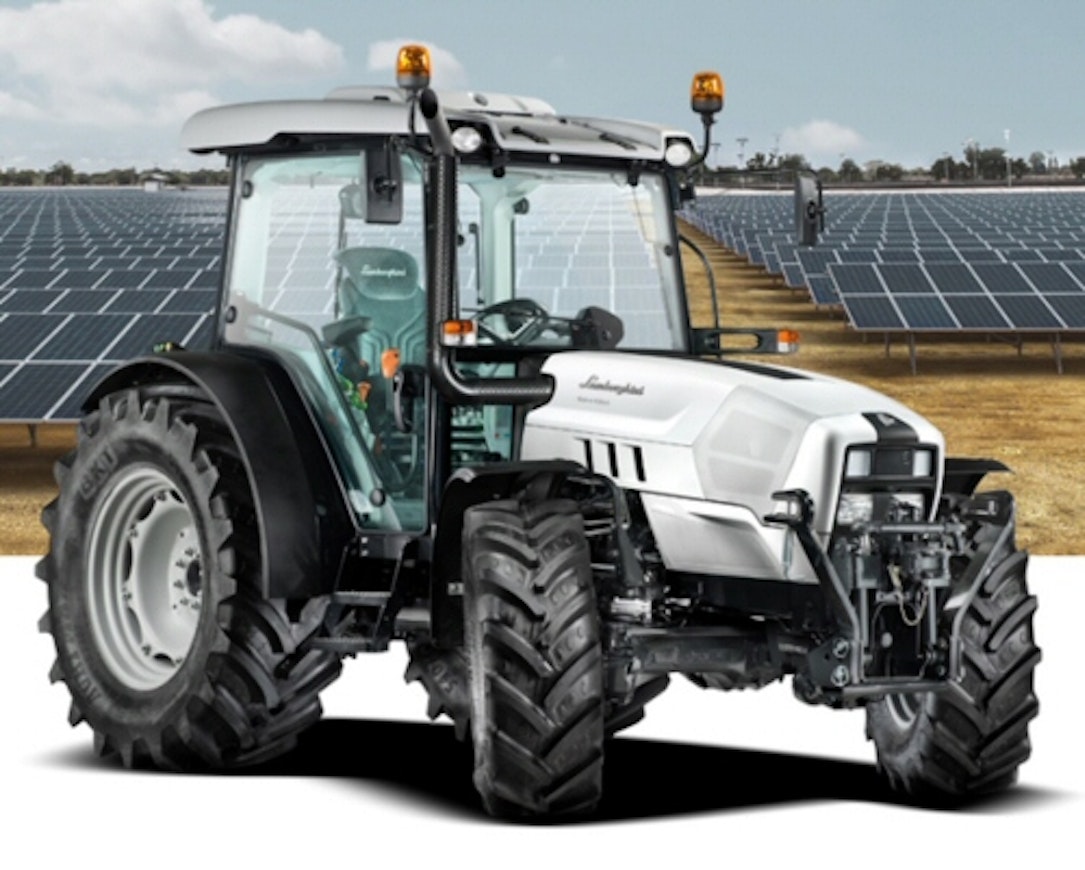

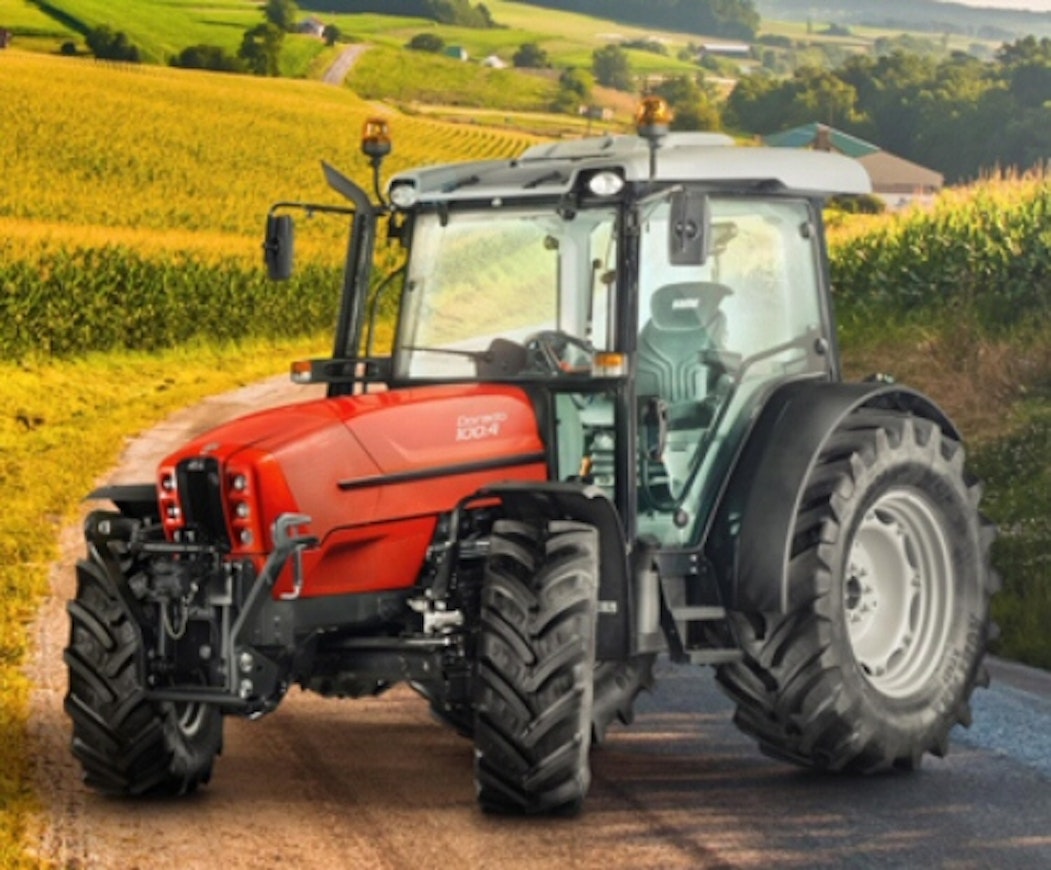

Siirry sivupalkkiinSiirry alaosaanSame Dorado 80-100.4 / Lamborghini Spire 80-100.4 / Hürlimann XA 80-100.4
The Dorado/Target/XA models introduced in 2014 featured new FARMotion engines. Compared to the Classic models, they had more lifting power and higher hydraulic output. There were three hydraulic blocks. Four-wheel drive, locks, and PTO were engaged electrically. A speed of 40 km/h was achieved at reduced engine speed. The basic transmission was 30+15. As an option, there was a 45+45 transmission with a three-stage quick shift. An optional hydraulic shuttle was available, which included a Stop&Go system that allowed the tractor to be momentarily stopped just by pressing the brake. An electrical three-point hitch was also available as an option. The older Dorado3/R2 models 70 and 80 remained in production alongside the new ones.
This is an automated translation. Please report any issues in the translation.
| Model | Same Dorado 80 | Lamborghini Spire 80 | Same Dorado 90 | Lamborghini Spire 90 | Same Dorado 90.4 | Lamborghini Spire 90.4 | Same Dorado 100.4 | Lamborghini Spire 100.4 |
|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No | No | No |
| Years | 2014- | 2014- | 2014- | 2014- | 2014- | 2014- | 2014- | 2014- |
| Engine model | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion |
| Cyl/Turbo/Intercooler | 3TI | 3TI | 3TI | 3TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 2887 cm³ | 2887 cm³ | 2887 cm³ | 2887 cm³ | 3849 cm³ | 3849 cm³ | 3849 cm³ | 3849 cm³ |
| Bore x stroke | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm |
| Rated power | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - |
| Gears | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 |
| Synchronized gears | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 | 30+15/45+45 |
| Powershift gears | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step | -/3-step |
| Reverser | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) |
| Speeds in km/h | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 | 0,2-40,0 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) |
| Lift capacity | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg | 3000 (3600) kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 4WD | 320/70R20 | 320/70R20 | 320/70R20 | 320/70R20 | 360/70R20 | 360/70R20 | 360/70R20 | 360/70R20 |
| Rear tyres 4WD | 420/70R30 | 420/70R30 | 420/70R30 | 420/70R30 | 480/70R30 | 480/70R30 | 480/70R30 | 480/70R30 |
| Weight 4WD | 3200 kg | 3200 kg | 3200 kg | 3200 kg | 3300 kg | 3300 kg | 3300 kg | 3300 kg |
| Height with cab | 246 cm | 246 cm | 246 cm | 246 cm | 249 cm | 249 cm | 249 cm | 249 cm |
| Length (2WD/4WD) | 343 cm | 343 cm | 343 cm | 343 cm | 356 cm | 356 cm | 356 cm | 356 cm |
| Wheelbase (2WD/4WD) | 210 cm | 210 cm | 214/210 cm | 214/210 cm | 227/223 cm | 227/223 cm | 227/223 cm | 227/223 cm |
| Fuel tank | 100 l | 100 l | 100 l | 100 l | 100 l | 100 l | 100 l | 100 l |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Creeper gear | x | x | x | x | x | x | x | x |
| Rear tyres 2WD | - | - | 420/70R30 | 420/70R30 | 480/70R30 | 480/70R30 | - | - |
