Siirry sivupalkkiinSiirry alaosaanSame Panter, Drago, Buffalo






Here is the translation of the provided text into English:
At the higher end of the Samen V-engine tractor series, a 6-cylinder Buffalo was introduced in 1968, producing 105 hp. The technology was similar to that of the smaller Ariete.

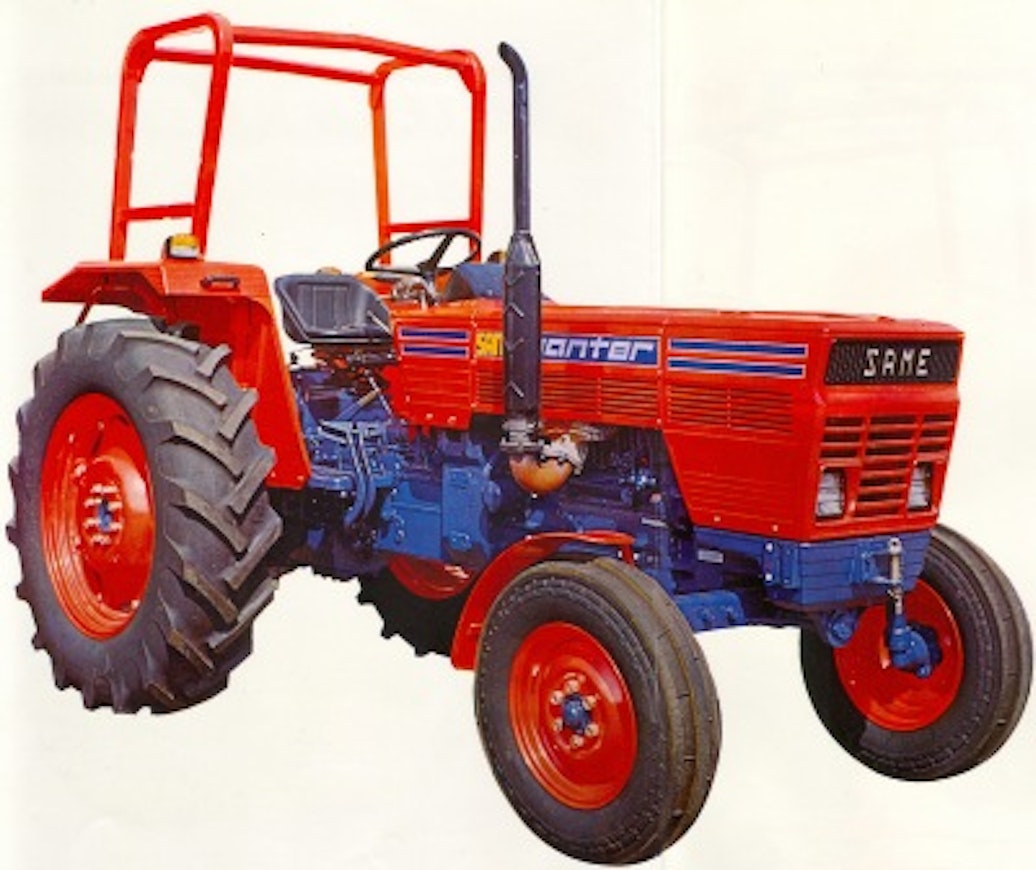

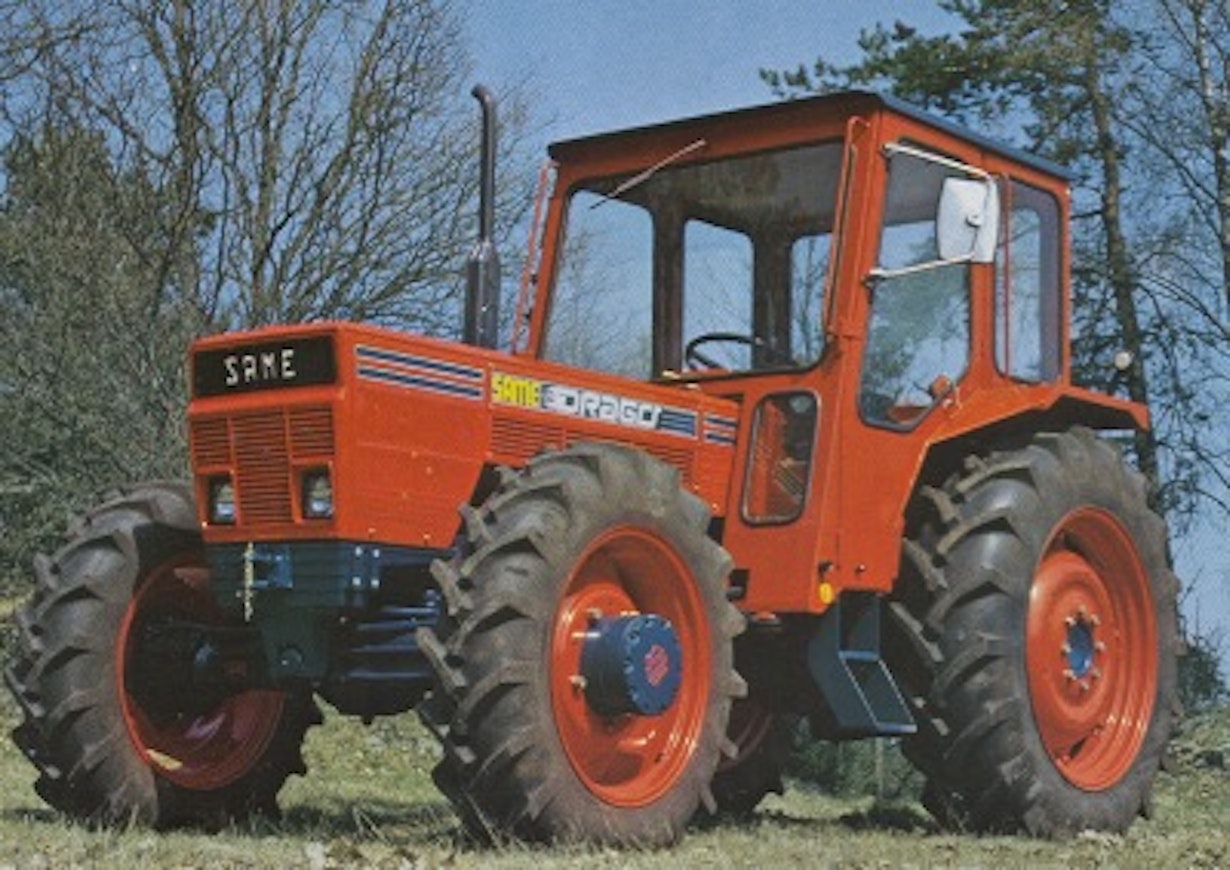

In the new Same Pantera and Drago models of 1973, the front hood stamping was abandoned for the first time. The preceding Ariete 85's 5.0-liter four-cylinder engine was replaced in the Pantera by a 4.5-liter five-cylinder (83 hp). This was apparently the first 5-cylinder tractor engine. The Drago had a 6-cylinder version of the same engine with a power output of 97 hp. The Buffalo was also updated into the same series, featuring a 6.2-liter engine producing 115 hp. The Pantera had a new 12+3 gearbox, while the Drago retained the previously used 8+4.
Unlike the smaller models, oil-bath disc brakes, 1000 rpm PTO, and hydrostatic steering were standard. The turning radius of four-wheel-drive models (12.0–13.4 m) is among the largest reported. There are differences in lifting capacities between German- and English-language brochures. The Dragon figure in the table reflects the larger German specifications. Lengths shown in parentheses are without lifting arms.
The Pantera and Dragon model designations did not include the power rating combined, but Pantera is also sometimes referred to as Pantera 88, and Drago as Drago 100, to differentiate from the later Drago 120. In 1975, the top of the range was introduced with the 6.8-liter Hercules 150.
This is an automated translation. Please report any issues in the translation.
| Model | Same Panter | Same Drago | Same Buffalo | Same Buffalo 120 |
|---|---|---|---|---|
| Manufacturer name | Same | Same | Same | Same |
| Imported to Finland | No | No | No | No |
| Years | 1973-77 | 1973-77 | 1968-74 | 1974-77 |
| Engine model | 985-041 | DA 986-037 | DA-1006 V | 1056-040 |
| Cyl/Turbo/Intercooler | 5 | 6 | V6 | 6 |
| Displacement | 4526 cm³ | 5430 cm³ | 5655 cm³ | 6234 cm³ |
| Bore x stroke | 98×120 mm | 98×120 mm | 105×120 mm | 105×120 mm |
| Rated power | 83/2200 hp DIN/rpm | 97/2200 hp DIN/rpm | 105/2200 hp DIN/rpm | 115/2200 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 12+3 | 8+4 | 8+4 | 12+4 |
| Synchronized gears | 12+3 | 8+4 | 8+4 | 12+4 |
| Speeds in km/h | 0,9-24,6 | 2,0-24,6 | 2,4-26,9 | 1,9-24,4 |
| Max. speed | 25 km/h | 25 km/h | - | 25 km/h |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 2860 kg | 2760/3500 kg | 3000 kg | 3380 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | dry disc | wet disc |
| Steering | hydrost. | hydrost. | power | hydrost. |
| Turning circle m 2WD | 10 | 12.16 | - | 12.6 |
| Turning circle m 4WD | 12 | 12.8 | - | 13.4 |
| Front tyres 2WD | 7.50-18 | 7.50-18 | - | 9.00-16 |
| Front tyres 4WD | 12.4-24 | 13.6-24 | 12.4-28 | 13.6-28 |
| Rear tyres 2WD | 16.9-34 | 18.4-34 | - | 18.4-38 |
| Rear tyres 4WD | 16.9-34 | 18.4-34 | 18.4-34 | 18.4-38 |
| Weight 2WD | 3600 kg | 4160 kg | - | 4400 kg |
| Weight 4WD | 4000 kg | 4500 kg | 4320 kg | 4800 kg |
| Height with cab | 263 cm | 263 cm | 260 cm | 266 cm |
| Length (2WD/4WD) | (372/386) cm | 422/439 cm | 400 cm | (398/418) cm |
| Wheelbase (2WD/4WD) | 251 cm | 266 cm | 256 cm | 266 cm |
| Fuel tank | 100 l | 100/125 l | 140 l | 125 l |
| Diff. lock | no | no | no | no |
| Creeper gear | opt. | opt. | opt. | opt. |
| Hydr. flow l/min | - | 26 l/min | 30 l/min | - |
| Hydraulic pressure | - | 175 bar | 175 bar | - |
