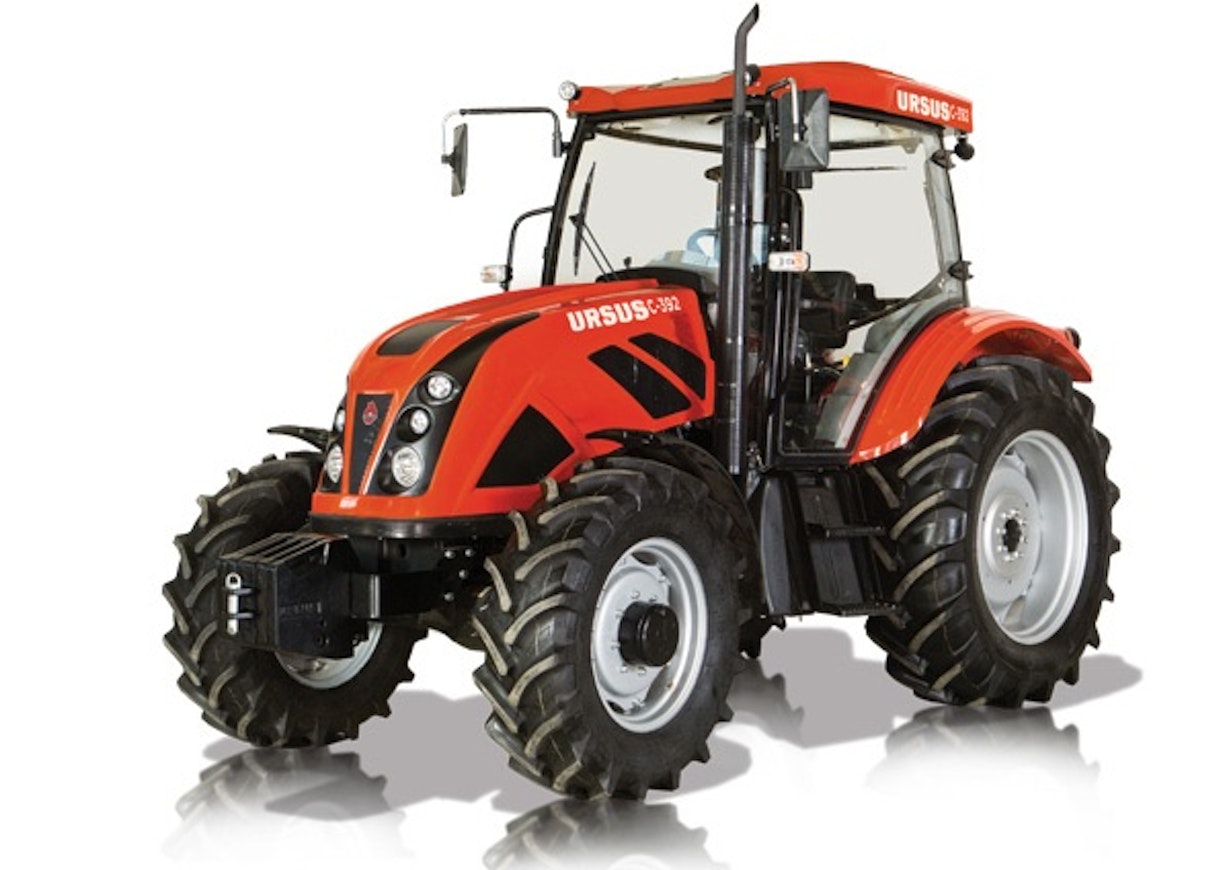

Siirry sivupalkkiinSiirry alaosaanUrsus C-392 – C-3120




In the 90…100 horsepower class, Ursus had offered the H-series of Turkish origin. In 2015, newly developed models were introduced, which were slightly cheaper and more lightly equipped than the H-series. The engine was a 3.4-liter Perkins, compliant with Euro IIIB standards. The powertrain in this series also came from Hattat, and the front axle from Carraro. There were 12+12 gears. The mechanical direction reverser was positioned beneath the steering wheel. The power lift was standard, as were the electrically hydraulically operated four-wheel drive, differential lock, and four-wheel drive engagement. The lifting capacity was 4,400 kg. Four hydraulic blocks were standard. Air conditioning was an optional extra. In Poland, Ursus offered a warranty of 4 years or 4,000 hours.
At the end of 2016, the 110-horsepower C-3110 equipped with a 4.4-liter Perkins engine was introduced. It had a 24+24 gearbox. The cab roof was made lower at the request of the domestic market by rearranging the ventilation components. The series also included the C-3120 HL equipped with a 3.6-liter Deutz engine, but possibly its production remained limited to prototypes.
At the end of 2016, the 110-horsepower C-3110 equipped with a 4.4-liter Perkins engine was introduced. It had a 24+24 gearbox. The cab roof was lowered at the request of the domestic market by rearranging the ventilation components. The C-3105 introduced in 2017 corresponded in some respects to models of the smaller series, such as the C-380 K. The series also included the C-3120 equipped with a 3.6-liter Deutz engine and later the slightly more powerful C-3130. These had stage IV emission level engines and a ZF 16+16 gearbox.
This is an automated translation. Please report any issues in the translation.
| Model | Ursus C-392 | Ursus C-3102 | Ursus C-3105 | Ursus C-3110 | Ursus C-3110 HL | Ursus C-3120 HL | Ursus C-3120 | Ursus C-3130 Comfort |
|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Ursus | Ursus | Ursus | Ursus | Ursus | Ursus | Ursus | Ursus |
| Imported to Finland | No | No | No | No | No | No | No | No |
| Years | 2015-17 | 2015-17 | 2017-21 | 2016- | 2017- | 2017 | 2018-21 | 2020-21 |
| Engine model | Perkins 854E-E34TA | Perkins 854E-E34TA | Perkins 854E-E34TA | Perkins 1104D | Perkins 854E-E34TA | Deutz TCD3.6 | Deutz TCD3.6 | Deutz TCD3.6 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 3400 cm³ | 3400 cm³ | 3400 cm³ | 4400 cm³ | 3400 cm³ | 3620 cm³ | 3620 cm³ | 3620 cm³ |
| Bore x stroke | 99×110 mm | 99×110 mm | 99×110 mm | 105×127 mm | 99×110 mm | 98×120 mm | 98×120 mm | 98×120 mm |
| Rated power | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - |
| Gears | 12+12 | 12+12 | 16+16 | 24+24 | 24+24 | 24+24 | 16+16 | 16+16 |
| Synchronized gears | 12+12 | 12+12 | 16+16 | 24+24 | 24+24 | 24+24 | 16+16 | 16+16 |
| Reverser | mech. | mech. | mech. | mech. | mech. | hydr. | hydr. | hydr. |
| Max. speed | 40 km/h | 40 km/h | 37 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 55 l/min | 55 l/min | 50 l/min | 55 l/min | 75 l/min | 75 l/min | 60 l/min | 60 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 4400 kg | 4400 kg | 4000 kg | 4400 kg | 4400 kg | 4400 kg | 5000 kg | 5000 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 4WD | 340/85R24 | 340/85R24 | 380/70R24 | 380/70R24 | 380/70R24 | 420/70R24 | 360/70R28 | 360/70R28 |
| Rear tyres 4WD | 420/85R34 | 420/85R34 | 420/85R34 | 480/70R34 | 480/70R34 | 520/70R34 | 420/85R38 | 420/85R38 |
| Weight 4WD | 3700 kg | 3700 kg | 3770 kg | 4050 kg | 4050 kg | 4050 kg | 4660 kg | 4750 kg |
| Height with cab | 276 cm | 276 cm | 272 cm | 262 cm | 262 cm | 262 cm | 288 cm | 288 cm |
| Length (2WD/4WD) | 422 cm | 422 cm | 437 cm | 429 cm | 429 cm | 429 cm | 434 cm | 475 cm |
| Wheelbase (2WD/4WD) | 248 cm | 248 cm | 230 cm | 242 cm | 242 cm | 242 cm | 240 cm | 240 cm |
| Fuel tank | 180 l | 180 l | 115 l | 180 l | 180 l | 180 l | 120 l | 120 l |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Powershift gears | - | - | hydr. | - | hydr. | hydr. | hydr. | hydr. |
| Creeper gear | - | - | - | x | x | x | x | x |
