Siirry sivupalkkiinSiirry alaosaanValmet/Valtra Mezzo 6000-6400

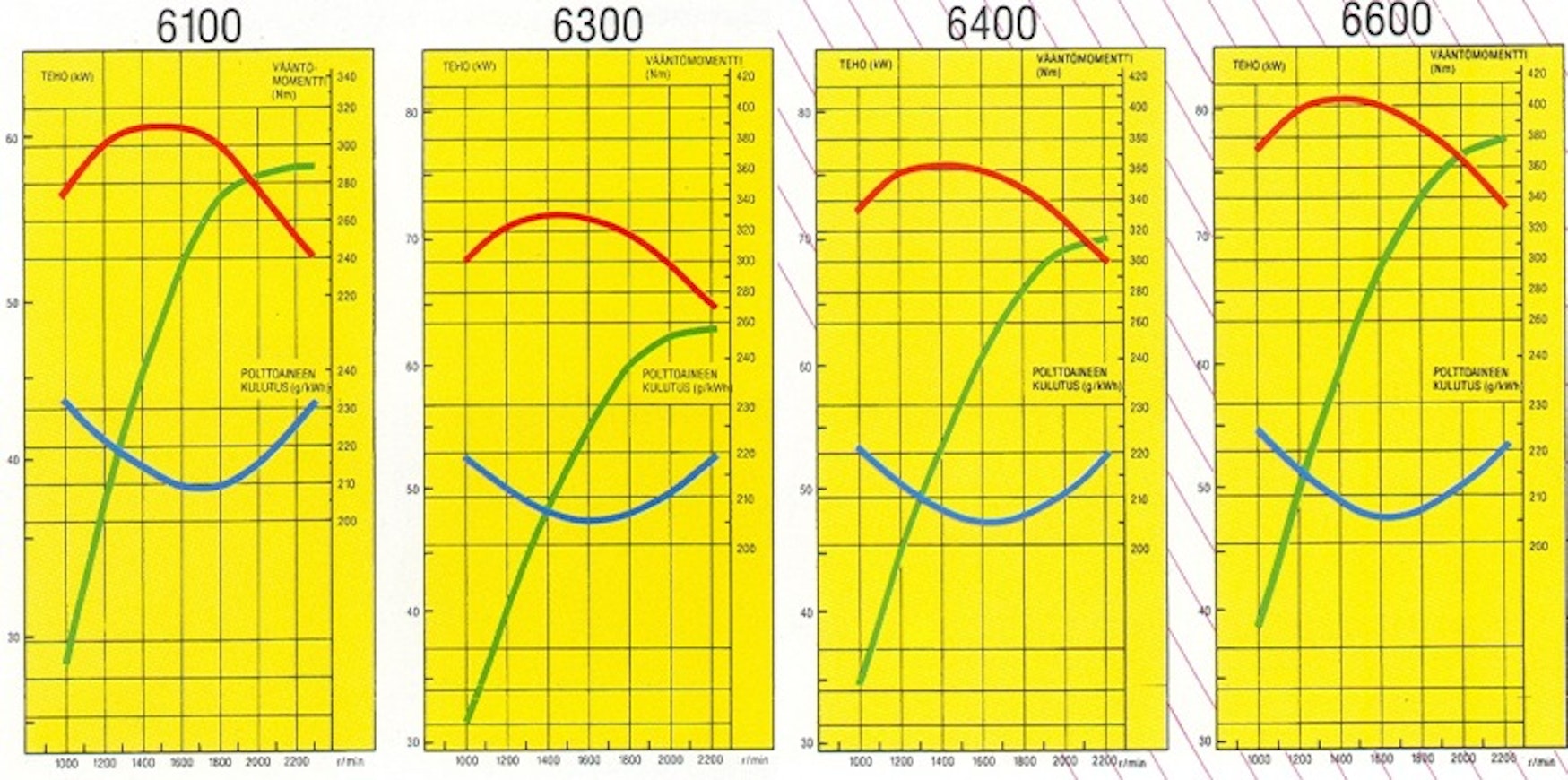

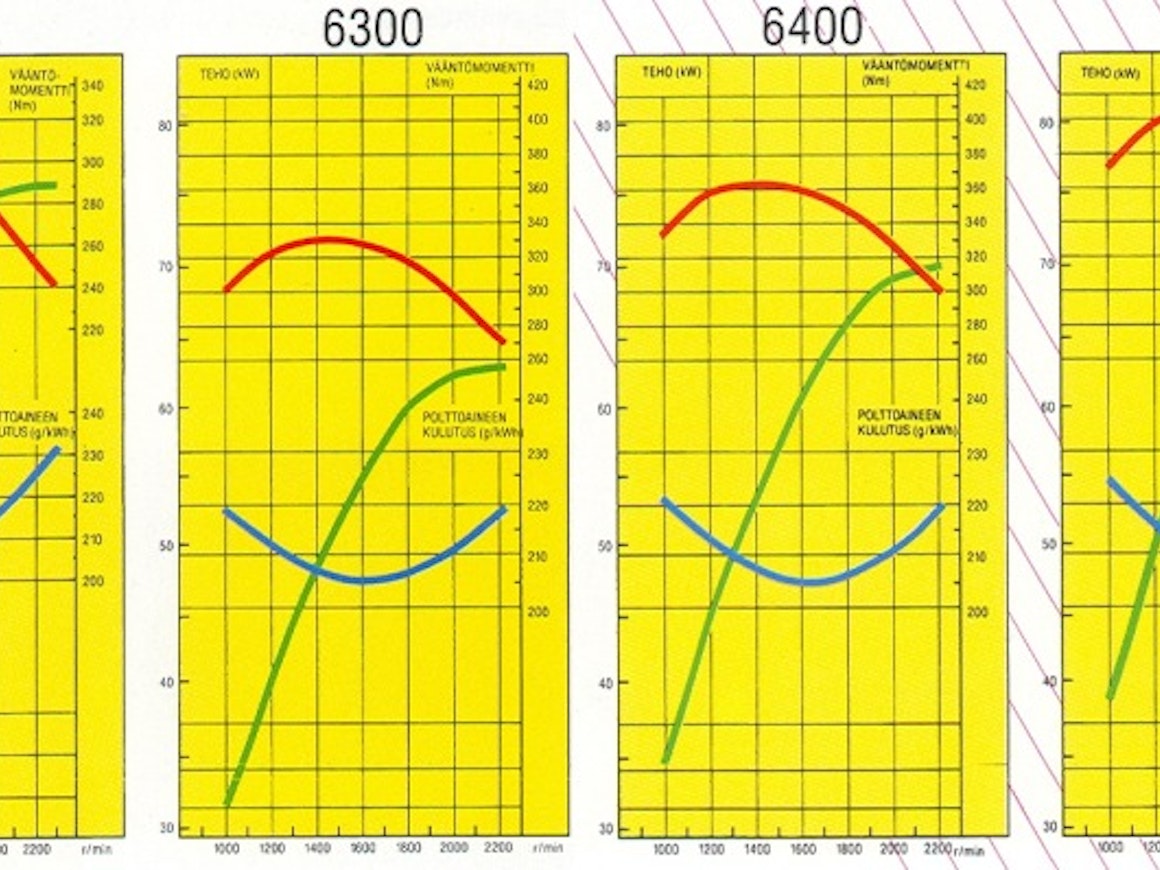

At the beginning of 1991, the first models of the Mezzo series were introduced: the three-cylinder 6100 (79 hp) and the four-cylinder 6300 (85 hp), 6400 (95 hp), and 6600 (105 hp). The basic structure was similar to the 05 series: the engine was located above the front axle, and the fuel tank positioned between the engine and gearbox served as part of the load-bearing structure. The engines were the new 20 series. The transmission had a reverser with 12+12 speeds and, as an optional accessory, a Volvo BM quick shift offering 24+24 speeds. The transmission now also featured low gears, and whining noise was eliminated thanks to helical gears. A hydraulic clutch was available as an option, chosen by nearly half of Mezzo buyers. The 6400 had a heavier-duty differential compared to the smaller models.

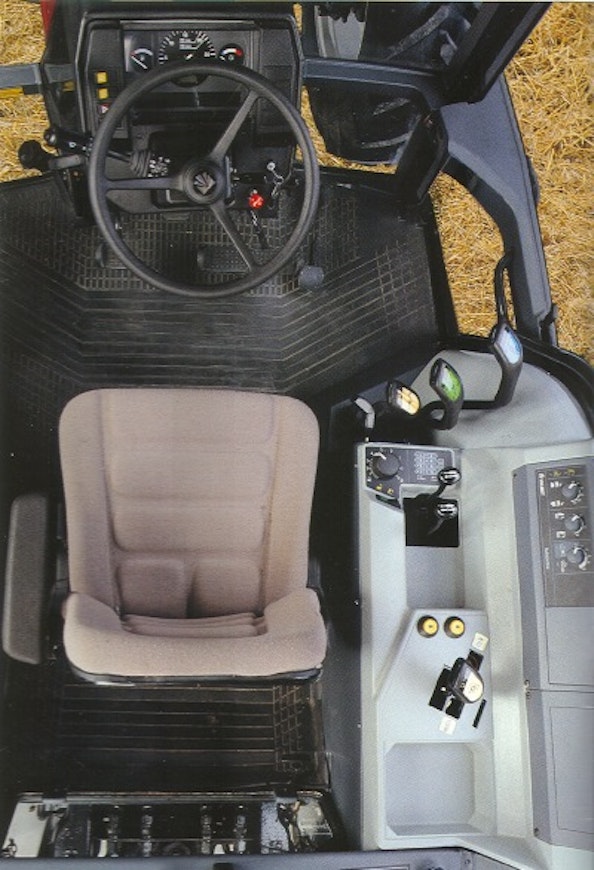

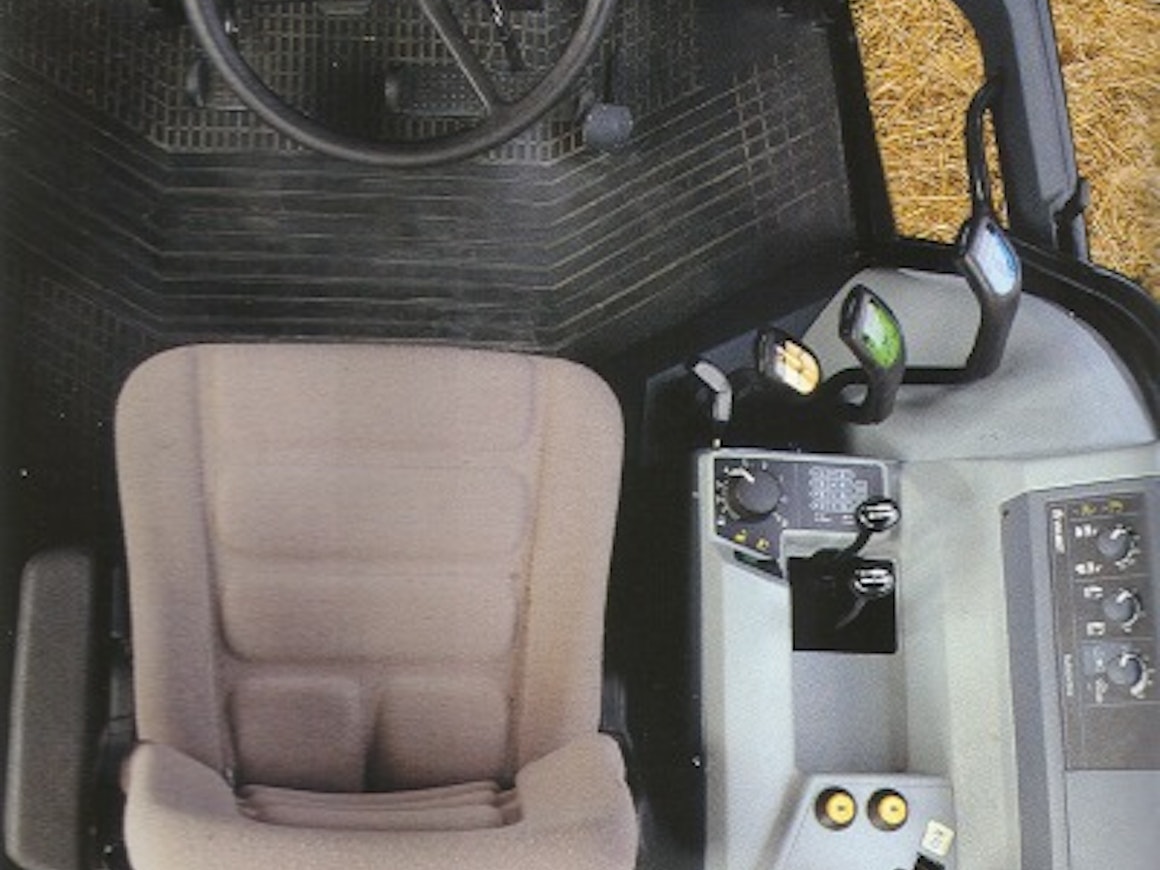

The cab was manufactured by Maaseudun Kone and was quite spacious inside. The noise level was average at 78 decibels. The seat could rotate 180 degrees, and as an option, Twin Trac rear steering controls were available. The electric hydraulic control (Autocontrol) was standard on all models. The Sige front axle was agile, and four-wheel drive engaged automatically when braking. The Mezzo’s overall dimensions were relatively large compared to their power output.
In the summer of 1993, the optional 2-speed quick shift was replaced by a 3-speed Delta Powershift, and a naturally aspirated four-cylinder 6000 (75 hp) was introduced. Production of the 6100 ended shortly afterward, and the 6000 was only in production for a couple of years.

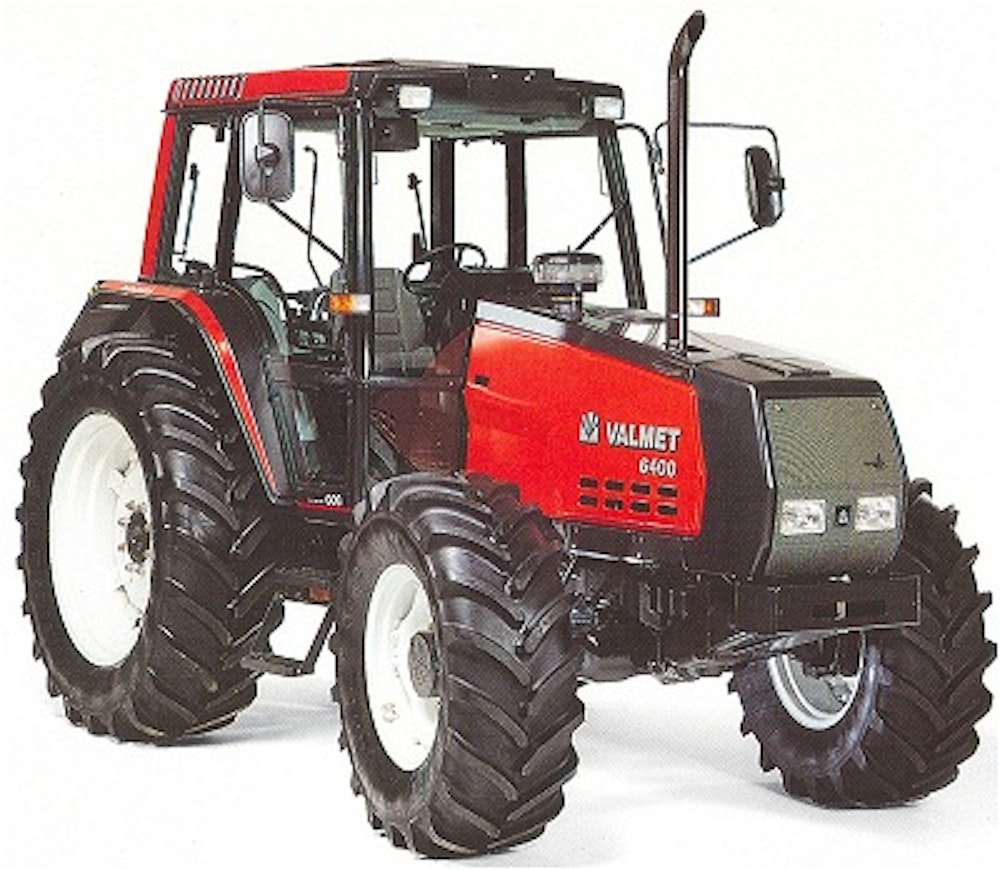

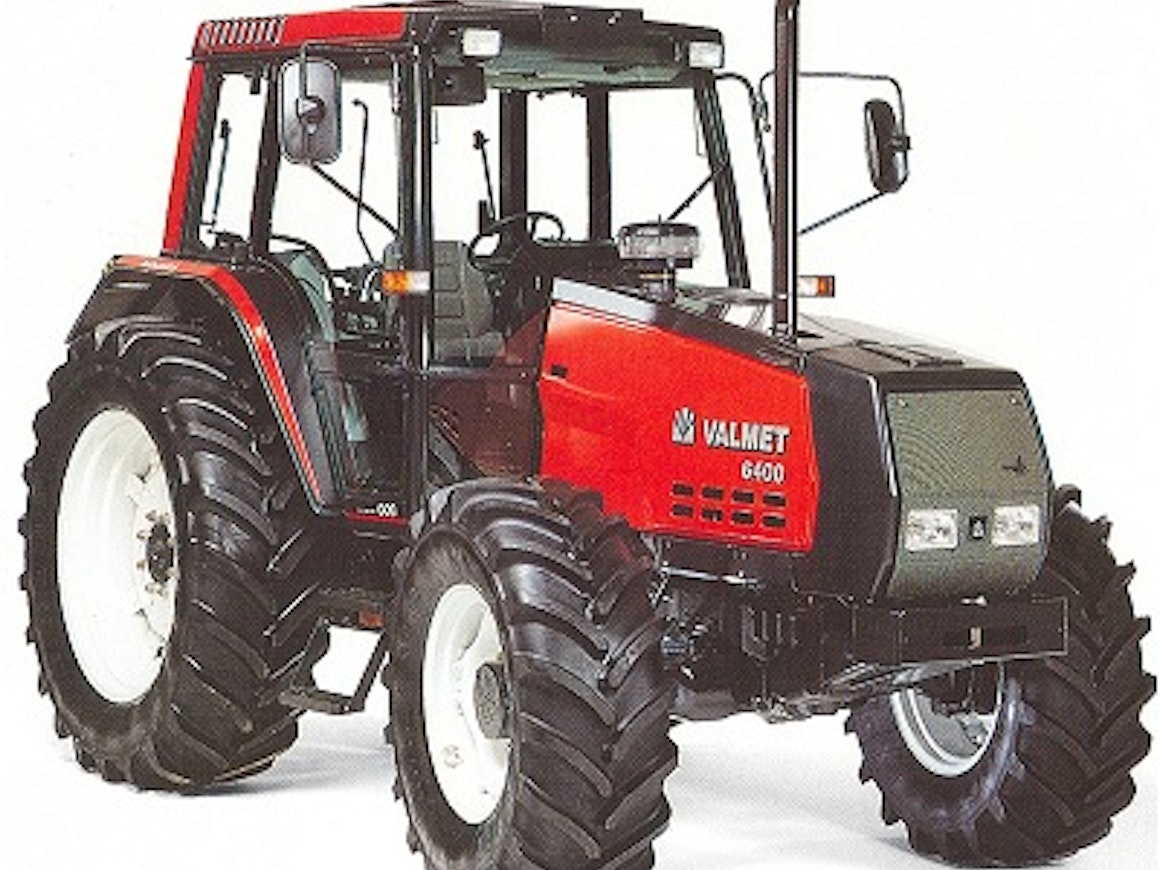

In spring 1994, Autocontrol II became standard equipment, featuring automatic differential lock activation and an added stop position to the raise-lower switch. At the same time, the 6400’s turbo with a wastegate improved torque characteristics. Unlike the other Mezzos’ increase of roughly 20%, the torque rose by 31%. A year later, the Valmet logo on the side panels was replaced by the Sisu logo.
The most popular models became the 6300 and 6400. At the beginning of 1997, the lineup was expanded with the 80-horsepower 6200, equipped with a distributor pump. At the same time, the HiShift button clutch became an optional feature. Autocontrol was updated to version 2.1, which included a so-called forced lowering function. In 1998, the digital Autocontrol B with oscillation damping became standard.
At the end of 2000, the inline pump on the 6400 was replaced with a distributor pump that provided a quieter running noise and better torque at low RPMs. Power output increased to 100 horsepower, and the engine shut-off was controlled by the ignition key. At the same time, the rear axle was changed to one used in larger models, and lifting capacity increased to 5.6 tons. The 6300 received the same updates in summer 2001 and, after a brief hiatus, returned to the Finnish market as a 90-horsepower model.
In summer 2003, due to new emission regulations, Fortius engines were introduced. The 6400’s ET engine featured an electric pump, while the 6200 and 6300 still had mechanical pumps. Power figures were now given according to the ISO 14396 standard, excluding the fan.

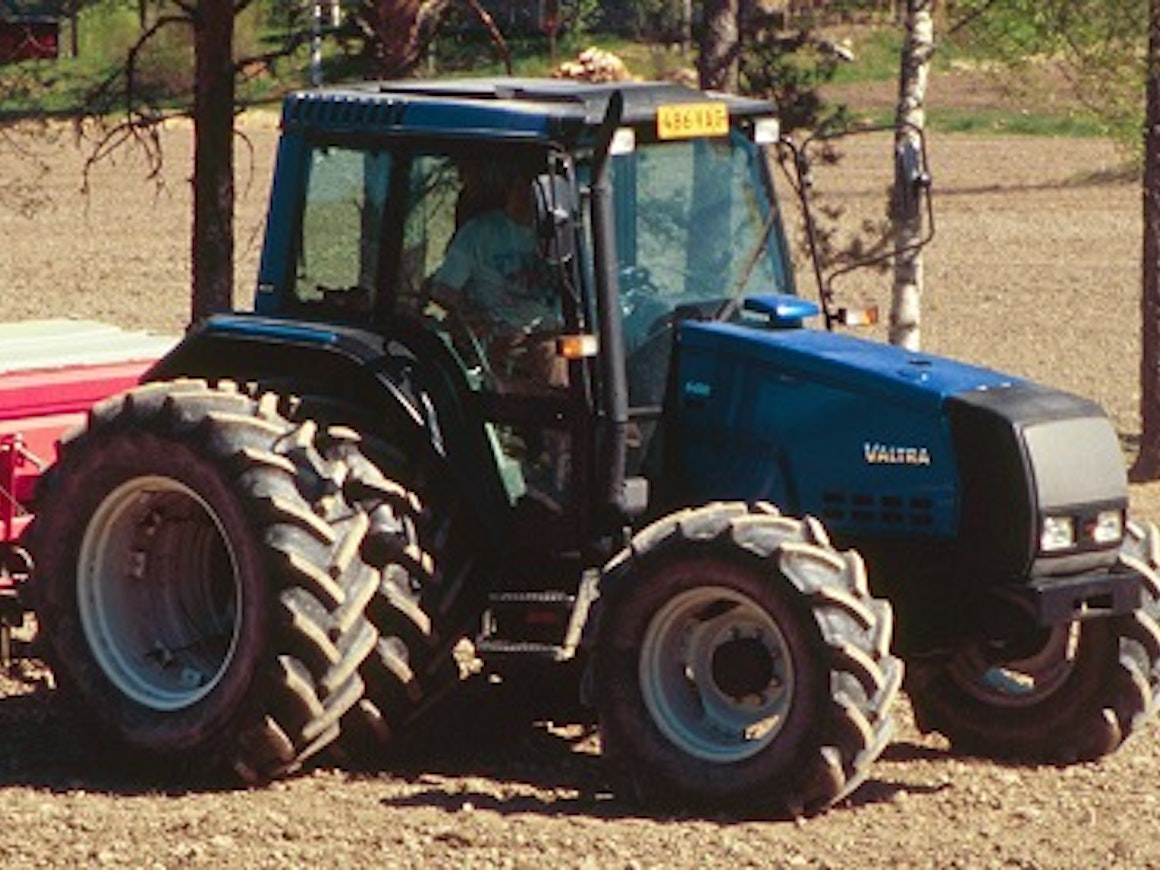

The brand name changed to Valtra Valmet at the beginning of 1998 and to Valtra from 2001 onward.
This is an automated translation. Please report any issues in the translation.
| Model | Valmet 6000 | Valmet 6100 | Valmet 6200 | Valmet 6200 | Valmet 6300 | Valmet 6300 | Valmet 6300 | Valmet 6400 | Valmet 6400 | Valmet 6400 | Valmet 6400 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet |
| Imported to Finland | Yes | Yes | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1993-96 | 1991-94 | 1996-00 | 2004-07 | 1991-01 | 2001-03 | 2003-07 | 1991-94 | 1994-00 | 2000-03 | 2003-07 |
| Engine model | 420D | 320DS | 420DSRE | 44DT | 420DS | 420DSRE | 44DT | 420DS | 420DW | 420DWRE | 44ET |
| Cyl/Turbo/Intercooler | 4 | 3T | 4T | 4T | 4T | 4T | 4T | 4T | 4T | 4T | 4T |
| Displacement | 4399 cm³ | 3299 cm³ | 4399 cm³ | 4399 cm³ | 4399 cm³ | 4399 cm³ | 4399 cm³ | 4399 cm³ | 4399 cm³ | 4399 cm³ | 4399 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm |
| Rated power | 75/2300 hp DIN/rpm | 79/2300 hp DIN/rpm | 80/2225 hp DIN/rpm | - | 85/2225 hp DIN/rpm | 90/2200 hp DIN/rpm | 90/2200 hp DIN/rpm | 95/2225 hp DIN/rpm | 95/2225 hp DIN/rpm | 100/2200 hp DIN/rpm | 100/2200 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - | - | - | - | - |
| Gears | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 36+36 | 36+36 |
| Synchronized gears | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 36+36 | 36+36 |
| Powershift gears | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | 3-step | 3-step |
| Reverser | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Speeds in km/h | 0,9-39,1 | 0,9-39,1 | 0,9-37,8 | 0,5-36 | 0,9-39,0 | 0,9-37,4 | 0,5-36 | 0,9-39,0 | 0,9-40,3 | 0,6-38,6 | 0,5-36 |
| Hydr. flow l/min | 70 l/min | 70 l/min | 73 l/min | 73 l/min | 70/73 l/min | 73 l/min | 73 l/min | 70 l/min | 70/73 l/min | 73 l/min | 73 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 180 bar | 190 bar | 190/180 bar | 190 bar | 190 bar | 190 bar | 190/180 bar | 190 bar | 190 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 4500 kg | 4500 kg | 4500 kg | 5600 kg | 4500 kg | 5600 kg | 5600 kg | 4500 kg | 4500 kg | 5600 kg | 5600 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 8 | - | - | - | 8 | - | - | 8 | 8 | - | - |
| Turning circle m 4WD | 8.4 | 8 | 8.4 | 9.4 | 8.4 | 8.4 | 9.4 | 8.4 | 8.4 | 8.4 | 9.4 |
| Front tyres 2WD | 11.00-16 | 10.00-16 | - | - | 11.00-16 | - | - | 11.00-16 | 11.00-16 | - | - |
| Front tyres 4WD | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R28 | 14.9R24 | 14.9R24 |
| Rear tyres 2WD | 16.9R34 | 16.9R34 | - | - | 18.4R34 | - | - | 18.4R34 | 16.9R38 | - | - |
| Rear tyres 4WD | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 18.4R34 | 16.9R34 | 16.9R34 | 18.4R34 | 16.9R38 | 18.4R34 | 18.4R34 |
| Weight 2WD | 3760 kg | 4000 kg | - | - | 3800 kg | - | - | 3850 kg | 3850 kg | - | - |
| Weight 4WD | 4120 kg | 4000 kg | 4050 kg | 4170 kg | 4120 kg | 4170 kg | 4350 kg | 4170 kg | 4170 kg | 4170 kg | 4450 kg |
| Height with cab | 270 cm | 269 cm | 272 cm | 273 cm | 273 cm | 269 cm | 273 cm | 273 cm | 273 cm | 272 cm | 274 cm |
| Length (2WD/4WD) | 443 cm | 430 cm | 443 cm | 451 cm | 444 cm | 443 cm | 451 cm | 444 cm | 444 cm | 443 cm | 451 cm |
| Wheelbase (2WD/4WD) | 238/233 cm | 213 cm | 233 cm | 233 cm | 238/234 cm | 233 cm | 233 cm | 238/234 cm | 238/233 cm | 233 cm | 233 cm |
| Fuel tank | 165 l | 165 l | 165 l | 165 l | 165 l | 165 l | 165 l | 165 l | 165 l | 165 l | 165 l |
| Cab noise level | 78.5 dB | 79.5 dB | 78 dB | - | 79 dB | 78 dB | 75.5 dB | 78 dB | 78 dB | 78 dB | 75 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | 94-> | - | x | x | 94-> | x | x | - | x | x | x |
