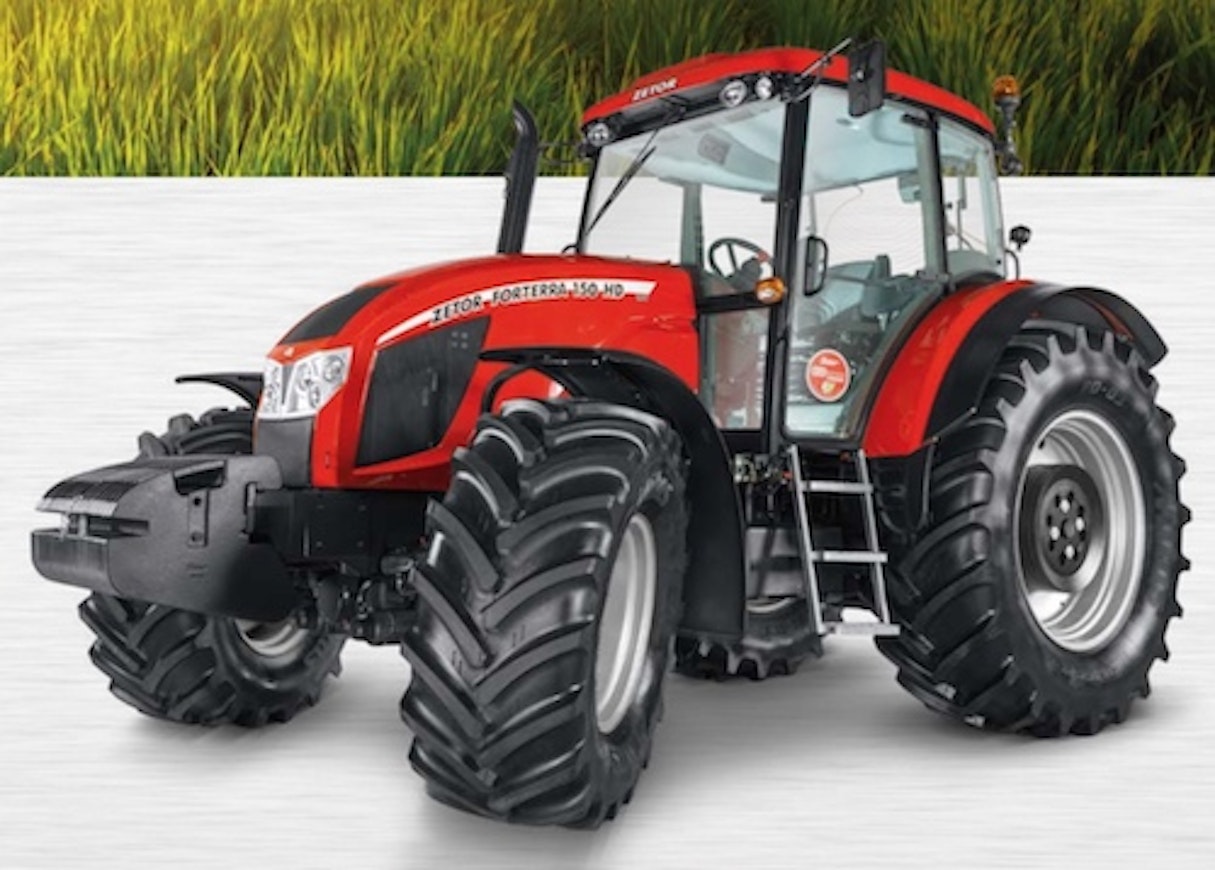

At the beginning of 2014, the Forterra HD models were introduced. The engines were, as before, 4.2 liters with a power output of 127-147 hp. The transmission was the same 30+30 with a three-speed power shift as in the HSX models. The lifting capacity was increased to 8.5 tons, and for an additional price, a 120 l/min piston pump was available for the hydraulics. The lifting equipment on the HD model complied with Category III. The front axle was a separately sprung Carraro. The wheelbase was 13 cm longer than that of the HSX models. The most noticeable difference compared to the cheaper models was the control panel with joysticks. Programmable headland automation was available as an optional extra. The problem with the Forterra HD was the price, which rose above that of similarly equipped Western European brands.

This is an automated translation. Please report any issues in the translation.

Zetor Forterra HD 130

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Zetor Forterra HD 140

Zetor Forterra HD 150

Zetor Forterra HD 130-150

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Zetor Forterra HD 130	Zetor Forterra HD 140	Zetor Forterra HD 150
Manufacturer name	Zetor Forterra	Zetor Forterra	Zetor Forterra
Imported to Finland	No	No	Yes
Years	2012-16	2012-16	2012-16
Engine model	1506	1606	1716
Cyl/Turbo/Intercooler	4TI	4TI	4TI
Displacement	4156 cm³	4156 cm³	4156 cm³
Bore x stroke	105×120 mm	105×120 mm	105×120 mm
Rated power	-	-	-
Torque	-	-	-
Gears	30+30	30+30	30+30
Synchronized gears	30+30	30+30	30+30
Powershift gears	3-step	3-step	3-step
Reverser	hydr.	hydr.	hydr.
Speeds in km/h	1,9-37,9	1,9-37,9	1,9-37,9
Max. speed	40 km/h	40 km/h	40 km/h
Hydr. flow l/min	85 (120) l/min	85 (120) l/min	85 (120) l/min
Hydraulic pressure	200 bar	200 bar	200 bar
Lift controls	elec.	elec.	elec.
Lift capacity	8500 kg	8500 kg	8500 kg
PTO speeds	540/750/1000/1250	540/750/1000/1250	540/750/1000/1250
Brakes	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.
Turning circle m 4WD	9.6	9.6	9.6
Front tyres 4WD	480/65R24	480/65R24	480/65R24
Rear tyres 4WD	600/65R38	600/65R38	600/65R38
Weight 4WD	4820 kg	4820 kg	4820 kg
Height with cab	284 cm	284 cm	284 cm
Length (2WD/4WD)	477 cm	477 cm	477 cm
Wheelbase (2WD/4WD)	272 cm	272 cm	272 cm
Fuel tank	220 l	220 l	220 l
Cab noise level	76 dB	76 dB	76 dB
Solid cab	x	x	x
Diff. lock	friction lock	friction lock	friction lock
Autom. differential locks	x	x	x
Air suspension seat	x	x	x
Air conditioning	x	x	x
