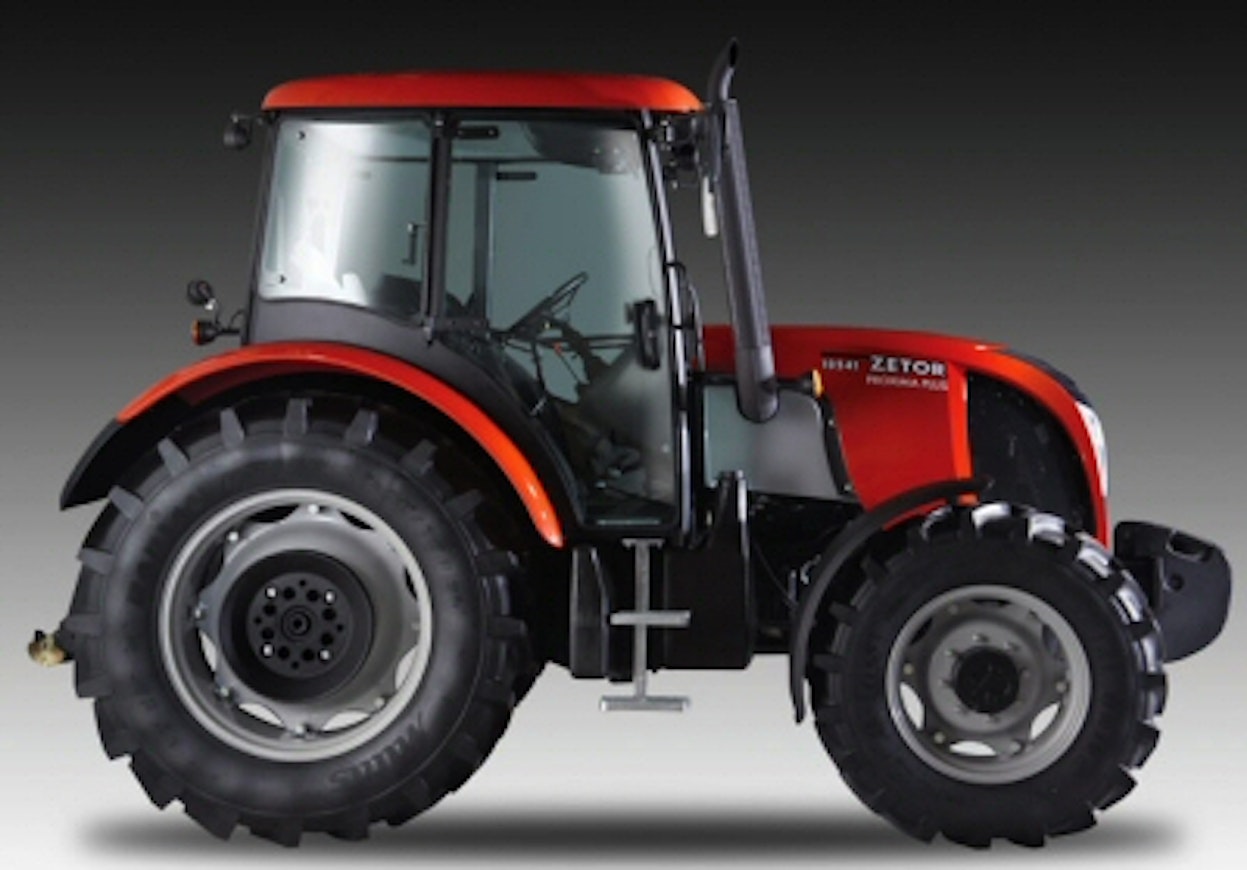

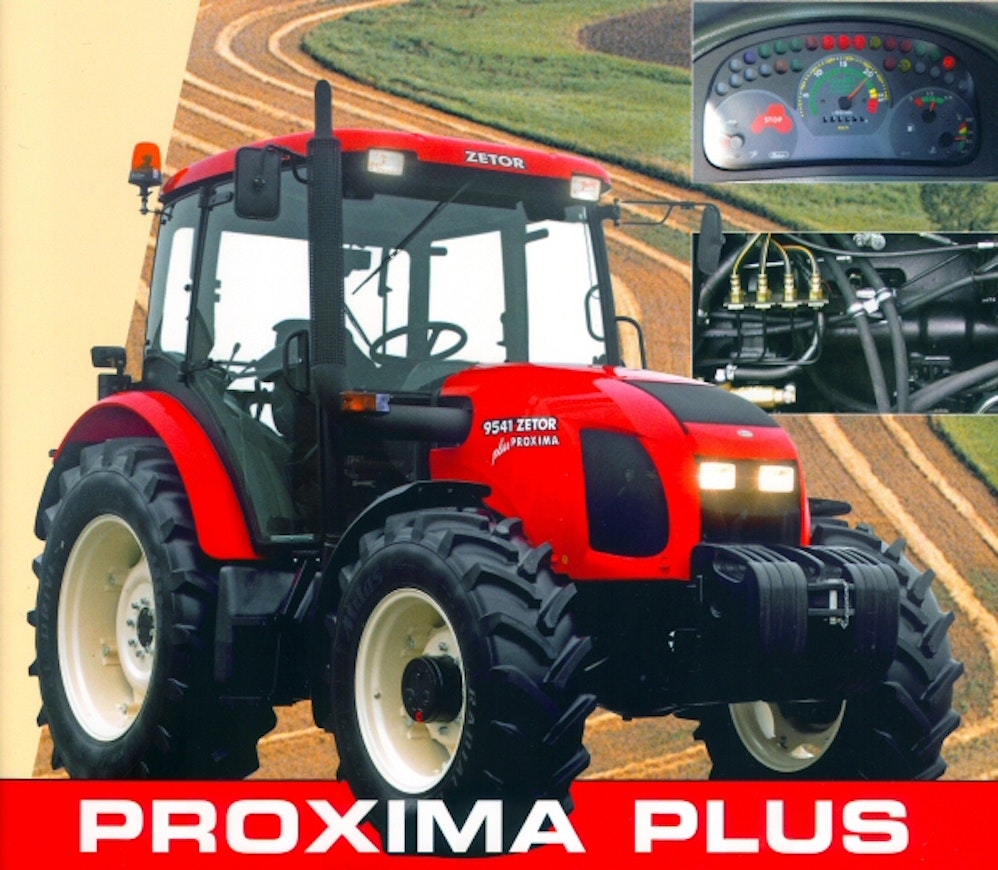

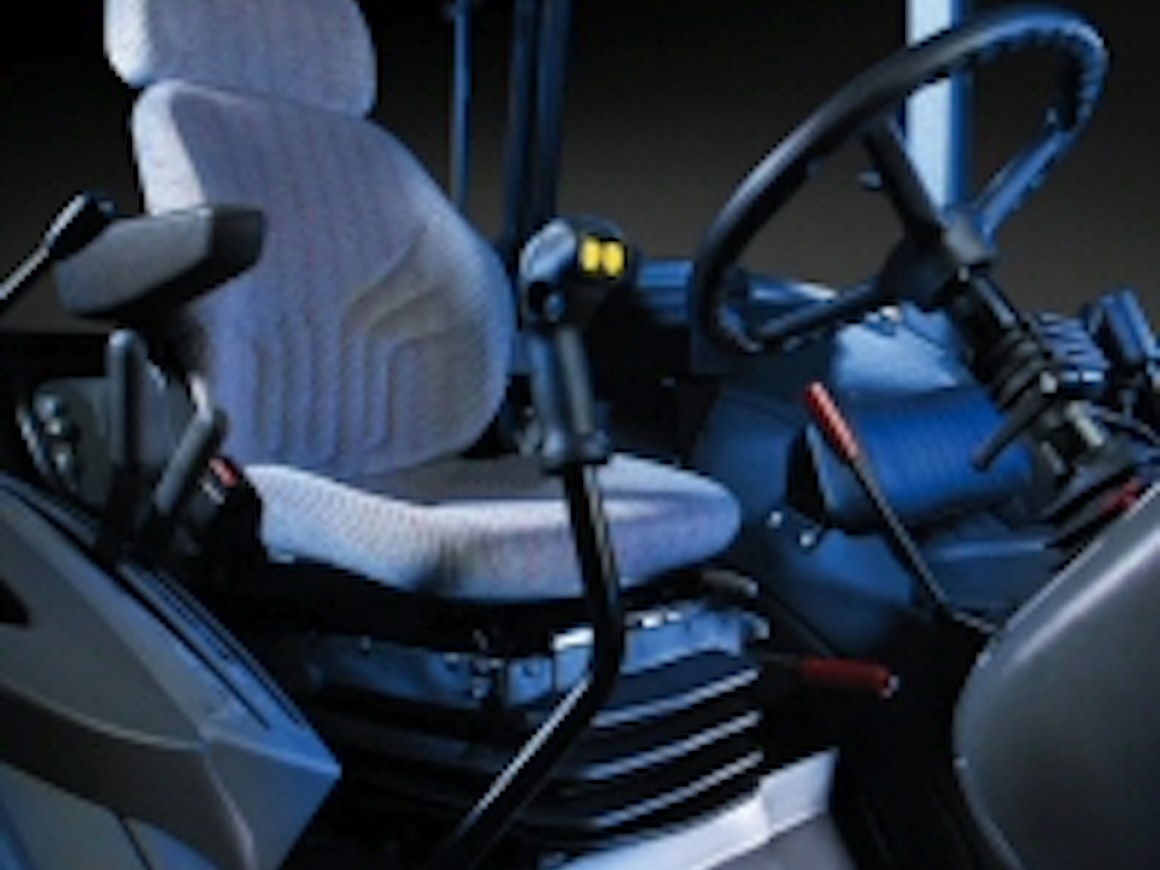

The Zetor Proxima range was supplemented with the Proxima Plus models in the spring of 2007. The most significant differences of the Plus models compared to the Proxima models were a 2-speed power shift and an electro-hydraulic PTO control. The engines had a viscous fan and an intercooler, which were introduced to the Proxima models only a year later. There were 16+16 gears, and the power shift buttons were located on the main gear lever. The hydraulic system with draft control was the same as in the Proxima. The PTO at 1000 rpm was standard and was based on changing the axle end.

Already in the fall of 2007, the Plus models were updated like the other Proxima models. The engine hood was changed to a one-piece, sleekly designed version. There were small changes to the controls, and the cab noise level decreased to 81 decibels. Only the updated versions were imported to Finland.

This is an automated translation. Please report any issues in the translation.

Zetor Proxima Plus 8541

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Zetor Proxima Plus 9541

Zetor Proxima Plus 10541

Zetor Proxima Plus 8541-10541

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Zetor Proxima Plus 8541	Zetor Proxima Plus 9541	Zetor Proxima Plus 10541
Manufacturer name	Zetor Proxima Plus	Zetor Proxima Plus	Zetor Proxima Plus
Imported to Finland	Yes	Yes	Yes
Years	2007-09	2007-09	2007-09
Engine model	1205	1005	1305
Cyl/Turbo/Intercooler	4TI	4TI	4TI
Displacement	4156 cm³	4156 cm³	4156 cm³
Bore x stroke	105×120 mm	105×120 mm	105×120 mm
Rated power	82/2200 hp DIN/rpm	90/2200 hp DIN/rpm	101/2200 hp DIN/rpm
Torque	-	-	-
Gears	16+16	16+16	16+16
Synchronized gears	16+16	16+16	16+16
Powershift gears	hydr.	hydr.	hydr.
Reverser	mech.	mech.	mech.
Speeds in km/h	1,9-40	1,9-40	1,9-40
Hydr. flow l/min	50 l/min	50 l/min	50 l/min
Hydraulic pressure	180 bar	180 bar	180 bar
Lift controls	mech.	mech.	mech.
Lift capacity	4150 kg	4150 kg	4150 kg
PTO speeds	540/1000/ajo	540/1000/ajo	540/1000/ajo
Brakes	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.
Turning circle m 4WD	8.9	8.9	8.9
Front tyres 4WD	13.6R24	13.6R24	13.6R24
Rear tyres 4WD	16.9R34	16.9R34	16.9R34
Weight 4WD	4010 kg	4010 kg	4010 kg
Height with cab	274 cm	274 cm	274 cm
Length (2WD/4WD)	432 cm	432 cm	432 cm
Wheelbase (2WD/4WD)	233 cm	233 cm	233 cm
Fuel tank	120/125 l	120/125 l	120/125 l
Cab noise level	83/81 dB	83/81 dB	83/81 dB
Solid cab	x	x	x
Diff. lock	friction lock	friction lock	friction lock
