Laverda AL rev – AL quattro

13LaverdaALquattro
13LaverdaALohjaamo
13LaverdaALquattro
13LaverdaALohjaamo
Manufacturer
Models
Laverda AL rev, Laverda AL quattro, Laverda AL quattro Techno, Laverda AL quattro Evo
Years
2008-11
Info

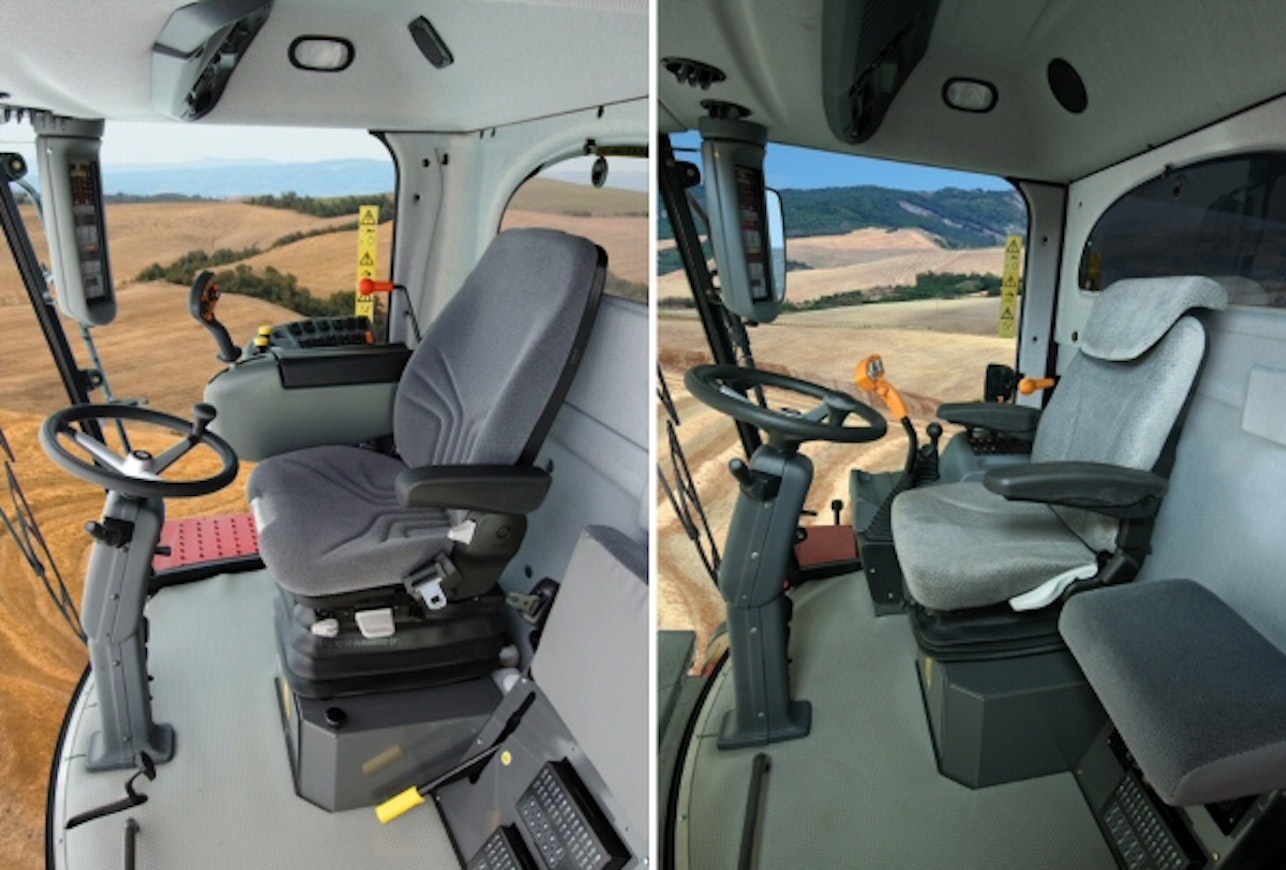

The hillside combine harvester Laverda AL, equipped with a structure that tilts longitudinally and laterally, was renewed for the year 2009. Both models were now 5-rotor and were based on the earlier 255 AL. However, the MCS after-threshing device and four-wheel drive were removed from the AL rev model, and in this version, the grain tank was also smaller. In the AL quattro model, on the other hand, the grain tank was increased to 6.5 hectares and the engine was a 7.4-liter Sisu Diesel instead of Iveco. The AL quattro model also featured a more equipped Profi Cab cab, which included, among other things, an air-suspended seat. The Elegance cab of the AL rev also had an onboard computer Agritronic Plus, similar to those in larger Laverda models. The threshing mechanism of the AL models remained horizontal at 30 degrees longitudinal tilt and 40 degrees lateral tilt.

The 2012 lineup included two four-wheel-drive models equipped with Finnish engines. The more powerful Evo model featured a new Powerflow header and a redesigned Comfort cab, where the controls had been reorganized. The onboard computer in both models had progressed to a new generation.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelLaverda AL revLaverda AL quattroLaverda AL quattro TechnoLaverda AL quattro Evo
Imported to FinlandNoNoNoNo
Years2008-112008-112011-2011-
EngineIvecoSisuDieselAgco PowerAgco Power
Engine typeNEFCitius 7466 AWI.74674 AWI.747
Displacement5861 cm³7368 cm³6600 cm³7368 cm³
Cyl/turbo6TI6TI6TI6TI
Power245 ISO hp DIN275 ISO hp DIN243 ISO hp DIN276 ISO hp DIN
Fuel tank450 l450 l450 l450 l
Transmissionhydr.hydr.hydr.hydr.
Gears3444
Cutting width480 cm540 cm480 cm540 cm
Cutting width, alternative540 cm600 cm540/600 cm600 cm
Threshing cyl. diameter60 cm60 cm60 cm60 cm
2. cyl. diameter60 cm60 cm60 cm60 cm
Threshing cyl. width134 cm134 cm134 cm134 cm
Number of straw walkers5555
Area of walkers573 dm²573 dm²573 dm²573 dm²
Lenght of walkers426 cm426 cm426 cm426 cm
Straw shieve263 dm²263 dm²263 dm²263 dm²
Bottom shieve204 dm²204 dm²204 dm²204 dm²
Total screening area467467467467
Grain tank52 hl65 (58) hl58 hl65 hl
Unl. height420 cm420 cm420 cm420 cm
Tyres front (Finland)620/75R26620/75R30620/75R30620/75R32
Tyres rear (Finland)12.5/80-18405/70-2016/70-20460/70R24
Reel forward/backw. adjustmenthydr.hydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.hydr.
Threshing cyl. speed adjustmenthydr.hydr.hydr.hydr.
Bottom sieveadj.adj.adj.adj.
Brakeswet discwet discwet discwet disc
Reverserxxxx
Air conditioningxxxx
Heatingxxxx
Grain loss indicatorxxxx
Floating cutting platformxxxx
Autom. control of cutting heightxxxx
Slope levellingxxxx
Cutting platform lateral tiltxxxx
Type of cutting platform floatingautom.autom.autom.autom.
