Siirry sivupalkkiinSiirry alaosaanClayson M 122 – M 140 Armada

Manufacturer
Models
Clayson M 122, Clayson M 122, Clayson M 133, Clayson M 133, Clayson M 135, Clayson M 135, Clayson M 140 Armada, Clayson M 140 Armada, Clayson M 140 Armada
Years
1962-71
Info

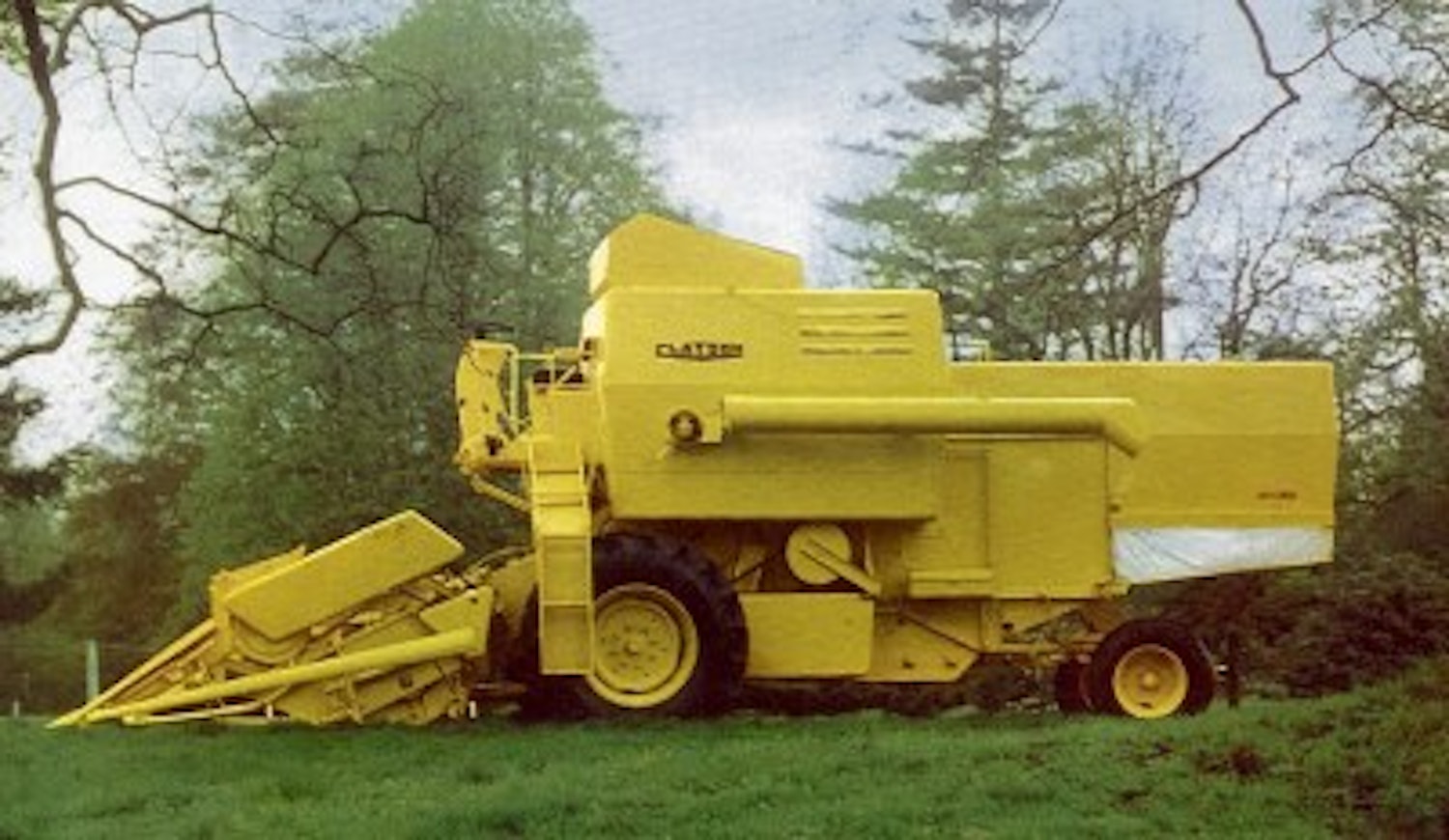

In the angularly redesigned Clayson range of the late 1960s, there were four models, of which the M 133 was not brought to Finland. The M 140 Armada was introduced already in 1962 and was one of the largest combines of its time. In the M122 introduced for the year 1968, the diameter of the threshing reel was 46 cm, while in the other models it was 60 cm. The engines in all models in Finland were Fords. Clayson's cutting platform was of a very short type and was lightened hydropneumatically. Compared to earlier models, the engines were more powerful and the grain tanks were larger. The sieves and straw walkers were also enlarged.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Clayson M 122 | Clayson M 122 | Clayson M 133 | Clayson M 133 | Clayson M 135 | Clayson M 135 | Clayson M 140 Armada | Clayson M 140 Armada | Clayson M 140 Armada |
|---|---|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes |
| Years | 1967-69 | 1969-71 | 1966-69 | 1969-71 | 1966-69 | 1969-71 | 1962-66 | 1966-69 | 1969-71 |
| Engine | Ford | Ford | Ford | Ford | Ford | Ford | Ford | Ford | Ford |
| Engine type | 2701E | 2701C | 2703E | 2703E | 2703E | 2703C | 2704E | 2704E | 2704C |
| Displacement | 3933 cm³ | 4152 cm³ | 5403 cm³ | 5403 cm³ | 5403 cm³ | 5948 cm³ | 5899 cm³ | 5899 cm³ | 6227 cm³ |
| Cyl/turbo | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Power | 80 SAE hp DIN | 80 SAE hp DIN | 95 hp DIN | 100 hp DIN | 95 (105 SAE) hp DIN | 95 (105 SAE) hp DIN | 105 (115 SAE) hp DIN | 105 (115 SAE) hp DIN | 105 (115 SAE) hp DIN |
| Fuel tank | 80 l | 80 l | 132 l | 132 l | 160 l | 160 l | 151 l | 160 l | 160 l |
| Transmission | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,3-19,3 km/h | 1,3-19,3 km/h | 1,3-19,0 km/h | 1,4-19,2 km/h | 1,5-19,0 km/h | 1,6-21,4 km/h | 1,4-21,4 km/h | 1,7-19,6 km/h | 1,6-21,4 km/h |
| Cutting width | 304 cm | 304 cm | 300 cm | 304 cm | 360 cm | 365 cm | 420 cm | 420 cm | 457 cm |
| Cutting width, alternative | 260 cm | 260 cm | 260-457 cm | 260-457 cm | 420, 480 cm | 420, 480 cm | 360-540 cm | 480-600 cm | 518-670 cm |
| Reel diameter | 90 cm | 90 cm | 90 cm | 90 cm | 90 cm | 90 cm | 90 cm | 90 cm | 90 cm |
| Header length | 34 cm | 34 cm | 34 cm | 34 cm | 34 cm | 34 cm | 34 cm | 34 cm | 34 cm |
| Threshing cyl. diameter | 46 cm | 46 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 103 cm | 103 cm | 103 cm | 103 cm | 103 cm | 103 cm | 128.5 cm | 128.5 cm | 128.5 cm |
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 |
| Area of walkers | 311 dm² | 311 dm² | 371 dm² | 371 dm² | 391 dm² | 391 dm² | 490 dm² | 488 dm² | 488 dm² |
| Lenght of walkers | 302 cm | 302 cm | 360 cm | 360 cm | 380 cm | 380 cm | 386 cm | 380 cm | 380 cm |
| Straw shieve | 69 dm² | 69 dm² | - | - | 88 dm² | 88 dm² | 112 dm² | 112 dm² | 112 dm² |
| Bottom shieve | 69 dm² | 69 dm² | - | - | 88 dm² | 88 dm² | 112 dm² | 112 dm² | 112 dm² |
| Total screening area | 155 | 155 | - | - | 191 | 191 | 272 | 272 | 272 |
| Overall lenght | 805 cm | 805 cm | 874 cm | 874 cm | 877 cm | 877 cm | 945 cm | 877 cm | 877 cm |
| Overall width | 347 cm | 347 cm | 347 cm | 347 cm | 408 cm | 408 cm | 470 cm | 499 cm | 499 cm |
| Height without cabin | 334 cm | 334 cm | 320 cm | - | 375 cm | 375 cm | 318 cm | 346 cm | 346 cm |
| Weight without cabin | 4700 kg | 4700 kg | 5300 kg | 5700 kg | 5550 kg | 5900 kg | 5700 kg | 6050 kg | 6500 kg |
| Grain tank | 18 hl | 18 hl | 23 hl | 23 hl | 23 (26) hl | 24 hl | 24.6 hl | 26.5 hl | 26.5 hl |
| Tyres front (Finland) | 16.9-26 | 16.9-26 | 18.4-26 | 18.4-26 | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 |
| Tyres rear (Finland) | 8.50-12 | 8.50-12 | 8.50-12 | 8.50-12 | 11.2-18 | 11.2-18 | 10.00-18 | 11.2-18 | 11.2-18 |
| Reel forward/backw. adjustment | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Reel speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Threshing cyl. speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc | mech. disc |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| Alternative hp | - | - | 78 Deutz hp | - | 78 Deutz hp | - | - | Perkins hp | - |
| Width without header | - | - | 275 cm | 274 cm | 280 cm | 280 cm | 300 cm | 300 cm | 300 cm |
| Tyres rear, alternative | - | - | - | - | 10.00-18 | - | - | 10.00-18 | - |
