Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

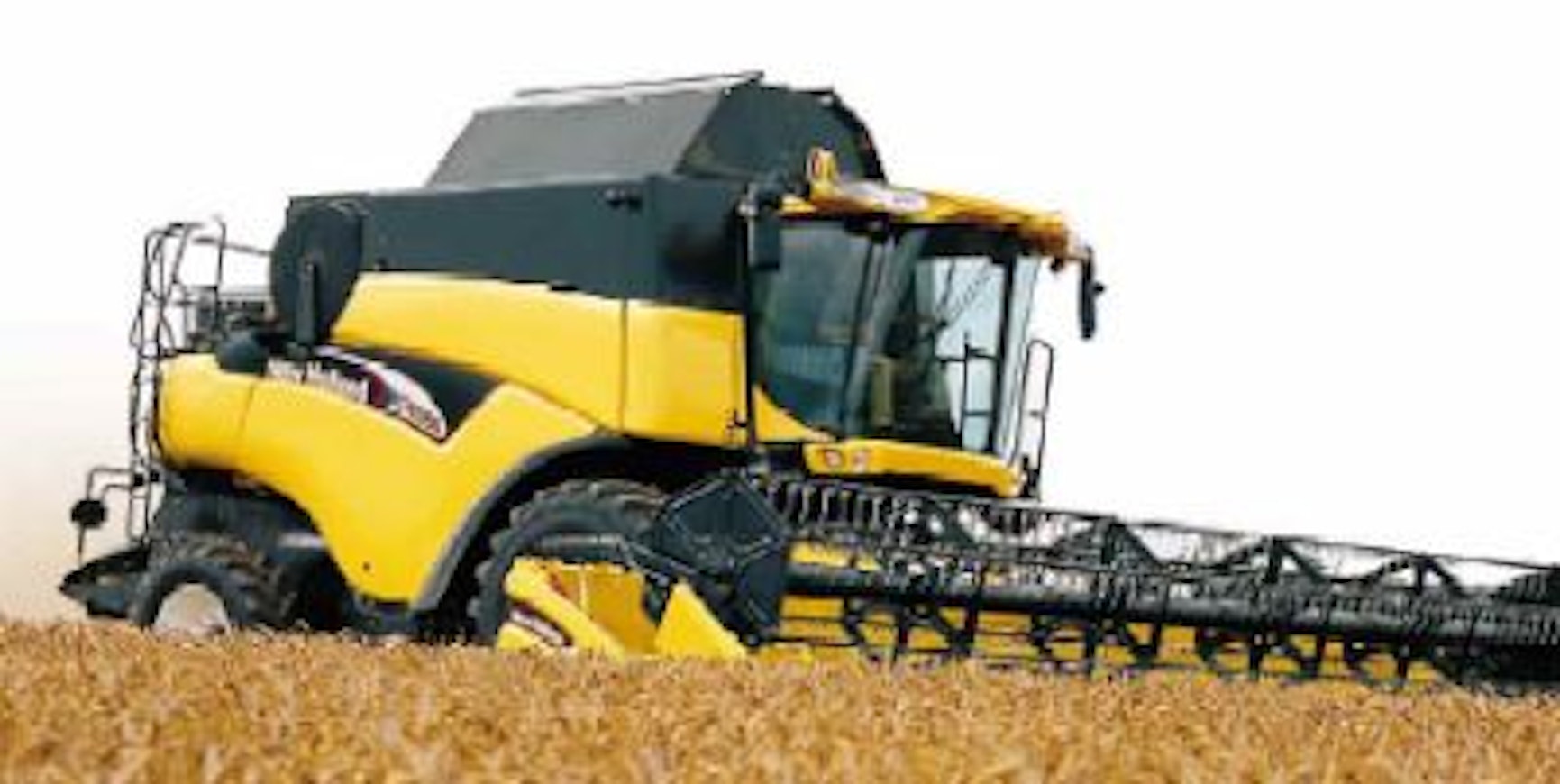

Model	New Holland CR960	New Holland CR980
Imported to Finland	Yes	Yes
Years	2002-06	2002-06
Engine	Iveco	Iveco
Engine type	Cursor 8	Cursor 10
Displacement	7790 cm³	10300 cm³
Cyl/turbo	6 T	6 T
Power	-	-
Fuel tank	750 l	1000 l
Transmission	hydr.	hydr.
Gears	4	4
Speed min-max.	0-25 km/h	0-25 km/h
Cutting width	518 cm	610 cm
Cutting width, alternative	610-915 cm	732-915 cm
Reel diameter	107 cm	107 cm
Header length	41 cm	41 cm
Threshing cyl. diameter	43 cm	56 cm
Threshing cyl. width	pituus 264 cm	pituus 264 cm
Number of straw walkers	2 drums	2 drums
Straw shieve	330 dm²	395 dm²
Bottom shieve	191 dm²	228 dm²
Total screening area	540	650
Overall lenght	997 cm	997 cm
Overall width	550 cm	-
Width without header	330 cm	370 cm
Height with cabin	395 cm	392 cm
Weight with cabin	15300 kg	16500 kg
Weight without header	ilman silppuria kg	ilman silppuria kg
Grain tank	90 hl	105 hl
Tyres front (Finland)	710/70R38	800/65R32
Tyres front, alternative	1050/50R32	1050/50R32
Tyres rear (Finland)	480/70R30	540/65R30
Tyres rear, alternative	600/65R28	600/65R28
Reel forward/backw. adjustment	hydr.	hydr.
Reel speed adjustment	elec.	elec.
Threshing cyl. speed adjustment	elec.	elec.
Bottom sieve	adj.	adj.
Brakes	wet disc	wet disc
Reverser	x	x
Air conditioning	x	x
Heating	x	x
Grain loss indicator	x	x
Floating cutting platform	x	x
Autom. control of cutting height	x	x
Slope levelling	x	x
Cutting platform lateral tilt	x	x
Type of cutting platform floating	autom.	autom.
