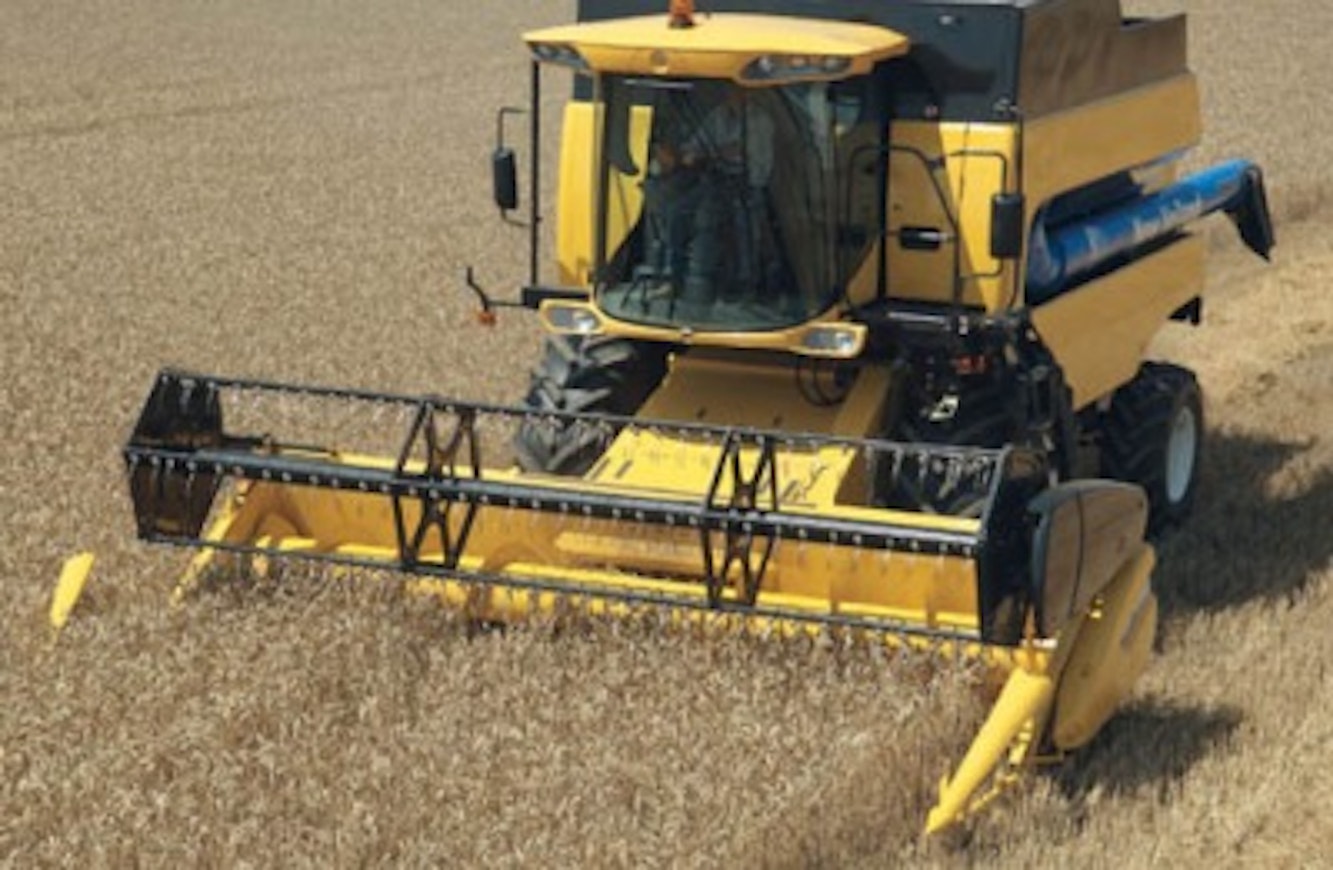

In 2006, the CS combines were fitted with Iveco engines equipped with common rail injection. The noise level was 76 dB. The model range had been reduced and there were minor differences in equipment compared to before; for example, the pickup reel speed, which adjusts according to driving speed, was now an optional extra. Otherwise, the CS models remained unchanged.

This is an automated translation. Please report any issues in the translation.

CS6050

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

CS6050 RS

CS6070 RS

CS6080 RS

New Holland CS6050 – CS6080

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	CS6050	CS6050 RS	CS6070 RS	CS6080 RS
Imported to Finland	Yes	Yes	Yes	No
Years	2006-08	2006-08	2006-08	2006-08
Engine	Iveco	Iveco	Iveco	Iveco
Engine type	NEF	NEF	NEF	Cursor 9
Displacement	6728 cm³	6728 cm³	6728 cm³	8700 cm³
Cyl/turbo	6 TI	6 TI	6 TI	6 TI
Power	-	-	-	-
Fuel tank	450 l	450 l	450 l	580 l
Transmission	hydr.	hydr.	hydr.	hydr.
Gears	3	3	3	3
Speed min-max.	0-25 km/h	0-25 km/h	0-25 km/h	0-25 km/h
Cutting width	457 cm	518 cm	610 cm	610 cm
Cutting width, alternative	396-732 cm	396-732 cm	457-915 cm	518-915 cm
Reel diameter	107 cm	107 cm	107 cm	107 cm
Header length	41 cm	41 cm	41 cm	41 cm
Threshing cyl. diameter	60 cm	60 cm	60 cm	60 cm
Threshing cyl. width	130 cm	130 cm	156 cm	156 cm
Number of straw walkers	5	5	6	6
Area of walkers	578 dm²	538 dm²	645 dm²	645 dm²
Lenght of walkers	378 cm	345 cm	345 cm	345 cm
Straw shieve	228 dm²	228 dm²	274 dm²	274 dm²
Bottom shieve	171 dm²	171 dm²	206 dm²	206 dm²
Total screening area	432	432	520	520
Overall lenght	1020 cm	1020 cm	1020 cm	1020 cm
Overall width	501 cm	563 cm	654 cm	654 cm
Height with cabin	400 cm	400 cm	400 cm	400 cm
Weight without header	10750 kg	11000 kg	12000 kg	12250 kg
Grain tank	70 hl	70 hl	78 hl	88 hl
Unl. height	396 cm	425 cm	425 cm	425 cm
Tyres front (Finland)	800/65R32	900/60R32	900/60R32	900/60R32
Tyres front, alternative	1050/50R32	1050/50R32	1050/50R32	1050/50R32
Tyres rear (Finland)	460/70R24	540/65R24	540/65R24	540/65R24
Tyres rear, alternative	540/65R24	460/70R24	460/70R24	460/70R24
Reel forward/backw. adjustment	hydr.	hydr.	hydr.	hydr.
Reel speed adjustment	elec.	elec.	elec.	elec.
Threshing cyl. speed adjustment	elec.	elec.	elec.	elec.
Bottom sieve	adj.	adj.	adj.	adj.
Brakes	wet disc	wet disc	wet disc	wet disc
Reverser	x	x	x	x
Air conditioning	x	x	x	x
Heating	x	x	x	x
Grain loss indicator	x	x	x	x
Floating cutting platform	x	x	x	x
Autom. control of cutting height	x	x	x	x
Slope levelling	opt.	opt.	opt.	opt.
Cutting platform lateral tilt	x	x	x	x
Type of cutting platform floating	autom.	autom.	autom.	autom.
2. cyl. diameter	-	60 cm	60 cm	60 cm
