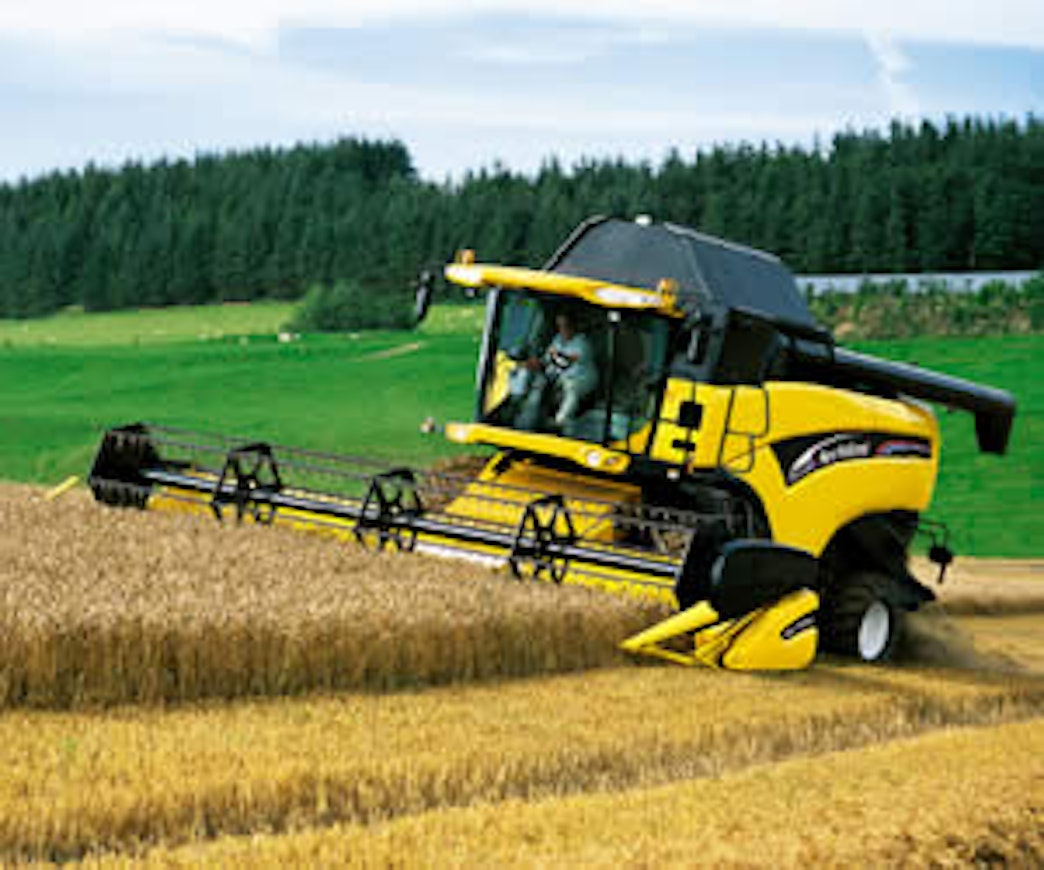

Siirry sivupalkkiinSiirry alaosaanNew Holland CX 720 – CX 880

Manufacturer
Models
CX720, CX740, CX760, CX780, CX820, CX840, CX860, CX880
Years
2001-06
Info
The first round-bodied combine was introduced alongside the TX models at the beginning of 2001. The 700 series featured 5 concaves and the 800 series 6. The engines were 7.5-litre Fords, except in the two largest models, which had a 9.6-litre Iveco. The diameter of the main threshing drum was increased to a full 75 cm, and, as on the TX, it was followed by a straw cylinder and a post-threshing cylinder. The cab and the electronics were significantly upgraded compared with the previous models. Almost all adjustments could be made electronically from the cab. The noise level was 74–75 dB.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | CX720 | CX740 | CX760 | CX780 | CX820 | CX840 | CX860 | CX880 |
|---|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | No | Yes | No | Yes | Yes | No | No |
| Years | 2001-06 | 2001-06 | 2001-06 | 2001-06 | 2001-06 | 2001-06 | 2001-06 | 2001-06 |
| Engine | Ford | Ford | Ford | Ford | Ford | Ford | Iveco | Iveco |
| Engine type | 675 TA/CC | 675 TA/CB | 675 TA/CF | 675 TA/CA | 675 TA/CA | 675 TA/AB | 8460 F2B | 8460 F3A |
| Displacement | 7474 cm³ | 7474 cm³ | 7474 cm³ | 7474 cm³ | 7474 cm³ | 7474 cm³ | 9570 cm³ | 9570 cm³ |
| Cyl/turbo | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T |
| Power | - | - | - | - | - | - | - | - |
| Fuel tank | 500 l | 500 l | 500 l | 500 l | 750 l | 750 l | 750 l | 750 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 518 cm | 518 cm | 518 cm | 518 cm | 609 cm | 732 cm | 732 cm | 732 cm |
| Cutting width, alternative | 396-610 cm | 396-610 cm | 396-732 cm | 457-732 cm | 518-915 cm | 518-915 cm | 518-915 cm | 518-915 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm |
| 2. cyl. diameter | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm |
| Threshing cyl. width | 130 cm | 130 cm | 130 cm | 130 cm | 156 cm | 156 cm | 156 cm | 156 cm |
| Number of straw walkers | 5 | 5 | 5 | 5 | 6 | 6 | 6 | 6 |
| Area of walkers | 556 dm² | 556 dm² | 556 dm² | 556 dm² | 668 dm² | 668 dm² | 668 dm² | 668 dm² |
| Lenght of walkers | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm |
| Straw shieve | 330 dm² | 330 dm² | 330 dm² | 330 dm² | 395 dm² | 395 dm² | 395 dm² | 395 dm² |
| Bottom shieve | 191 dm² | 191 dm² | 191 dm² | 191 dm² | 228 dm² | 228 dm² | 228 dm² | 228 dm² |
| Total screening area | 540 | 540 | 540 | 540 | 650 | 650 | 650 | 650 |
| Overall lenght | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm |
| Overall width | 550 cm | 550 cm | 550 cm | 550 cm | 654 cm | 777 cm | 777 cm | 777 cm |
| Width without header | 316 cm | 316 cm | 316 cm | 316 cm | 346 cm | 346 cm | 346 cm | 346 cm |
| Height with cabin | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm |
| Weight with cabin | 16000 kg | 16000 kg | 16000 kg | 16000 kg | 17000 kg | 17000 kg | 17500 kg | 17500 kg |
| Weight without header | 14300 kg | 14300 kg | 14400 kg | 14600 kg | 15300 kg | 15300 kg | 15400 kg | 15800 kg |
| Grain tank | 76 hl | 76 hl | 90 hl | 90 hl | 90 hl | 90 hl | 90/105 hl | 105 hl |
| Tyres front (Finland) | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 |
| Tyres front, alternative | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 |
| Tyres rear, alternative | 540/65R24 | 540/65R24 | 540/65R24 | 540/65R24 | 17.5LR24 | 17.5LR24 | 17.5LR24 | 17.5LR24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x | x | x |
| Autom. control of cutting height | x | x | x | x | x | x | x | x |
| Slope levelling | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
| Cutting platform lateral tilt | x | x | x | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. | autom. | autom. | autom. |
