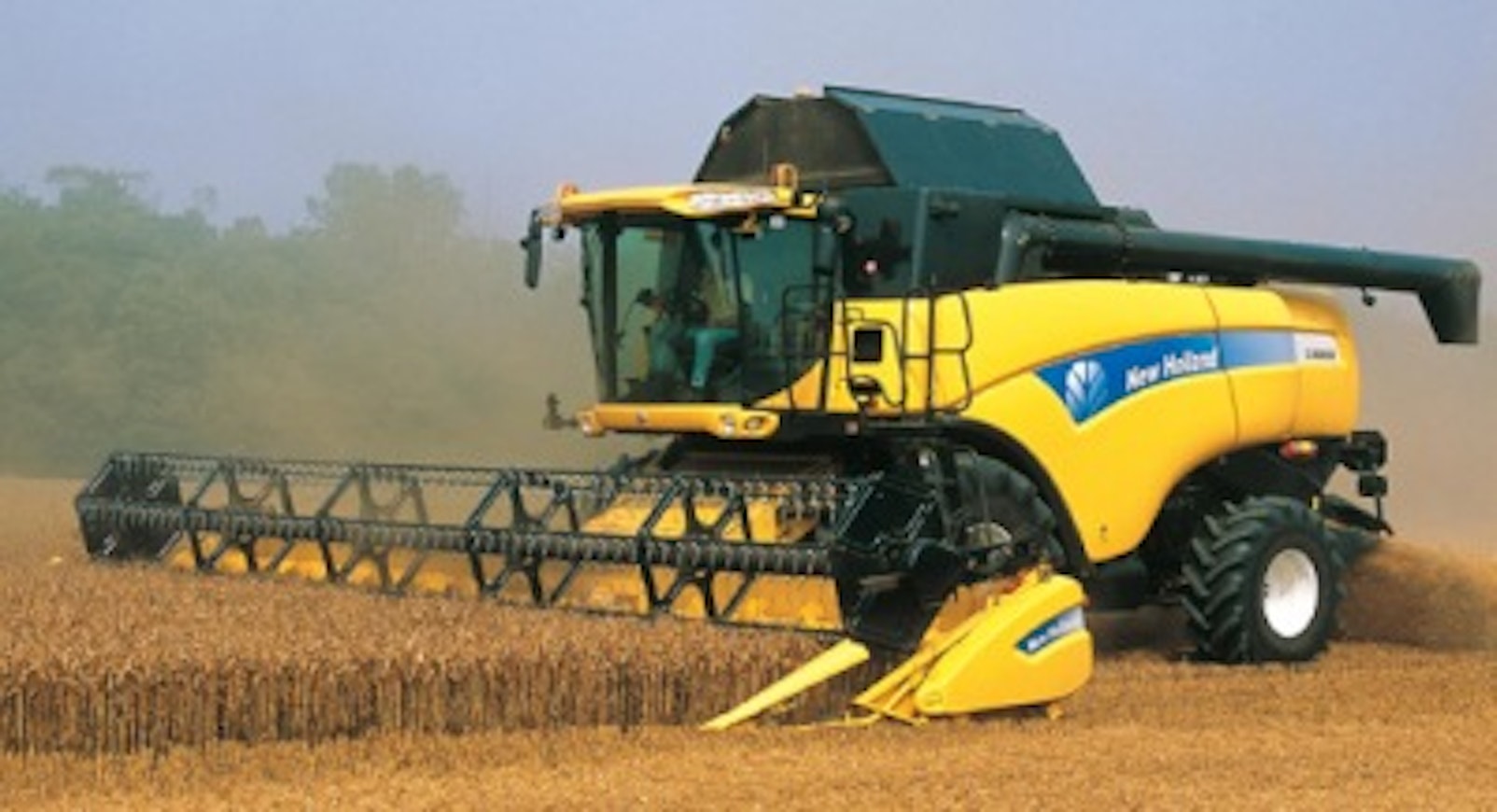

Siirry sivupalkkiinSiirry alaosaanNew Holland CX8030 – CX8090




Manufacturer
Models
CX8030, CX8040, CX8050, CX8060, CX8070, CX8080, CX8090
Years
2006-11
Info

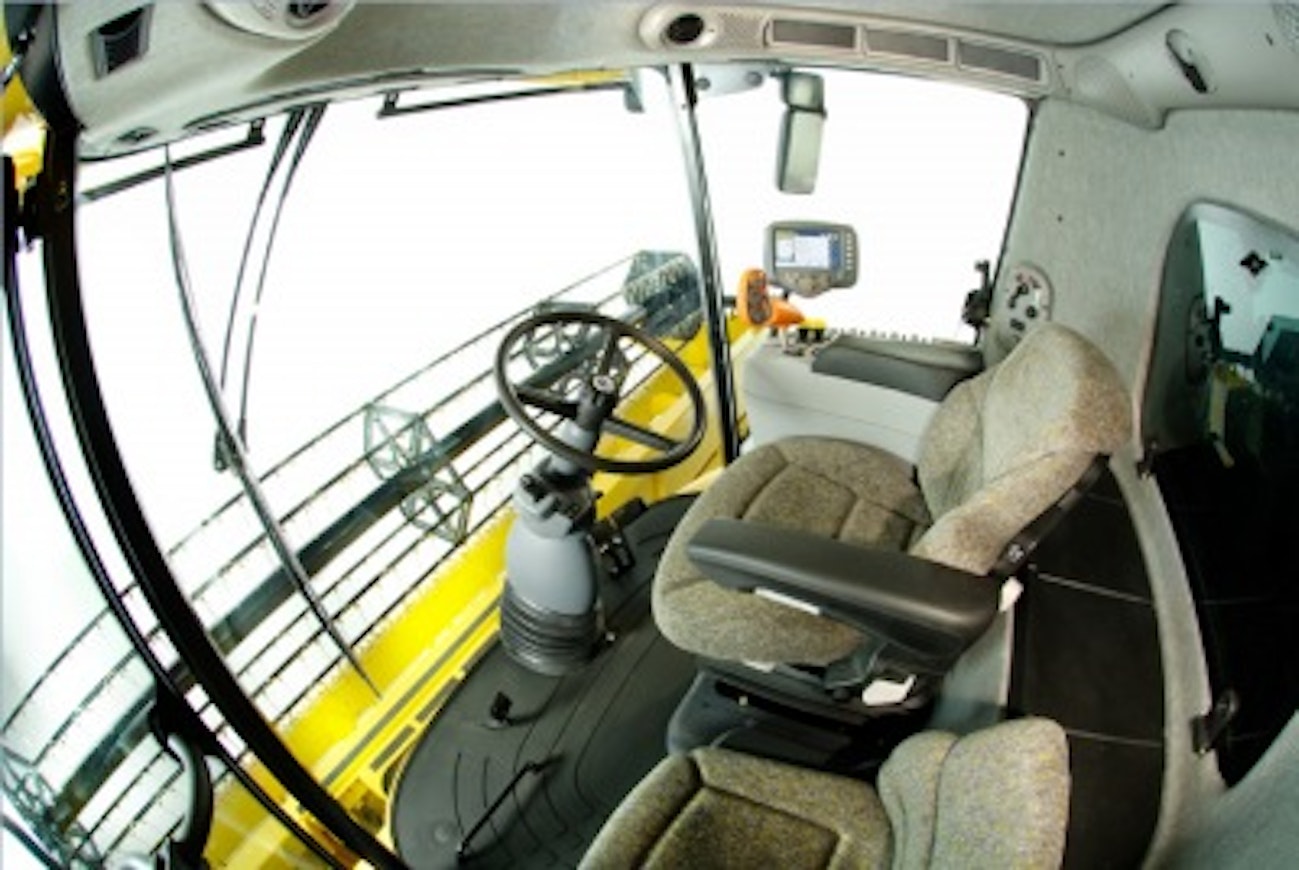

In the redesigned 2006 CX series, traditional model numbers were brought back into use. Compared with the previous CX lineup, the smallest model was dropped and the engine outputs of the remaining machines were substantially increased. The 7.5-liter British engines were replaced with state-of-the-art Iveco units. Even the base cutting header was now 6.1 meters wide, and—following the examples set by competitors—length-adjustable headers became available. GPS-based automatic steering was also introduced. All functions were controlled and monitored via the updated IntelliView II computer. The cab’s noise level was 74 dB.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | CX8030 | CX8040 | CX8050 | CX8060 | CX8070 | CX8080 | CX8090 |
|---|---|---|---|---|---|---|---|
| Imported to Finland | No | Yes | No | No | Yes | No | No |
| Years | 2006-11 | 2006-11 | 2006-11 | 2006-11 | 2006-11 | 2006-11 | 2006-11 |
| Engine | Iveco | Iveco | Iveco | Iveco | Iveco | Iveco | Iveco |
| Engine type | NEF | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 9 |
| Displacement | 6728 cm³ | 8700 cm³ | 8700 cm³ | 8700 cm³ | 8700 cm³ | 8700 cm³ | 8700 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | - | - | - | - | - | - | - |
| Fuel tank | 500 l | 750 l | 750 l | 750 l | 750 l | 1000 l | 1000 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Speed min-max. | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h |
| Cutting width | 610 cm | 610 cm | 610 cm | 610 cm | 732 cm | 732 cm | 732 cm |
| Cutting width, alternative | 610-732 cm | 610-732 cm | 610-732 cm | 610-915 cm | 610-915 cm | 610-915 cm | 610-1070 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm |
| 2. cyl. diameter | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm |
| Threshing cyl. width | 130 cm | 130 cm | 130 cm | 156 cm | 156 cm | 156 cm | 156 cm |
| Number of straw walkers | 5 | 5 | 5 | 6 | 6 | 6 | 6 |
| Area of walkers | 556 dm² | 556 dm² | 556 dm² | 668 dm² | 668 dm² | 668 dm² | 668 dm² |
| Lenght of walkers | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm |
| Straw shieve | 330 dm² | 330 dm² | 330 dm² | 395 dm² | 395 dm² | 395 dm² | 395 dm² |
| Bottom shieve | 191 dm² | 191 dm² | 191 dm² | 228 dm² | 228 dm² | 228 dm² | 228 dm² |
| Total screening area | 540 | 540 | 540 | 650 | 650 | 650 | 650 |
| Overall lenght | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm |
| Overall width | 654 cm | 654 cm | 654 cm | 654 cm | 777 cm | 777 cm | 777 cm |
| Width without header | 379 cm | 379 cm | 379 cm | 403 cm | 403 cm | 403 cm | 403 cm |
| Height with cabin | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm |
| Weight with cabin | 16000 kg | 16000 kg | 16000 kg | 17000 kg | 17000 kg | 17500 kg | 17500 kg |
| Weight without header | 12260 kg | 12450 kg | 12870 kg | 13300 kg | 13520 kg | 13700 kg | 14000 kg |
| Grain tank | 76 hl | 90 hl | 90 hl | 90 hl | 90 hl | 105 hl | 105 hl |
| Tyres front (Finland) | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 |
| Tyres front, alternative | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 |
| Tyres rear, alternative | 540/65R24 | 540/65R24 | 540/65R24 | 17.5LR24 | 17.5LR24 | 17.5LR24 | 17.5LR24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x | x |
| Autom. control of cutting height | x | x | x | x | x | x | x |
| Slope levelling | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
| Cutting platform lateral tilt | x | x | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. | autom. | autom. |
